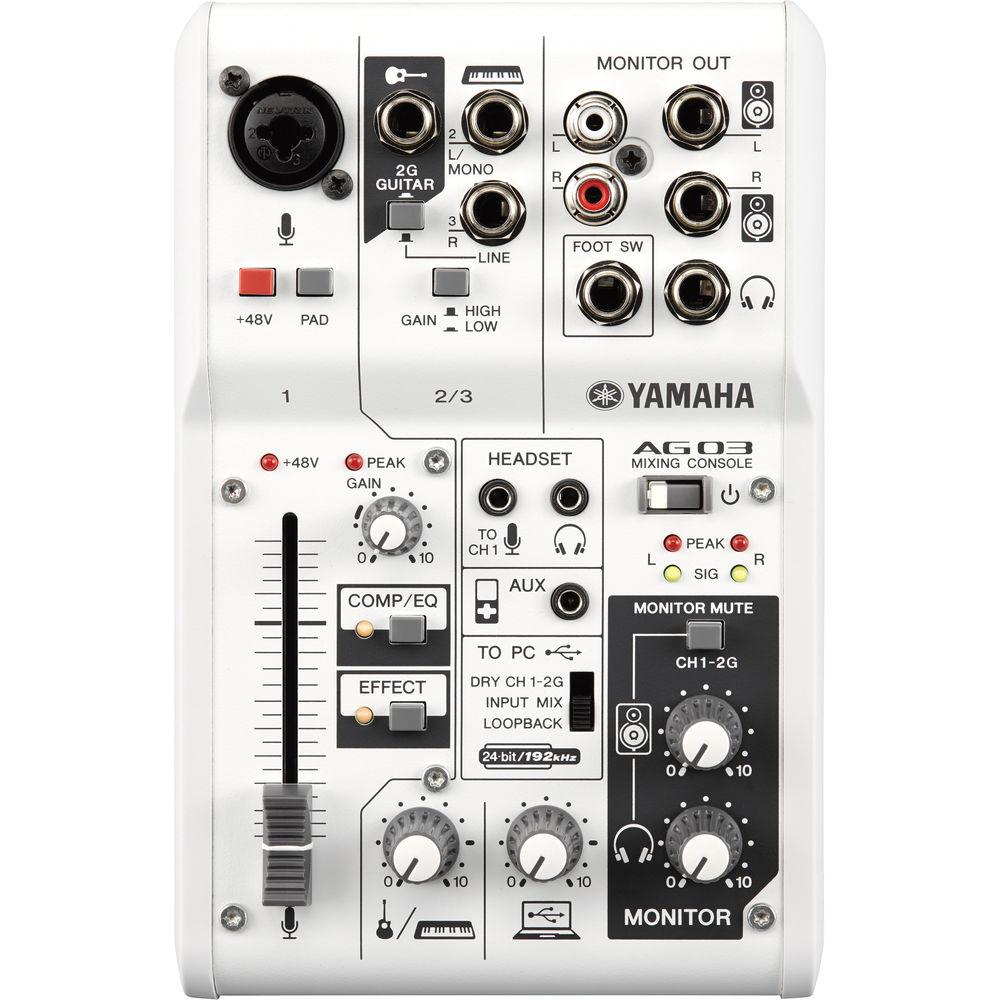

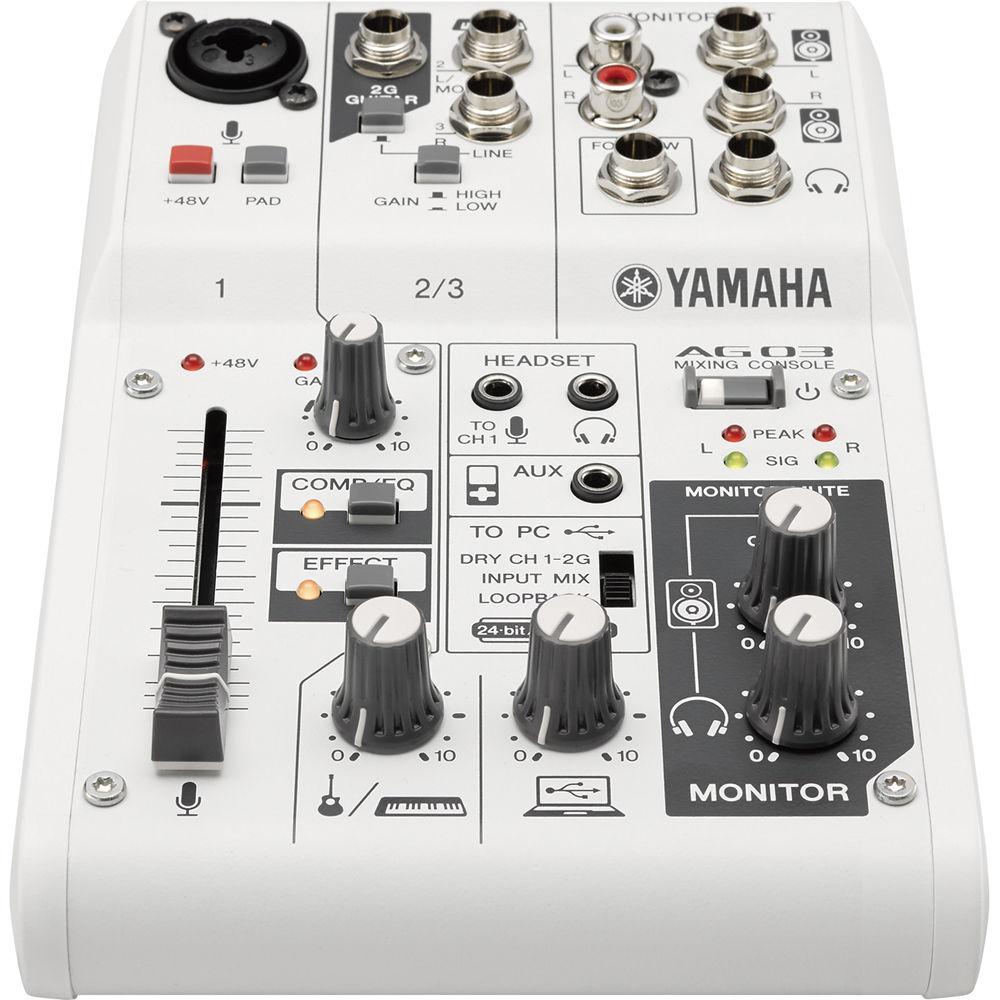

User Manual for Yamaha AG03 3-Channel Mixer & USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Yamaha AG03 3-Channel Mixer & USB
- Product category: Mixers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Mixers
 |
User manual for the Yamaha AG03 3-Channel Mixer & USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The AG03 from Yamaha is a compact 3-input mixer and USB interface with built-in DSP for sound-reinforcement and recording of small performances, podcasts, lectures and similar applications. Capable of recording and playback of high-resolution 24-bit/192 kHz sound, this mixer features one XLR/1/4" combo mic/line input, as well as stereo 1/4" line inputs with level control, and a Hi-Z switch for direct recording of guitar and bass. The mixer is compatible with Windows, Mac and iPad.
The XLR/1/4" combo mic/line input is equipped with a D-PRE mic preamp that was originally designed by Yamaha for use in their high-end recording gear. This channel features switchable 48V phantom power for use with dynamic and condenser microphones, and also features a pad switch for recording loud sound sources such as guitar amplifiers.
The AG03 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as an 1/8" aux input for monitoring portable devices and headset connectivity. - On-Board DSP
- On-board 1-TOUCH DSP adds set COMP/EQ and EFFECT to signal path. For more precise control of these settings, the multi-platform AG DSP Controller software (download) allows users to access and edit the compressor, EQ, high-pass filter, and reverb
- Perform and Broadcast Over Backing Tracks
- LOOPBACK function allows users to broadcast their musical, or non-musical content live online along with backing tracks or additional audio from PC or Mac computers or an iPad
UPC: 086792997520 In the Box Yamaha AG03 3-Channel Mixer & USB Audio Interface Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha AG03 3-Channel Mixer & USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha AG03 Specs | Phantom Power | +48 V | | Input Channels | Mono [MIC/LINE]: 1 including HEADSET MIC (Plug-in Power)
Stereo [LINE]: 1
Aux: 1 | | Output Channels | Monitor Out: 2
Phones: 2 including headset phones | | Bus | Stereo: 1 | | Pad | 26 dB | | Meter Peak Indication | LED turns on when the signal reaches 3 dB below clipping level | | DSP | CH1: COMP / EQ, EFFECT (SPX Reverb) | | Level Metering | USB Output Level; 2 x 2 point LED meter [PEAK, SIG] | | USB Audio | 2 in / 2 out, USB Audio Class 2.0 compliant
Sampling Frequency: Max 192 kHz
Bit Depth: 24-bit | | Power Requirements | DC 5 V, 500 mA | | Power Consumption | Max. 2.5 W | | System Requirements | Windows 7 or later / Mac OS X 10.7 or later (Now compatible with Mac OS 10.12 Sierra) | | Options | Footswitch: FC5
Mic Stand Adapter: BMS-10A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.1 x 2.5 x 8.0" (129 x 63 x 202 mm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 10.1 x 8.3 x 4.6" |
