User Manual for Yamaha Arius YDP-S52 88-Weighted Key Digital Console Piano Click to enlarge the picture
Contents of the user manual for the Yamaha Arius YDP-S52 88-Weighted Key Digital
- Product category: Digital Pianos Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Digital Pianos
 |
User manual for the Yamaha Arius YDP-S52 88-Weighted Key Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

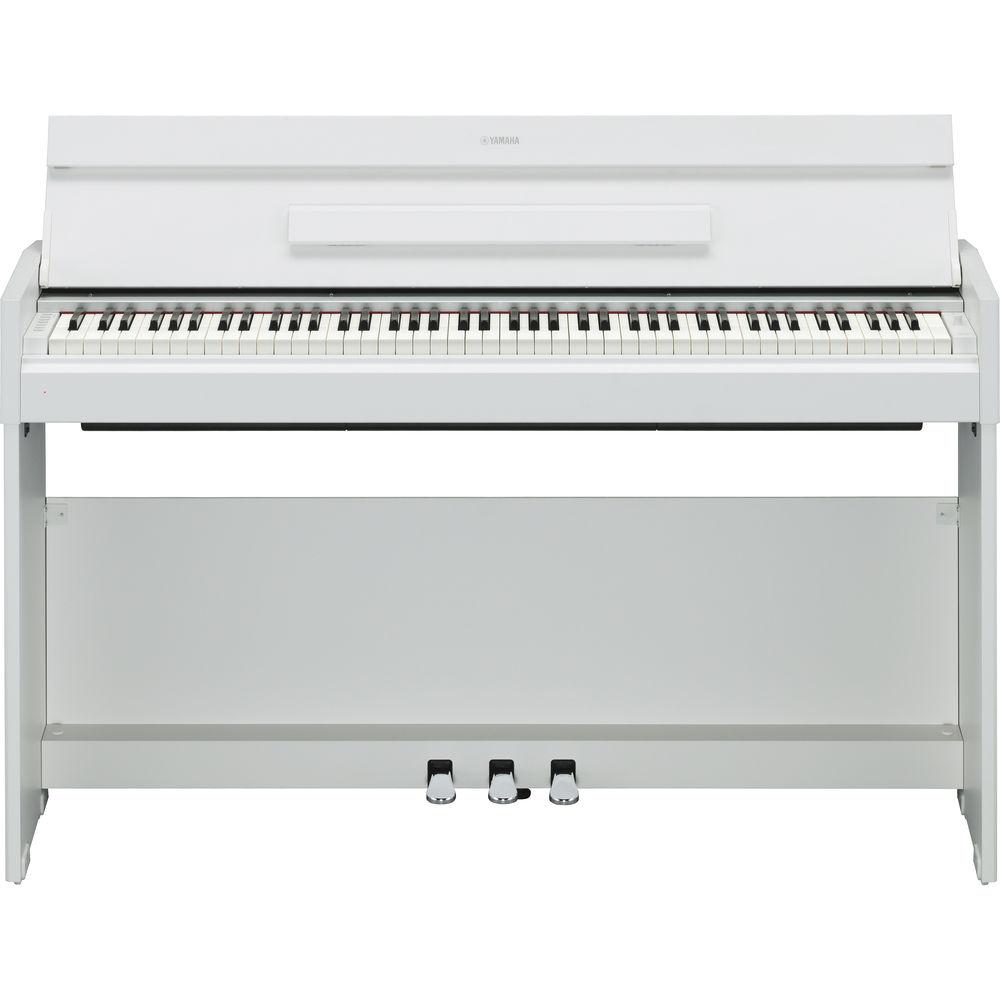

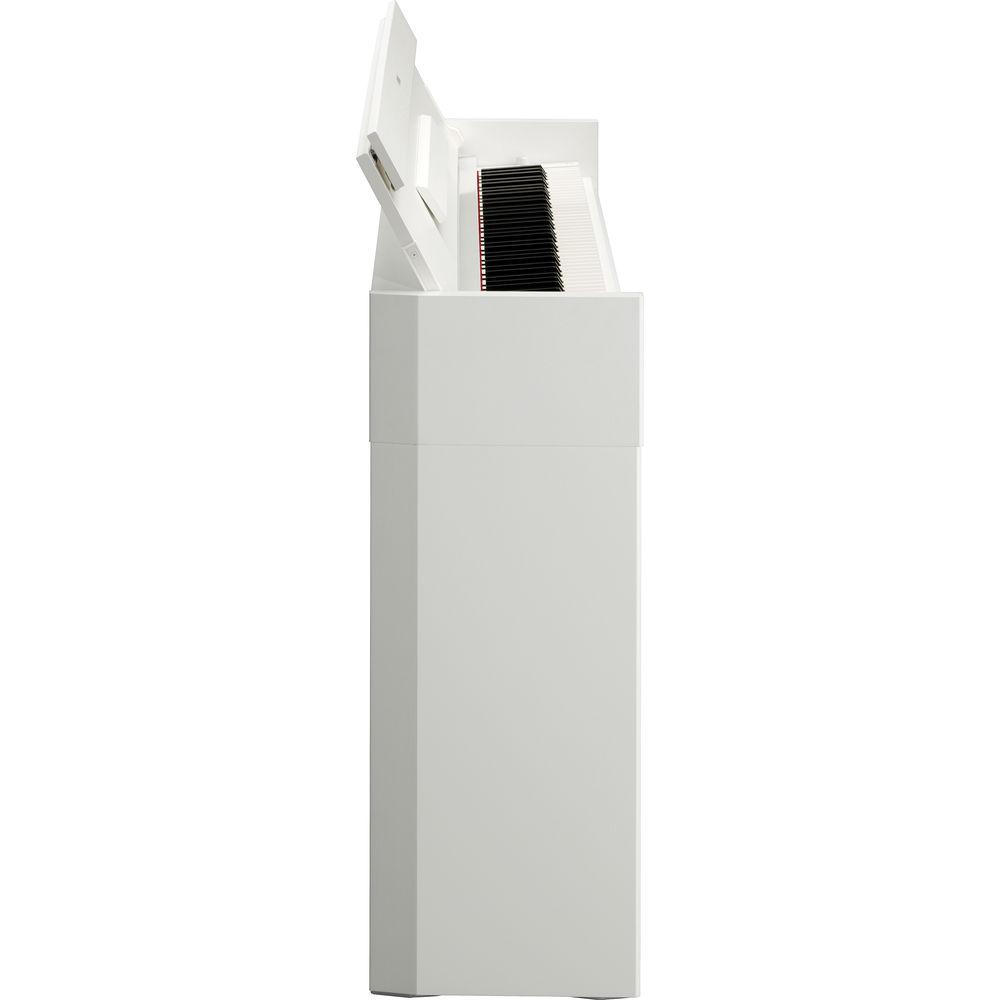

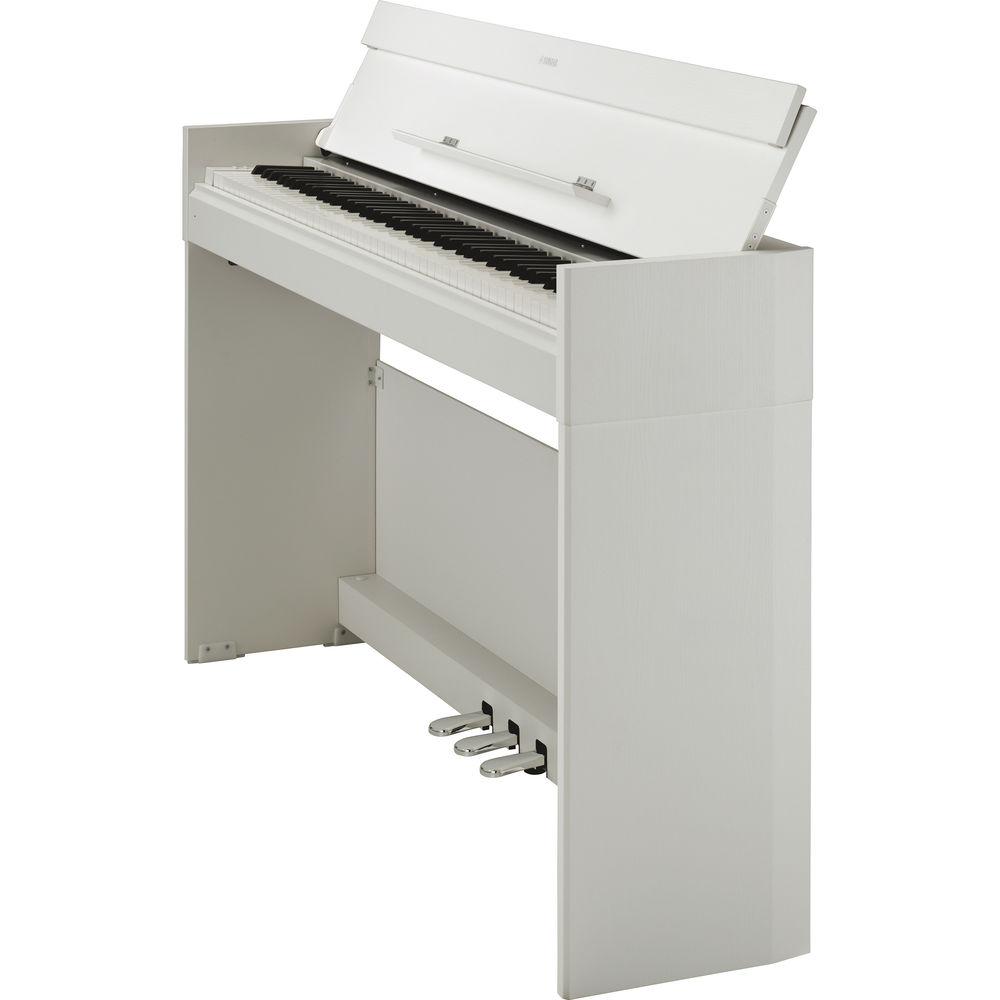

Product description The white Arius YDP-S52 from Yamaha is a digital console piano featuring an 88-note graded hammer keyboard with synthetic ivory keytops, touch sensitivity, ten preset voices, and 192-note polyphony. It can be used for the home or playing during lessons. The YDP-S52 is equipped with the PureCF sound engine. The piano sound was recorded from a Yamahas CFIIIS concert grand piano, and it offers an authentic performance experience, allowing for rich, natural reverberation even during complex passages with flurries of notes and extensive use of the pedal. In addition, the YDP-S52 is built with four reverberation presets such as recital hall, concert hall, chamber, and club, so you can enjoy the ambience of concert halls, recital halls, live gigs in jazz clubs, and more. There is a stereophonic optimizer that adjusts the sound when you're listening with headphones, giving you the feeling that you're hearing the piano without headphones on. Finally, there is a free "Digital Piano Controller" app that allows you to control the many functions included in compatible Yamaha digital pianos with your iPhone or iPad. Change voices, reverb, and other settings while looking at the screen. You can even save your favorite settings for quick recall at any time. - Graded Hammer Keyboard
- Enjoy authentic grand piano touch with the feel of this synthetic ivory keyboard. The keys absorb moisture from your fingers while you play to prevent slipping and keep you comfortable
- PureCF Sound Engine
- The piano sound was recorded from Yamaha's CFIIIS concert grand piano, heard on stages all over the world
- Intelligent Acoustic Control (IAC)
- The YDSP-S52 is equipped with Intelligent Acoustic Control (IAC), which adjusts the sound automatically, allowing players to enjoy balanced sound at any volume level
- Acoustic Optimizer
- The body of the YDP-S52 contains acoustic optimizers that physically regulate the flow of sound and control tone. A technology developed from Yamaha's knowledge of the acoustic properties of musical instruments, Acoustic Optimizers deliver a natural, smooth sound across the entire keyboard
- Digital Piano Controller App
- The Digital Piano Controller app allows you to control the many functions included in compatible Yamaha digital pianos with your iPhone or iPad, for even easier operation. Voices, reverb, and other settings can be selected while looking at the screen, making it easy to enjoy new functions with ease. You can also save your favorite settings for quick recall at any time
- Metronome
- The built-in metronome allows you to practice with tempo ranging from 5 to 280 BPM
UPC: 086792996851 In the Box Yamaha Arius YDP-S52 88-Weighted Key Digital Console Piano (White) Song Book PA-300C AC Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha Arius YDP-S52 88-Weighted Key Digital Console Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha YDP-S52 Specs | | | Keyboard | Number of Keys: 88
Type: Graded hammer (GH) keyboard with synthetic ivory keytops
Touch Sensitivity: Hard/Medium/Soft/Fixed | | Pedals | Number of Pedals: 3
Half Pedal: Yes
Functions: Damper/Sostenuto/Soft | | Panel | Language: English | | | | Key Cover Style | Folding | | Music Rest | Yes | | | | Tone Generating Technology | PureCF sound engine | | Polyphony | 192 max | | Number of Voices | 10 | | | | Effect Types | Reverb: Yes (four types)
Intelligent Acoustic Control (IAC)
Stereophonic Optimizer
Damper Resonance | | Functions | Dual/Layers: Yes
Duo: Yes | | | | Number of Preset Songs | 10 demo songs, 50 piano preset songs | | Recording | Number of Songs: 1
Number of Tracks: 2
Data Capacity: 100 KB per song (approx. 11,000 notes) | | Compatible Data Format | Playback: SMF (format 0, format 1)
Recording: SMF (format 0) | | | | Overall Controls | Metronome: Yes
Tempo Range: 5 - 280
Transpose: -6 to 0.0 to +6
Tuning: 414.8 to 440.0 to 466.8 Hz | | | | Storage | Internal Memory: Total maximum size approx. 900 KB
User song: One song approx. 100 KB
Loading Song Data from a computer: Up to 10 songs | | Connectivity | Headphones: 2x standard 1/4" (6.3 mm) stereo phone jack
USB to Host: Yes | | | | Amplifiers | 2x 20 W | | Speakers | 2x Oval: 4.7 x 2.4" (12 x 6 cm)
Acoustic Optimizer: Yes | | | | Type | PA-300C or an equivalent recommended by Yamaha
Auto Power Off: Yes
Power Consumption: 14 W (when using PA-300C AC adapter) | | | | Dimensions (W x H x D) | 53.3 x 31.2 x 12.2" (135 x 79 x 31 cm)
With Key Cover Open: 53.3 x 38.6 x 12.6" (135 x 98 x 32 cm) | | Weight | 83 lb (37.8 kg) | | | | Package Weight | 109.0 lb | | Box Dimensions (LxWxH) | 56.0 x 20.0 x 17.0" |
