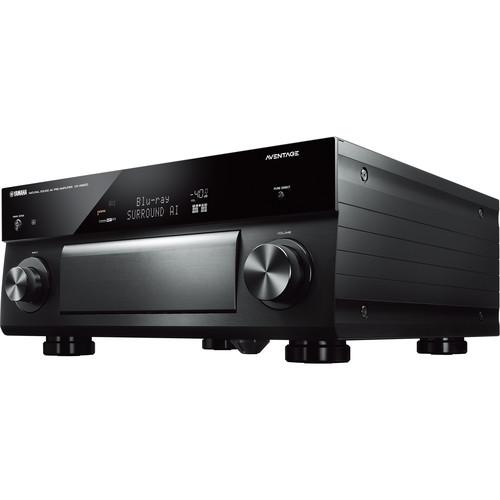

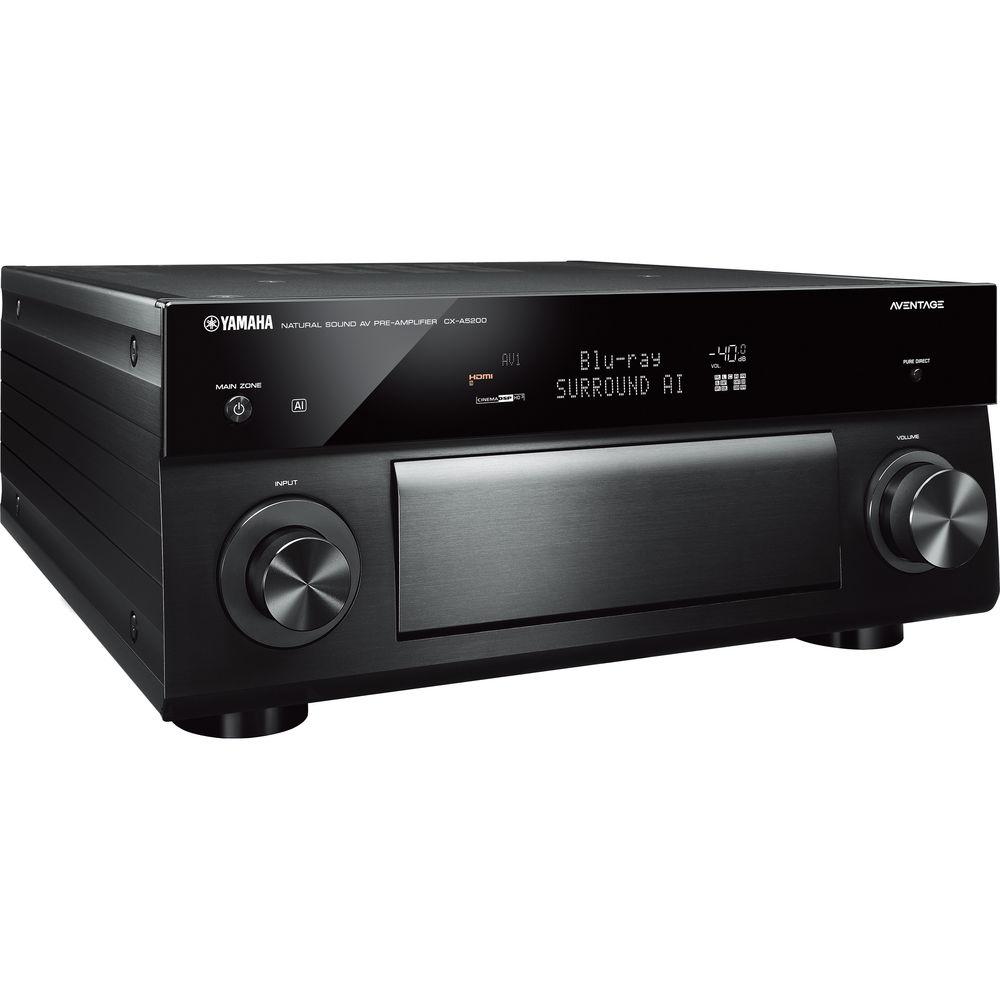

User Manual for Yamaha AVENTAGE CX-A5200 11.2-Channel MusicCast Preamplifier Click to enlarge the picture
Contents of the user manual for the Yamaha AVENTAGE CX-A5200 11.2-Channel MusicCast Preamplifier
- Product category: Amplifiers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Amplifiers
 |
User manual for the Yamaha AVENTAGE CX-A5200 11.2-Channel MusicCast Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Enjoy streaming audio and immersive multi-channel sound with your amplifier and the Yamaha AVENTAGE CX-A5200 11.2-Channel MusicCast Preamplifier. It sports an 11.2-channel XLR pre-out and features Dolby Atmos and DTS:X compatibility for object-based audio decoding. Built-in Bluetooth and AirPlay support allows the preamplifier to wirelessly stream music from compatible sources, such as smartphones and tablets.
Onboard Wi-Fi and Ethernet connectivity allows the AVENTAGE CX-A5200 to access music from your connected computer or NAS. Amazon Alexa compatibility enables you to control certain functions of the preamplifier with just your voice through your Alexa-enabled devices. With seven HDMI inputs and three outputs, the CX-A5200 can act as a video switcher for your HD source components. It will pass through HDR UHD 4K signals as well as HDR10, Dolby Vision, and HLG HDR formats. The preamplifier also has a USB port for accessing media stored on USB flash drives. Note: Access to certain Internet-based content may require a subscription to a service. - Surround:AI
- This AI technology built into the DSP analyzes the scene of your content and creates a surround effect to help reproduce it with augmented realism. In real time, this AI analyzes scenes by focusing on distinct sound elements, such as dialogue, background music, ambient sounds, and sound effects, and automatically enhances the surround effect to help provide greater realism.
- Dolby Atmos & DTS:X
- These object-based sound technologies are designed to create realistic surround sound, positioning and moving individual sounds to nearly any virtual point in your room, including overhead.
- CINEMA DSP HD3
- In addition to Dolby Atmos, DTS:X, and conventional channel-based audio, a 3D space can be simulated in which separate acoustic elements can move freely, providing a sensation of the motion of sound effects above your head. CINEMA DSP HD3 uses signal processing algorithms to help heighten this sense of realism.
- YPAO-RSC (Reflected Sound Control)
- YPAO-RSC analyzes the room acoustics with the included microphone to tune your system for optimal sound in your room. It uses RSC to correct early reflections for enhanced sound. YPAO 3D is designed to provide automatic sound parameter optimization that maximizes the 3D sound field of CINEMA DSP HD3 as well as Dolby Atmos and DTS:X, and with 64-bit EQ calculations, this technology helps produce natural room acoustics.
- Dual ESS SABRE PRO Premier (ES9026 PRO) DACs
- Incorporating two ESS SABRE PRO Premier (ES9026 PRO) DACs helps further enhance the signal-to-noise ratio and achieve up to 32-bit performance.

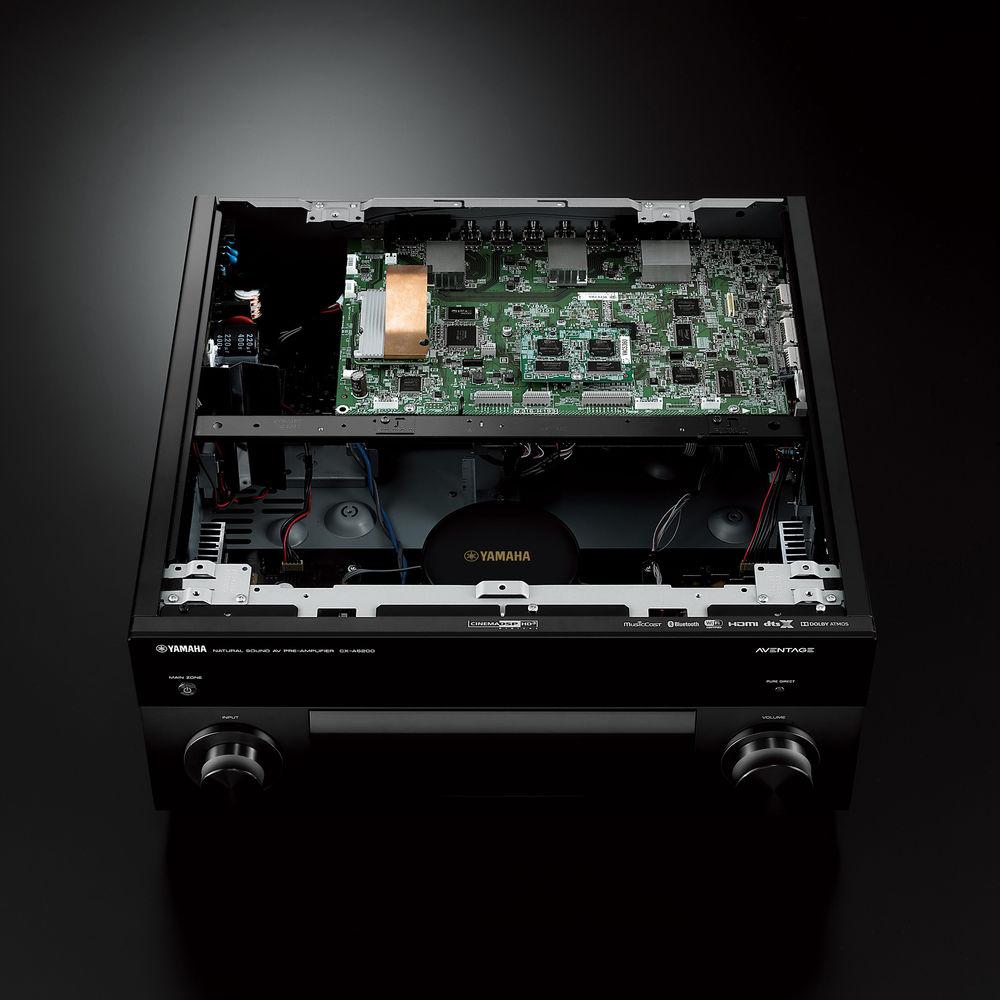

- Large Power Transformer with Vibration Dampening Plate
- The CX-A5200 features a large power transformer to help maximize performance and precision. Deep, powerful sound is achieved with enhanced regulation of power, while a thick brass plate helps dampen unwanted vibrations.
- Thick Bottom Plate
- Stabilizing the chassis is the key to enhanced performance and sound. The CX-A5200 achieves this by employing a thick bottom plate, which acts to steady and immobilize the entire structure and achieve optimal sound.
- Balanced Connections and XLR Terminals
- Electrical noise is an inherent issue with cabling due to connection with other A/V components, the connections between them, and from other sources of external noise. To ensure that the CX-A5200 is not affected by such distortion, it uses balanced, noise-resistant terminals. Even the RCA unbalanced connections use a ground-sensing transmission method that achieves simple balanced transmission. Further, the XLR terminals allow for the use of long cables. The CX-A5200 also allows a balanced audio input connection from audiophile-grade source components such as CD players.
- Built-In Streaming Services
- With built-in music streaming services and connectivity options, you can enjoy all your content, including Internet radio stations and music from your compatible smart devices with the CX-A5200.
- Voice Control with Amazon Alexa and MusicCast
- With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device to control either the amplifier by itself or multiple MusicCast devices throughout your home.
- Bluetooth and AirPlay Compatibility
- The CX-A5200 features Bluetooth connectivity for simple, convenient wireless msuic streaming from your compatible smart devices, including smartphones, tablets, and laptops. iTunes and iOS users can use AirPlay to wirelessly stream audio seamlessly from compatible devices.
- MusicCast for Whole-Home Music
- MusicCast makes it easy to share audio throughout the home using your Wi-Fi network. The CX-A5200 is designed to work seamlessly with other MusicCast products, including multi-room streaming amplifiers, soundbars, wireless speakers, and hi-fi gear, and they're all controllable from the MusicCast app or from a third-party control system such as Control4, RTI, or ELAN.
- Additional Features
-
- 34 Cinema DSP programs
- Dialogue level adjustment
- Virtual presence speaker & virtual surround back speaker
- Dialogue lift (no presence speakers required)
- Virtual CINEMA FRONT
- Pure Direct (with video on mode)
- Compressed music enhancer
- High-resolution music enhancer
- YPAO Volume
- Adaptive DRC (Dynamic Range Control)
- Initial volume and maximum volume setting
- A.R.T. Wedge
- 0 to 500 ms audio delay
- Analog to HDMI & HDMI to HDMI upscaling
- Video adjustment
- Deep Color, x.v.Color, 24 Hz refresh rate, and auto lip-sync support
- HDR10, Dolby Vision, HLG, and BT.2020 support
- HDMI CEC (SCENE, device control)
- Graphical user interface
- Eight SCENE PLUS sets
- App control (iOS/Android)
- Web browser control
- Full LED-backlit remote control
- Zone GUI
- Party Mode
- Auto Power Standby
- ECO Mode
UPC: 027108956794 In the Box Yamaha AVENTAGE CX-A5200 11.2-Channel MusicCast Preamplifier Remote Control 2 x AAA Batteries YPAO Microphone AM Antenna FM Antenna Microphone Base Pole Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha AVENTAGE CX-A5200 11.2-Channel MusicCast Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CX-A5200BL Specs | | | Bluetooth | Version: 4.2
Supported Profiles: A2DP, AVRCP
Supported Codecs: SBC, AAC
Class: Class 2

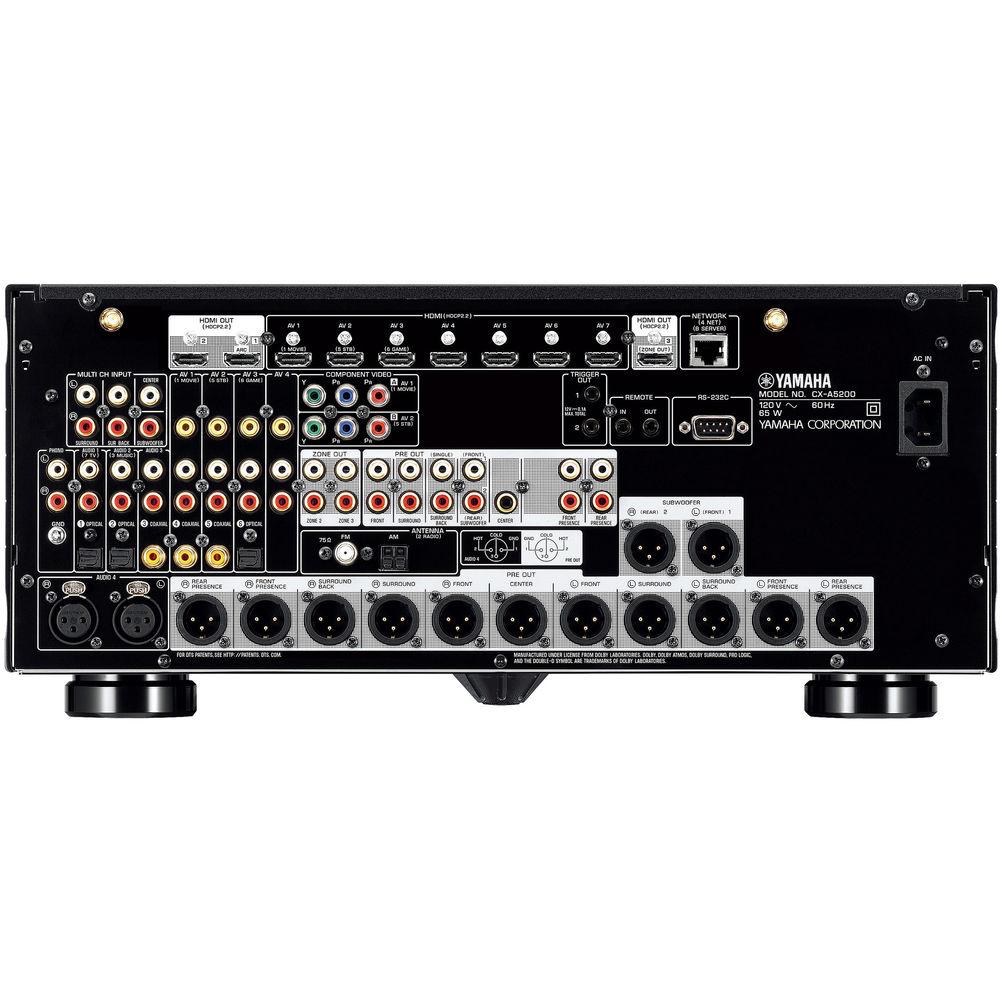

Range: 33' / 10 m | | AirPlay | Yes | | Wi-Fi | Yes, dual-band (2.4/5 GHz) | | Supported File Types | MP3, WMA, WAV, MPEG-4 AAC up to 48 kHz / 16-bit, ALAC up to 96 kHz / 24-bit, FLAC up to 384 kHz / 24-bit, AIFF up to 384 kHz / 32-bit, up to 11.2 MHz | | Inputs | 7 x HDMI
2 x RCA component video
4 x RCA composite video
3 x optical TOSLINK
3 x digital coaxial
1 x 2-channel XLR
8 x stereo RCA (1 front)
1 x stereo RCA phono with ground screw
1 x 5.1-channel RCA
1 x USB (front) | | Outputs | 3 x HDMI
1 x 11.2-channel XLR pre-out
1 x 11.2-channel RCA pre-out
2 x stereo RCA pre-outs (Zone 2/3)
1 x 1/4" / 6.35 mm headphone (front) | | Other Ports | 1 x RJ45 Ethernet LAN
2 x 1/8" / 3.5 mm trigger out
1 x 1/8" / 3.5 mm remote in
1 x 1/8" / 3.5 mm remote out
1 x RS-232C
2 x wireless antennas
1 x FM antenna in
1 x AM antenna in
1 x 1/8" / 3.5 mm YPAO mic in (front) | | | | Audio Formats | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS:X, DTS-HD Master Audio | | D/A Converter | 2 x ESS 384 kHz / 32-bit SABRE PRO Premier DAC ES9026PRO for all channels | | | | HDR Support | HDR10, Dolby Vision, HLG pass-through | | HDCP Version | 2.2 | | Upscaling | Up to 4K/60p, 4:4:4, analog to HDMI, HDMI to HDMI | | | | Power Requirements | 120 VAC, 60 Hz | | Standby Power Consumption | ≤0.1 W | | Dimensions (W x H x D) | With Antenna Down: 17.13 x 7.5 x 18.63 / 43.5 x 19.05 x 47.31 cm
With Antenna Up: 17.13 x 10.63 x 18.63 / 43.5 x 26.99 x 47.31 cm | | Weight | 33.5 lb / 15.2 kg | | | | Package Weight | 40.15 lb | | Box Dimensions (LxWxH) | 21.75 x 21.5 x 11.5" |
