User Manual for Yamaha AVENTAGE RX-A680 7.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Yamaha AVENTAGE RX-A680 7.2-Channel Network A
- Product category: Receivers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Receivers
|
User manual for the Yamaha AVENTAGE RX-A680 7.2-Channel Network A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

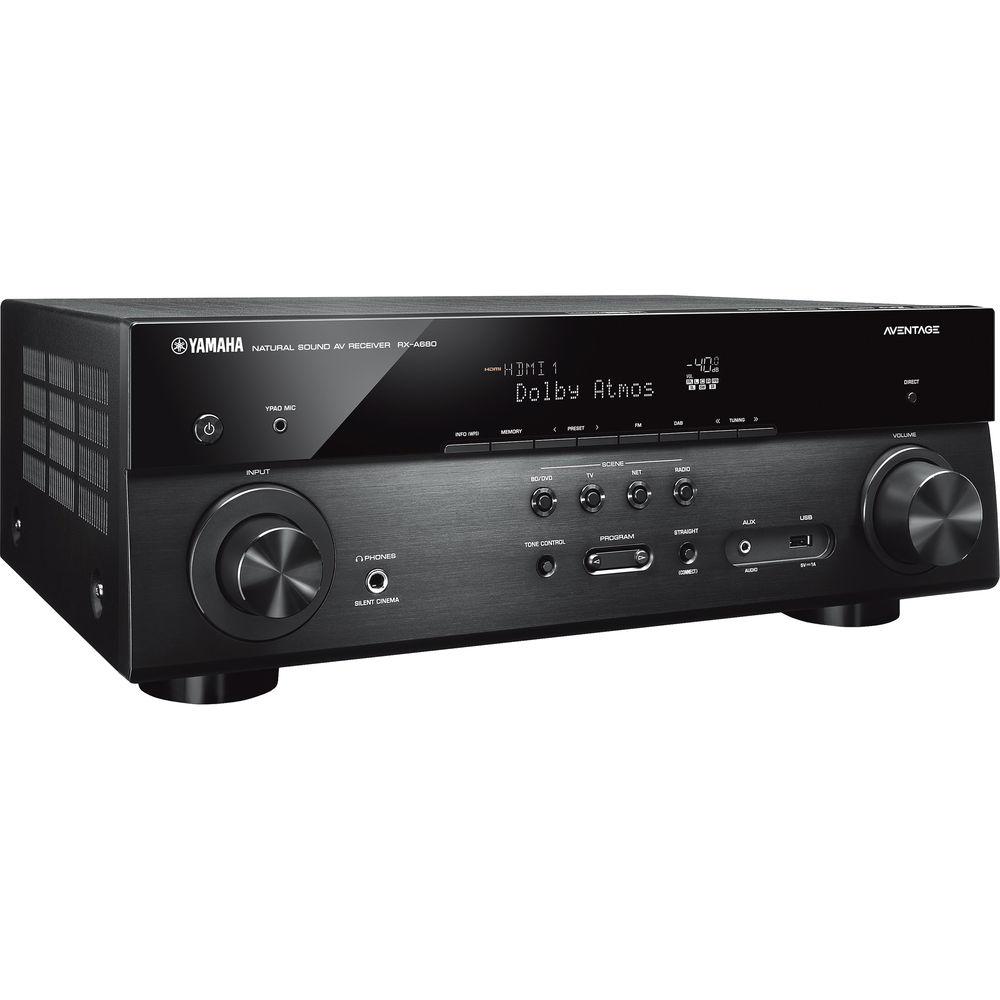

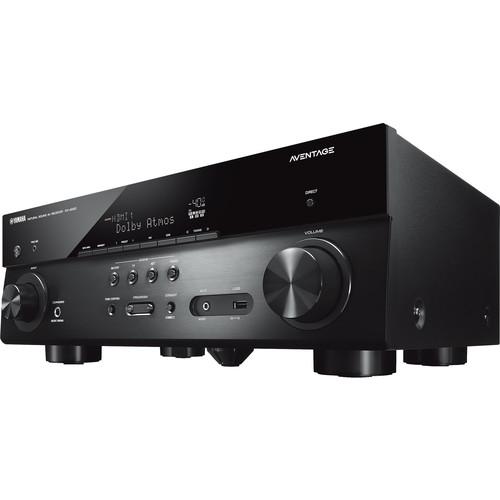

Product description Enjoy immersive multi-channel sound with the Yamaha AVENTAGE RX-A680 7.2-Channel Network A/V Receiver. It delivers up to 80W of power per channel at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer helps to deliver optimized sound quality.
Onboard Wi-Fi and Ethernet connectivity allows the AVENTAGE RX-A680 to access music from your connected computer or NAS. Amazon Alexa compatibility enables you to control certain functions of the receiver with just your voice through your Alexa-enabled devices. With four HDMI inputs and one output, this receiver can act as a video switcher for your HD source components. It will pass through HDR UHD 4K signals and will upscale non-UHD signals to near-4K quality for enhanced viewing of lower-resolution sources when paired with a UHD display. The receiver also has a USB port for accessing media stored on USB flash drives. YPAO sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience. Note: Access to certain Internet-based content may require a subscription to a service. - Total Purity Concept
- The Total Purity Concept is designed to encompass high-drive amp technology, high-purity preamplification, anti-vibration technology, and independent, pure power supplies. The receiver has fully discrete power amplifiers that help minimize distortion and adopts pure independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure.
- Anti-Resonance Technology
- The Anti-Resonance Technology Wedge is a fifth foot in the center of the receiver. It is engineered to dampen vibrations from the power transformer, power transistors, and heat sinks, as well as vibrations that might be caused by the sound from the speakers.
- Foundational Design
- The feet of the receiver feature a high-density structure that utilizes both straight and curved ribs to enhance strength and damping performance. This is designed to enhance installation stability and disperse chassis resonance, effectively eliminating external vibration. This helps to enhance low-range response, reduce resonance peaks in the mid- and high-range, and provide dynamic sound and accurate reproduction.
- Aluminum Front Panel
- The AVENTAGE RX-A680 features an aluminum front panel to help shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors, and the like. This helps ensure optimum sonic performance in a variety of installation environments.
- HDR & UHD Support Over HDMI
- This receiver can pass-through UHD video at 60 frames per second, as well as the HDR10, Dolby Vision, and HLG HDR formats for enhanced contrast and colors.
- Wi-Fi, Bluetooth, and AirPlay Compatibility
- Built-in Wi-Fi allows you to connect the receiver to your wireless router, simplifying system connections for music streaming or enjoying networked audio from your computer or NAS. Bluetooth connectivity is also onboard, allowing you to stream audio from your compatible device into the receiver, or out from the receiver to another Bluetooth device, such as a pair of headphones.
- Dolby Atmos & DTS:X
- These object-based sound technologies are designed to create realistic surround sound, positioning and moving individual sounds to nearly any virtual point in your room, including overhead.
- YPAO Sound Calibration
- YPAO (Yamaha Parametric Room Acoustic Optimizer) analyzes the room acoustics and your system, then adjusts various audio parameters in the receiver to provide enhanced sound for your room. By placing the included microphone at your listening position and turning YPAO on, the system will automatically start the tuning setup process for augmented performance in your home.
- Control via the MusicCast App
- The free MusicCast app puts control of the receiver into the palm of your hand. Access your sources and streaming services, adjust volume and sound settings, and link with other MusicCast devices for simultaneous playback throughout your home.
- Voice Control with Amazon Alexa and MusicCast
- With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device, such as your Echo or Echo Dot, to control either the receiver by itself or multiple MusicCast devices throughout your home.
- Built-In Streaming Services
- Explore a world of music with built-in streaming services. Syncing your playlists and likes from your smart device to the receiver and discovering new music becomes even easier with the receiver.
- Zone B Second-Room Sound
- Zone B output capability allows the receiver to send stereo sound to a second zone, while leaving the main zone with a 5-channel output. The same source will play in both zones – Zone B always mirrors the audio output in the Main Zone.
- Phono Input
- Enjoy music from your vinyl collection with your turntable through the dedicated phono input.
- Wireless Surround Speakers with Optional Equipment
- Combine the receiver with optional MusicCast wireless speakers and enjoy the convenience of a home theater with wireless surround speakers in a 5.1-channel setup.
- MusicCast for Whole-Home Music
- Start with the AVENTAGE RX-A680 receiver in your home theater and expand to other rooms over time with optional MusicCast speakers, soundbars, or hi-fi gear. Stream your music and TV audio throughout the house over your existing Wi-Fi network.
- Additional Features
-
- 3D Cinema DSP with 17 programs
- Dialogue level adjustment
- Virtual presence speaker & virtual surround back speaker
- Dialogue lift
- Virtual CINEMA FRONT
- Compressed Music Enhancer (including for Bluetooth)
- Adaptive DRC (Dynamic Range Control)
- Initial volume and maximum volume setting
- Bi-amp capability
- 0 to 500 ms audio delay
- Four Burr-Brown 384 kHz / 32-bit DACs
- UHD upscaling from 1080p HDMI sources
- Deep Color, x.v.Color, 24 Hz refresh rate, and auto lip-sync support
- Color on-screen display
- Four SCENE buttons
- eARC support via future firmware update

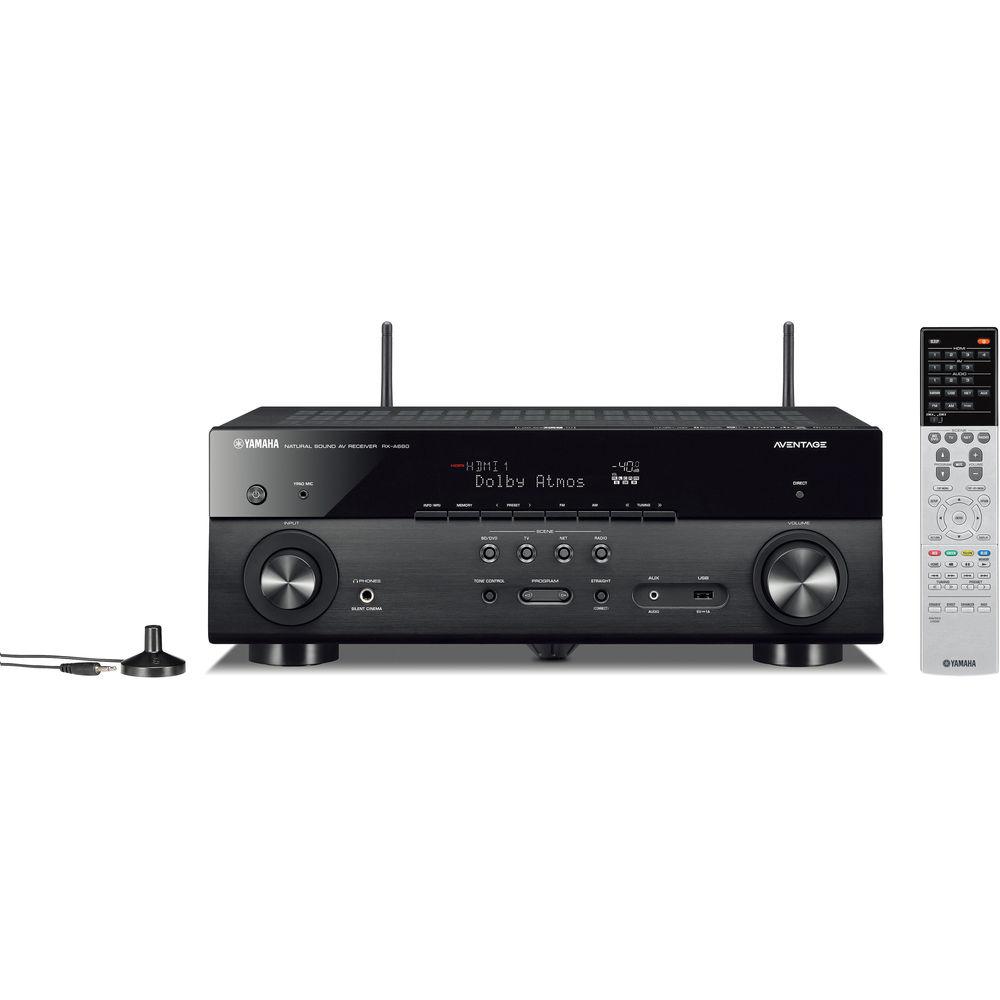

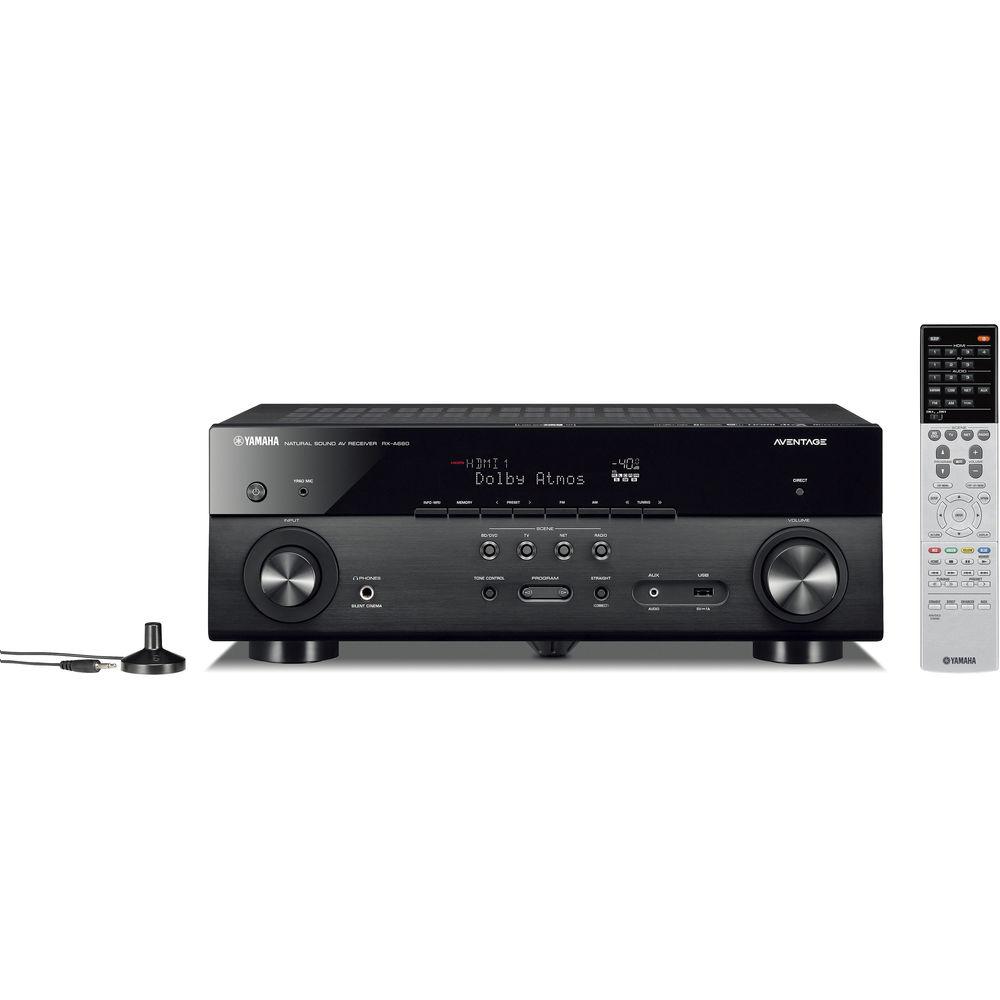

UPC: 027108956534 In the Box Yamaha AVENTAGE RX-A680 7.2-Channel Network A/V Receiver Remote Control YPAO Setup Microphone Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha AVENTAGE RX-A680 7.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

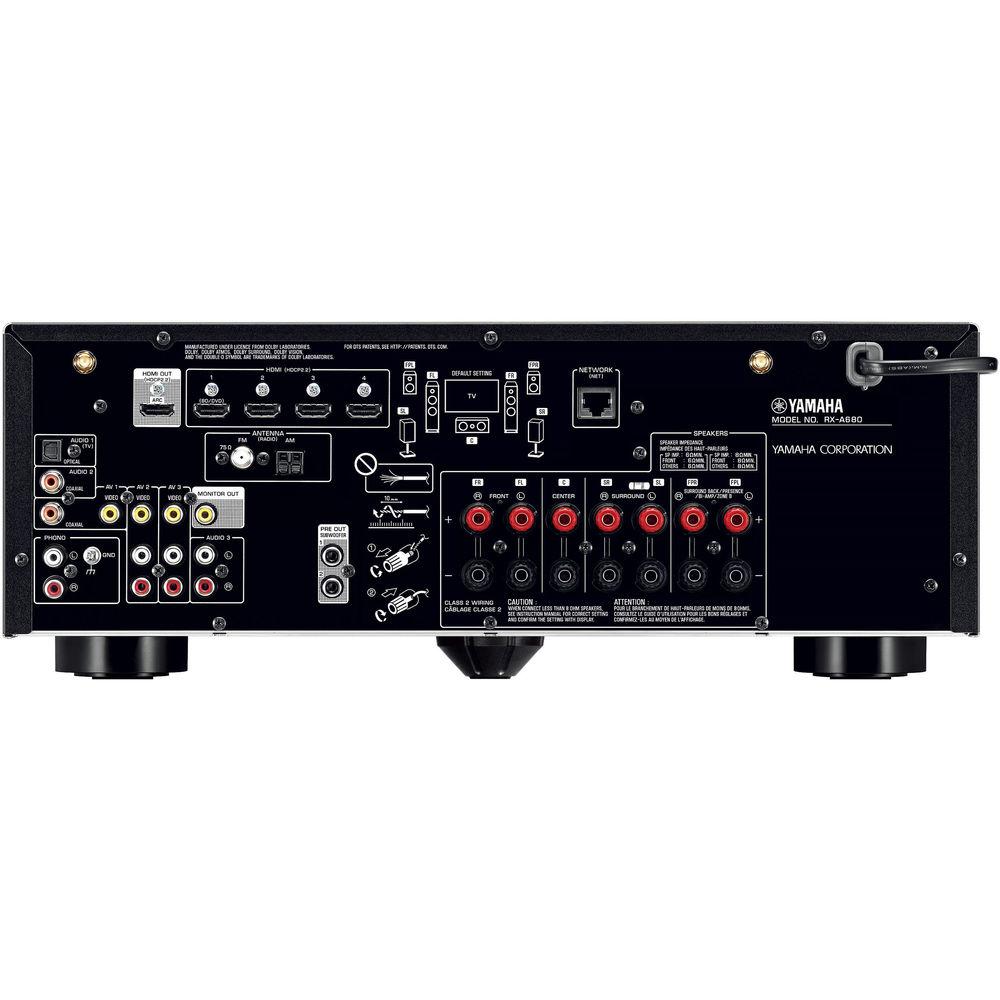

Technical parametersYamaha RX-A680 Specs | Output Power | 80 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.09% THD, 2 channels driven 115 W per channel @ 8 Ohms, 1 kHz, 0.9% THD, 1 channel driven 145 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven (JEITA) | Dynamic Power per Channel | 120 W @ 8 Ohms (front L/R) 140 W @ 6 Ohms (front L/R) 170 W @ 4 Ohms (front L/R) 190 W @ 2 Ohms (front L/R) | Channels | 7.2 | Object-Based Audio Support | Dolby Atmos, DTS:X | Audio Decoding | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS-HD Master Audio | | Pass-Through | 4K/60p (4:4:4), HDR, and BT.2020 | HDCP Version | HDCP 2.2 on all ports | | Bluetooth | Yes (SBC / AAC) | Wi-Fi | Yes, dual-band (2.4 / 5 GHz) | AirPlay | Yes | Tuner | AM / FM | Inputs | 4 x HDMI 1 x optical TOSLINK 2 x digital coaxial 3 x RCA composite video 3 x stereo RCA audio 1 x stereo RCA audio (phono, with ground screw) 1 x 1/8" / 3.5 mm analog audio (front) | Outputs | 1 x HDMI 1 x composite video 2 x subwoofer pre-out 1 x 1/4" / 6.35 mm headphone (front) | Other Connectors | 1 x FM tuner antenna 1 x AM tuner antenna 1 x USB (front) 2 x wireless antennas 1 x Ethernet LAN 1 x 1/8" / 3.5 mm calibration mic (front) | Speaker Connectors | 7 x binding post pairs | HDMI CEC | Yes | Audio Return Channel (ARC) | Yes | USB Formats | MP3, WMA, MPEG-4 AAC (up to 48 kHz / 16-bit), ALAC (up to 96 kHz / 24-bit), FLAC (up to 192 kHz / 24-bit), WAV, AIFF (up to 192 kHz / 32-bit), DSD(up to 11.2 MHz) | | Power Requirements | Not specified by manufacturer | Standby Power Consumption | IR Only: ≤0.1 W | Dimensions (W x H x D) | Without Antenna: 17.125 x 6.375 x 13" / 43.5 x 16.2 x 33.02 cm With Antenna: 17.125 x 8.875 x 13" / 43.5 x 22.54 x 33.02 cm | Weight | 18.3 lb / 8.3 kg | | Package Weight | 21.7 lb | Box Dimensions (LxWxH) | 21.2 x 15.8 x 9.0" |
