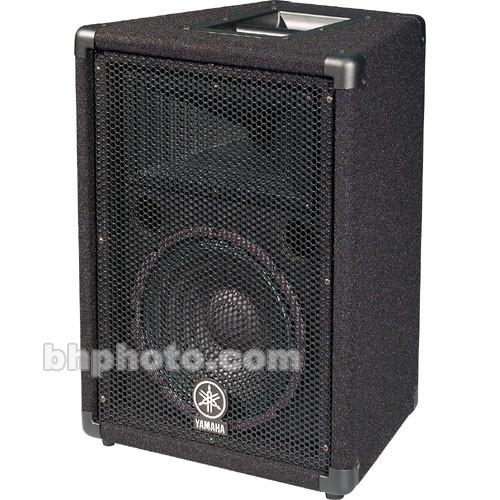

User Manual for Yamaha BR10 - 10" 2-Way PA Speaker Click to enlarge the picture
Contents of the user manual for the Yamaha BR10 - 10" 2-Way PA
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
|
User manual for the Yamaha BR10 - 10" 2-Way PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha BR10 is a passive 250-watt two-way loudspeaker that provides a smooth, full-range response and output like much costlier systems. Ideal for small clubs, institutional installs and the gigging musician in need of a rugged, highly-portable PA system, the affordable BR10 features a bass-reflex design and wide dispersion non-resonant horn, resulting in a detailed and balanced full-range system. - Design
- Bass-reflex system allows a more pronounced bass response from a smaller cabinet design. Newly designed non-resonant horn with even 90 x 40° dispersion
- Components
- 10" high-power woofer
- Components
- 1" titanium compression driver
- Rugged Build Quality
- Steel corner protectors for protecting cabinets from dings and damage due to transporting. Strong steel handles and built-in pole mount for easier portability and adding additional cabinets
UPC: 086792825069 In the Box Yamaha BR10 250-Watt Two-Way Passive PA Speaker with 10" Woofer - (Single) Limited 3-Year Warranty User Manual PDF 233.2kbaqbarqycwaezvzes Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha BR10 - 10" 2-Way PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha BR10 Specs | | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 250 W RMS | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1" / 51 mm Titanium | | LF Driver | 1 x 10" / 25.4 cm Woofer | | | | Frequency Response | 65 Hz to 20 kHz | | Speaker Sensitivity | 96 dB | | | | Dimensions | 14.8 x 21.0 x 12.8" / 37.5 x 53.3 x 32.4 cm | | Weight | 31.5 lb / 14 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 24.5 x 18.0 x 16.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
