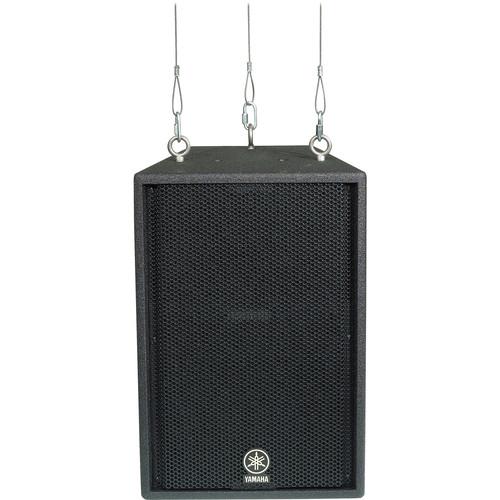

User Manual for Yamaha C112VA - 12" 350-Watt 2-Way PA Speaker - Suspension-Ready Click to enlarge the picture
Contents of the user manual for the Yamaha C112VA - 12" 350-Watt 2-Way
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
|
User manual for the Yamaha C112VA - 12" 350-Watt 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha Club Series C112VA speaker is a 2-way, suspension-ready 350-watt passive P.A. speaker suitable for club date, lecture, and smaller event applications. The sturdy, spray-finished particle board speaker enclosure of the C112VA, made from the durable southern yellow pine, houses a high power 12" woofer and a 2" dome tweeter ensconced in a 90° x 40° constant directivity horn. The speaker's crossover network offers overload protection, and is assembled with top quality oversized coils, power resistors and high voltage capacitors, designed to produce optimum sound. A set of 12 integral fly points are built into the C112VA cabinet, along with bracket mount attach points and screw terminal inputs for simplified permanent installation suspension. The recessed side-mounted steel handles allow for secure and convenient transportation. The connectors are high quality Neutrik Speakon and Switchcraft 1/4" types, and are mounted in pairs for convenient daisy chaining of multiple units. The C112VA is moderately priced, and in terms of the design quality and attendant components, represents a good, no-nonsense value for small bands, schools, lecture halls, meeting rooms, and other like venues. - Rugged 2-way passive installation P.A. speaker for club date vocal and lecture/announcement speech applications
- High 350 Watt program power handling capacity
- 12" woofer and 2" dome tweeter mated to Constant Directivity horn
- Durable, spray-finished particle board enclosure construction with foamed steel grille
- Integral flying points for installation suspension, bracket mounting attachment points
- Heavy duty side-mounted steel carrying handles
UPC: 086792729213 In the Box Yamaha C112VA - 12" 350-Watt 2-Way PA Speaker - Suspension-Ready 12 x Integral Fly Points 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha C112VA - 12" 350-Watt 2-Way PA Speaker - Suspension-Ready in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha C112VA Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 350 W RMS
700 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 2" / Titanium Dome Tweeter | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Response | 60 Hz to 16 kHz | | Maximum SPL | 126 dB | | Speaker Sensitivity | 97 dB | | Protections | Crossover Overload | | | | Audio I/O | 2 x Screw Terminal Input | | | | Construction Material | Metal Grille, Particle Board | | Dimensions | 16.0 x 25.0 x 13.0" / 406.4 x 635.0 x 330.2 mm | | Weight | 42.5 lb / 19.3 kg | | | | Package Weight | 55.2 lb | | Box Dimensions (LxWxH) | 27.75 x 18.25 x 15.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
