User Manual for Yamaha CBR12 2-Way Passive Bass Reflex Speaker With 12" Woofer Click to enlarge the picture
Contents of the user manual for the Yamaha CBR12 2-Way Passive Bass Reflex
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
 |
User manual for the Yamaha CBR12 2-Way Passive Bass Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

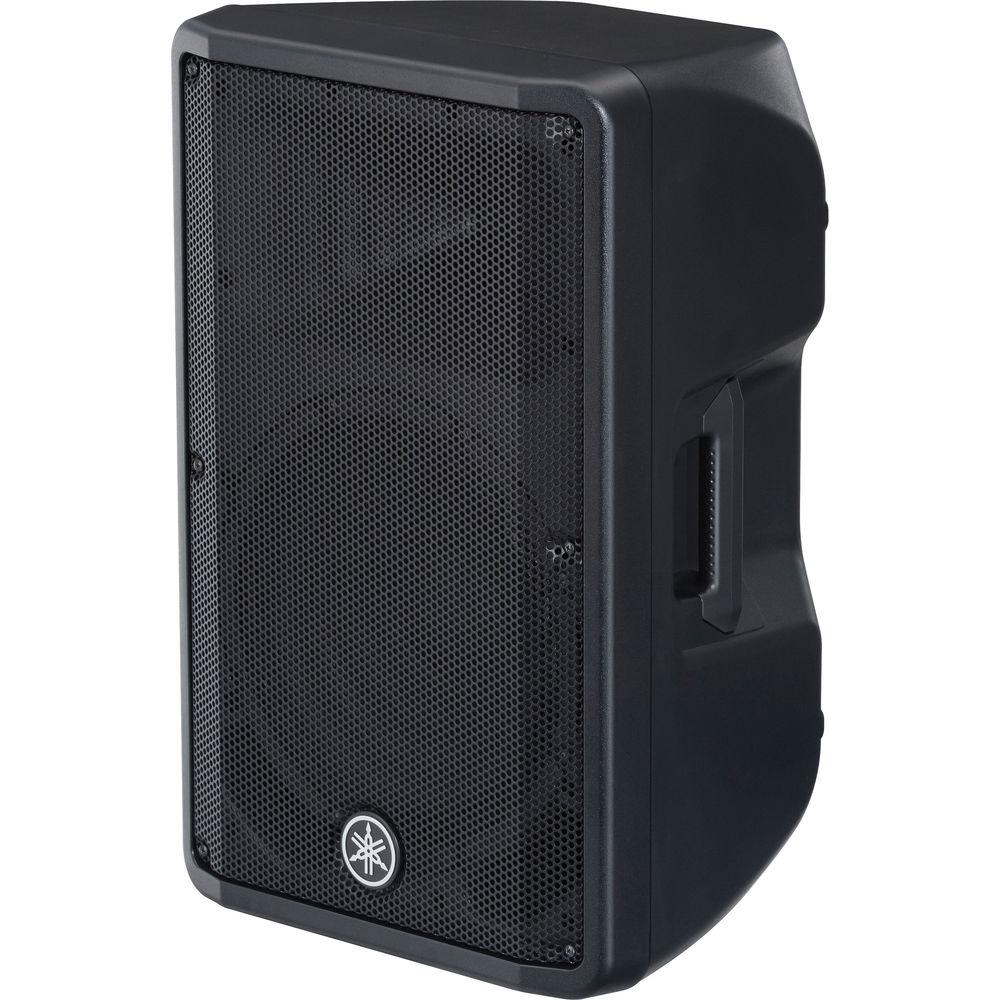

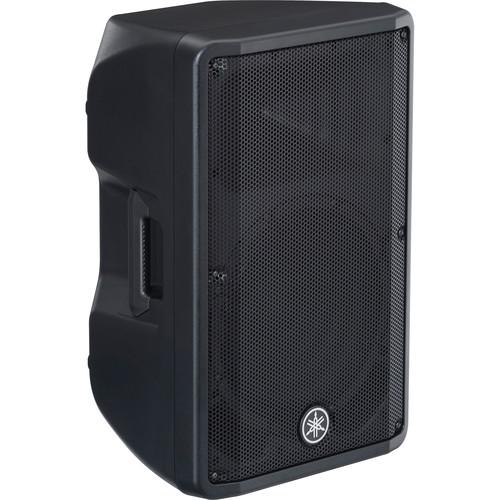

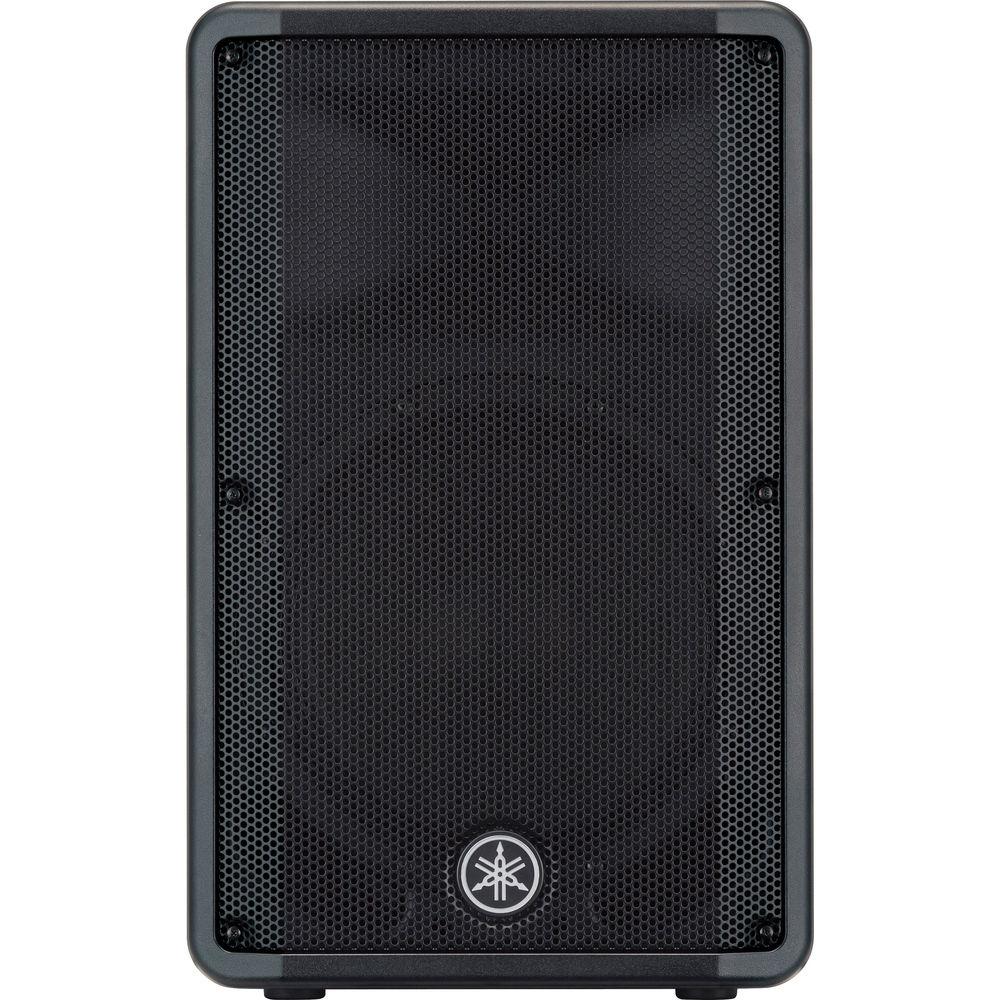

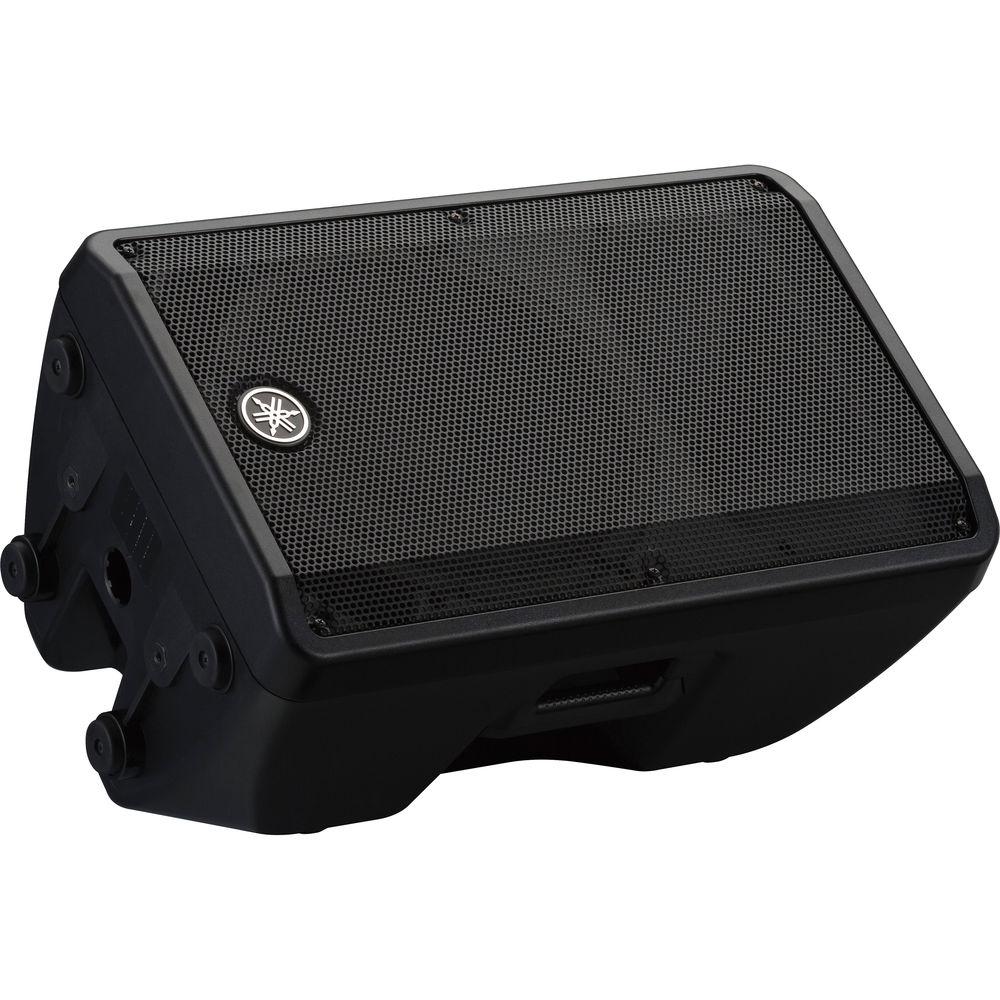

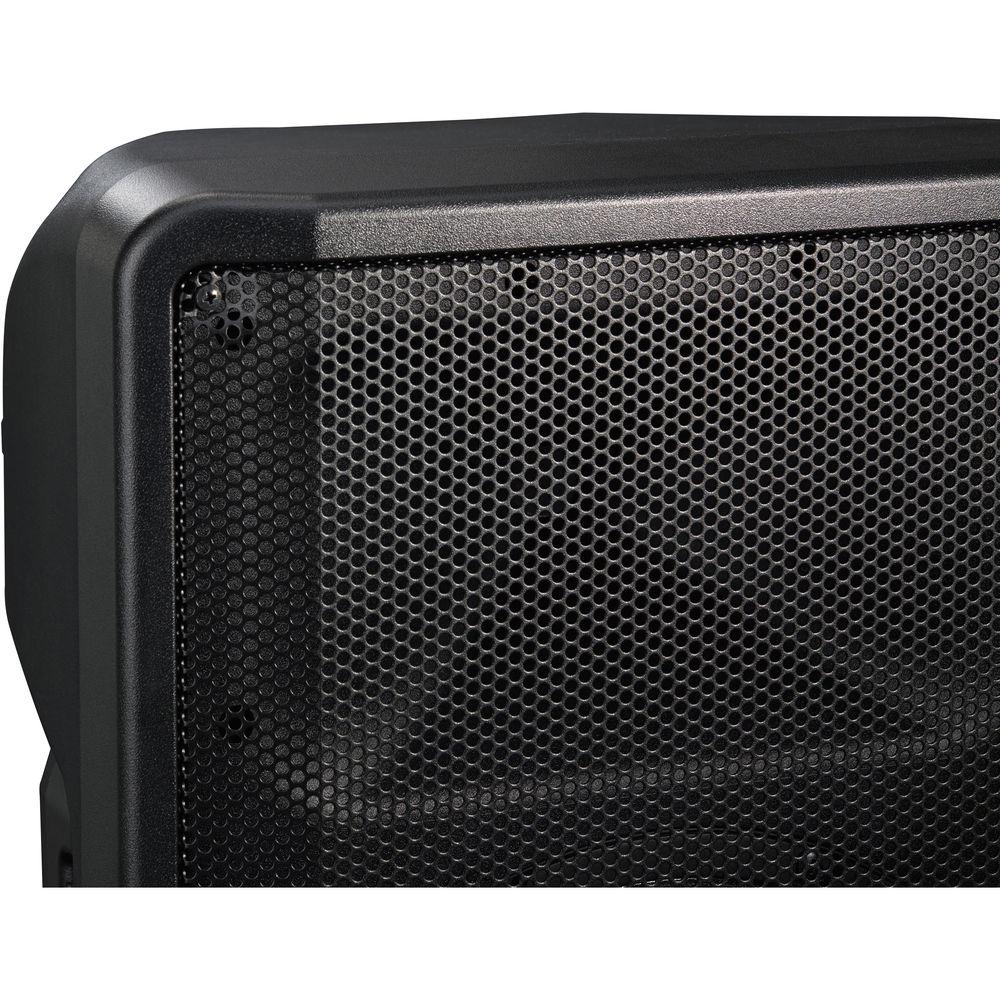

Product description The Yamaha CBR12 2-Way Passive Bass Reflex Speaker With 12" Woofer is designed to deliver high-power, high-definition sound in a portable and versatile package for applications such as front-of-house, floor monitoring, and rigged configurations. The speaker uses custom designed transducers with a wide-dispersion constant directivity horn to deliver a frequency response of 48 to 20,000 Hz.
The speaker offers a balance of size and performance for a wide range of applications. - Custom Transducers and Wide-Dispersion Horn
- Leverages carefully selected materials with a horn design that minimizes radiation pattern deterioration in oblique directions
- HF Protection Circuit
- Limits excessive input that might otherwise damage the speaker

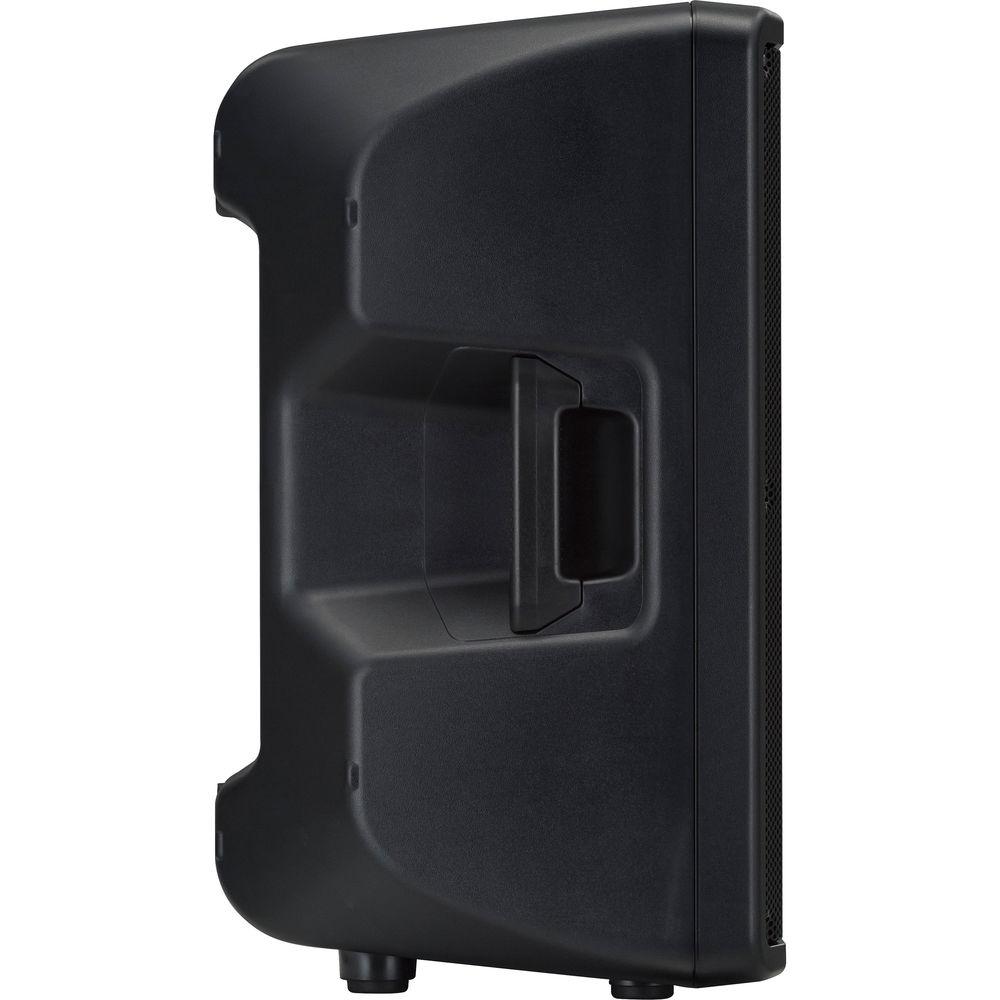

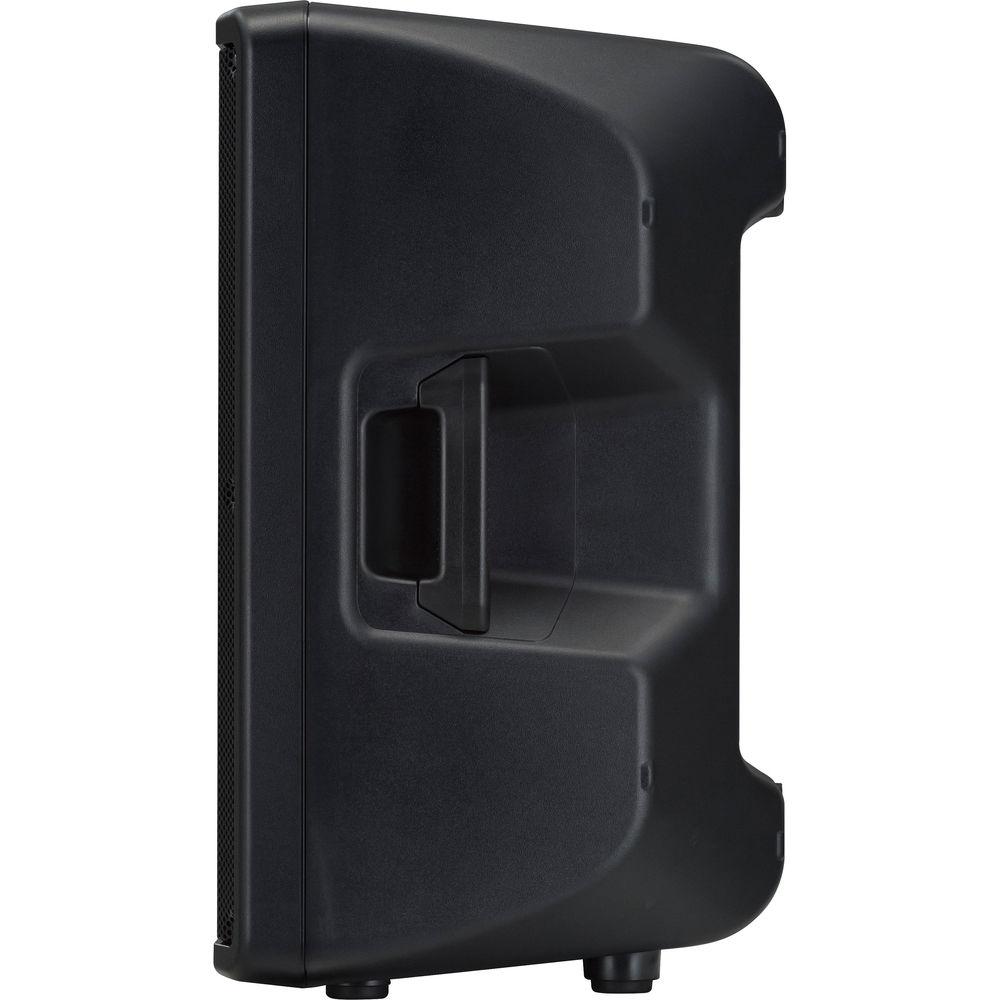

- Rugged, Portable Enclosure Design
- Uses a lightweight plastic cabinet with ergonomic handle(s)

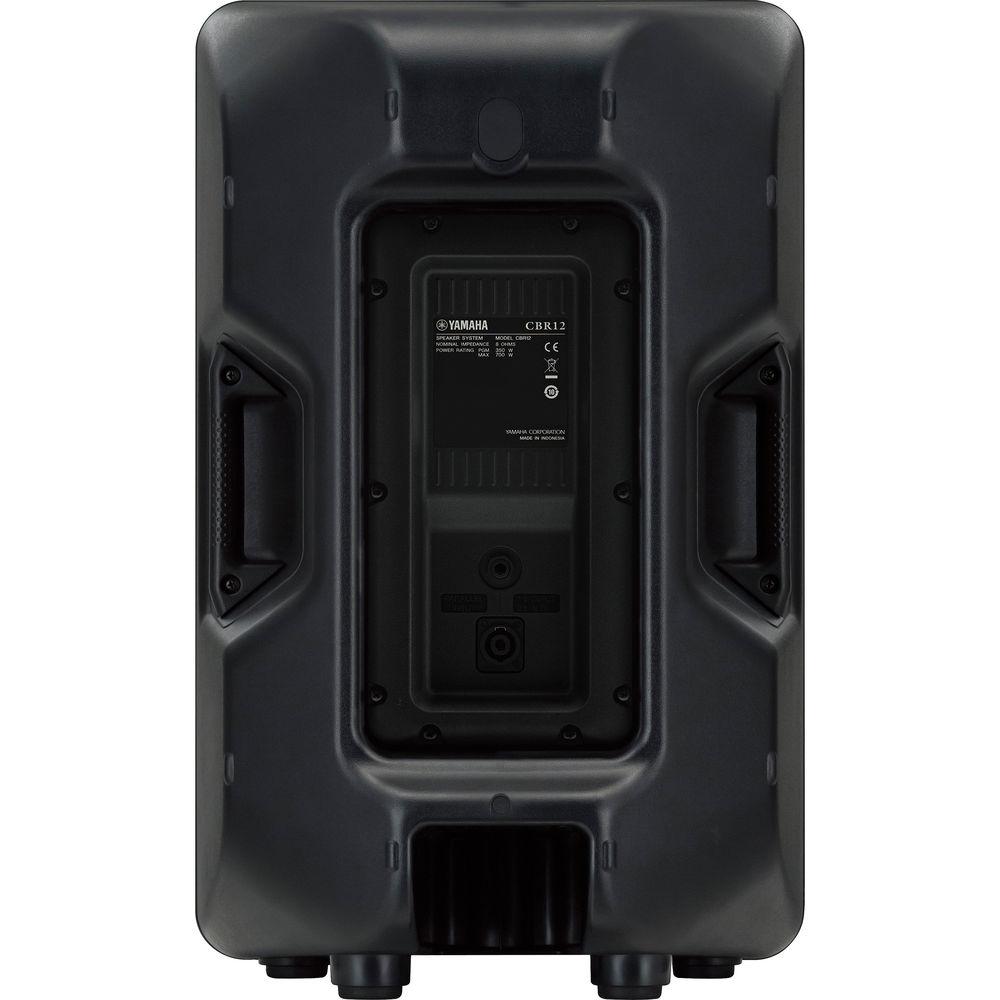

- Connectivity
- Features one speakON jack and one 1/4" phone jack for fast connectivity

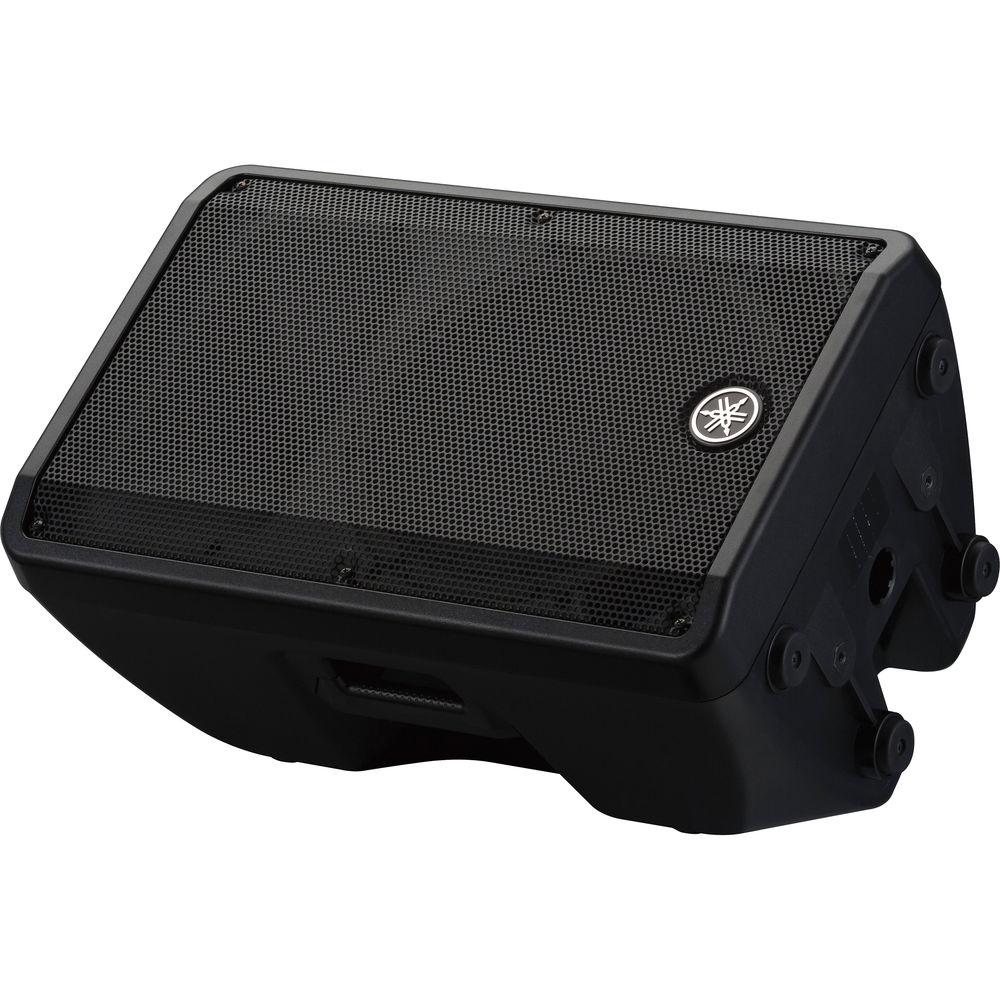

- Enclosure Design for Floor Monitoring
- Features a 50° wedge angle for floor monitoring
- Rigging Points for Installation
- Features M8 rigging points for rigged applications with optional speaker brackets and standardized eye-bolts
- Functional Speaker Cover
- Protects speaker from unfavorable weather during outdoor performances
UPC: 086792995502 User Manual PDF 362.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CBR12 2-Way Passive Bass Reflex Speaker With 12" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CBR12 Specs | | | Configuration | Passive | | Total Power Capacity | 175 W Peak
350 W Program
700 W Peak | | | | HF Driver | 1 x Compression Driver | | HF Voice Coil | 1.4" / 36 mm | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2" / 5.1 cm | | Magnet | HF:
Ferrite | | | | Frequency Response | 48 Hz to 20 kHz | | Speaker Sensitivity | 96 dB SPL | | | | Audio I/O | 2 x speakON Parallel | | | | Handles | 2 x Side | | Dimensions | 14.8 x 23.7 x 13.7" / 37.6 x 60.1 x 34.8 cm | | Weight | 30.6 lb / 13.9 kg | | | | Package Weight | 38.6 lb | | Box Dimensions (LxWxH) | 26.0 x 18.0 x 17.0" |
