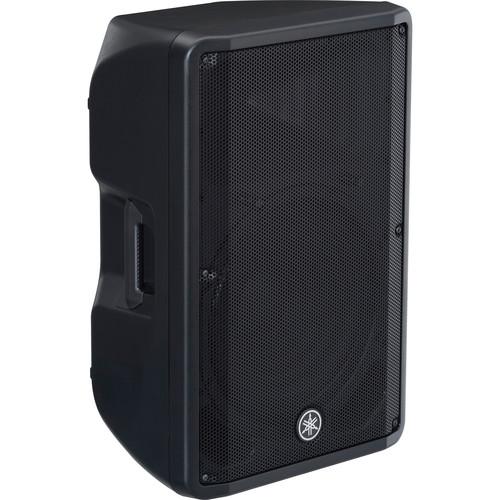

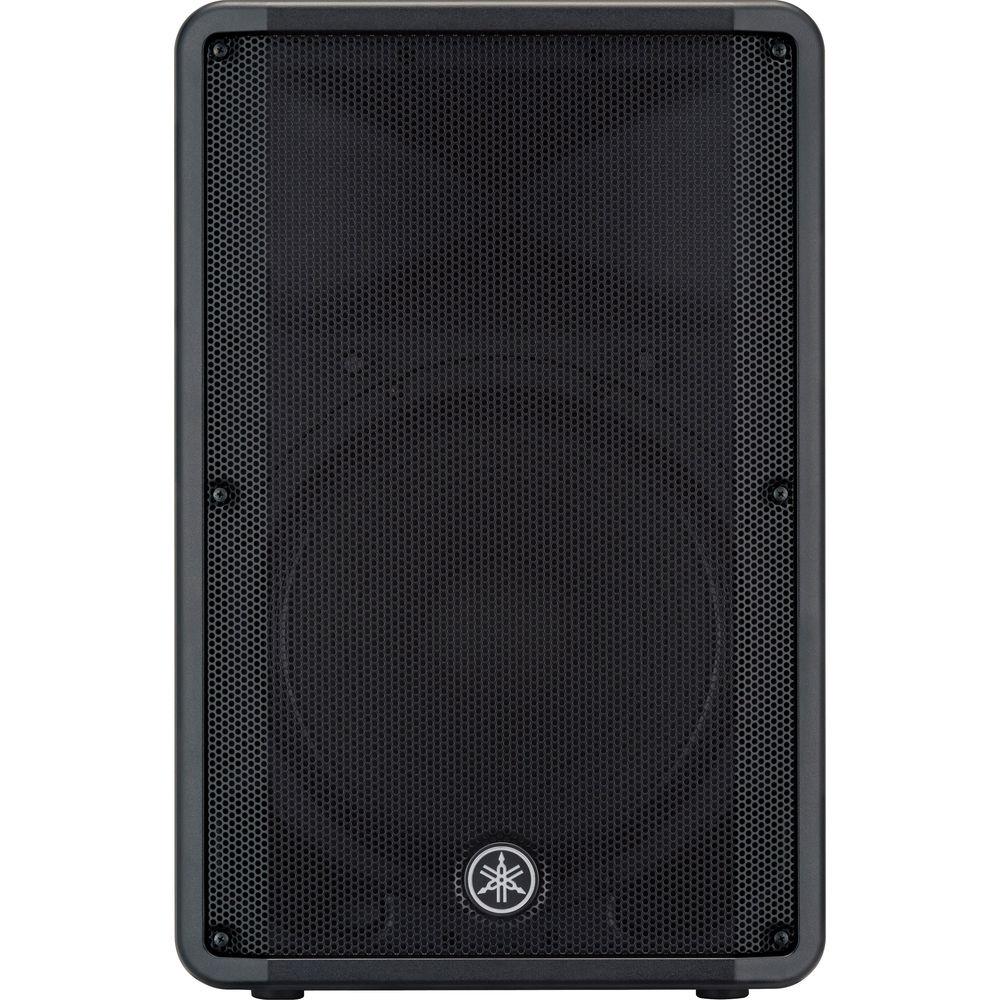

Product description The Yamaha CBR15 2-Way Passive Bass Reflex Speaker With 15" Woofer is designed to deliver high-power, high-definition sound in a portable and versatile package for applications such as front-of-house, floor monitoring, and rigged configurations. The speaker uses custom designed transducers with a wide-dispersion constant directivity horn to deliver a frequency response of 46 to 20,000 Hz.
The speaker provides the lowest frequency extension in its lineup, making it suitable for front of house, as well as DJ events, and installed applications. - Custom Transducers and Wide-Dispersion Horn
- Leverages carefully selected materials with a horn design that minimizes radiation pattern deterioration in oblique directions
- HF Protection Circuit
- Limits excessive input that might otherwise damage the speaker
- Rugged, Portable Enclosure Design
- Uses a lightweight plastic cabinet with ergonomic handle(s)
- Connectivity
- Features one speakON jack and one 1/4" phone jack for fast connectivity
- Enclosure Design for Floor Monitoring

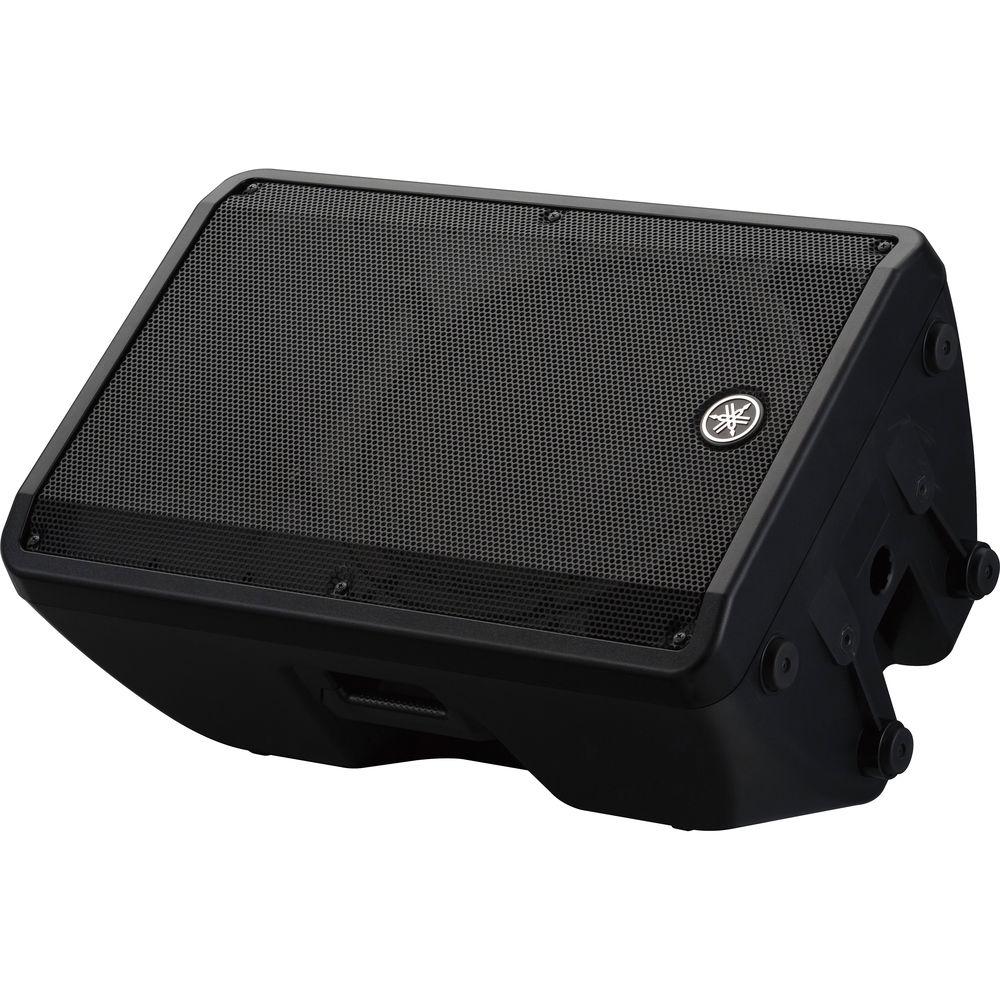

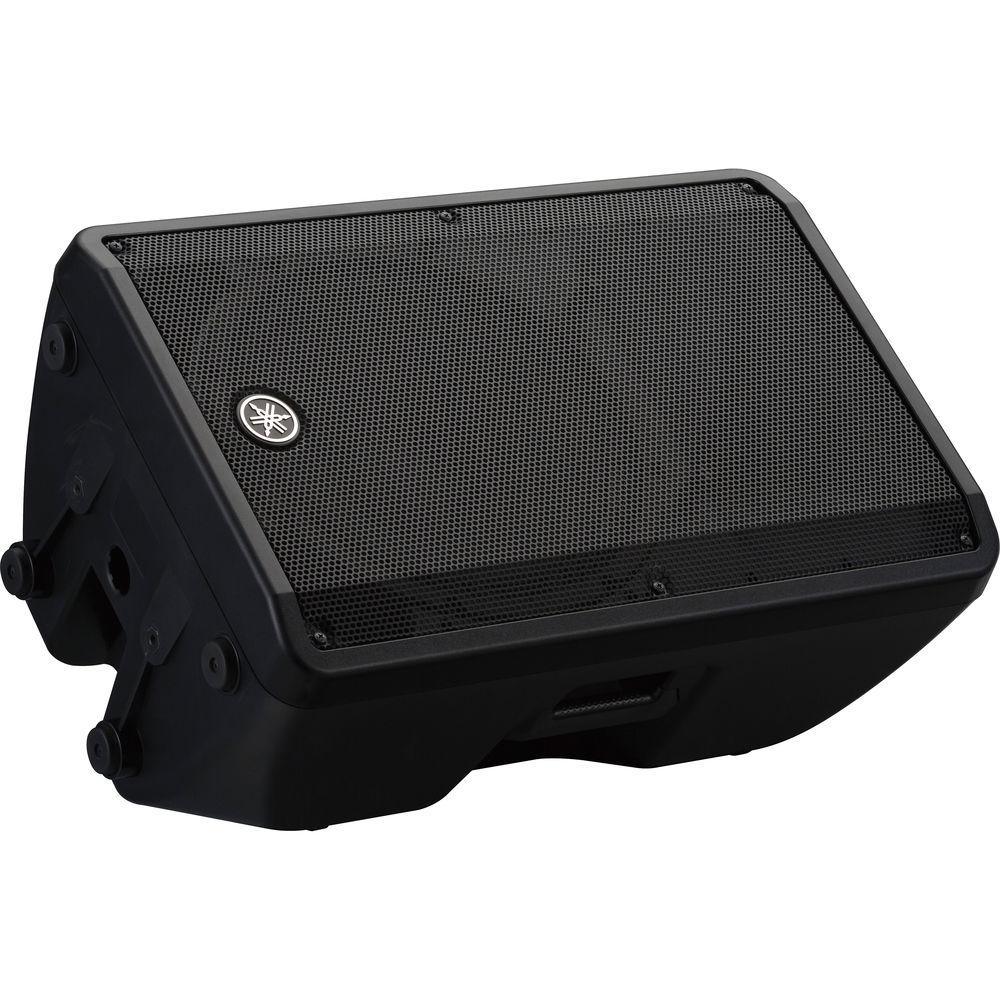

- Features a 50° wedge angle for floor monitoring
- Rigging Points for Installation
- Features M8 rigging points for rigged applications with optional speaker brackets and standardized eye-bolts
- Functional Speaker Cover
- Protects speaker from unfavorable weather during outdoor performances
UPC: 086792995496 Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CBR15 2-Way Passive Bass Reflex Speaker With 15" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CBR15 Specs | | | Configuration | Passive | | Total Power Capacity | 250 W Peak
500 W Program
1000 W Peak | | | | HF Driver | 1 x Compression Driver | | HF Voice Coil | 1" / 51 mm | | LF Driver | 1 x 15" / 381 mm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 46 Hz to 20 kHz | | Speaker Sensitivity | 96 dB SPL | | | | Audio I/O | 2 x speakON Parallel | | | | Handles | 2 x Side | | Dimensions | 17.9 x 27.6 x 14.9" / 45.5 x 70.0 x 37.8 cm | | Weight | 39 lb / 17.7 kg | | | | Package Weight | 49.2 lb | | Box Dimensions (LxWxH) | 31.0 x 21.0 x 18.5" |
