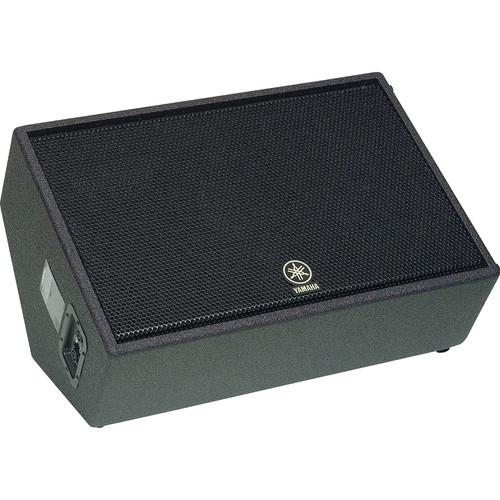

User Manual for Yamaha CM15V - 15" 2-Way 500-Watt P.A. Floor Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Yamaha CM15V - 15" 2-Way 500-Watt
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
|
User manual for the Yamaha CM15V - 15" 2-Way 500-Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha Club Series CM15V speaker is a 2-way, 500-watt passive P.A. floor monitor speaker suitable for small and mid-sized club applications. The sturdy, spray-finished particle board speaker enclosure of the CM15V, made from the durable southern yellow pine, houses a high power 15" woofer and a 2" dome tweeter ensconced in a 90° x 40° constant directivity horn. The speaker's crossover network offers overload protection, and is assembled with top quality oversized coils, power resistors and high voltage capacitors, designed to produce optimum sound. A recessed stand mount is built into the CM15V cabinet, allowing for secondary use as a Main speaker, and the side-mounted handles allow for secure and convenient transportation. The connectors are high quality Neutrik Speakon and Switchcraft 1/4" types, and are mounted in pairs for convenient daisy chaining of multiple units. The CM15V is moderately priced, and in terms of the design quality and attendant components, represents a good, no-nonsense value for small bands, schools, lecture halls, meeting rooms, and other like venues. - Rugged 2-way passive P.A. floor monitor speaker for live and recorded music club date applications
- High 500 Watt program power handling capacity
- 15" woofer and 2" dome tweeter mated to Constant Directivity horn
- Durable, spray-finished particle board enclosure construction with foamed steel grille
- Dual Speakon and 1/4" connectors for convenient daisy-chaining of multiple speakers
- Integral pole socket for speaker stands allow for additional use as Main speaker
- Heavy duty side-mounted steel carrying handles
UPC: 086792729176 In the Box Yamaha CM15V - 15" 2-Way 500-Watt P.A. Floor Monitor Speaker 4 x Rubber Feet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CM15V - 15" 2-Way 500-Watt P.A. Floor Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CM15V Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 500 W RMS
1000 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 2" / Titanium Dome Tweeter | | LF Driver | 1 x 15" / 387 mm Woofer | | | | Frequency Response | 55 Hz to 16 kHz | | Maximum SPL | 129 dB | | Speaker Sensitivity | 99 dB | | Protections | Crossover Overload | | | | Audio I/O | 2 x speakON
2 x 1/4" | | | | Construction Material | Metal Grille, Particle Board | | Dimensions | 28.0 x 19.0 x 13.0" / 711.2 x 482.6 x 330.2 mm | | Weight | 57 lb / 25.8 kg | | | | Package Weight | 65.0 lb | | Box Dimensions (LxWxH) | 31.0 x 22.0 x 18.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
