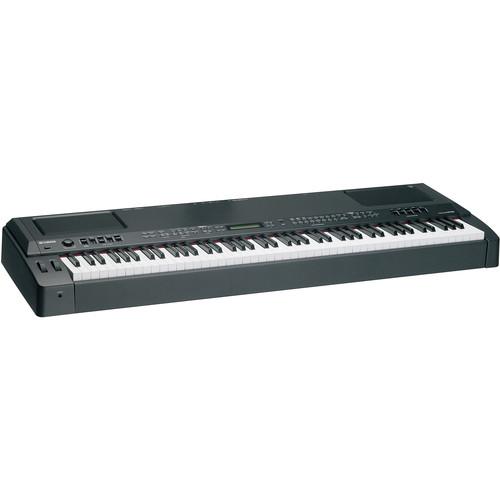

User Manual for Yamaha CP300 - Professional 88-Key Graded Hammer Stage Piano Click to enlarge the picture
Contents of the user manual for the Yamaha CP300 - Professional 88-Key Graded
- Product category: Stage Pianos & Organs Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Stage Pianos & Organs
|
User manual for the Yamaha CP300 - Professional 88-Key Graded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha CP300 is a full 88-key professional stage piano with authentic voices and advanced Graded Hammer Effect key action. Perfect for use on stage or in a recording studio, the CP300 continues Yamaha's long-standing tradition of excellence in the digital instrument world by offering a variety of controls, effects, and connectors, as well as maintaining the realistic, high-quality sound you've come to expect from Yamaha.
Meticulously recorded samples of high-quality instruments provide the voices for the CP300. Subtle elements such as string resonance, sustain, and key-off have all been included for an authentic acoustic piano sound. Other instruments include electric piano, organ, guitar, and more. Aside from the typical pitch and modulation wheels, the CP300 offers a full set of real-time controllers, including assignable zone sliders and four pedal inputs.
Other features of the CP300 include balanced XLR connectors, a built-in stereo speaker system with independent on/off, and a panel lock button to prevent accidental settings changes. The effects selection ranges from delay, reverb, and EQ to rotary speaker and auto wah. Comprehensive MIDI functions are available, and a USB port is provided for connection to a computer so you can record your performances, create or arrange songs, and convert to notation. - Full Professional Keyboard
- The 88-key keyboard has Yamaha's Graded Hammer Effect action for an authentic resistance, accurately reproducing the feel of an acoustic piano
- Authentic Sound
- Top-quality instruments have been painstakingly sampled at various playing lengths with subtle elements such as string resonance, sustain, and key-off included for a natural, realistic sound with a polyphony of 128 notes
- Multiple Voices
- Built-in voices include various type of pianos, organ, guitar, drum kits, and more
- Stage Mode
- Special mono piano sound with compression is specially designed for live use, allowing the piano to stand out in full band situations
- Effects
- Choose from reverb, chorus, delay, rotary speaker, and auto wah
- EQ
- Five-band master EQ with slider controls
- MIDI
- MIDI in, out, and thru jacks are provided for complete versatility
- Full Controls
- Pitch and modulation wheels, as well as zone sliders and multiple pedal inputs are provided for full control over the sound
- Pedal
- Four pedal inputs and the included foot pedal provide the same pedal control as an acoustic piano. On certain sounds, the sustain can be partially applied for a "half damper" effect
- Storage and Sequencing
- The performance mode lets you store and recall custom settings, and the 16-track sequencer lets you record your work
- Built-In Stereo Speakers
- The speakers have an independent on/off, so you can choose between using them or an external monitor
- Panel Lock
- Lock your settings to prevent accidental changes
- Balanced Outputs
- Balanced XLR outputs are included for use with almost any professional sound setup
- USB
- A USB connector lets you interface with a computer for recording, arranging, and notation
- Power
- Auto power off function
UPC: 086792839790 In the Box Yamaha CP300 - Professional 88-Key Graded Hammer Stage Piano AC Power Cord Foot Pedal One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CP300 - Professional 88-Key Graded Hammer Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CP300 Specs | Keyboard | 88-Key Graded Hammer (A1-C7) | | Polyphony | 128 (Max) | | Multitimbral | Not Specified by Manufacturer | | Synthesis Method | AWM Dynamic Stereo Sampling | | Presets | 50 x Original Voices
480 x XG Voices
12 x Drum Kits | | Sequencer | 16-Track Record/Playback with Tempo Adjustment (1.4 MB, 140,000 Notes Max Capacity) | | Record and Playback | Sequencer Only | | User Memory | 64 Performances x 56 Files (Max) | | Effects | Reverb, Chorus, Master EQ, Variation, Insertion, Delay, Rotary Speaker, Auto Wah | | Controllers | 1 x Master Volume Dial
1 x Pitch Bend Wheel
1 x Modulation Wheel
1 x Master EQ Slider
1 x Zone Control Slider
1 x Song Volume Slider
4 x Foot Pedal Inputs (Sustain, Sostenuto, Soft, Aux) | | Sample RAM | No | | Expansion Slots | No | | Inputs/Outputs | 1 x MIDI In
1 x MIDI Out
1 x MIDI Thru
4 x Foot Pedal Inputs (Sustain, Sostenuto, Soft, Aux)
1 x 1/4" Stereo Input (2 Jacks)
1 x 1/4" Stereo Output (2 Jacks)
1 x XLR Male Stereo Output (2 Connectors)
1 x USB Connector
1 x AC Power In | | Storage | Internal Memory | | Amplifier | 2 x 30W | | Speakers | 2 x 5.1" (13 cm) | | Display | 2 x 24 Character backlit LCD | | Power Requirements | 120V AC, 60 Hz
Auto power off function | | Dimensions (WxDxH) | 54.75 x 18.1 x 6.9" (1391 x 460 x 170mm) | | Weight | 71.6 lbs (32.5kg) | | System Requirements | PC or Mac with Free USB Port | | | | Package Weight | 92.2 lb | | Box Dimensions (LxWxH) | 61.0 x 23.0 x 12.0" |
