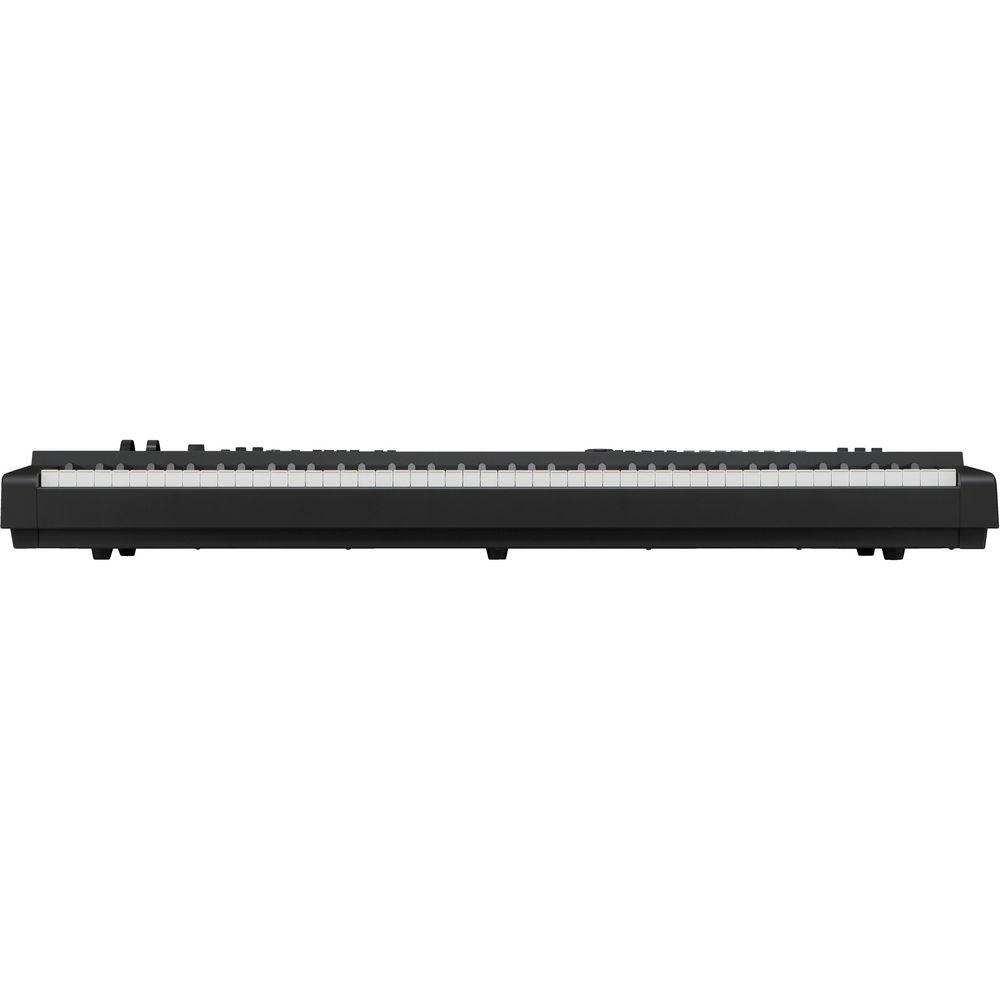

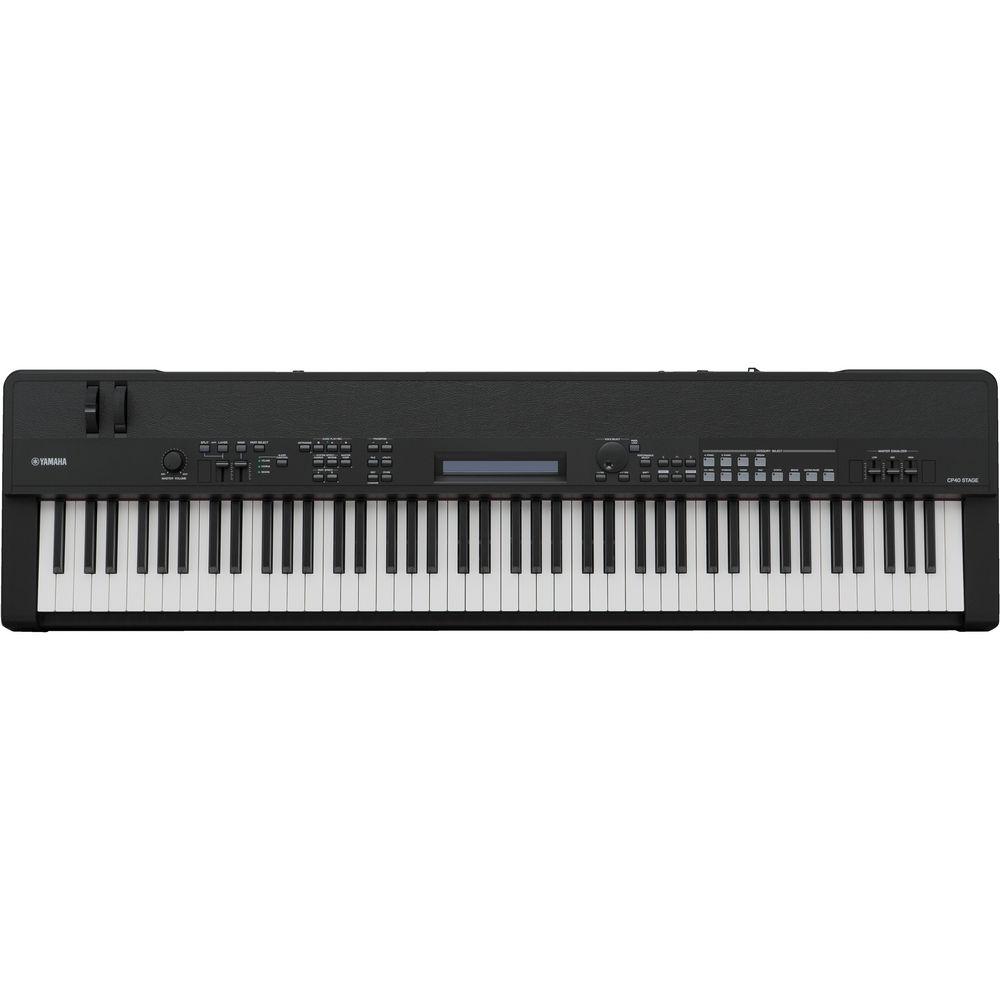

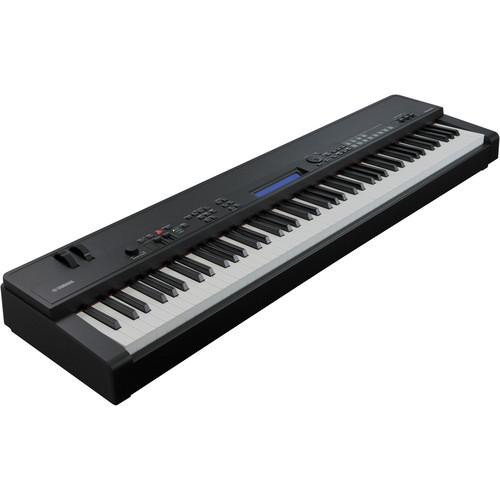

User Manual for Yamaha CP40 STAGE - Electronic Stage Piano Click to enlarge the picture
Contents of the user manual for the Yamaha CP40 STAGE - Electronic Stage
- Product category: Stage Pianos & Organs Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Stage Pianos & Organs
 |
User manual for the Yamaha CP40 STAGE - Electronic Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The CP40 STAGE from Yamaha is a digital stage piano that features a selection of sounds (voices) from Yamaha's hand-crafted CFIIIS grand piano. Also included are well-known vintage EPs (electric pianos) with VCM effects, the piano sounds of the venerable DX series of digital synthesizers, and a variety of sounds based around the company's flagship MOTIF synthesizer. All of this has been matched with an 88-note, Graded Hammer action keyboard that provides an authentic piano touch and response.
Voice Category buttons facilitate calling up sounds quickly and easily with favorites storable for each category. Large lighted buttons make it easy to split and layer sounds even on the darkest stage, making it simple to switch from a full piano, to a piano layered with strings, or with a split bass sound. A single button press returns the piano sound to the entire keyboard. Additionally, the lightweight design combines portability with elegant style. - "Premium GP" featuring the authentic sound of Yamaha's CFIIIS Premium Grand Piano
- Selection of vintage electric pianos from different eras
- Graded Hammer action provides a keyboard response similar to that of a grand piano (the keys in the lower register are heavier and the keys in the upper register are lighter)
- Simple and intuitive interface provides instant access to all controls
- One-touch layer and split functions
- Combines portability with elegant style in a professional package
- Unbalanced 1/4" TS outputs
UPC: 086792981673 In the Box Yamaha CP40 STAGE - Electronic Stage Piano External Power Supply (PA-150) FC3 Foot Pedal Owner's Manual CD-ROM Manual One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CP40 STAGE - Electronic Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CP40 Specs | Control Interface | Keyboard
88 Keys
Graded Hammer
Other Controllers
Pitch Bend Wheel
Modulation Wheel
Part Slider x 2
Master Volume Dial
Data Dial
Master Equalizer Slider x 3
Display
40 characters × 2 lines
Character LCD with back-light | | Voices | Tone Generation
SCM (Spectral Component Modeling) + AWM2
Polyphony
128 Maximum
Presets
Number of Voices: 297 (CF: 15; Rd: 3; Wr: 6; CP80: 8; DX: 18; Clav, Organ: 49; Strings, Choir, Pad: 67; Others: 117; Others (Drum): 14) | | Effects | Types
Reverb: 11
Chorus: 9 types (46 presets)
Master Compressor: 1 type (7 presets)
Master EQ: 3 bands
Insertion Effects: 62 types (226 presets) × 2 parts | | Performances | User
128 (Performances 65 to 128 are identical copies of Performances 1 to 64)
Parts

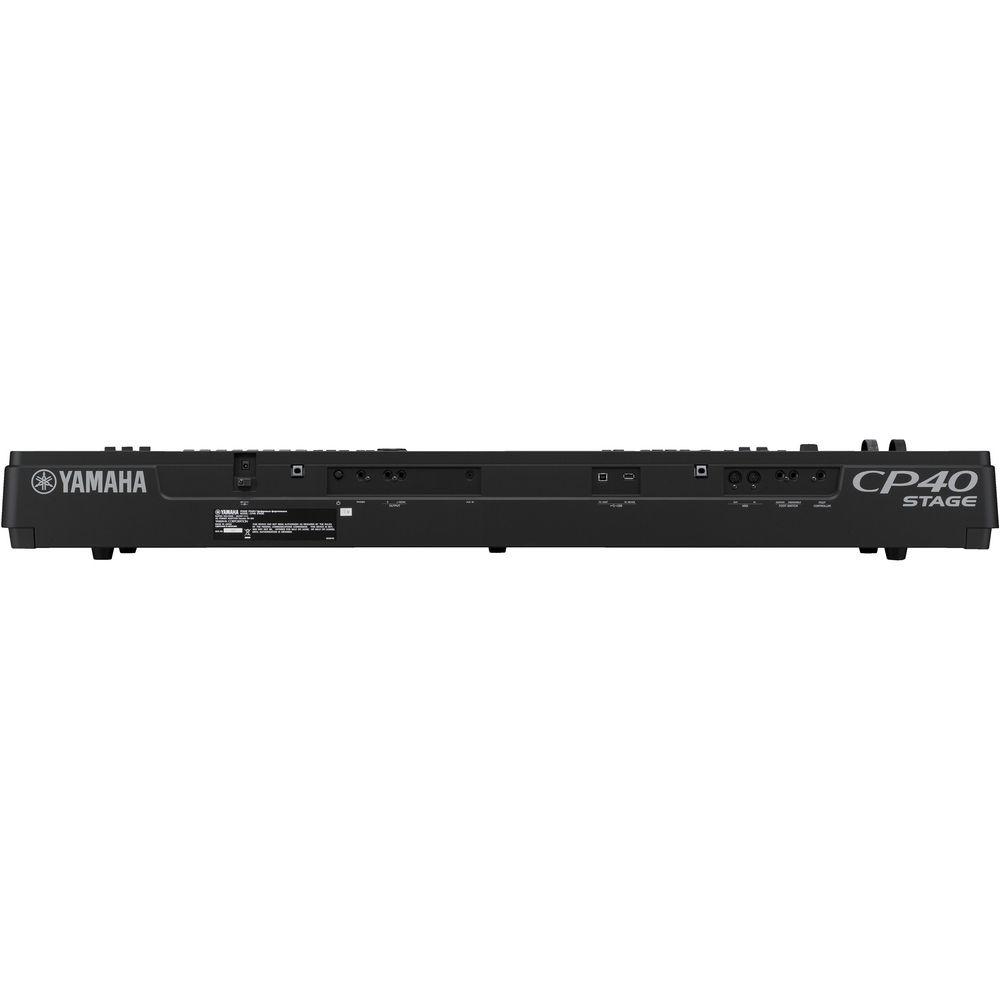

2 | | Connectivity | Connectors
2 x 1/4" TS (L/Mono-Right) unbalanced Line Out
1 x 1/4" TRS Headphones
1 x 1/4" TS Sustain Pedal
1 x 1/4" TS Assignable Foot Switch
1 x 1/4" TRS Foot Controller
2 x 5-pin DIN MIDI In/Out
USB to DEVICE
USB to HOST | | Power Requirements | 120V, 60 Hz for included PA-150 power adapter
8W power consumption | | Dimensions (WxDxH) | 52.4 x 13.8 x 6.4" (1,332 x 352 x 163 mm) | | Weight | 36 lb (16.3 kg) | | | | Package Weight | 47.65 lb | | Box Dimensions (LxWxH) | 59.0 x 18.0 x 10.0" |
