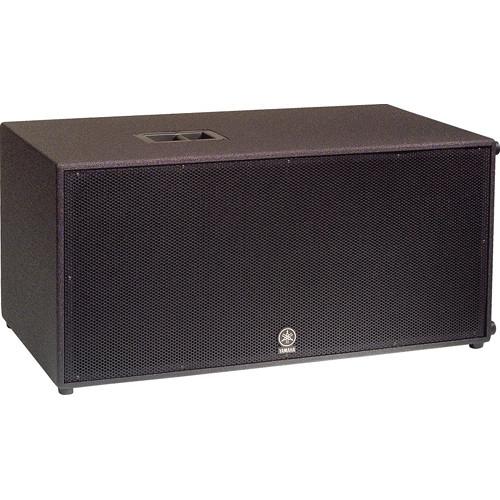

User Manual for Yamaha CW218V - Dual 18" 1220-Watt Passive P.A. Subwoofer Click to enlarge the picture
Contents of the user manual for the Yamaha CW218V - Dual 18" 1220-Watt
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
|
User manual for the Yamaha CW218V - Dual 18" 1220-Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha Club Series CW218V is a moderately priced, passive 1220-watt P.A. subwoofer with dual 18" cast frame drivers housed in a rugged, spray-finished particle board enclosure with a unique folded-baffle design, and y a steel mesh speaker grille. The driver offers a peak power handling capacity of 2400 watts, and the front-ported Bass reflex design enables low end frequency reproduction down to 30 Hz. The CW218V is equipped with high quality Neutrik Speakon and Switchcraft 1/4" connectors, an integral pole socket mounted at the top of the cabinet for mounting a main speaker, and all-steel recessed carrying handles on the side for convenient transportation. The CW218V is recommended as a small event P.A. subwoofer, for club dates, weddings, and other party events, where the music requires a fuller and more prominent low end output from the system. - Rugged, passive P.A. Subwoofer with dual 18" cast frame drivers, recessed side-mounted steel carrying handles and steel grill speaker cover
- Power handling capacity up to 2400 Watts
- Frequency response down to 30Hz with unique folded-baffle enclosure design
- Recessed Speakon and 1/4" connectors
- Integral pole socket on top of cabinet for mounting main speaker
UPC: 086792729206 In the Box Yamaha CW218V - Dual 18" 1220-Watt Passive P.A. Subwoofer 4 x Rubber Feet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CW218V - Dual 18" 1220-Watt Passive P.A. Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CW218V Specs | | | Configuration | Passive Dual Subwoofer | | Total Power Capacity | 600 W RMS
1220 W Program
2400 W Peak | | System Impedance | 8 Ohms | | | | LF Driver | 2 x 18" / 457.2 mm Woofer | | | | Frequency Range | 30 Hz to 2 kHz | | Maximum SPL | 132 dB | | Speaker Sensitivity | 98 dB | | | | Audio I/O | 1 x speakON
1 x 1/4" | | | | Construction Material | Metal Grille, Particle Board | | Dimensions | 48.0 x 23.0 x 26.0" / 1219.0 x 584.2 x 660.4 mm | | Weight | 132 lb / 59.9 kg | | | | Package Weight | 144.65 lb | | Box Dimensions (LxWxH) | 50.0 x 28.24 x 28.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
