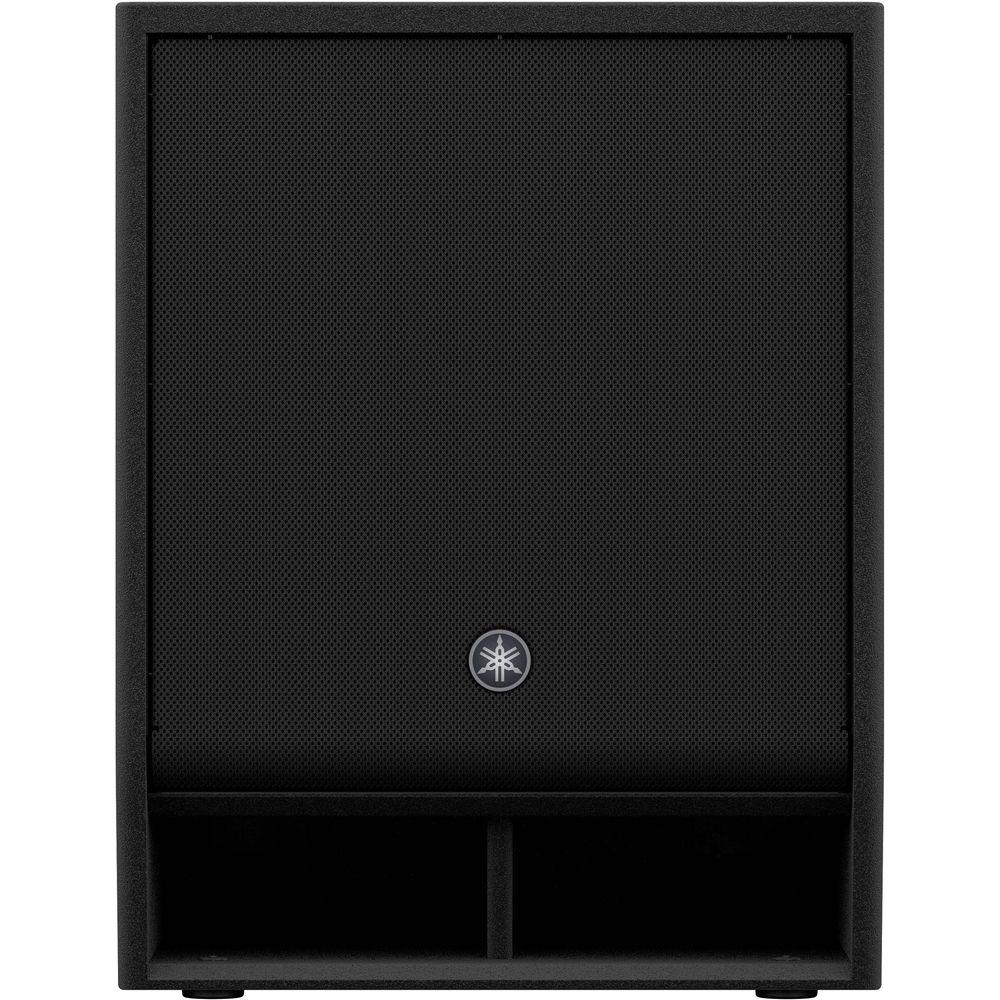

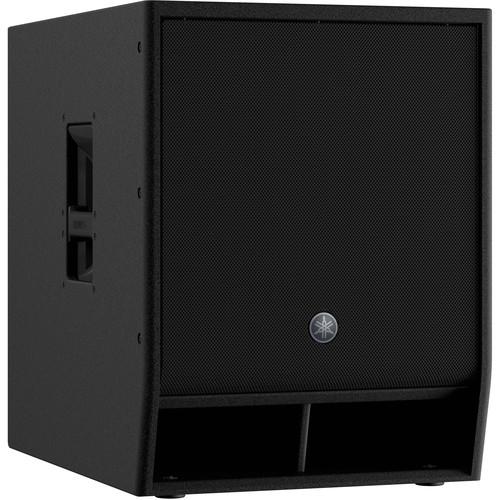

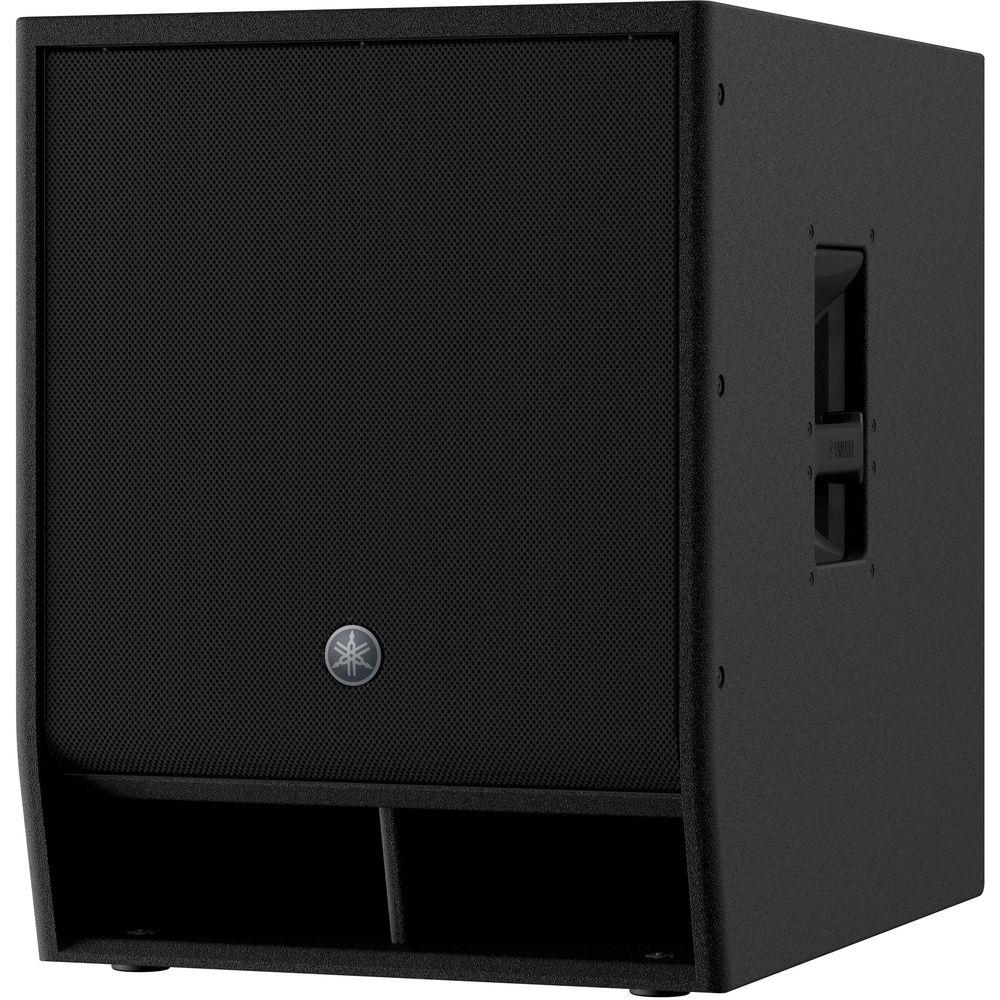

Product description Yamaha Releases New LoudspeakersKey Word: LOUD Read More The Yamaha CXS15XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series powered loudspeakers. The subwoofer requires 800W of power to drive the 15" woofer, providing a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 133 dB.

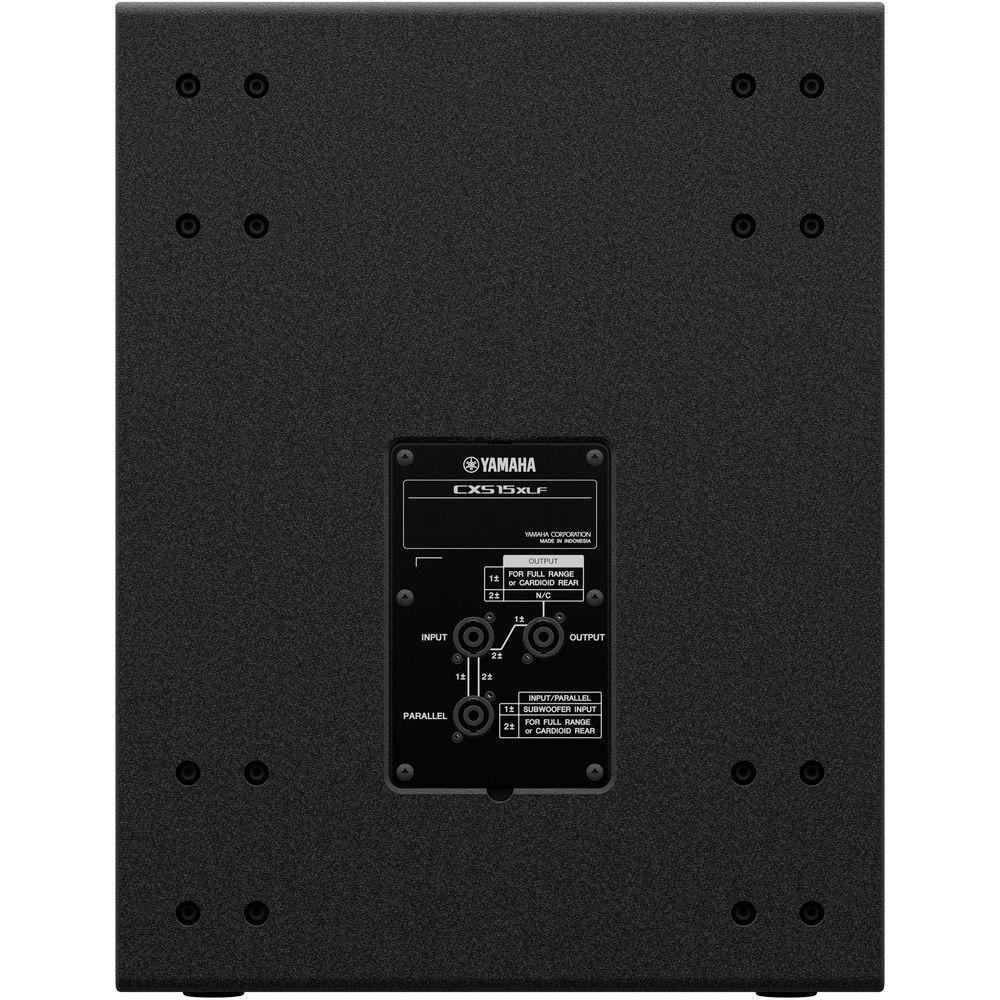

Yamaha recommends the use of a DSP speaker processor or a power amplifier with integrated DSP, such as Yamaha's PX Series amplifiers, in order to set crossovers, limiting, and equalization to ensure the best performance. Additionally, two or more subwoofers can be deployed with a cardioid configuration (DSP dependent), which can effectively reduce stage volume, while increasing low-end output directed at the audience. The rear panel offers three Neutrik SpeakON NL4MP connectors, which are configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. The Yamaha CXS15XLF is equipped with both a 35mm pole socket and an M20 threaded socket to support a full-range cabinet. - General Features
-
- Passive reflex subwoofer

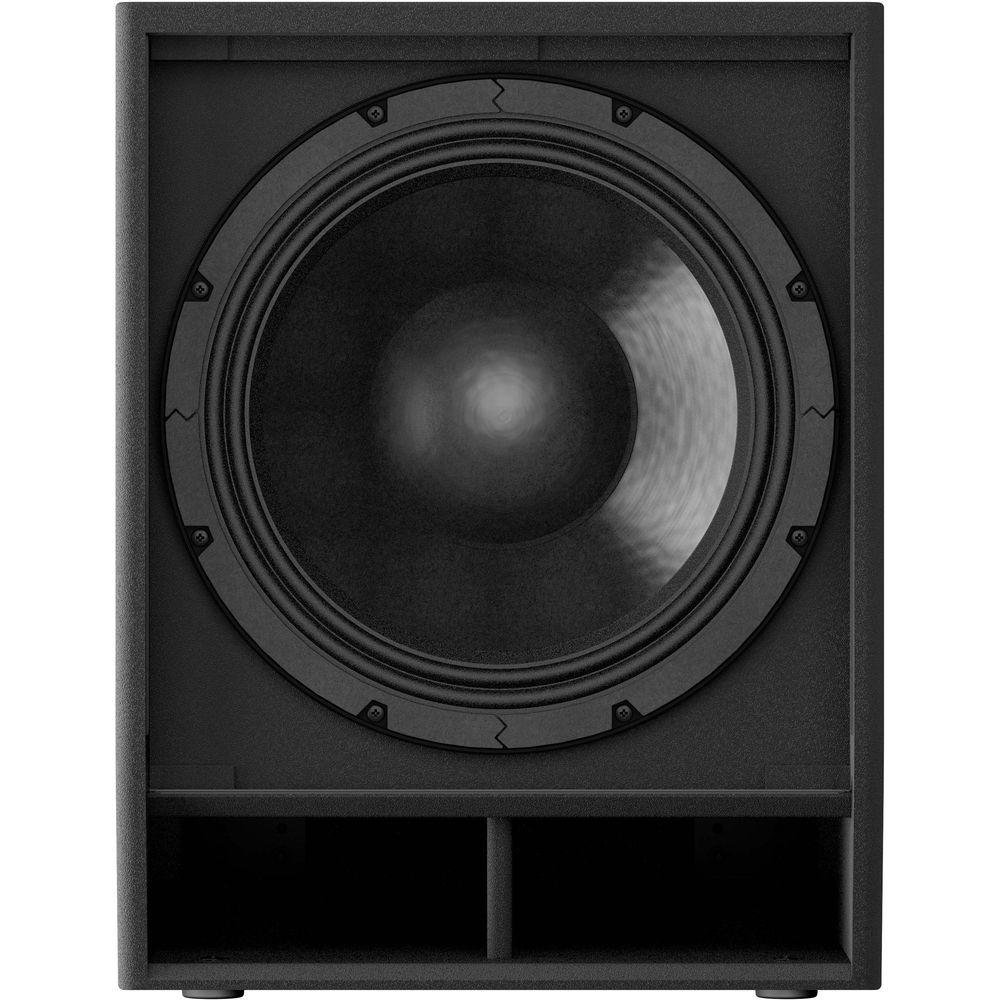

- Woofer: 15" with 4" voice coil
- Ideal for low-frequency extension to all full-range loudspeakers
- Maximum SPL: 130 dB
- Frequency range (-10 dB): 33 to 150 Hz
- High power 800W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- 3 x SpeakON NL4MP (2 x parallel, 1 x output)
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Dual-pole socket

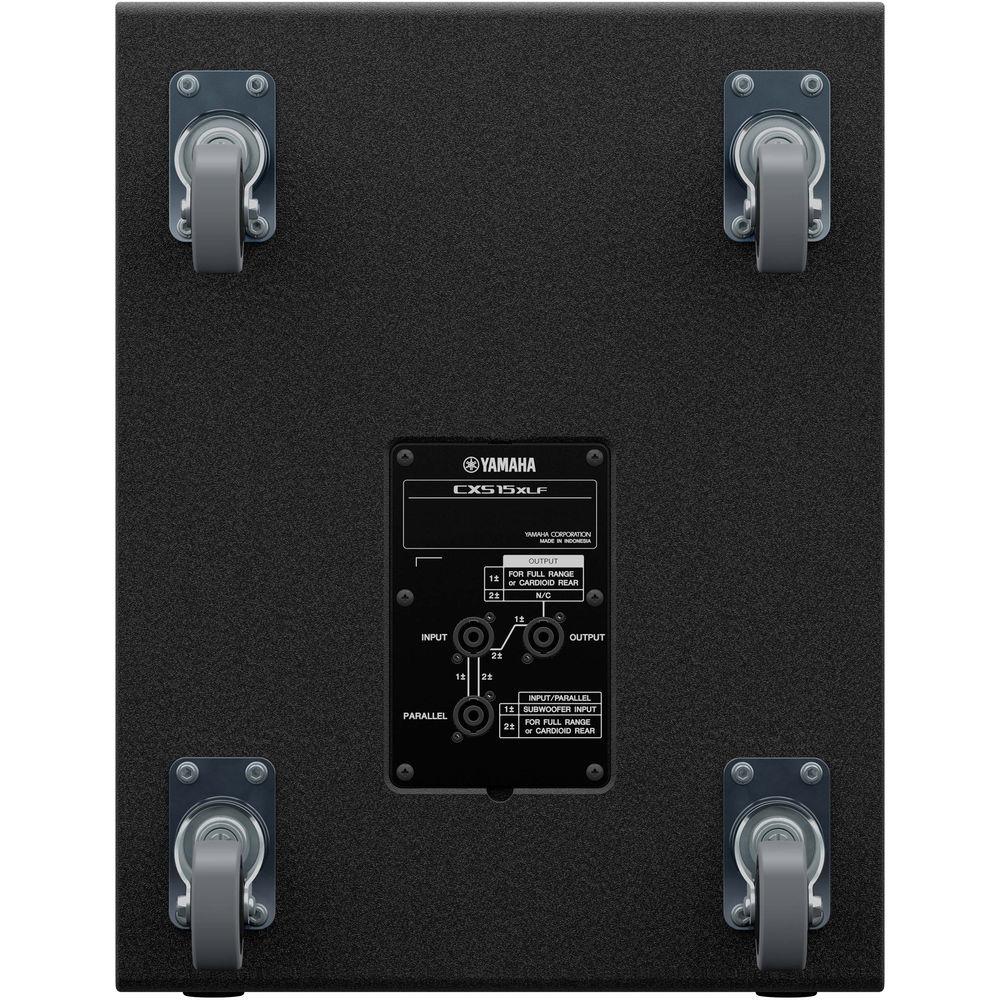

- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
UPC: 889025114349 In the Box Yamaha CXS15XLF 800W 15" Passive Subwoofer Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CXS15XLF 800W 15" Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CXS15XLF Specs | | | Configuration | Passive Subwoofer | | Enclosure Type | Bass-Reflex Subwoofer | | Total Power Capacity | 400 W RMS
800 W Program
600 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | LF Driver | 1 x 15" / 381 mm Woofer | | LF Voice Coil | 4" / 101.6 mm | | Magnet | Ferrite | | | | Frequency Range | 33 Hz to 150 Hz -10 dB | | Maximum SPL | 130 dB (Peak) | | Speaker Sensitivity | 98 dB | | | | Audio I/O | 2 x speakON NL4
1 x speakON NL4 Output Parallel Inputs Parallel | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket
1 x M20 | | Handles | 2 | | Construction Material | Plywood | | Dimensions | 17.7 x 23.1 x 23.6" / 449.6 x 586.7 x 599.4 mm | | Weight | 78.5 lb / 35.6 kg |
