User Manual for Yamaha CXS18XLF 1000W 18" Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the Yamaha CXS18XLF 1000W 18" Passive Subwoofer
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
 |
User manual for the Yamaha CXS18XLF 1000W 18" Passive Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

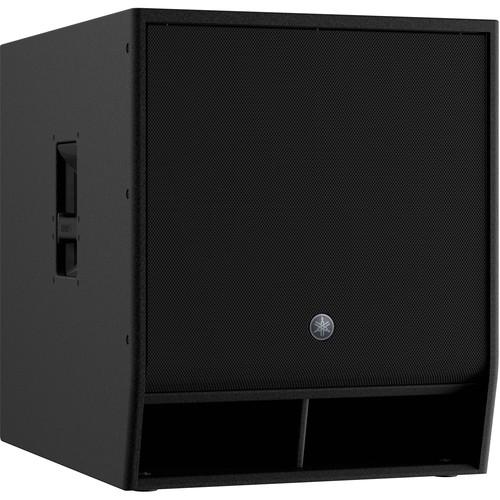

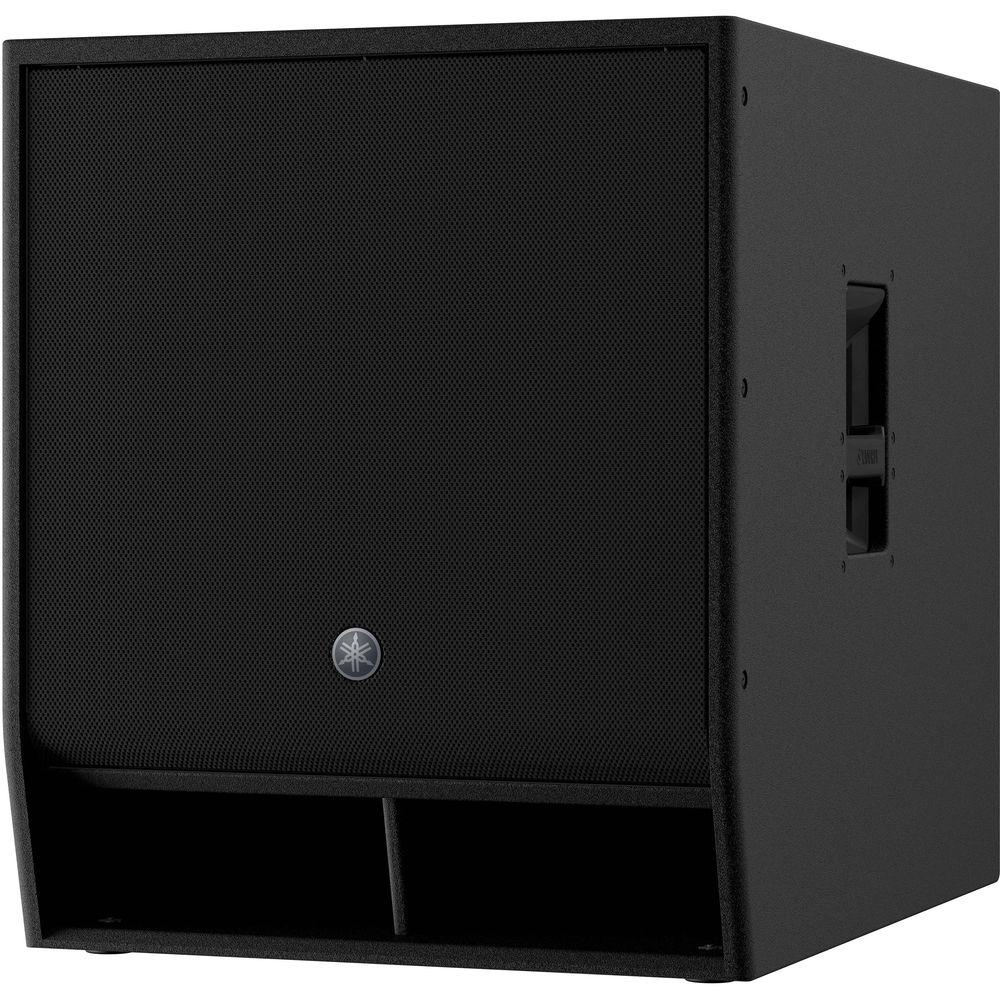

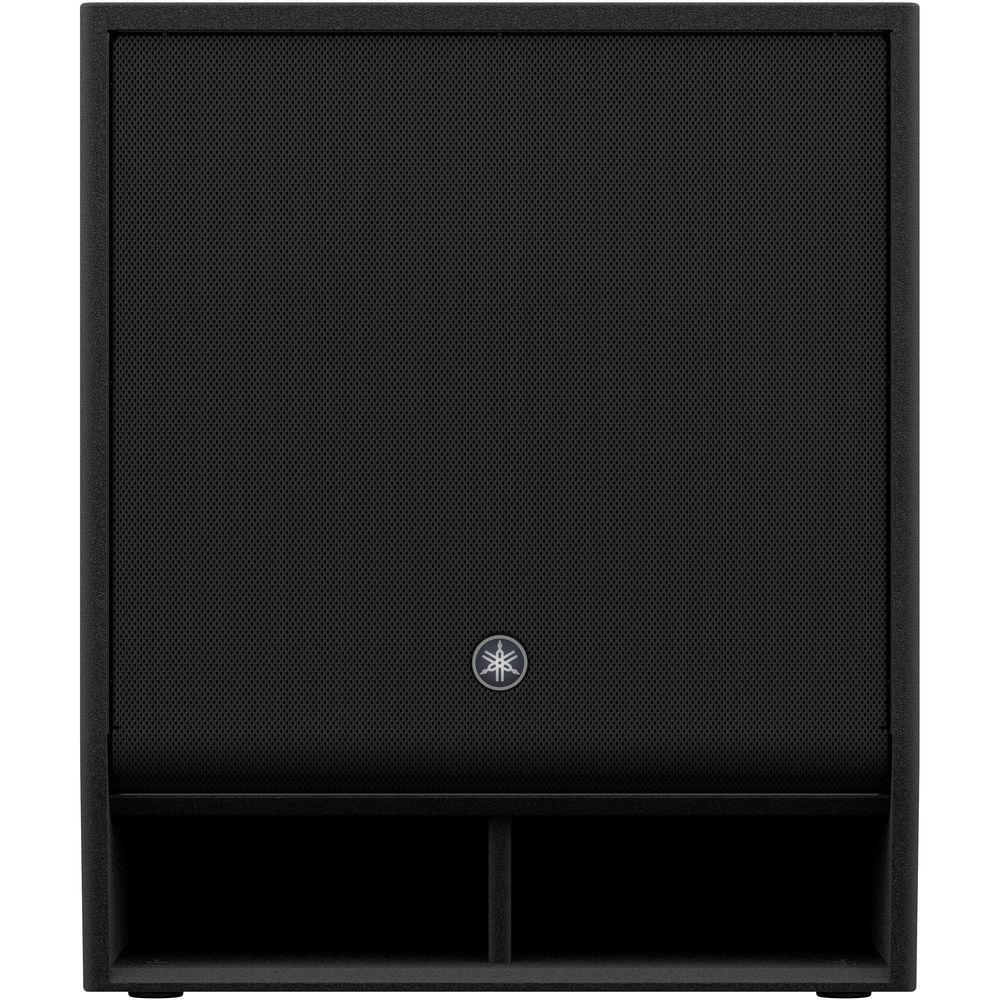

Product description Yamaha Releases New LoudspeakersKey Word: LOUD Read More The Yamaha CXS18XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series powered loudspeakers. The subwoofer requires 1000W of power to drive the 18" woofer, providing a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 133 dB.

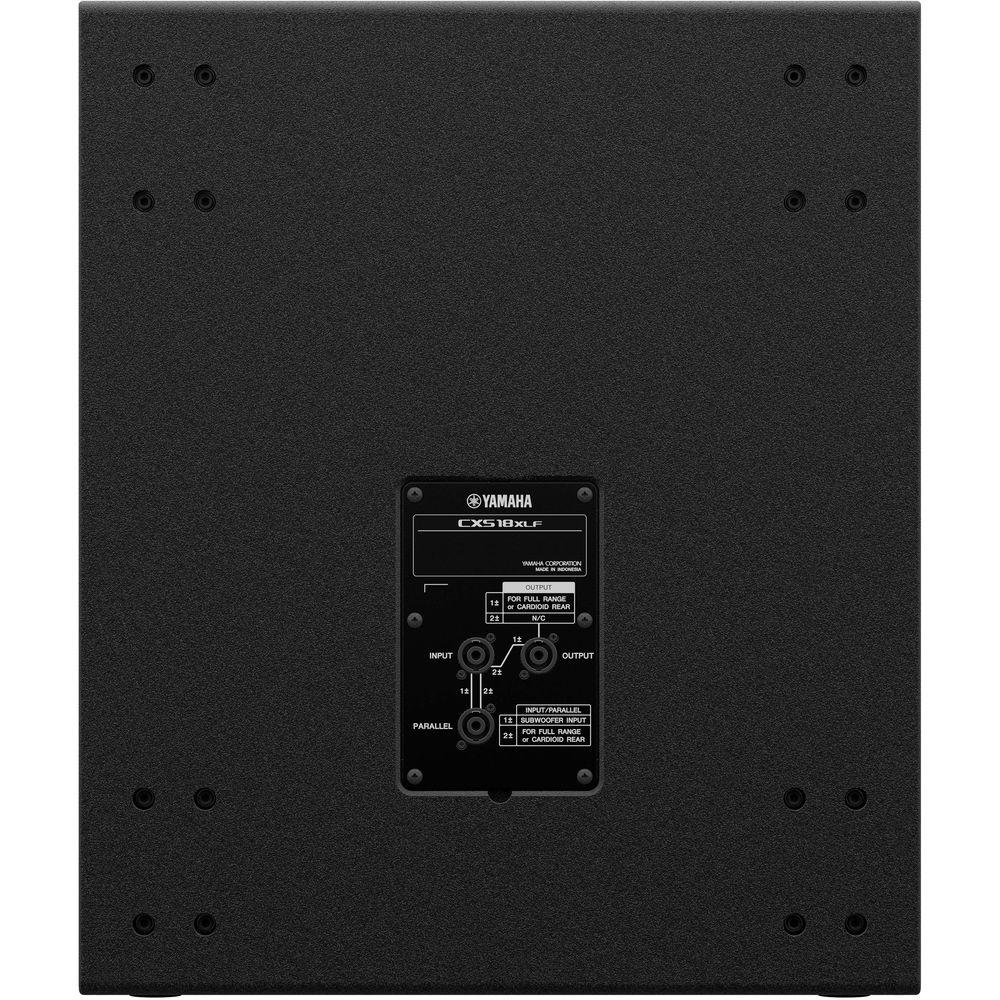

Yamaha recommends the use of a DSP speaker processor or a power amplifier with integrated DSP, such as Yamaha's PX Series amplifiers, in order to set crossovers, limiting, and equalization to ensure the best performance. Additionally, two or more subwoofers can be deployed with a cardioid configuration (DSP dependent), which can effectively reduce stage volume, while increasing low-end output directed at the audience. The rear panel offers three Neutrik SpeakON NL4MP connectors, which are configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. The Yamaha CXS18XLF is equipped with both a 35mm pole socket and an M20 threaded socket to support a full-range cabinet. - General Features
-
- Passive reflex subwoofer

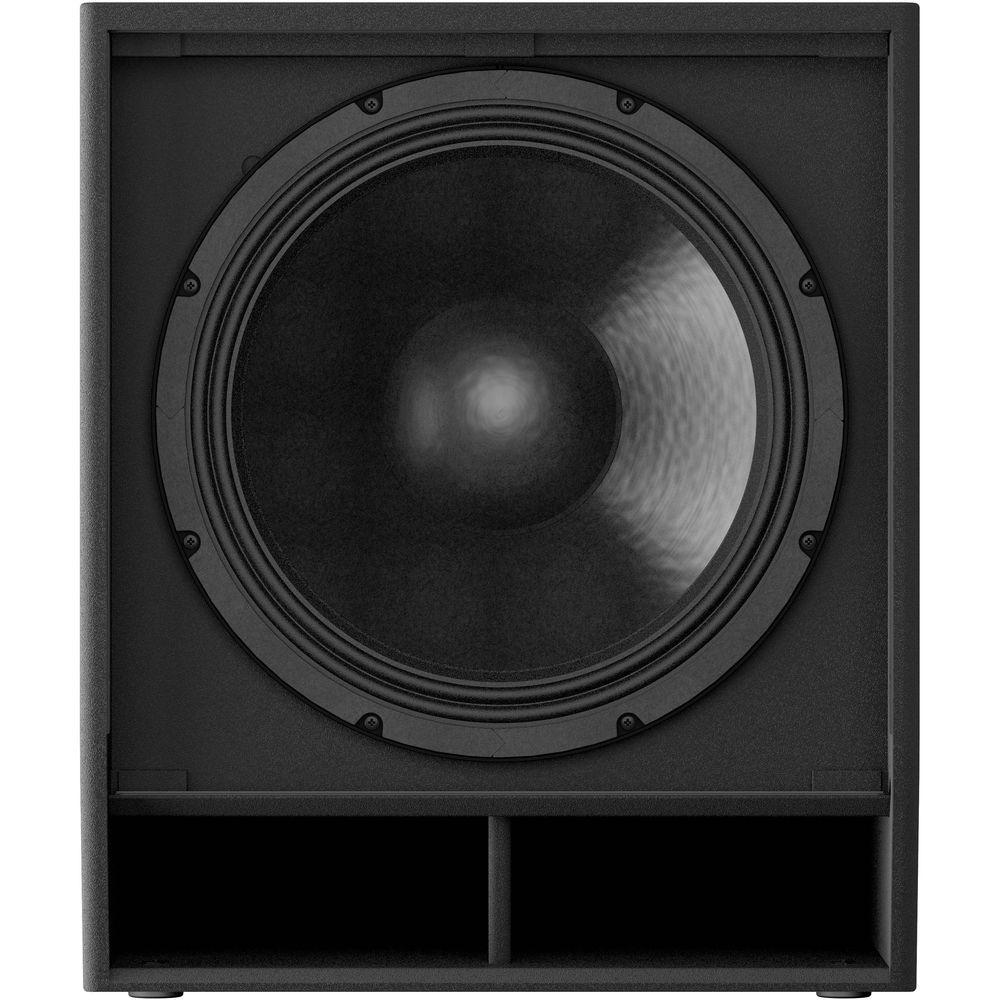

- Woofer: 18" with 4" voice coil
- Ideal for low-frequency extension to all full-range loudspeakers
- Maximum SPL: 133 dB
- Frequency range (-10 dB): 32 to 150 Hz
- High power 1000W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- 3 x SpeakON NL4MP (2 x parallel, 1 x output)
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
UPC: 889025114332 In the Box Yamaha CXS18XLF 1000W 18" Passive Subwoofer Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CXS18XLF 1000W 18" Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CXS18XLF Specs | | | Configuration | Passive Subwoofer | | Enclosure Type | Bass-Reflex Subwoofer | | Total Power Capacity | 500 W RMS
1000 W Program
2000 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | LF Driver | 1 x 18" / 457.2 mm Woofer | | LF Voice Coil | 4" / 101.6 mm | | Magnet | Ferrite | | | | Frequency Range | 32 Hz to 150 Hz -10 dB | | Maximum SPL | 133 dB (Peak) | | Speaker Sensitivity | 100 dB | | | | Audio I/O | 2 x speakON NL4
1 x speakON NL4 Output Parallel Inputs | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket
1 x M20 | | Handles | 2 | | Construction Material | Plywood | | Dimensions | 21.6 x 25.9 x 28.4" / 548.6 x 657.9 x 721.4 mm | | Weight | 96.1 lb / 43.6 kg |
