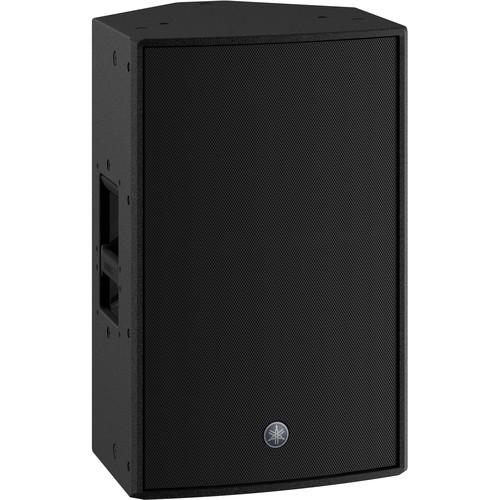

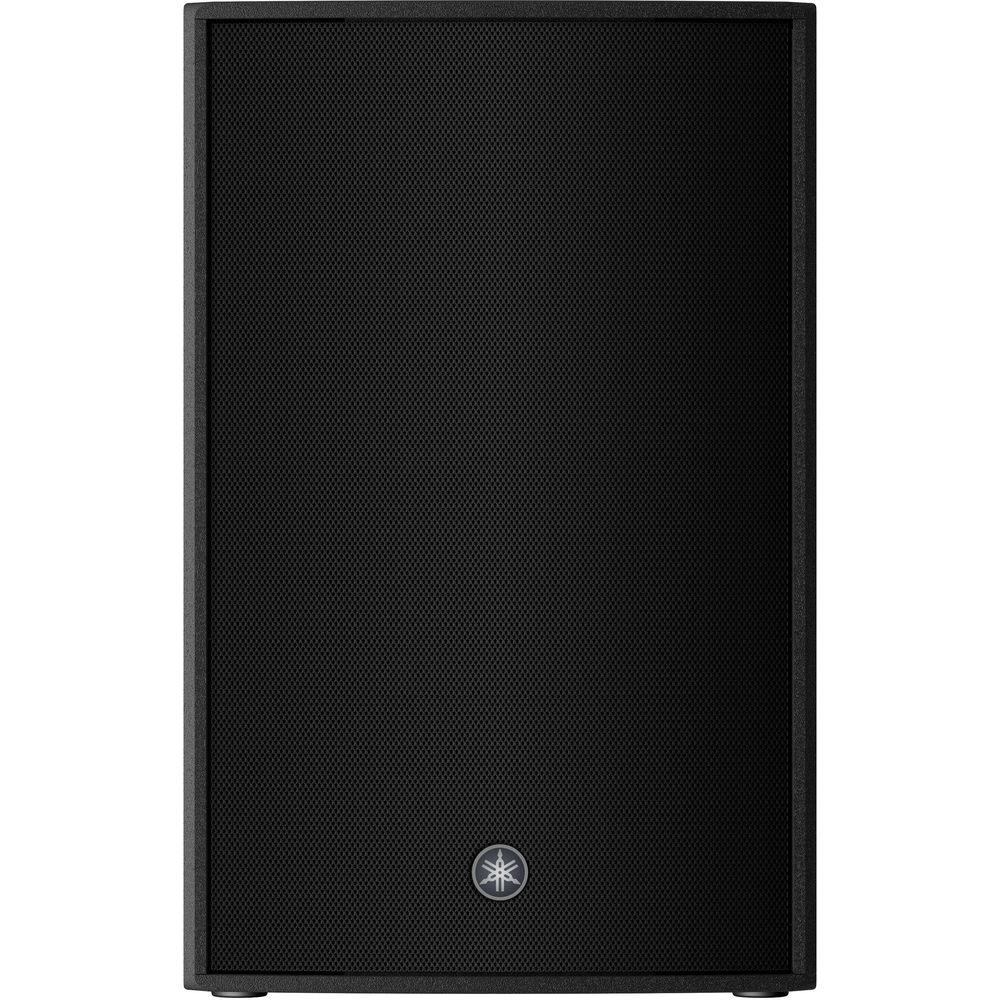

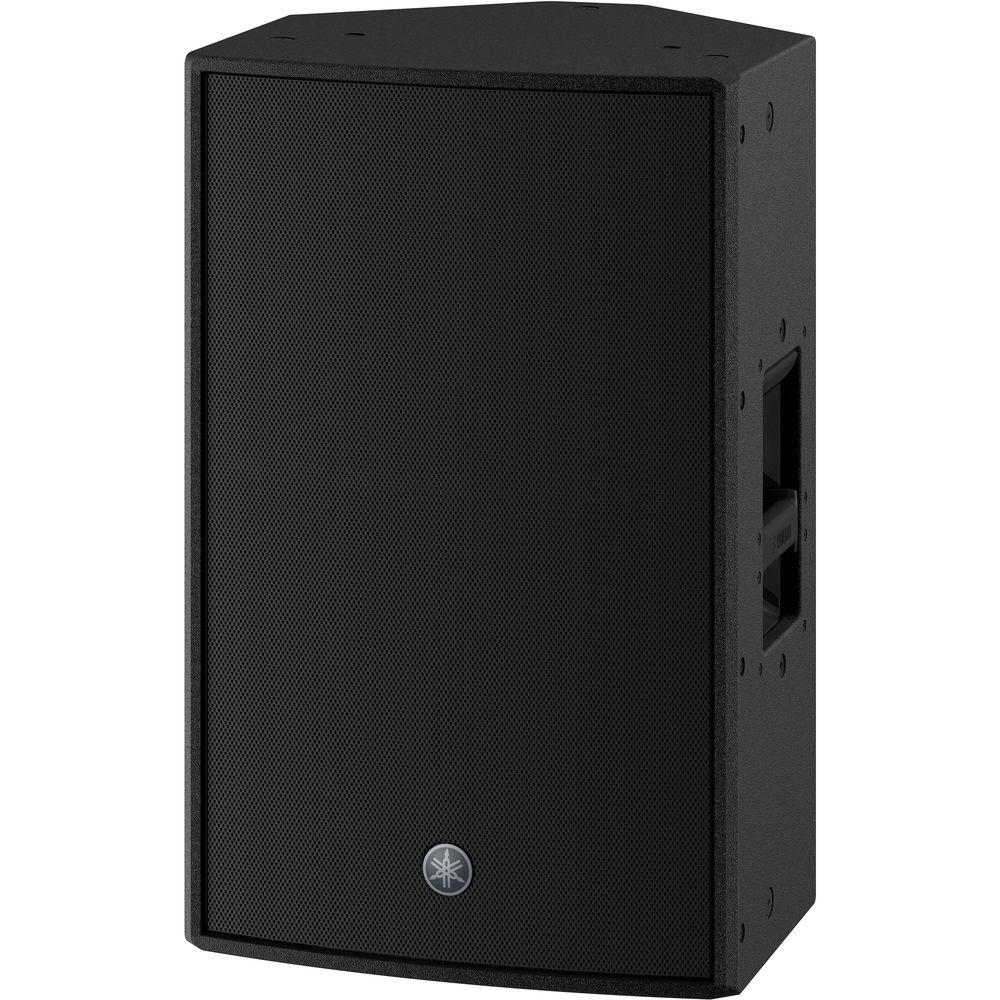

Product description Yamaha Releases New LoudspeakersKey Word: LOUD Read More The Yamaha CZR12 is a 2-way passive loudspeaker designed for main/FOH and floor monitor applications. From live bands at outdoor festivals to DJ's in clubs, the speaker is well suited for a range of live performance and installed sound environments. The CZR12 requires 800W of power to drive the 12" woofer and 2" compression driver, which combine to provide a frequency range of 43 Hz to 20 kHz (-10 dB) with a maximum SPL of 129 dB. The rotatable horn allows for vertical or horizontal mounting to further adapt the acoustic dimensions of a venue. The constant directivity (CD) horn was designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.

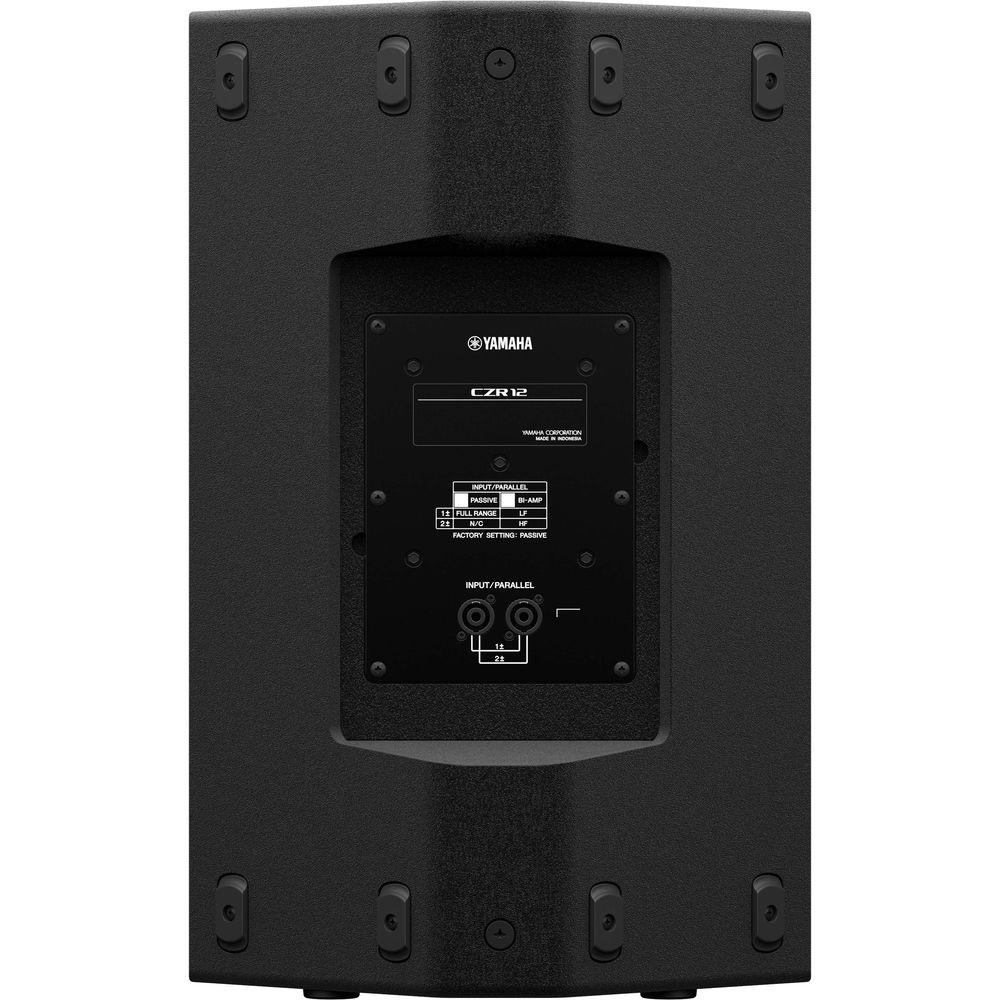

To maximize performance, the CZR12 can be configured for bi-amplification, which allows two independent amplifier channels to power the woofer and compression driver separately. Yamaha recommends the use of a DSP speaker processor or a power amplifier with integrated DSP, such as Yamaha's PX Series amplifiers, in order to set crossovers, limiting, and equalization to ensure the best performance. The rear panel offers two Neutrik SpeakON NL4MP connectors, which are configured in parallel and allow for additional speakers to be daisy-chained. There are twelve M10 rigging points for permanent installations, as well as two pole cups (0 & -7°) for deploying in a mobile setting. - General Features
-
- 2-way loudspeaker
- HF: 1" throat compression driver with 2" voice coil, titanium diaphragm, and neodymium magnet
- LF: 12" with aluminum die-cast frame, 3" voice coil, and neodymium magnet
- Wide dispersion CD waveguide horn
- 800W (PGM) power handling
- Bi-amp capable

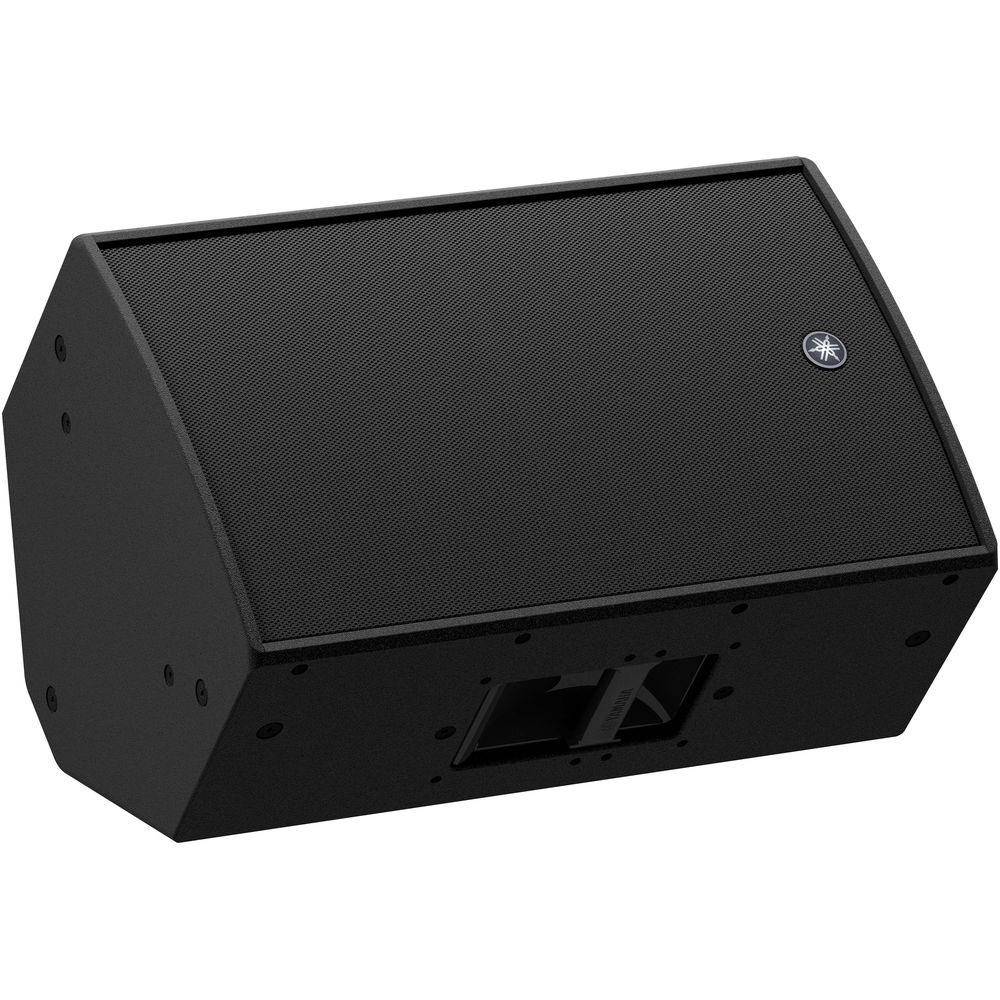

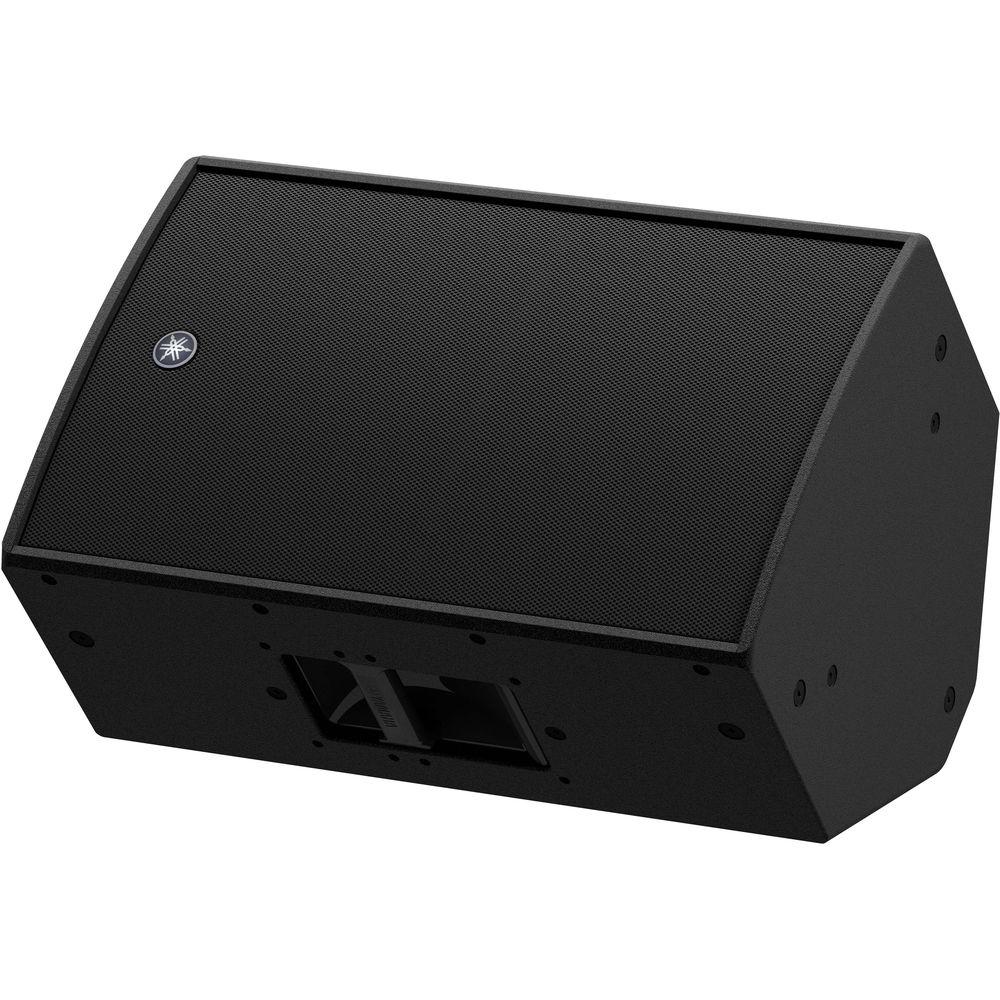

- Floor monitoring setting enables mirroring configuration

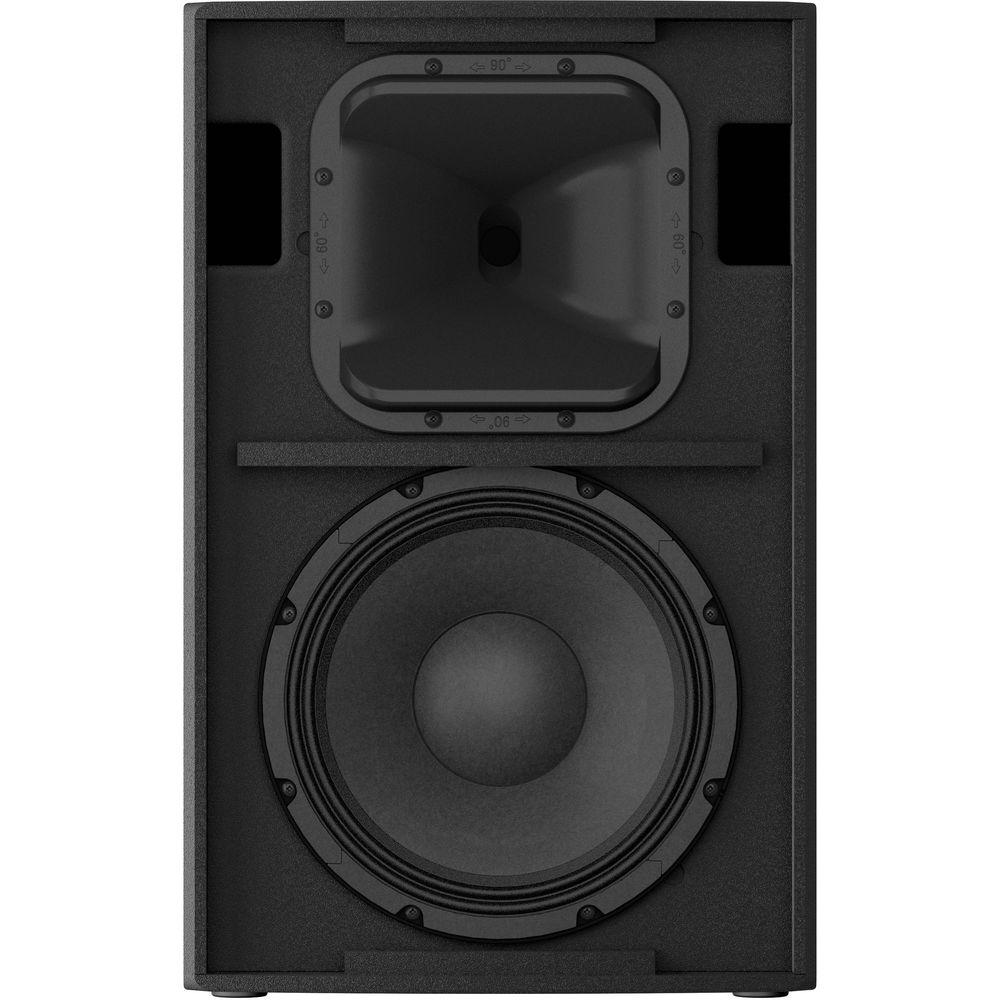

- Rotatable horn
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating

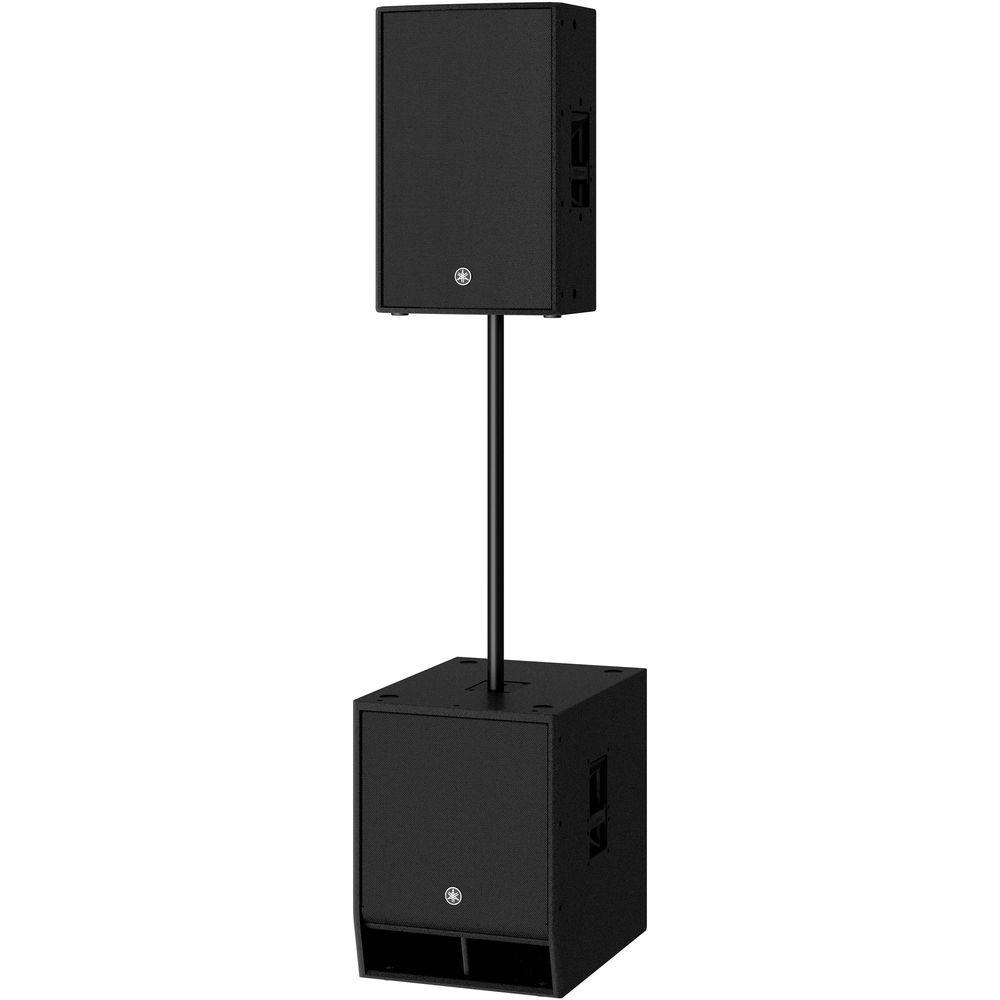

- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR12)
- Variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
UPC: 889025114318 In the Box Yamaha CZR12 800W 2-Way 12" Passive Loudspeaker Limited 7-Year Warranty User Manual PDF 3.3mbaayrewyaceued Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha CZR12 800W 2-Way 12" Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha CZR12 Specs | | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | Passive:
400 W RMS
800 W Program
1600 W Peak
Bi-Amp / LF:
400 W RMS
800 W Program
1600 W Peak
Bi-Amp / HF:
50 W RMS
100 W Program
200 W Peak | | System Impedance | 8 Ohms (Passive)
LF:
8 Ohms (Bi-Amp)
HF:
16 Ohms (Bi-Amp) | | | | HF Driver | 1 x Titanium Compression Driver with 1" / 25.4 mm Throat | | HF Voice Coil | 2" / 50.8 mm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | LF Voice Coil | 3" / 76.2 mm | | Magnet | HF:
Neodymium
LF:
Neodymium | | | | Frequency Range | 43 Hz to 20 kHz -10 dB | | Maximum SPL | 129 dB SPL (Peak, Passive)
129 dB (LF, Peak, Bi-Amp)
131 dB SPL (HF, Peak, Bi-Amp) | | Coverage Angle | 90° H x 60° V (Rotatable Horn)
50° H x 50° V (Monitor) | | Speaker Sensitivity | Passive:
97 dB SPL
Bi-Amp/LF:
97 dB
Bi-Amp/HF:
108 dB SPL | | | | Audio I/O | 2 x speakON NL4 Parallel | | | | Mounting | 12 x M10
2 x 1.4" / 35 mm Pole Socket (Dual Angle) | | Handles | 2 | | Construction Material | Plywood | | Dimensions | 16.1 x 25.4 x 15.5" / 408.9 x 645.2 x 393.7 mm | | Weight | 39.7 lb / 18 kg | | | | Package Weight | 51.1 lb | | Box Dimensions (LxWxH) | 30.5 x 19.5 x 19.5" |
