Product description Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR10- 10" 2-Way Powered Loudspeaker from Yamaha is capable of up to 700W of dynamic output via its Class D amplifier. The loudspeaker features a 10" woofer and a 1" high-frequency driver and provides a maximum output of 129 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR10 is portable and can be easily transported. - High-Efficiency Class D Amplifier
- The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 129 dB, delivered with clarity and dynamic characteristics
- Custom Designed Transducer
- The woofer delivers defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies
- Portable Cabinet
- DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

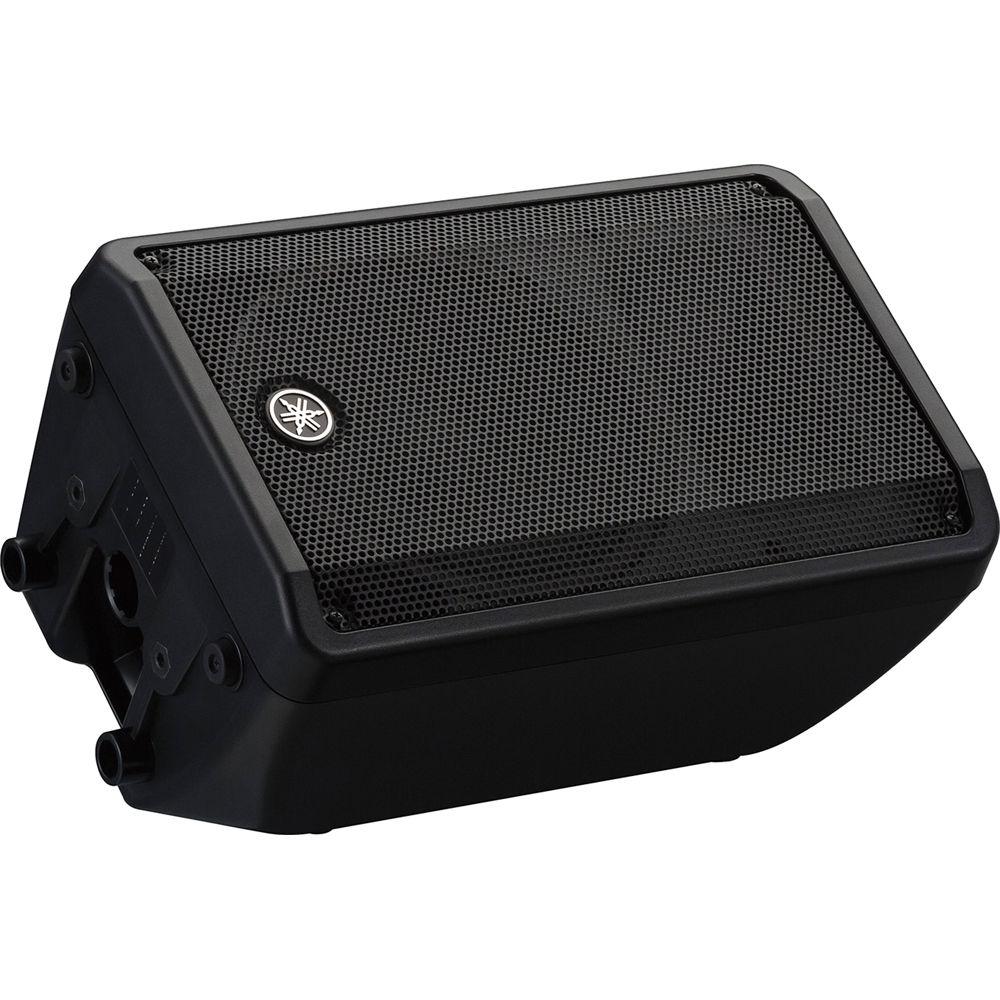

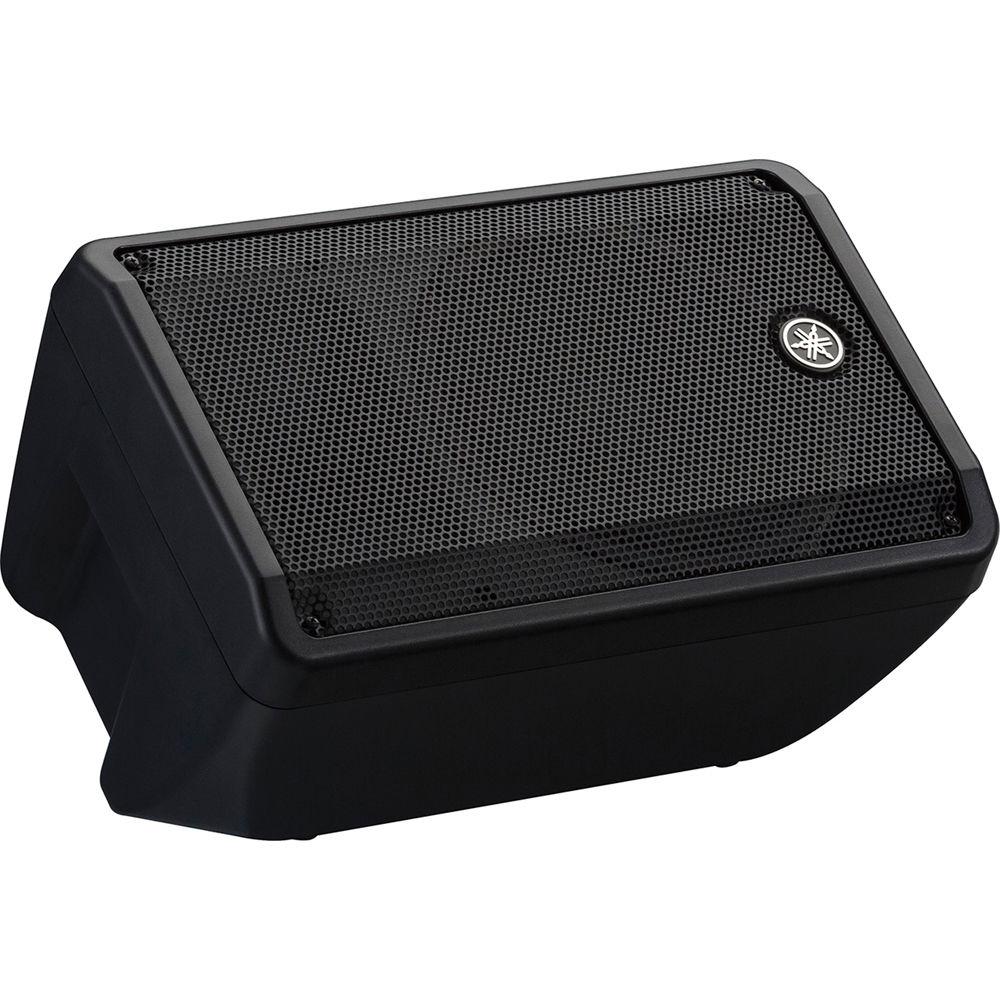

- Enclosure Design for Floor Monitoring
- DBR Series speakers feature an optimized 50° wedge angle for floor monitoring
- On-Board 2-Channel Mixer

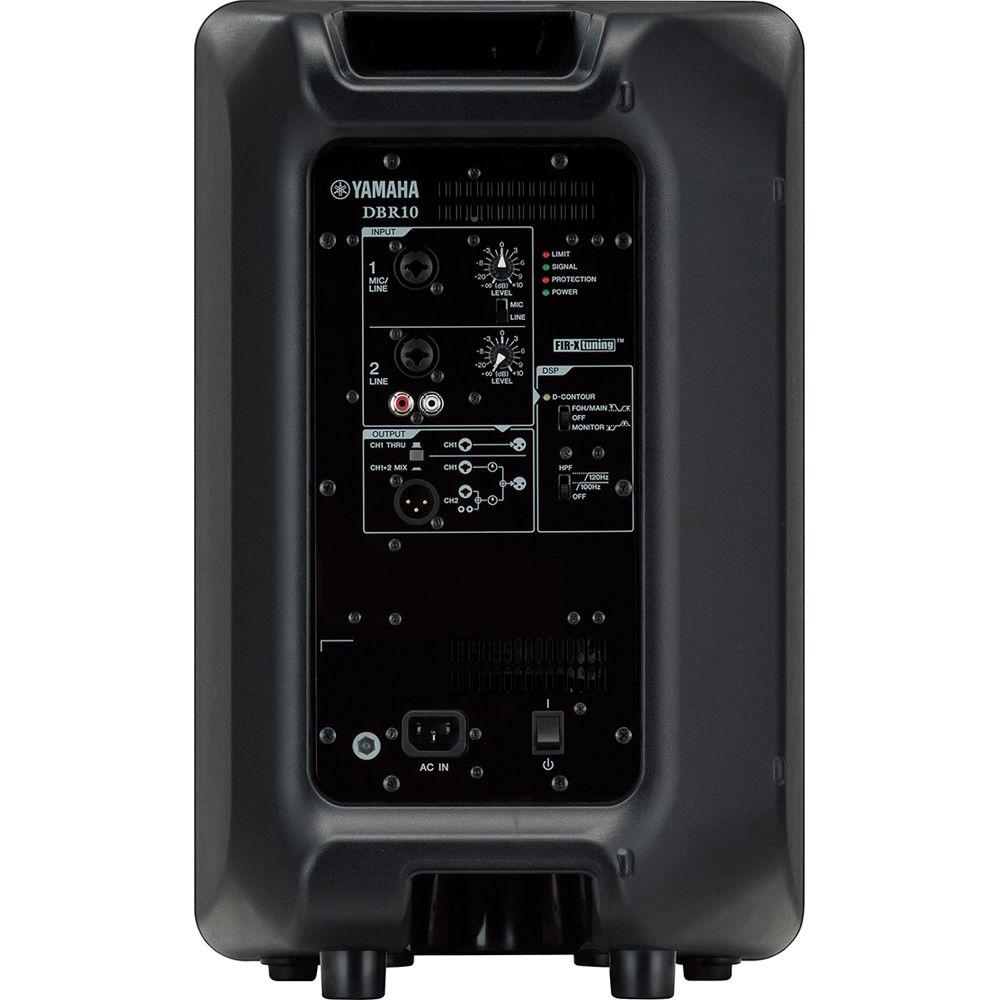

- DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only
- Rigging Points for Installation Applications
- DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts
UPC: 086792992440 In the Box Yamaha DBR10- 10" 2-Way Powered Loudspeaker Limited 1-Year Warranty User Manual PDF 1.3mbxaesturatfswburdeetx Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DBR10- 10" 2-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha DBR10 Specs | | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 700 W Peak
325 W RMS | | Amplifier Power Rating | LF:
500 W Peak
260 W RMS
HF:
200 W Peak
65 W RMS | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | LF Driver | 1 x 10" / 25.4 cm Woofer | | LF Voice Coil | 2" / 5.1 cm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Range | 55 Hz to 20 kHz -10 dB | | Maximum SPL | 129 dB SPL | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Input
2 x RCA Unbalanced
1 x XLR 3-Pin Output Output is CH 1 Parallel Through or CH 1 + CH 2 Mix | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz | | Power Consumption | 60 W (1/8 Power)
18 W (Idle) | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket (Bottom)
1 x Pole Socket
2 x M8 (Bottom) | | Handles | 1 x Top | | Cooling | Fan (Variable Speed) | | Construction Material | Plastic | | Dimensions | 12.1 x 19.4 x 11.4" / 308.0 x 493.0 x 289.0 mm | | Weight | 23.2 lb / 10.5 kg | | | | Package Weight | 30.75 lb | | Box Dimensions (LxWxH) | 22.6 x 15.8 x 14.9" |
