User Manual for Yamaha DGX-660 Portable Grand Digital Piano Click to enlarge the picture
Contents of the user manual for the Yamaha DGX-660 Portable Grand Digital Piano
- Product category: Digital Pianos Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Digital Pianos
 |
User manual for the Yamaha DGX-660 Portable Grand Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

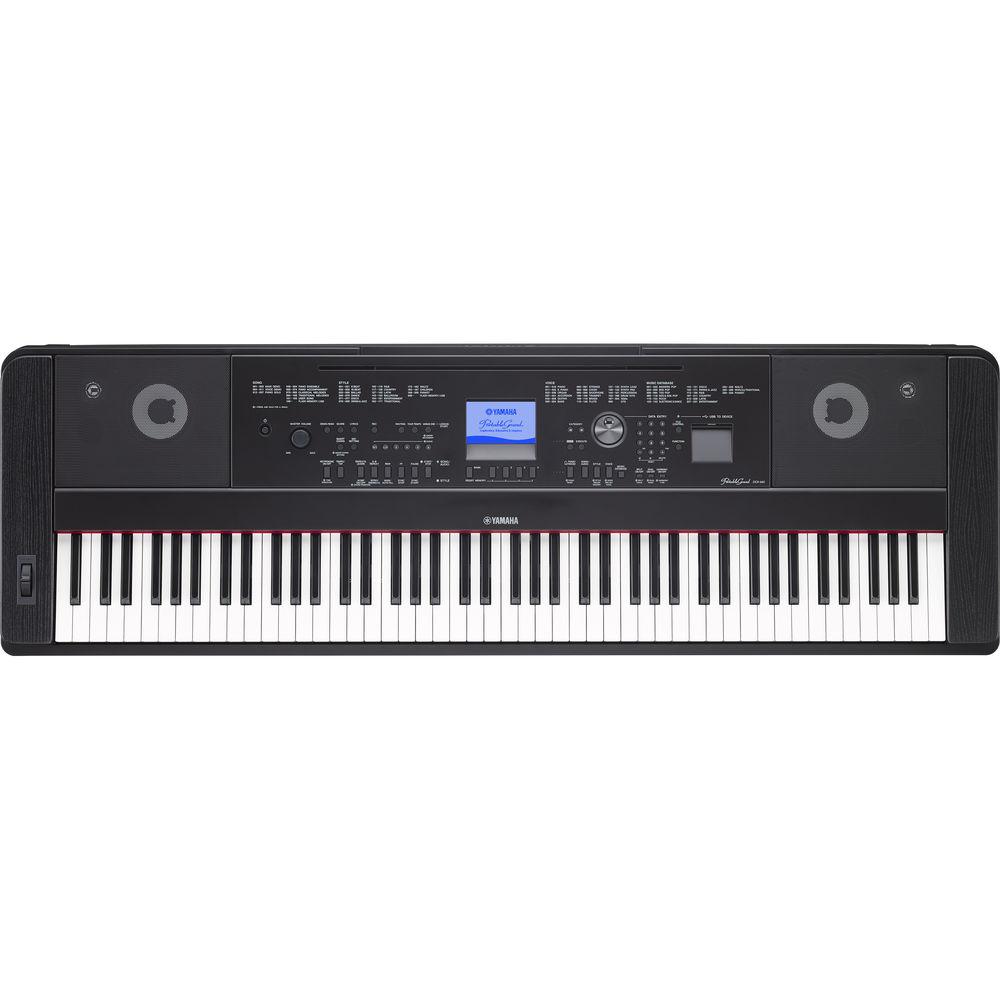

Product description Yamaha Presents the DGX-660 88-Key Portable Digital Piano Read More The black DGX-660 from Yamaha is an 88-key digital piano that features sounds based on samples from the company's CFIIIS 9' concert grand piano, a weighted keyboard with varying touch response across the key range, and Damper-Response DSP. To add to the genuine playing experience, the keyboard also provides 192-note polyphony that will easily accommodate two-handed sustained chords with heavy pedaling.
A built-in microphone jack allows the performer to sing along while playing and monitor the results with vocal effects via the built-in amplifiers and speakers. Also included is the Yamaha "You are the Artist" library for learning hit songs using the best-selling sheet music, or by reading the scrolling notes on the built-in Score Display. - Pure CF Sound Engine faithfully reproduces the tone of a meticulously sampled Yamaha 9' CFIIIS concert grand piano, allowing for dynamic and expressive playing
- Just like an acoustic piano, the GHS weighted action is heavier in the low end and lighter in the high end
- Special matte-black key tops are designed to absorb moisture, remaining tactile after extended use without becoming slippery
- Score Display puts the music notation of MIDI songs onto the screen of the instrument, for playing the songs by following the bouncing ball
- "You are the Artist"-series software pairs best-selling books from Hal Leonard with XG song files to play along with
- 192-note polyphony provides enough horsepower for dropout-free performances even while layering two voices, and playing two-handed sustained chords with heavy pedaling

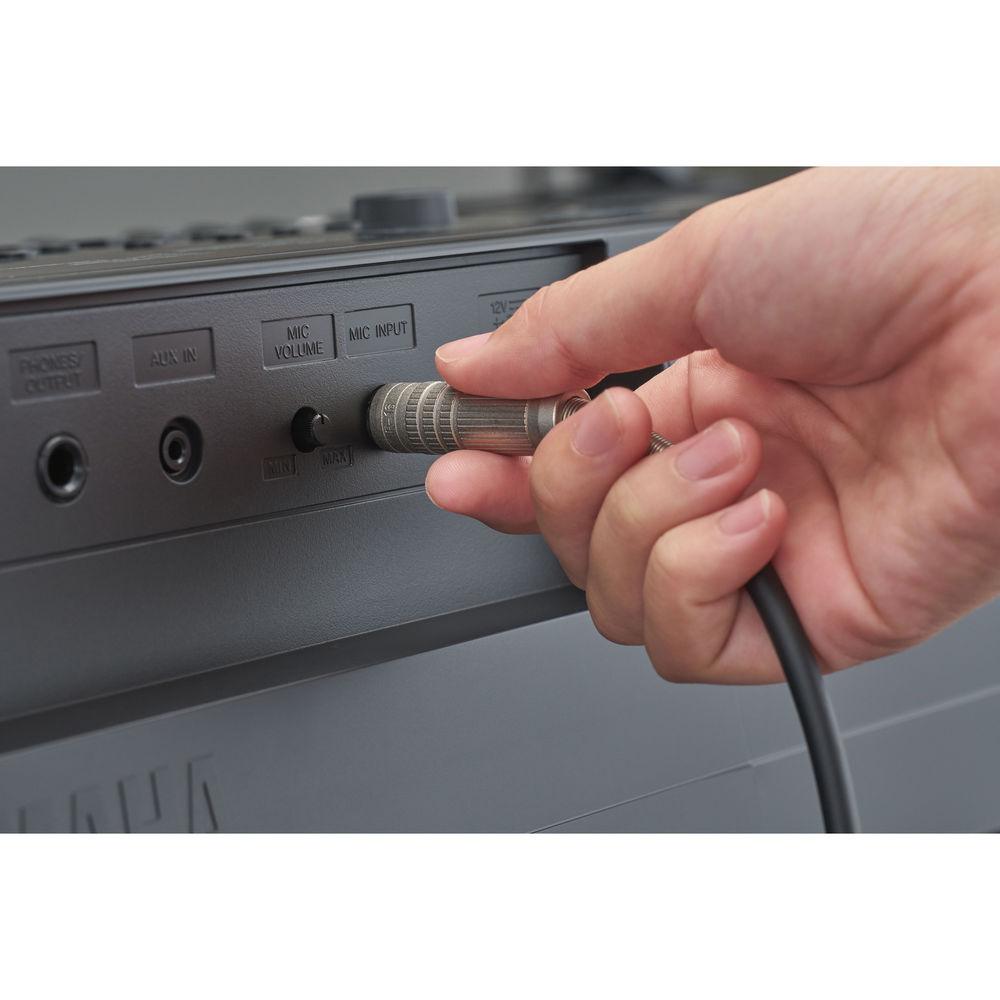

- 1/4" microphone input allows for connecting a microphone to sing along while playing and monitoring the result through built-in speakers
- Record the performance to USB audio
- Wireless audio and MIDI features utilize Wi-Fi to stream audio and MIDI to/from an iOS device and the Yamaha instrument to integrate with compatible apps for iOS
- The Piano Room allows for choosing from a variety of pianos and acoustic settings to create a custom personal piano environment (even the position of the grand piano lid can be adjusted)
- Connect a footswitch and configure it to control various functions in the instrument, such as microphone on/off, style start/stop, or tap tempo
- Six-track song recorder captures performances and song ideas, and then allows for adding additional layers to spice up the recordings
- USB audio recording and playback captures performances to a USB drive

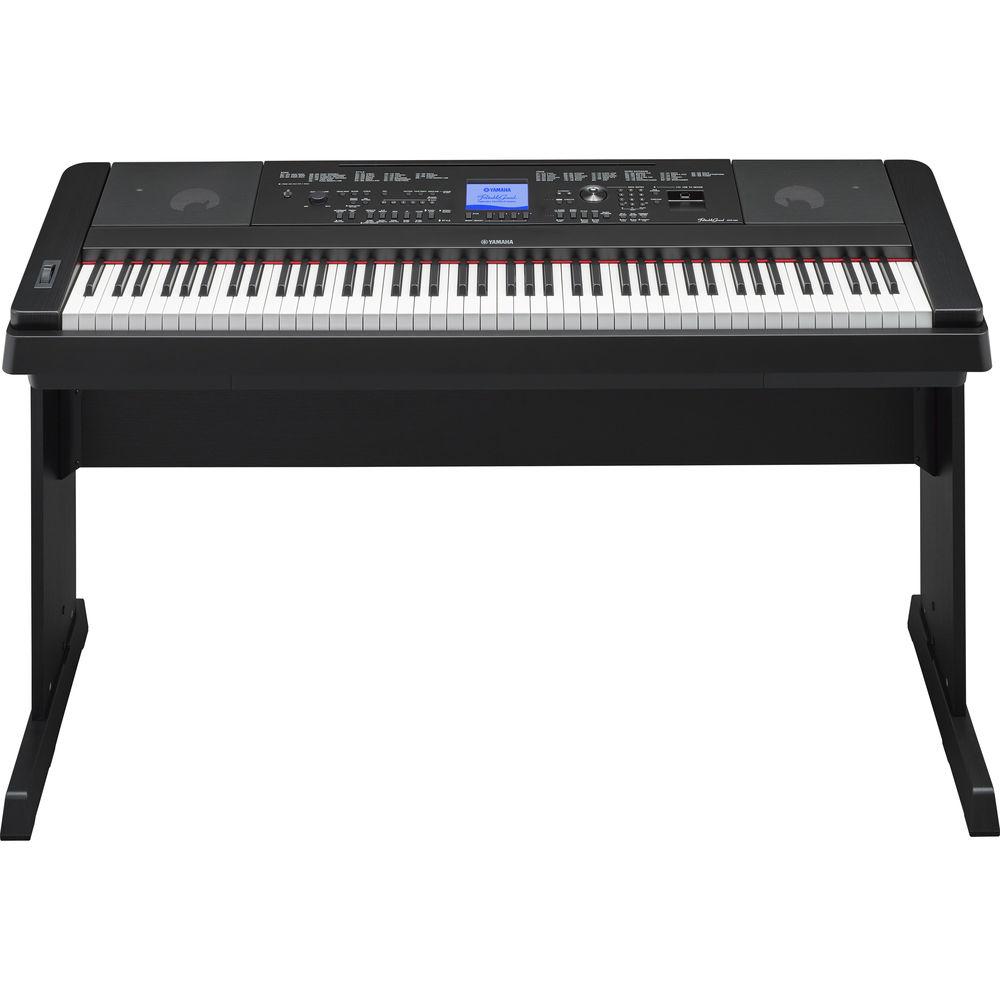

UPC: 889025101707 In the Box Yamaha DGX-660 Portable Grand Digital Piano (Black) External Power Supply Keyboard Stand Footswitch Music Rest Owner's Manual and Data List Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DGX-660 Portable Grand Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha DGX660B Specs | | | Keyboard | 88 Keys, Graded/Scaled-Hammer Action | | Touch Response | 3 Levels of Sensitivity, Plus Fixed | | | | Number of Sound Presets | 539 x Sounds
15 x Drum Kits | | Number of Song Presets | 100 x Factory
6 x User | | Effects | Chorus, EQ, Reverb | | Maximum Polyphony | 192 Notes | | Performance Functions | Split/Layer, Transpose, Tuning Adjustment | | | | Number of Style Presets | 205 | | Types | One Touch, Auto Chord | | Practice Features | Lessons, Chord Dictionary, Metronome | | | | Supported MIDI Standards | GM, XGlite | | Standard MIDI File (SMF) Formats | Format 0, 1 (Playback)
Format 0 (Record) | | MIDI Note Memory and Resolution | 30,000 Notes | | Audio Recording Formats | WAV, 44.1 kHz / 16-Bit | | Max Audio Recording Time | 80 Minutes per Song | | | | I/O | 1 x 1/4" TRS Output
1 x 1/4" Microphone Input
1 x 1/8" / 3.5 mm TRS Aux Input | | Pedal Support | 1 x 1/4" Sustain
1 x Proprietary Multi-Pedal | | Data Port | 1 x USB Type-B (Computer Transfer)
1 x USB Type-A (External Memory) | | | | Amplifiers | 2 x 6 W | | Round Speakers | 2 x 4.72" / 12 cm
2 x 2" / 5 cm | | | | AC/DC Power Adapter | PA-150, 12 VDC (Included) | | Power Consumption | 13 W | | | | Display | Monochrome LCD | | Included Accessories | Stand | | Dimensions | 55.0 x 5.8 x 17.6" / 1397.0 x 146.0 x 445.0 mm (without Stand)
55.1 x 30.0 x 17.6" / 1399.0 x 761.0 x 445.0 mm (with Stand) | | Weight | 46.4 lb / 21.0 kg (without Stand)
61.7 lb / 28.0 kg (with Stand) | | | | Package Weight | 82.5 lb | | Box Dimensions (LxWxH) | 59.0 x 21.5 x 12.5" |
