User Manual for Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the Yamaha DSR115 15" 1300W Active 2-Way
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
 |
User manual for the Yamaha DSR115 15" 1300W Active 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

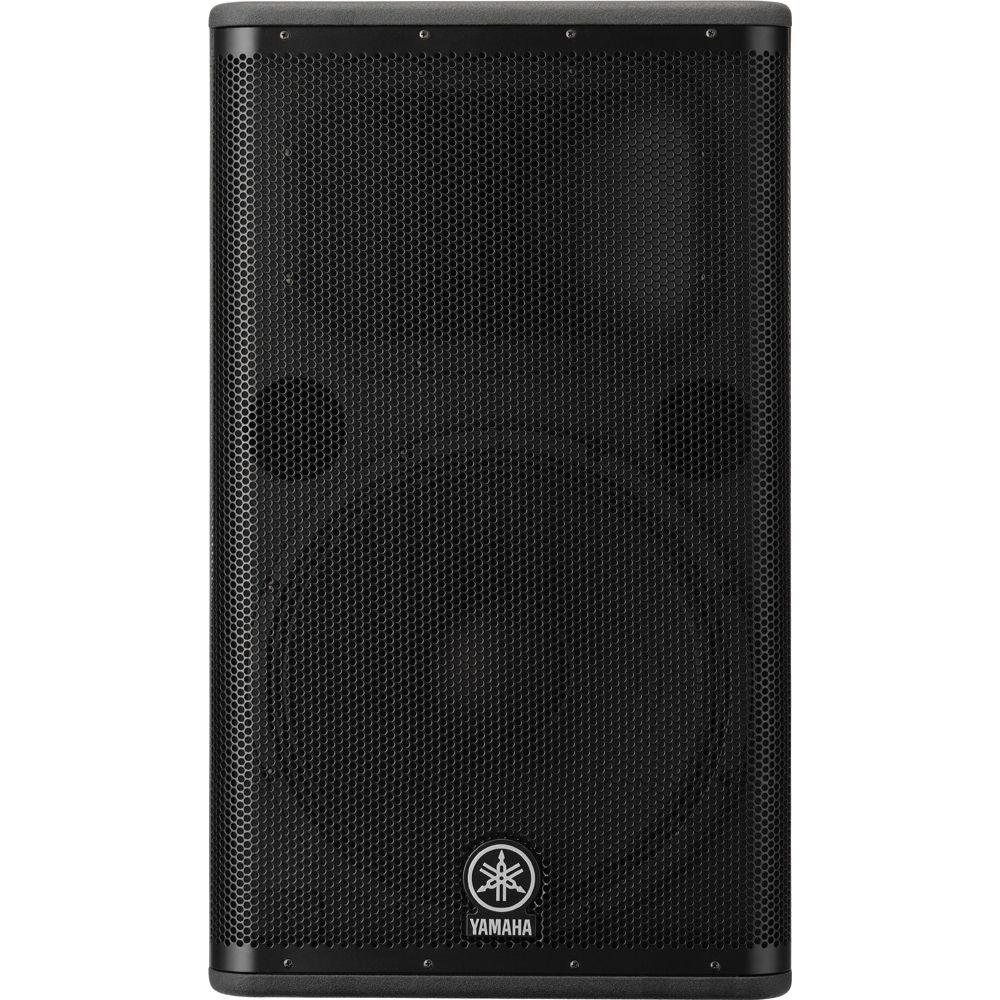

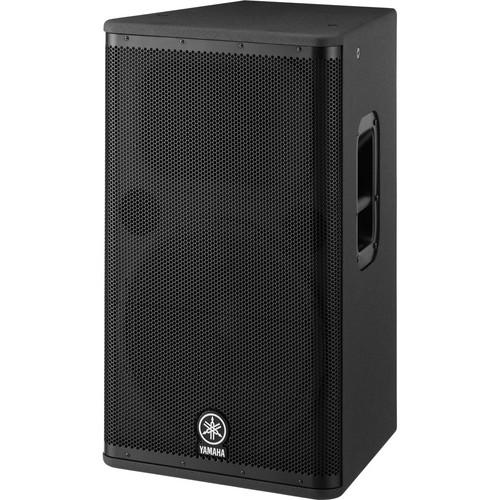

Product description The DSR115 from Yamaha is a professional-quality 2-way active loudspeaker, ideal for sound reinforcement applications. The rugged cabinet houses a 15" woofer and a 2" titanium compression tweeter, both of which have neodymium magnets for maximum efficiency and low weight. Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern to reach a broad audience. Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance. XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers.
Onboard DSP includes FIR-X tuning for smooth crossover transitions and 24-bit AD/DA converters for maximum dynamic range. D-CONTOUR processing provides consistent clarity and high and low output levels. Extensive protection circuitry prevents damage from DC faults, clipping, overheating, and over voltage. The speaker has a standard 35mm pole socket for mounting, as well as M10 rigging points for suspended installation. Integrated carrying handles provide easy transport. - Ideal for sound reinforcement applications in theaters, houses of worship, and more

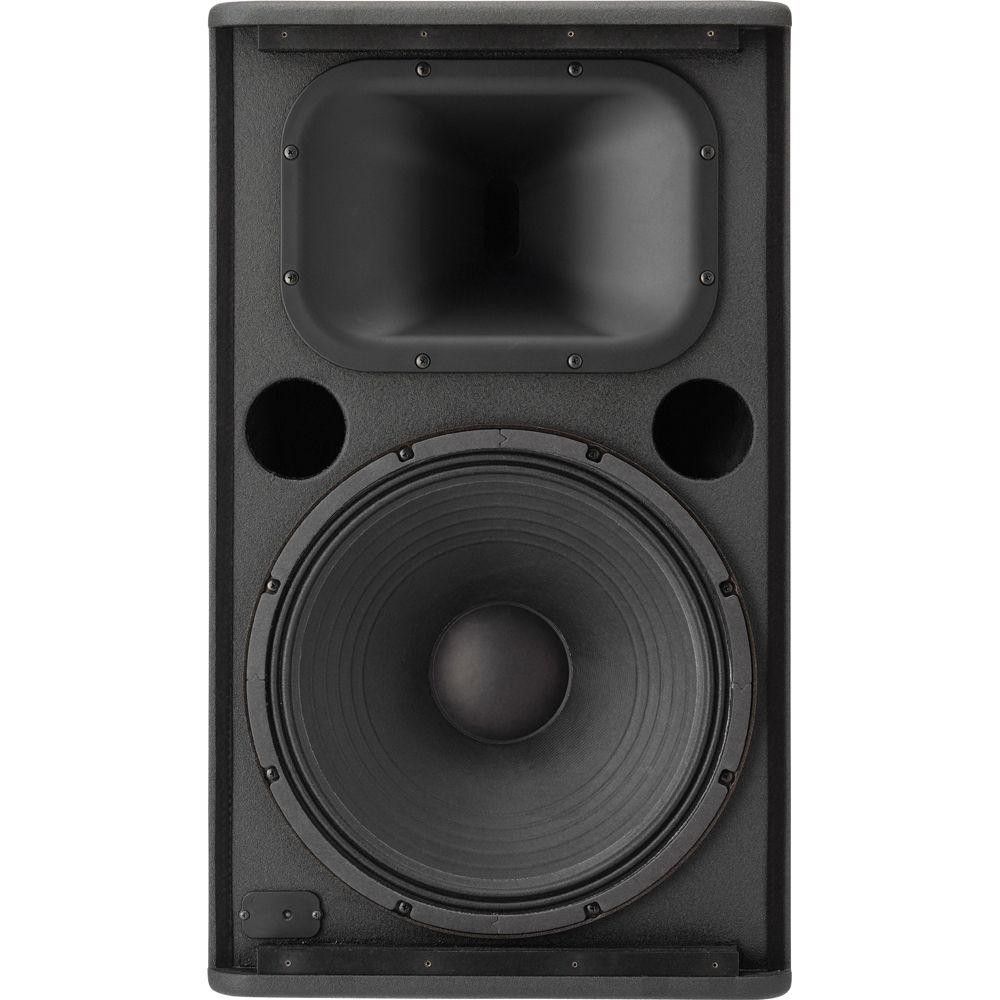

- The rugged cabinet houses a 15" woofer and a 2" titanium compression tweeter, both of which have neodymium magnets for maximum efficiency and low weight. The drivers are custom-designed for premium quality
- Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern of 90° x 60° to reach a broad audience
- Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance
- PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation

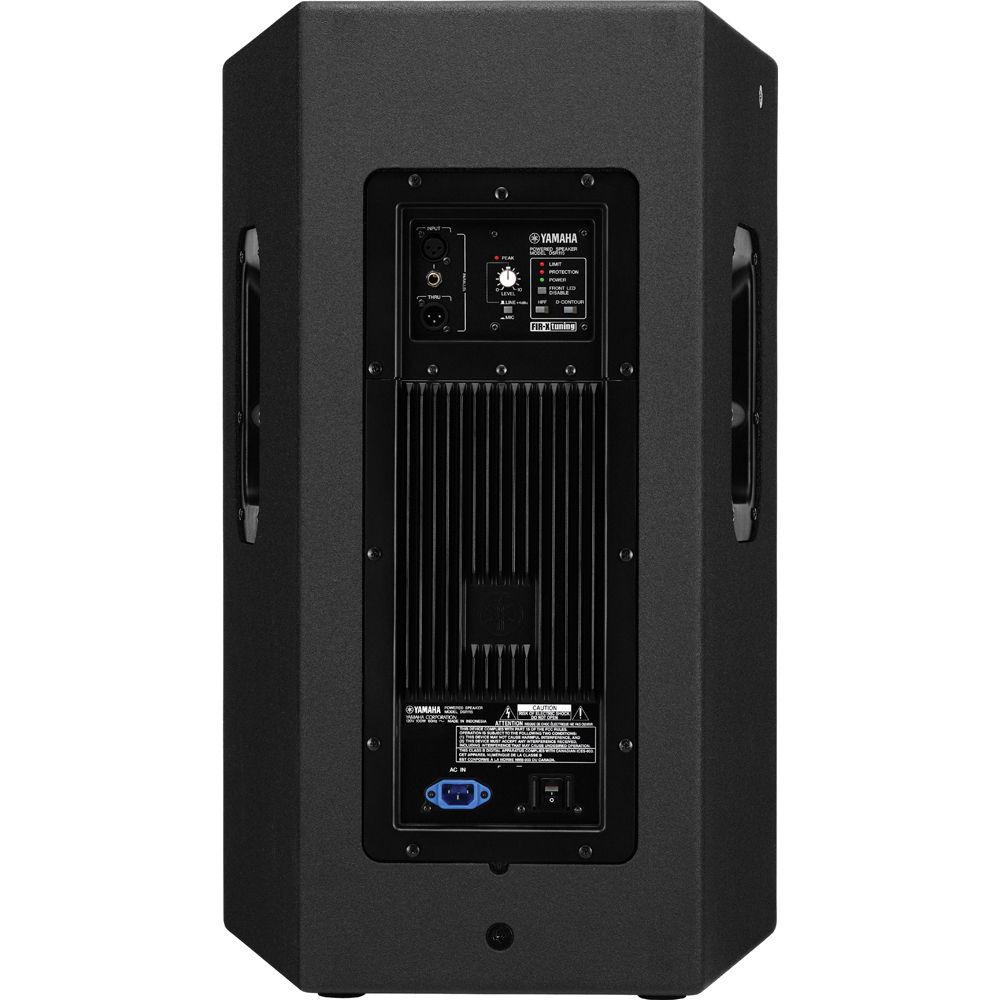

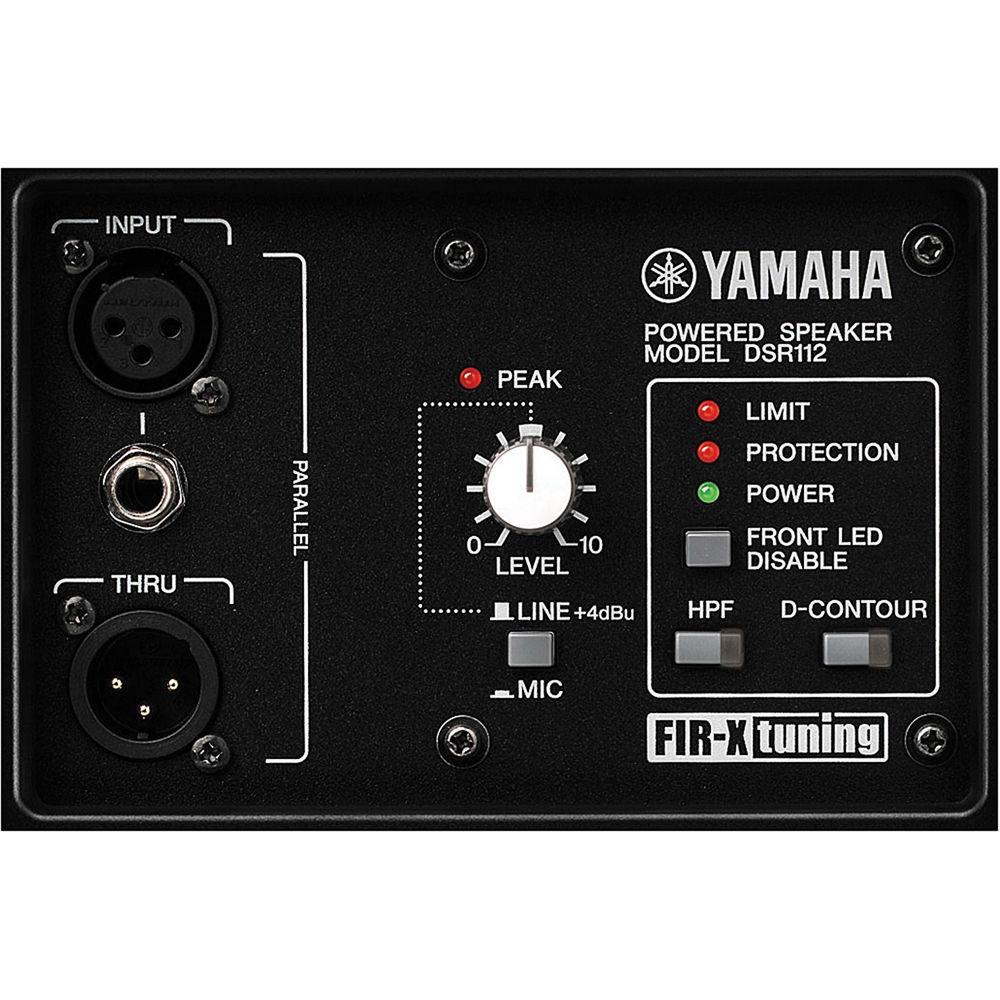

- XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers
- Onboard DSP includes FIR-X tuning for smooth crossover transitions and linear phase response, while 24-bit AD/DA converters provide maximum dynamic range
- D-CONTOUR processing provides consistent clarity and high and low output levels. This processing can be turned on or off depending on your environment and type of sound desired
- Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply, and drivers from DC faults, clipping, overheating, and over voltage to ensure reliable operation under the most severe conditions
- A standard 35mm pole socket is built-in for mounting on a pole or stand, while M10 rigging points allow for suspended installation. Integrated carrying handles provide easy transport
UPC: 086792948751 In the Box Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker Power Cord 1-Year Limited Warranty Guides & Manuals azbxyfddztftuzbtrtzexwfzbcrawybebec Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker can be downloaded in PDF format at the link stated below.
Technical parametersYamaha DSR115 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W | | Amplifier Power Rating | LF:
850 W
HF:
450 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 2" / 50.1 mm Titanium Compression Driver | | LF Driver | 1 x 15" / 387 mm Woofer | | LF Voice Coil | 3" / 76 mm | | Magnet | HF:
Neodymium
LF:
Neodymium | | | | Frequency Response | 45 Hz to 20 kHz -10 dB
55 Hz to 18 kHz -3 dB | | Maximum SPL | 136 dB | | Coverage Angle | 90° H x 60° V | | Input Sensitivity | Line Input:
0 dBu (Max)
Mic Input:
-25 dBu (Max) | | Max Input Level | Line Input:
+24 dBu
Mic Input:
-11 dBu | | I/O Impedance | Line Input:
12 kOhms
Mic Input:
8 kOhms | | Protections | DC, Output Limiter, Overcurrent, Overvoltage, Thermal | | | | Audio I/O | 1 x XLR Input
1 x 1/4" Input
1 x XLR Thru/Output | | | | Crossover | 1.7 kHz | | EQ | Contour | | Filters | High-Pass:
120 Hz, 24 dB/Octave | | Dynamic Processing | Peak Limiter | | | | AC Power Connector | 1 x IEC (Locking) | | Power Consumption | 100 W (1/8 Power) | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket (Bottom)
2 x M10 (Top)
1 x M10 (Bottom) | | Handles | 2 x Side | | Cooling | Convection | | Dimensions | 17.5 x 29.8 x 16.5" / 442.0 x 755.0 x 423.0 mm | | Weight | 62 lb / 28 kg | | | | Package Weight | 74.45 lb | | Box Dimensions (LxWxH) | 35.0 x 21.0 x 21.0" |
