User Manual for Yamaha DSR118W 18" 800W Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Yamaha DSR118W 18" 800W Active Subwoofer
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
 |
User manual for the Yamaha DSR118W 18" 800W Active Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

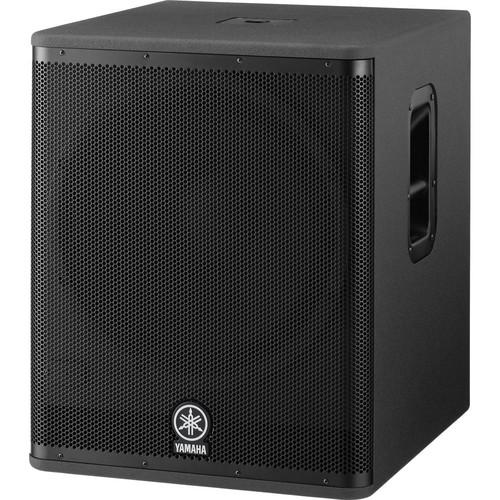

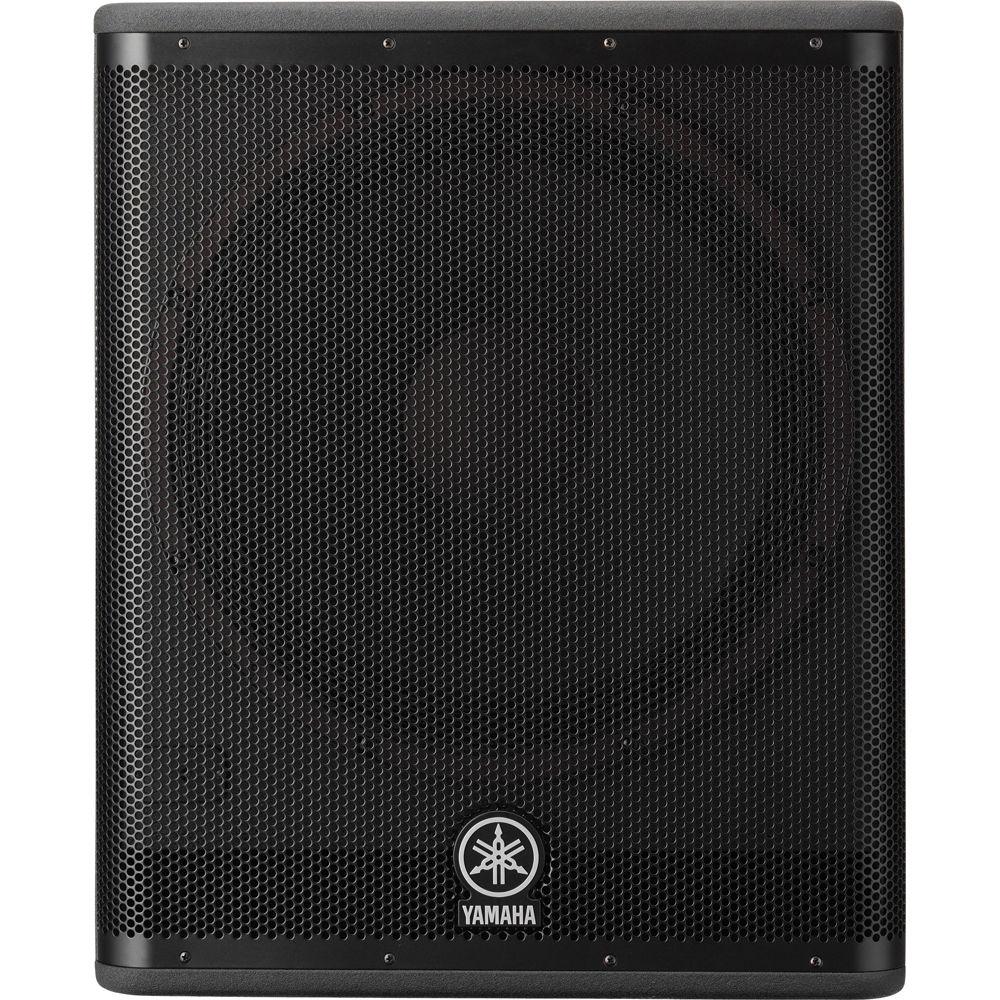

Product description The DSR118W from Yamaha is a professional-quality active subwoofer, ideal for bass reinforcement of full-range DSR-series loudspeakers. The rugged bass-reflex cabinet houses an 18" ferrite cone woofer to provide frequencies as low as 40Hz. An internal Class-D amplifier provides 800W of output power for a strong, distortion-free performance. Parallel XLR inputs and outputs let you connect sound sources and daisy-chain multiple speakers and subwoofers.
Extensive protection circuitry prevents damage from DC faults, clipping, overheating, and over voltage. The sub has a standard 35mm pole socket for mounting a speaker on top, while integrated carrying handles provide easy transport. - Ideal for bass reinforcement of full-range DSR-series loudspeakers

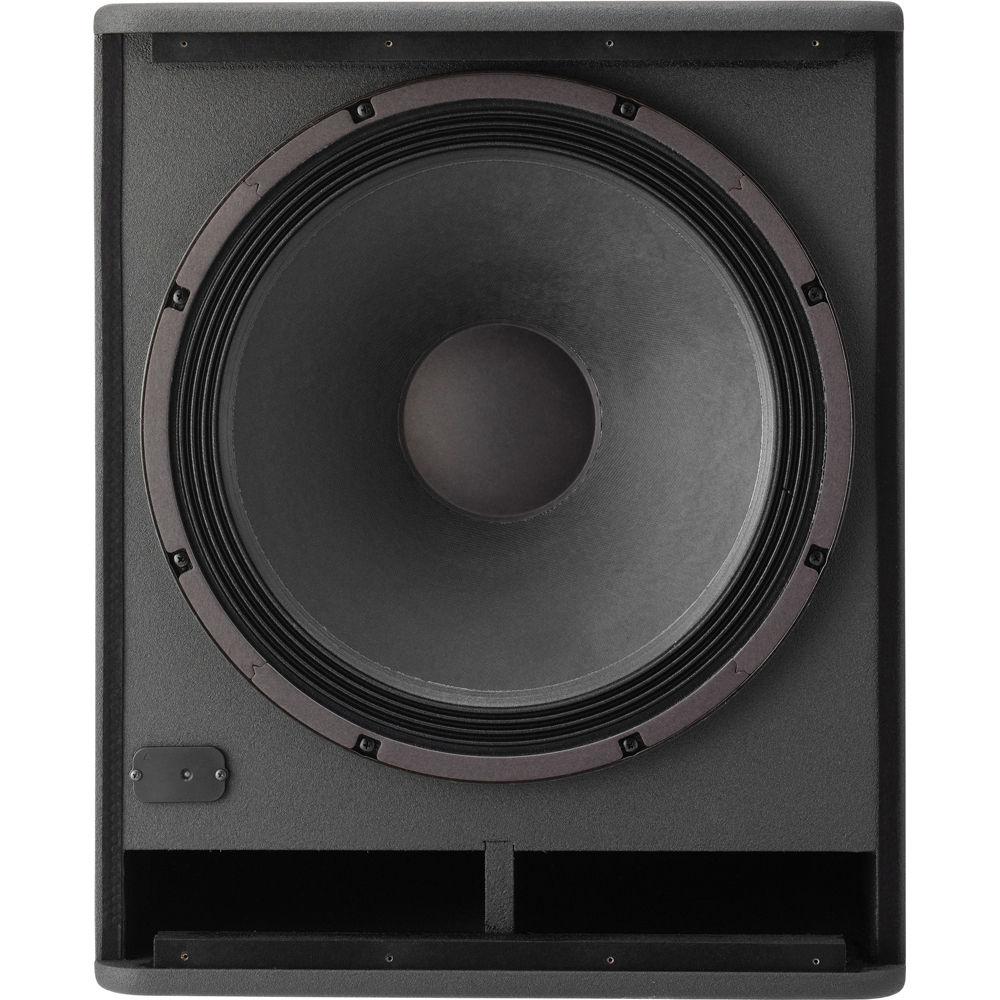

- The rugged bass-reflex cabinet houses an 18" ferrite cone woofer to provide frequencies as low as 40Hz. The driver is custom-designed for premium quality
- Internal Class-D amplifier provides 800W of output power for a strong, distortion-free performance
- PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation

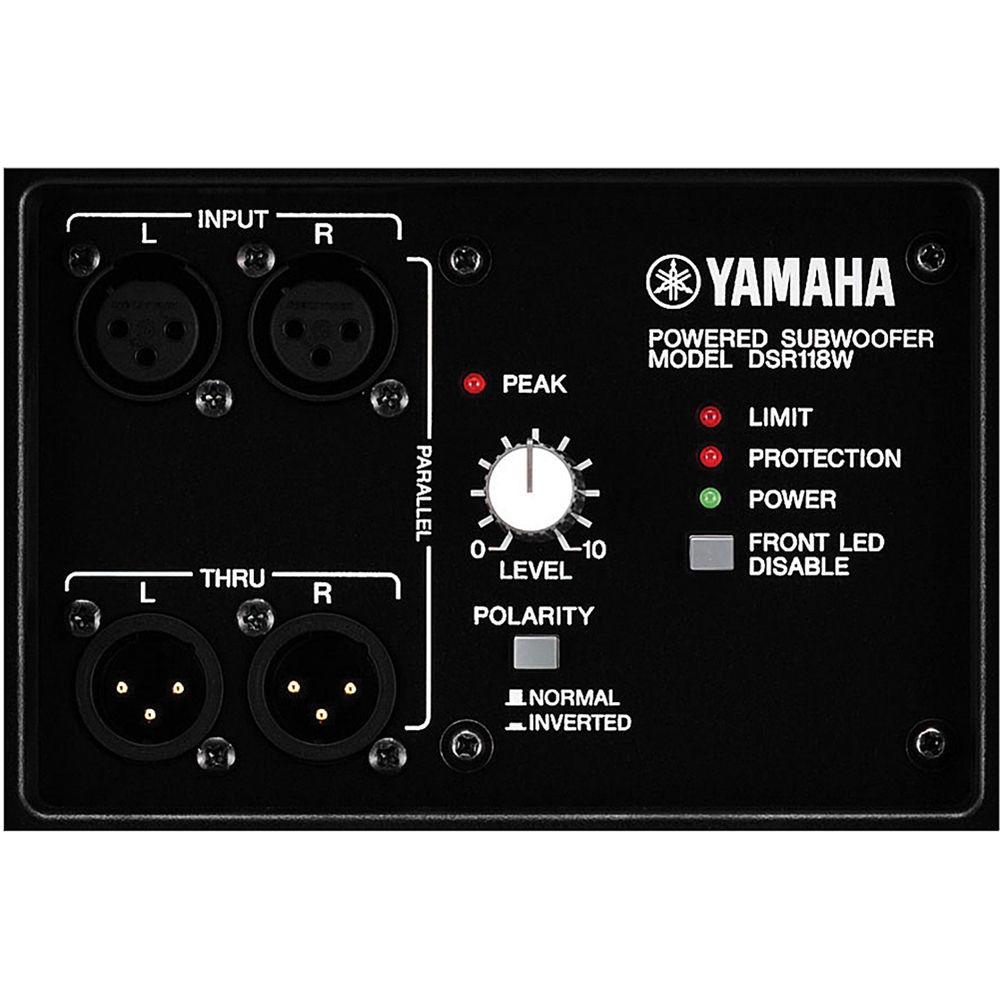

- Parallel XLR inputs and outputs let you connect sound sources and daisy-chain multiple speakers and subwoofers
- Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply, and driver from DC faults, clipping, overheating, and over voltage to ensure reliable operation under the most severe conditions
- A standard 35mm pole socket is built-in for mounting a speaker on top of the subwoofer. Integrated carrying handles provide easy transport
UPC: 086792948775 In the Box Yamaha DSR118W 18" 800W Active Subwoofer Power Cord 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DSR118W 18" 800W Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha DSR118W Specs | | | Configuration | Active Subwoofer | | Enclosure Type | Bass-Reflex Subwoofer | | Total Power Capacity | 800 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 457.2 mm Woofer | | LF Voice Coil | 3" / 76 mm | | Magnet | Ferrite | | | | Frequency Response | 40 Hz to 130 Hz -10 dB
50 Hz to 110 Hz -3 dB | | Maximum SPL | 132 dB | | Input Sensitivity | 0 dBu | | Max Input Level | +24 dBu | | I/O Impedance | Input:
10 kOhms | | Protections | DC, Output Limiter, Overcurrent, Overvoltage, Thermal | | | | Audio I/O | 2 x XLR Input
2 x XLR Thru/Output | | | | Dynamic Processing | Peak Limiter | | | | AC Power Connector | 1 x IEC (Locking) | | Power Consumption | 100 W (1/8 Power) | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket (Top) | | Handles | 2 x Side | | Cooling | Convection | | Dimensions | 20.5 x 25.2 x 23.0" / 520.0 x 638.0 x 584.0 mm | | Weight | 93 lb / 42 kg | | | | Package Weight | 107.75 lb | | Box Dimensions (LxWxH) | 30.5 x 26.5 x 24.0" |
