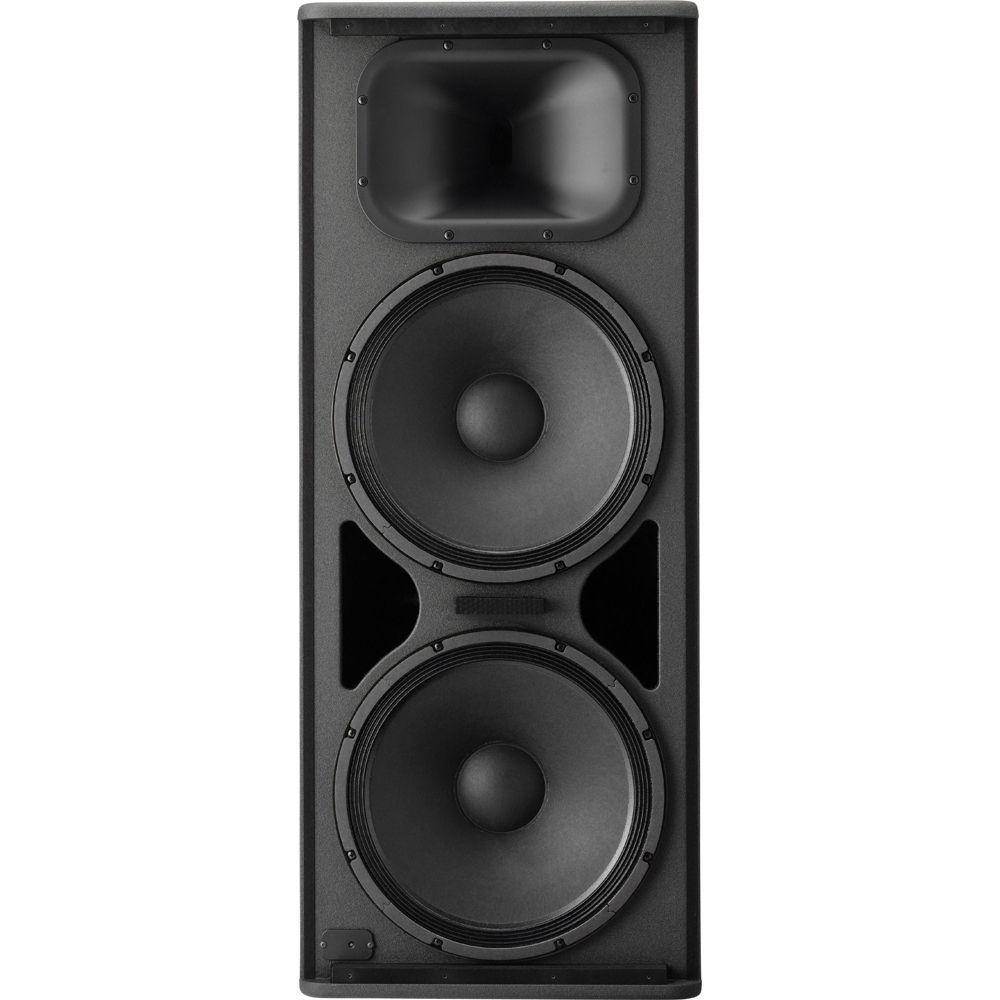

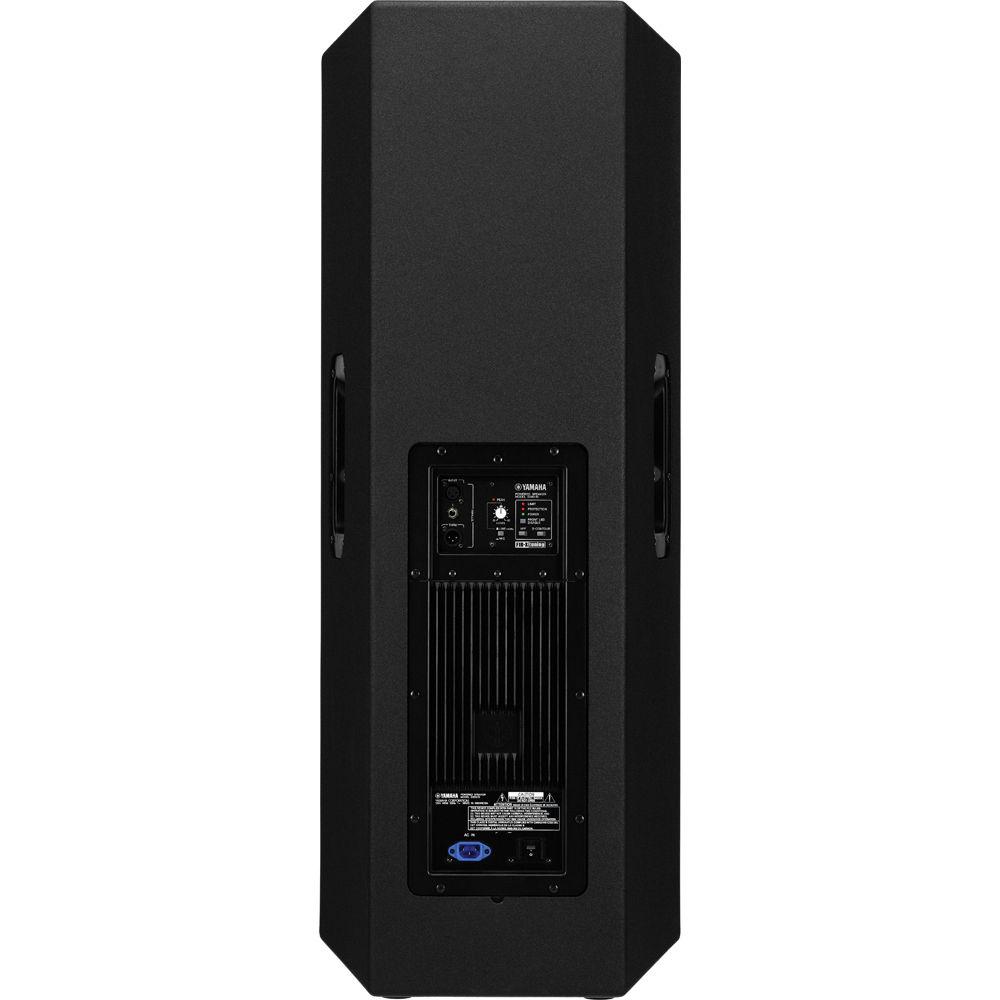

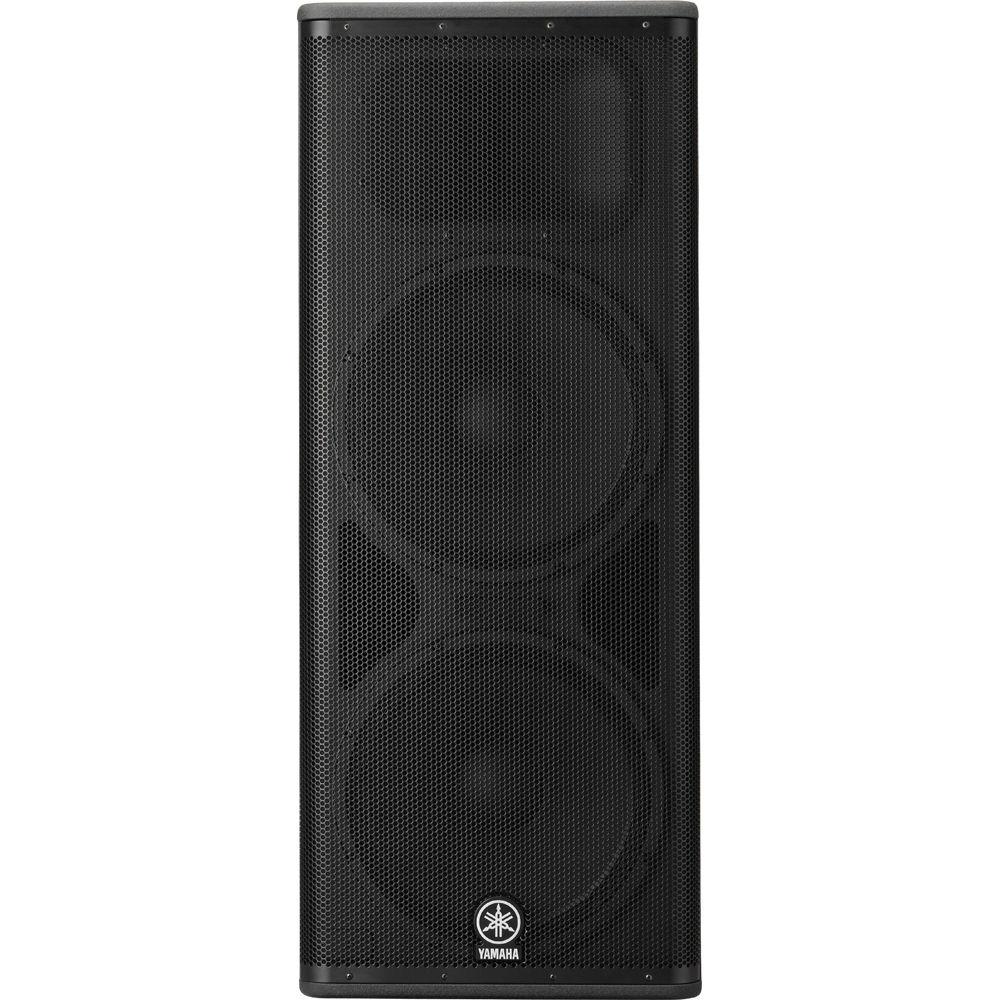

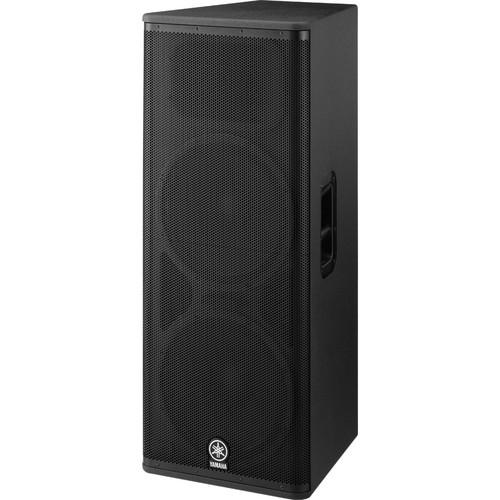

Product description The DSR215 from Yamaha is a professional-quality 2-way active loudspeaker, ideal for sound reinforcement applications. The rugged cabinet houses a pair of 15" ferrite cone woofers and a 2" titanium compression tweeter with a neodymium magnet, which provides maximum efficiency and low weight. Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern to reach a broad audience. Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance. XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers.
Onboard DSP includes FIR-X tuning for smooth crossover transitions and 24-bit AD/DA converters for maximum dynamic range. D-CONTOUR processing provides consistent clarity and high and low output levels. Extensive protection circuitry prevents damage from DC faults, clipping, overheating, and over voltage. The speaker has a pair of integrated carrying handles for easy transport. - Ideal for sound reinforcement applications in theaters, houses of worship, and more
- The rugged cabinet houses a pair of 15" ferrite cone woofers and a 2" titanium compression tweeter, which has a neodymium magnet for maximum efficiency and low weight. The drivers are custom-designed for premium quality
- Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern of 90° x 60° to reach a broad audience
- Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance
- PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation

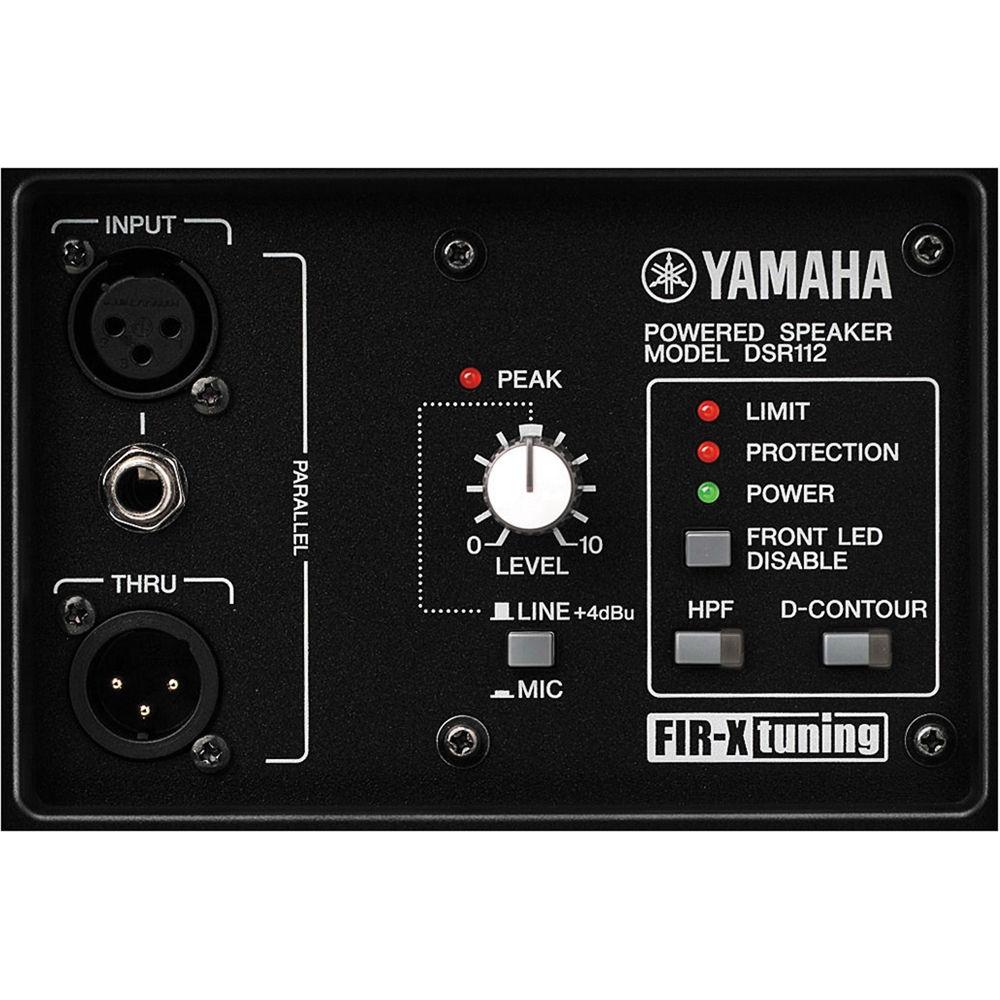

- XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers
- Onboard DSP includes FIR-X tuning for smooth crossover transitions and linear phase response, while 24-bit AD/DA converters provide maximum dynamic range
- D-CONTOUR processing provides consistent clarity and high and low output levels. This processing can be turned on or off depending on your environment and type of sound desired
- Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply, and drivers from DC faults, clipping, overheating, and over voltage to ensure reliable operation under the most severe conditions
- Integrated carrying handles provide easy transport
UPC: 086792948744 In the Box Yamaha DSR215 Dual 15" 1300W Active 2-Way Loudspeaker Power Cord 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DSR215 Dual 15" 1300W Active 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha DSR215 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W | | Amplifier Power Rating | LF:
850 W
HF:
450 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 2" / 50.1 mm Titanium Compression Driver | | LF Driver | 2 x 15" / 38 cm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | Magnet | HF:
Neodymium
LF:
Ferrite | | | | Frequency Response | 45 Hz to 20 kHz -10 dB
55 Hz to 18 kHz -3 dB | | Maximum SPL | 138 dB | | Coverage Angle | 90° H x 60° V | | Input Sensitivity | Line Input:
0 dBu (Max)
Mic Input:
-25 dBu (Max) | | Max Input Level | Line Input:
+24 dBu
Mic Input:
-11 dBu | | I/O Impedance | Line Input:
12 kOhms
Mic Input:
8 kOhms | | Protections | DC, Output Limiter, Overcurrent, Overvoltage, Thermal | | | | Audio I/O | 1 x XLR Input
1 x 1/4" Input
1 x XLR Thru/Output | | | | Crossover | 1.7 kHz | | EQ | Contour | | Filters | High-Pass:
120 Hz, 24 dB/Octave | | Dynamic Processing | Peak Limiter | | | | AC Power Connector | 1 x IEC (Locking) | | Power Consumption | 140 W (1/8 Power) | | | | Handles | 2 x Side | | Cooling | Convection | | Dimensions | 18.4 x 45.6 x 20.5" / 467.0 x 1158.0 x 520.0 mm | | Weight | 110 lb / 49.8 kg | | | | Package Weight | 131.6 lb | | Box Dimensions (LxWxH) | 52.0 x 26.0 x 23.0" |
