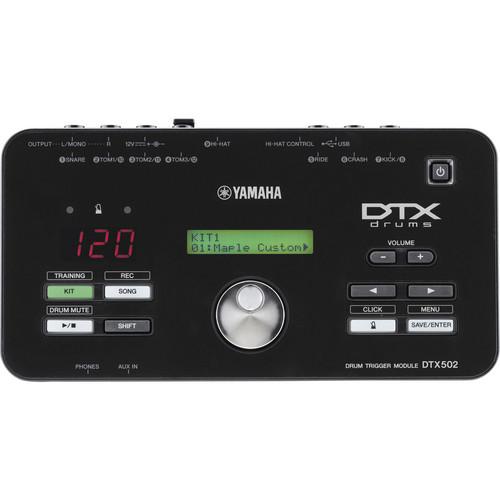

The Yamaha DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits provides you with the necessary connections, tools, and sound library for controlling the electronic drum pads of a Yamaha DTX522K, DTX532K, DTX542K, or DTX562K electronic drum kit. The module contains over 250 sounds, which is approximately twice that of the previous version. Additionally, you can import your own audio and MIDI samples for a high level of customization. The trigger module is tuned using a laser analysis of different drum strokes to produce a more natural playing experience.
For practice, the unit comes included with eight pre-programmed routines that help you improve your rhythm, timing, accuracy, and endurance. After each routine the system provides you with a score to help you keep track of your progress over time. You can also use the trigger module and your preferred electronic drum pads with an acoustic kit to create a hybrid acoustic-electronic kit. You can mount the drum trigger module to your acoustic hardware using a standard multi-clamp. UPC: 086792972602 In the Box Yamaha DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits
PA130 - AC Power Adapter for Entry-Level Portable Keyboards
Module Holder
2 x Fastening Screws for Module Holder
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Yamaha DTX502 Electronic Drum Trigger Module for DTX522 32 42 62K Drum Kits in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Yamaha DTX502 Specs
Polyphony
32 notes
Voices
Drum and percussion: 691 Melodies: 128
Effects
Reverb: 9 Master EQ: 2 bands
Drum Kits
Preset: 50 User: 50 Total memory capacity: 1 MB
Notes
Capacity: Approximately 104,000 notes Total memory capacity of 1 MB
Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fat Blast
Connectors

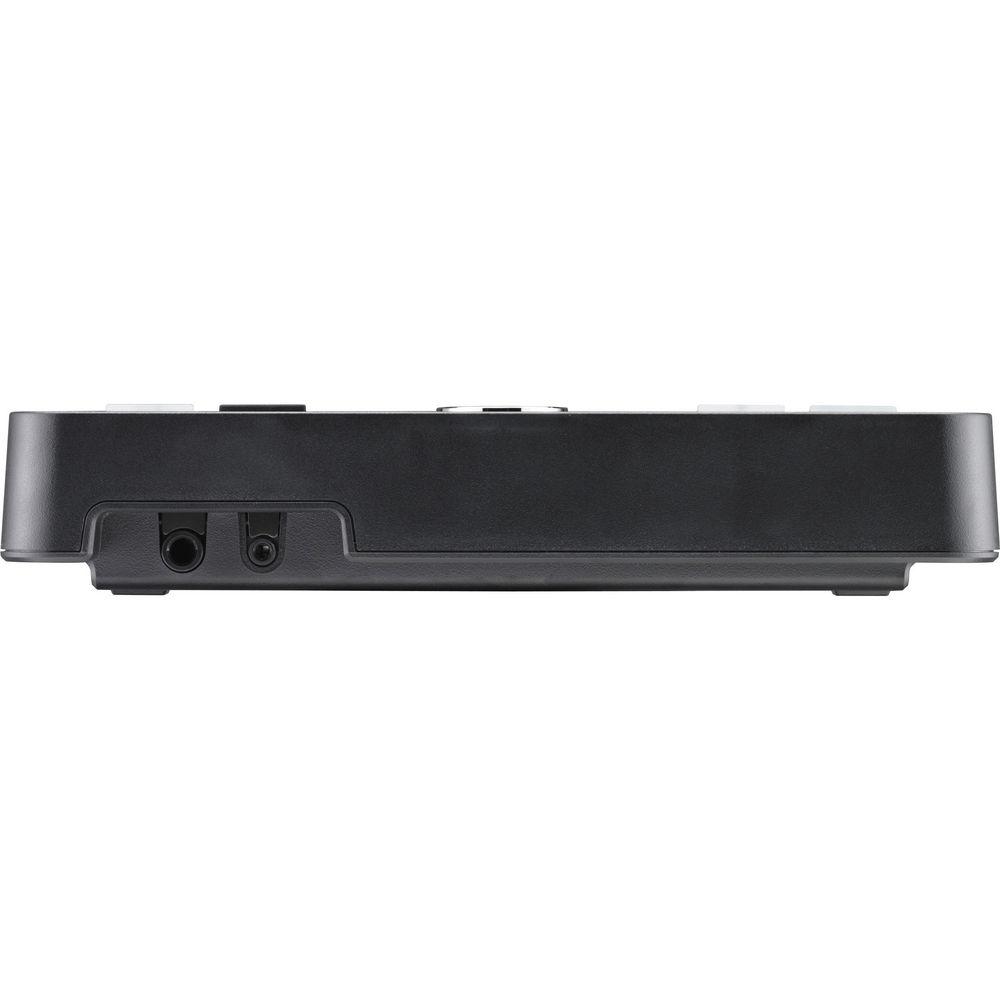

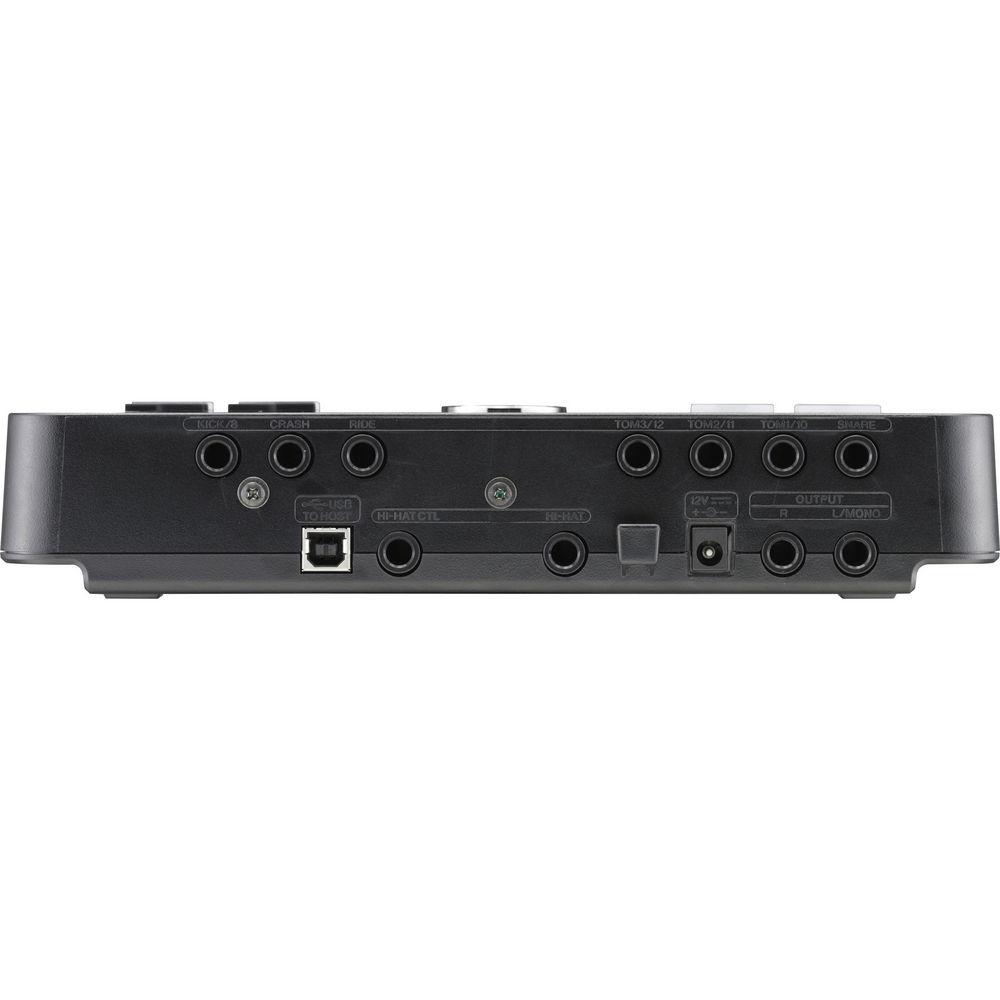

OUTPUT [L/MONO] (Standard mono phone) OUTPUT [R] (Standard mono phone) Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch) Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger) HI-HAT CONTROL (Standard stereo phone) AUX IN (Stereo Mini) PHONES (Standard stereo phone) USB TO HOST
Samples
20 waves (maximum)
Data Bits
16 bits
Sampling Time
Mono and Stereo: 44.1 kHz, 12 seconds (mono)
Formats
WAV, AIFF
Dimensions (W x H x D)
9.88 x 5.12 x 1.89" (251 x 130 x 48.0 mm)
Weight
1.34 lb (.60 kg)
Package Weight
3.5 lb
Box Dimensions (LxWxH)
16.0 x 8.8 x 5.2"
Rating
