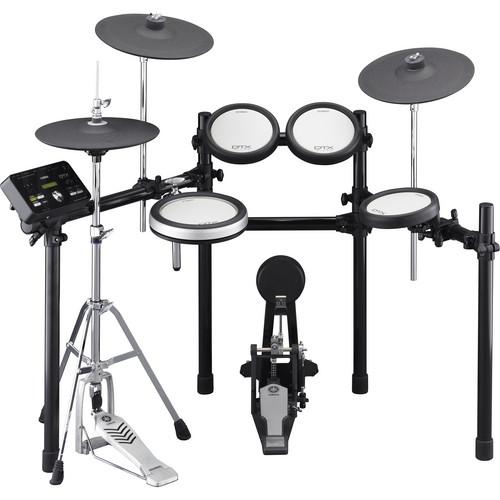

User Manual for Yamaha DTX562K Electronic Drum Set Kit Click to enlarge the picture
Contents of the user manual for the Yamaha DTX562K Electronic Drum Set Kit
- Product category: Electronic Drums Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Electronic Drums
|
User manual for the Yamaha DTX562K Electronic Drum Set Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha DTX562K Electronic Drum Set Kit is a Kit that includes the DTX502 Drum Trigger Module, the DTP562 Cymbal and Drum Pad Set and the RS502 Rack System. The DTX502 module includes 50 drum kit presets and has 50 slots for user presets. It also includes built-in effects, a metronome and a pattern sequencer. The DTP562 set features a snare with a DTX-PAD for playabilty and a realistic response, two rack toms and a floor tom also with DTX-PADs, and a bass drum. It also features a dual zone hi-hat system and hi-hat stand that is designed to provide a realistic feel. The DTP562 also includes a crash and a ride. The RS502 rack allows you to attach the drum pads, cymbals and drum module so you can get started playing. - Yamaha Electronic Drum and Cymbal Pad Set for the DTX562K Kit The Yamaha Electronic Drum and Cymbal Pad Set for the DTX562K Kit consists of two 3-zone PCY135 13" cymbal ride pads, one 3-zone XP80 8" DTX-pad for snare, one 3-zone RHH135 13" hi-hat pad, three XP70 7" DTX-pads for toms, one HS650A hi-hat stand, and one KP65 kick pad. These components go with a Yamaha RS502 rack, and connect to a Yamaha DTX502 drum module to provide you with a versatile electronic drum kit.
Innovations to this series of electronic drum kit include pads designed from laser analysis of live drumming to provide a more natural response, 3-zone choke-able ride and crash cymbals, a three-zone hi-hat, and a 3-zone snare. The cymbals are capable of edge, bow, and cup hits. The snare is capable of head, open rim, and closed rim shots. Additionally, the snare has been redesigned and constructed out of textured small bubble foamed silicone for improved feel and playability. UPC: 086792972947 - Yamaha Rack System and Drum Module For DTX522/32/62K Electronic Drum Kits The Yamaha Rack System and Drum Module For DTX522/32/62K Electronic Drum Kits provides you with the basis for assembling a Yamaha DTX electronic drum kit. The system consists of a RS502 steel drum rack and a DTX502 electronic drum kit trigger module. With these two components as a start, you can then attach a set of DTX electronic drum kit pads, or a custom combination of different pads to your liking. The pads attach to the steel drum rack using the included clamps. The pads then plug into the trigger module which allows you to select or import the samples you would like to use with the kit. UPC: 086792973029
In the Box - Electronic Drum and Cymbal Pad Set for the DTX562K Kit tqasbwbussttxczxw
- KP65 Electronic Kick Tower Pad
- 2 x PCY135 3-Zone Electronic Cymbal Pad
- XP80 Open and Closed Rim shot Capable 8" DTX-PAD for Snare
- RHH 135 Hi-Hat Cymbal
- 3 x XP70 7" DTX-Pads for Toms
- HS-650 Chain-Linked Hi-Hat Stand and Pedal
- Limited 1-Year Warranty
- Rack System and Drum Module For DTX522/32/62K Electronic Drum Kits tqasbwbussttxczxw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DTX562K Electronic Drum Set Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yamaha Electronic Drum and Cymbal Pad Set for the DTX562K Kit
| | | Box Dimensions (LxWxH) | 30.0 x 20.0 x 20.0" | - Yamaha Yamaha RS502 Rack System For DTX22K, DTX32K, DTX42K, DTX62K Drum Kits
| Pipe Material | Steel | | Pipe Dimensions | 1.0 mm diameter | | Dimensions (W x D x H) | 44.0 x 40.0 x 44.0" (112 x 102 x 112 cm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 46.5 x 21.7 x 6.7" | - Yamaha DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits
| | | Polyphony | 32 notes | | Voices | Drum and percussion: 691
Melodies: 128 | | Effects | Reverb: 9
Master EQ: 2 bands | | Drum Kits | Preset: 50
User: 50
Total memory capacity: 1 MB | | | | Notes | Capacity: Approximately 104,000 notes
Total memory capacity of 1 MB | | Resolution | 96 ppq (parts per quarter note) | | Recording type | Real-time replace | | Tracks | 1 track | | Songs | Demo: 1
Practice: 37
Pad: 22
User: 40 | | Sequencing | Proprietary, SMF format 0/1 | | | | Tempo | 30 to 300 BPM
Tap Tempo supported | | Beat | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | | Timing | Accent, Quarter note, Eighth note, Sixteenth note, Triplet | | Modes | Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fat Blast | | Connectors | OUTPUT [L/MONO] (Standard mono phone)
OUTPUT [R] (Standard mono phone)
Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch)
Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger)
HI-HAT CONTROL (Standard stereo phone)
AUX IN (Stereo Mini)
PHONES (Standard stereo phone)
USB TO HOST | | | | Samples | 20 waves (maximum) | | Data Bits | 16 bits | | Sampling Time | Mono and Stereo: 44.1 kHz, 12 seconds (mono) | | Formats | WAV, AIFF | | | | Dimensions (W x H x D) | 9.88 x 5.12 x 1.89" (251 x 130 x 48.0 mm) | | Weight | 1.34 lb (.60 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 8.8 x 5.2" |
