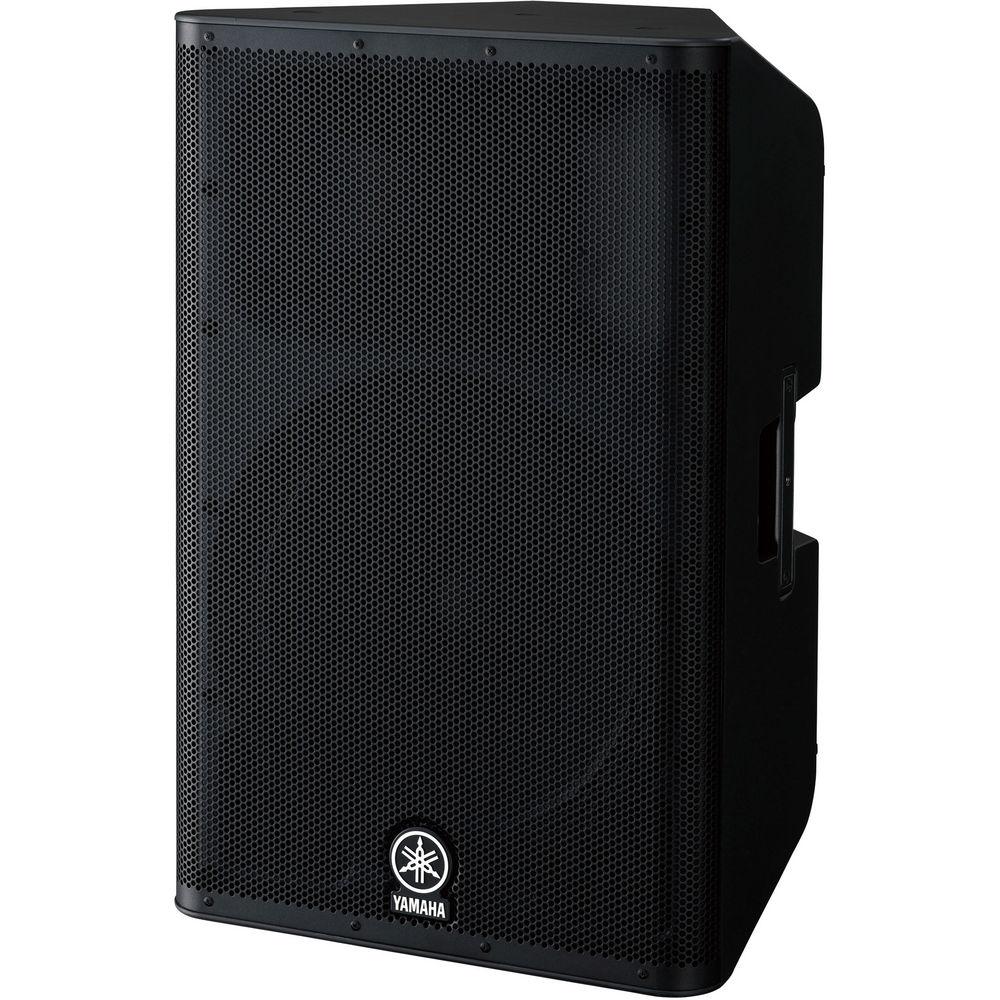

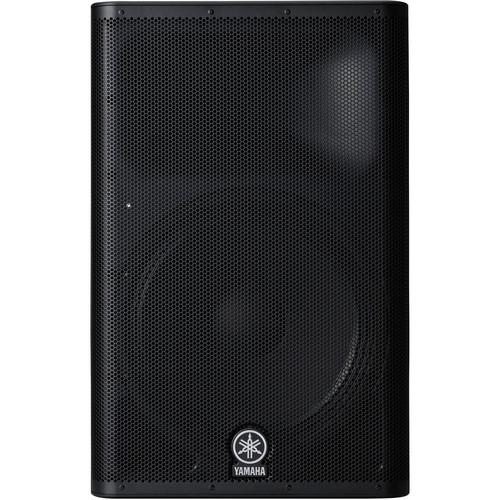

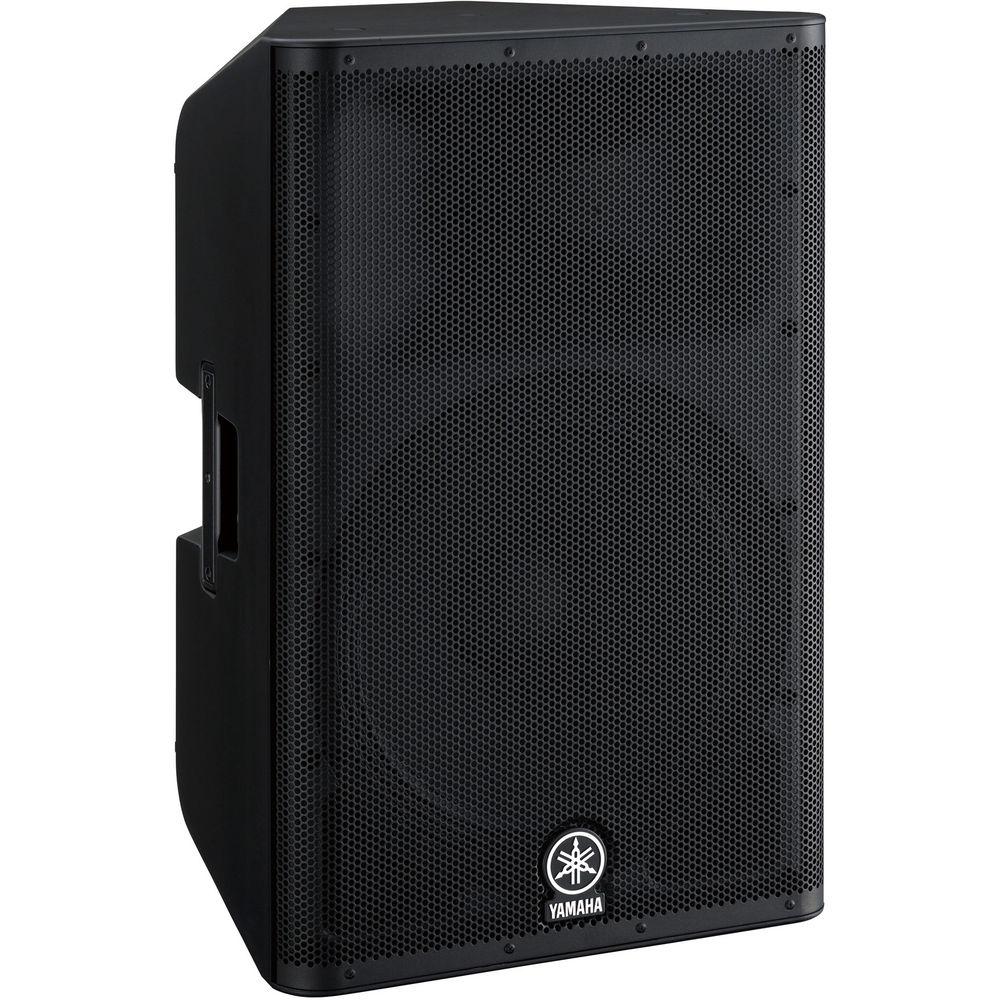

Product description The DXR15 15" 1100W 2-Way Active Loudspeaker from Yamaha provides clear audio and extremely high output levels in an unobtrusive and durable design, ideal for live sound applications that require wide bandwidth audio reproduction. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The high-power 15" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response and deep bass. The crossover uses a FIR-X linear phase filter to optimize driver performance.

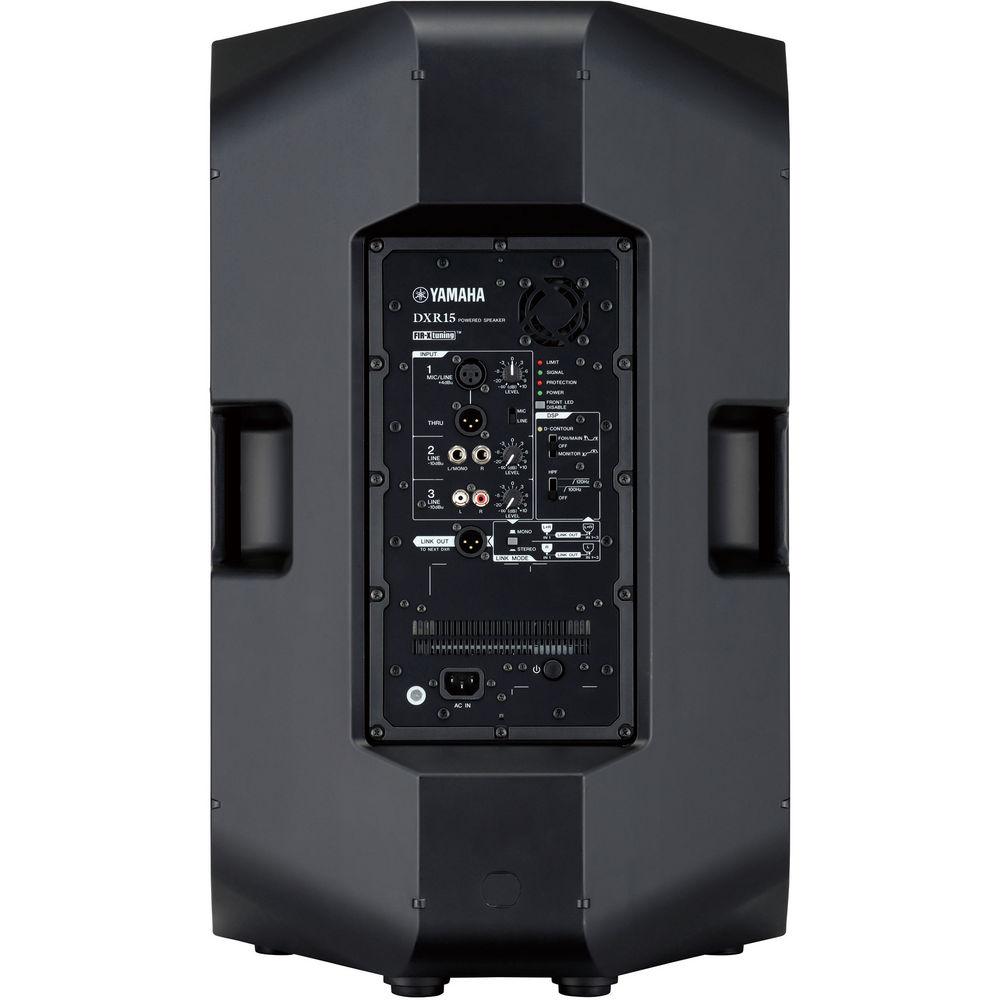

The speaker has a biamplified Class-D design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor. The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.
The speaker can be placed on a floor or stage, but also has useful mounting options. A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting. - The unobtrusive and durable ABS cabinet is ideal for live sound and touring applications
- The bass-reflex cabinet design provides enhanced bass performance with reduced turbulence
- The high-power 15" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response and deep bass
- The crossover uses a FIR-X linear phase filter to optimize driver performance
- The biamplified Class-D design provides a combined peak output power of 1100W for a strong performance with minimal distortion
- A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor
- The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices
- A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting
UPC: 086792961767 In the Box Yamaha DXR15 15" 1100W 2-Way Active Loudspeaker Power Cord 3-Year Parts and Labor Warranty User Manual PDF 1.7mbexcqsatttzrffeyxfaburrzd Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DXR15 15" 1100W 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha DXR15 Specs | | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 1100 W Peak
700 W RMS | | Amplifier Power Rating | LF:
950 W Peak
600 W RMS
HF:
150 W Peak
100 W RMS | | | | HF Driver | 1 x 1.4" / 36 mm Compression Driver with 1" / 25 mm Throat | | LF Driver | 1 x 15" / 38.1 cm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Range | 49 Hz to 20 kHz -10 dB | | Maximum SPL | 133 dB SPL | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 1 x XLR Input
2 x 1/4" Input
2 x RCA Input
1 x XLR Thru
1 x XLR Link Output Thru Parallel with Input | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 110 W | | | | Mounting | 2 x M8 (Top)
1 x M8 (Rear)
1 x 1.38" / 35 mm Pole Socket (Dual Angle) | | Construction Material | ABS | | Dimensions | 17.5 x 27.5 x 15.0" / 445.0 x 700.0 x 380.0 mm | | Weight | 49.6 lb / 22.5 kg | | | | Package Weight | 58.3 lb | | Box Dimensions (LxWxH) | 32.8 x 20.8 x 18.6" |
