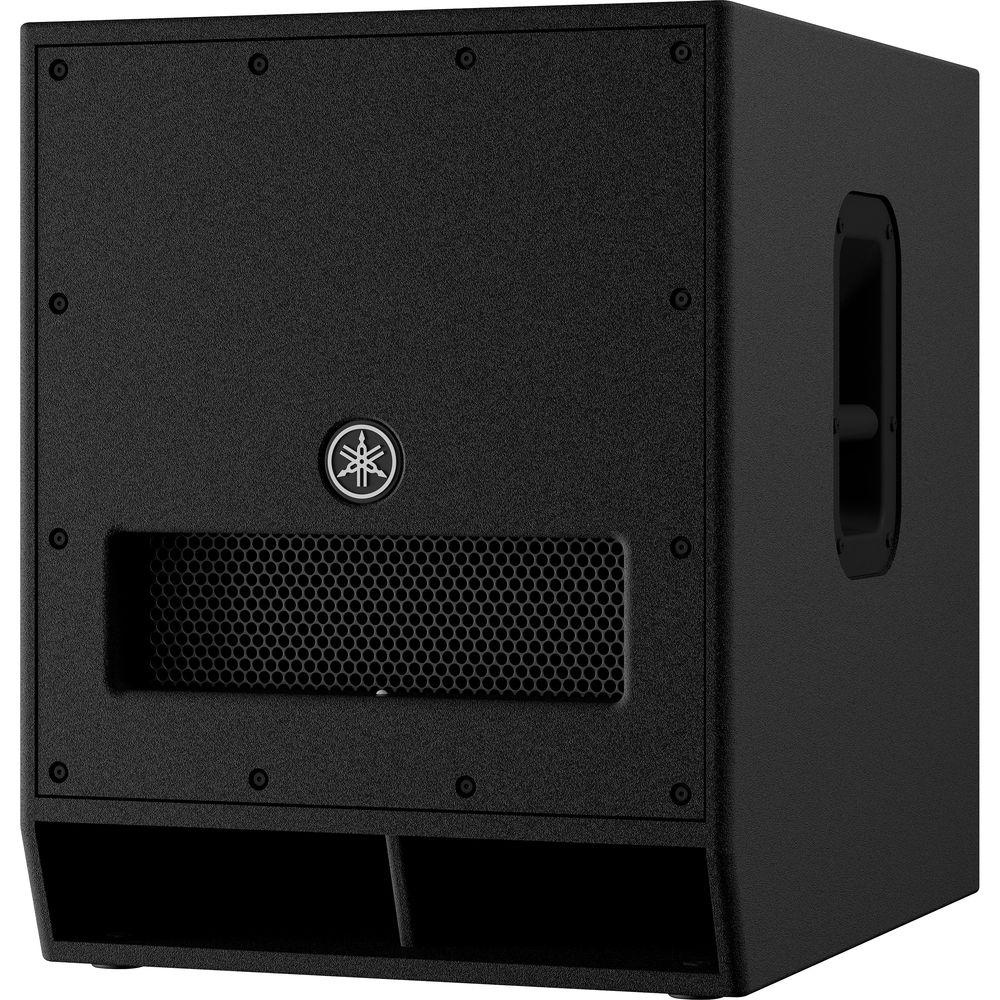

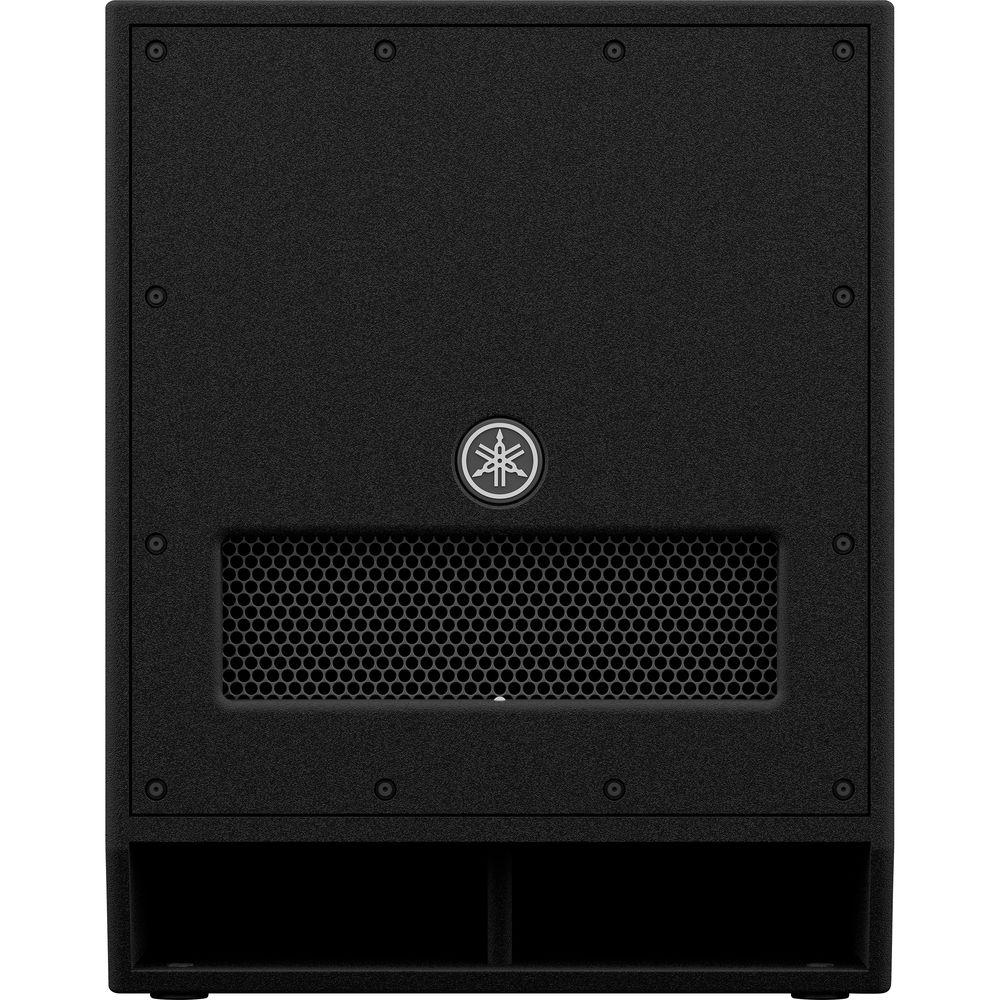

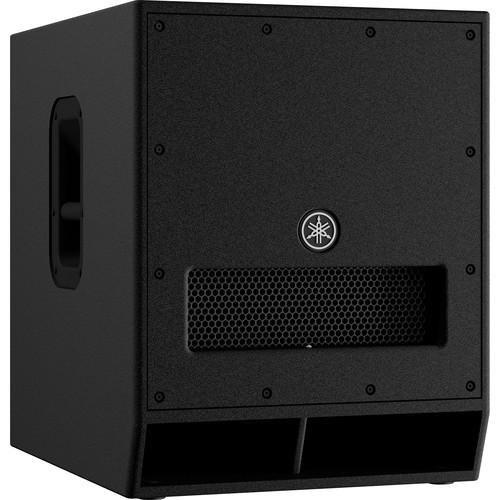

User Manual for Yamaha DXS15mkII Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Yamaha DXS15mkII Powered Subwoofer
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
 |
User manual for the Yamaha DXS15mkII Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

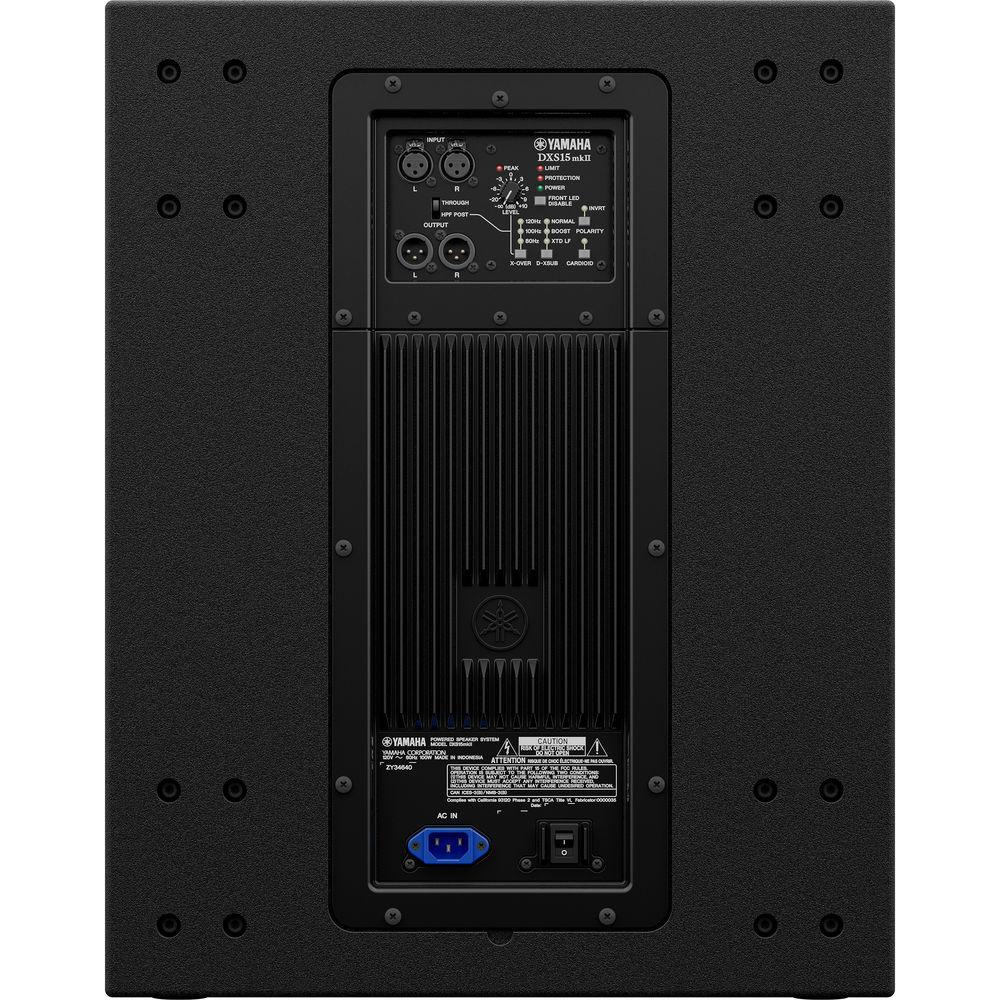

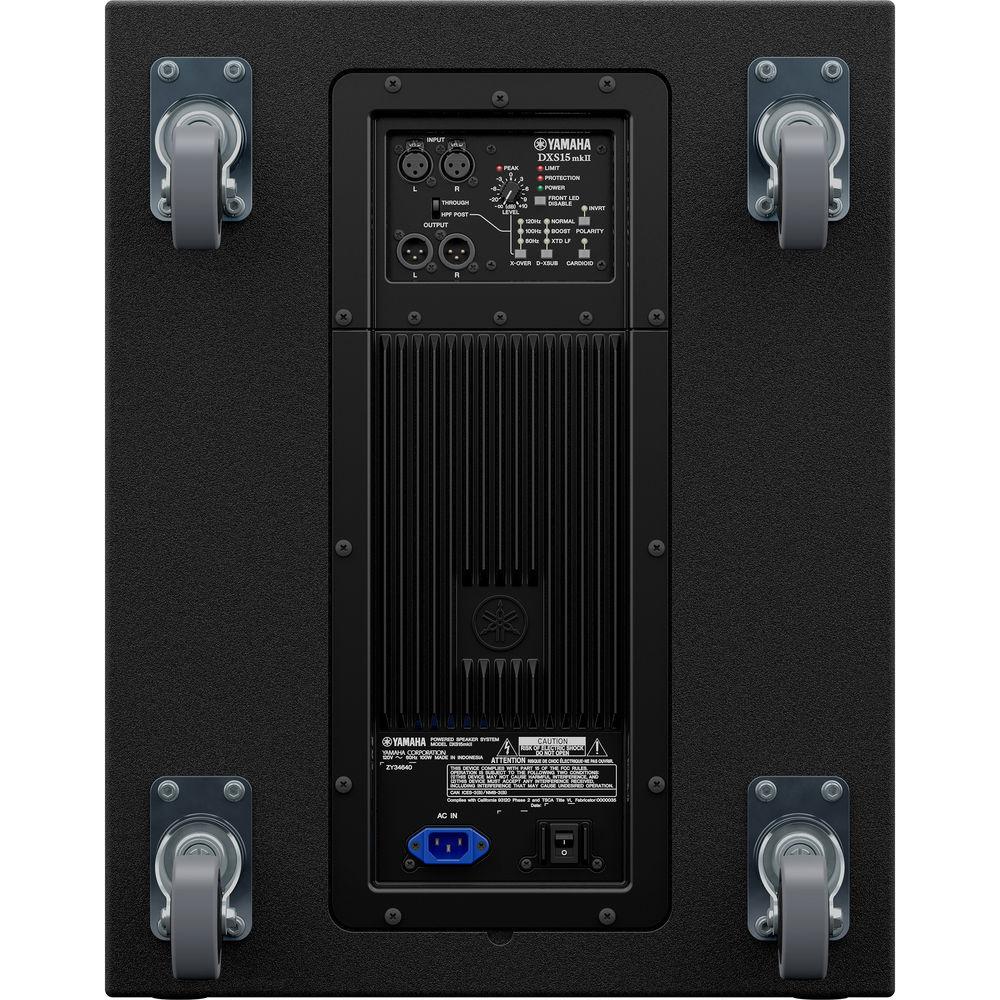

Product description The black DXS15mkII Powered Subwoofer from Yamaha features a high-efficiency Class-D amplifier and a woofer housed in a sturdy plywood band-pass type enclosure. It can deliver up to 1020W of distortion-free power with natural clarity. It can be used for reliable bottom-end management for bass performance in sound reinforcement applications. The powered subwoofer features Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with a vast lineup of full-range speakers. Built with two 3-pin XLR inputs and two thru 3-pin XLR connectors, this DXS15mkII Powered Subwoofer delivers a tight, impressive bass with outstanding depth and high-power output. - The DXS high-performance Class-D amplifier produces up to 1020W of power.
- The DXS15mkII features a 2.5" voice coil magnet.
- All DXS series enclosures incorporate a band-pass design that reduces unwanted vibration and noise that could otherwise sabotage your sound.
- Enclosure exteriors are covered with a durable polyurea coating for high-damage resistance. They protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
- Just as impressive as the high-output power is the compact portability and lightweight construction that houses the DXS series subwoofer.

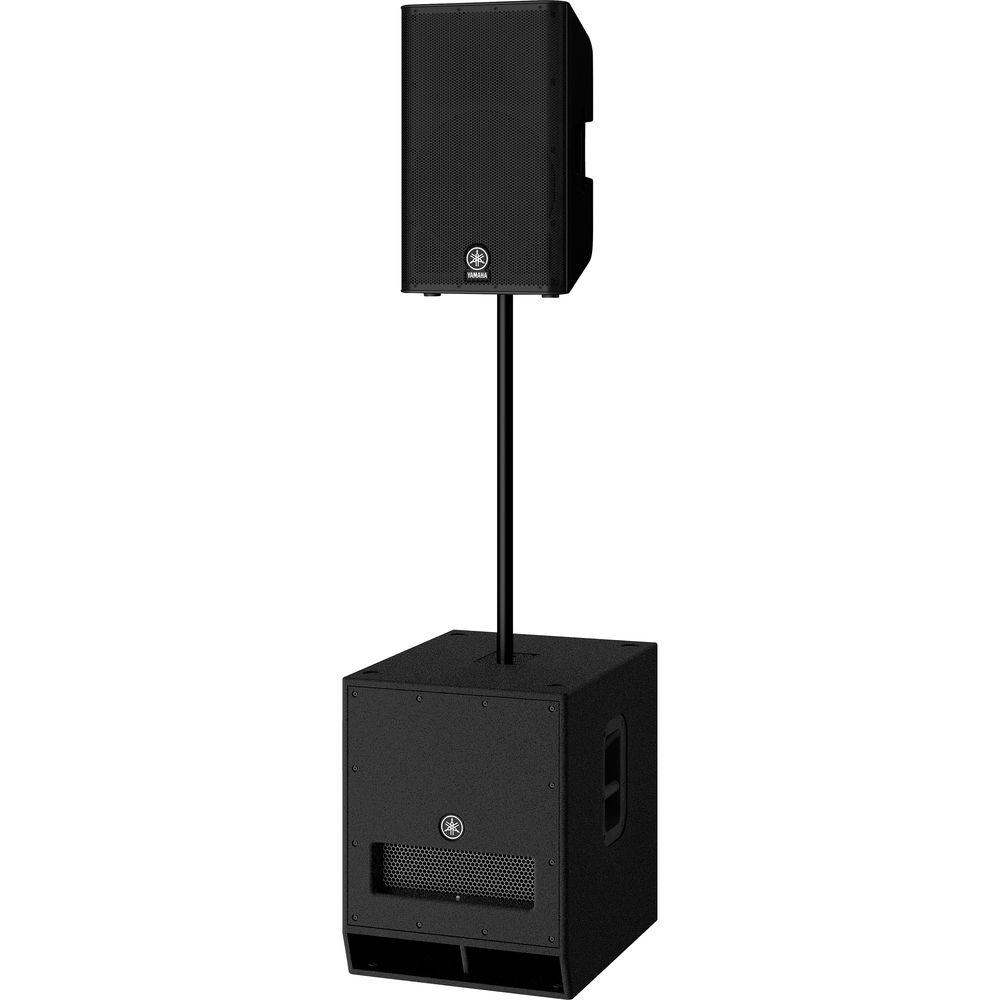

- For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
UPC: 889025114356 In the Box Yamaha DXS15mkII Powered Subwoofer (Black) Limited 7-Year Warranty User Manual PDF 973.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha DXS15mkII Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha DXS15MKII Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1020 W Peak
800 W RMS | | | | LF Driver | 1 x 15" / 38 cm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | | | Frequency Range | 40 Hz to 150 Hz | | Maximum SPL | 135 dB | | | | Audio I/O | 2 x XLR 3-Pin Female Input
2 x XLR 3-Pin Male Thru Thru Parallel with Input | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 100 W | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket
1 x M20 | | Cooling | Convection | | Construction Material | Plywood | | Dimensions | 18.9 x 24.1 x 24.2" / 480.0 x 611.0 x 614.0 mm | | Weight | 79.4 lb / 36 kg | | | | Package Weight | 88.3 lb | | Box Dimensions (LxWxH) | 29.5 x 27.4 x 22.3" |
