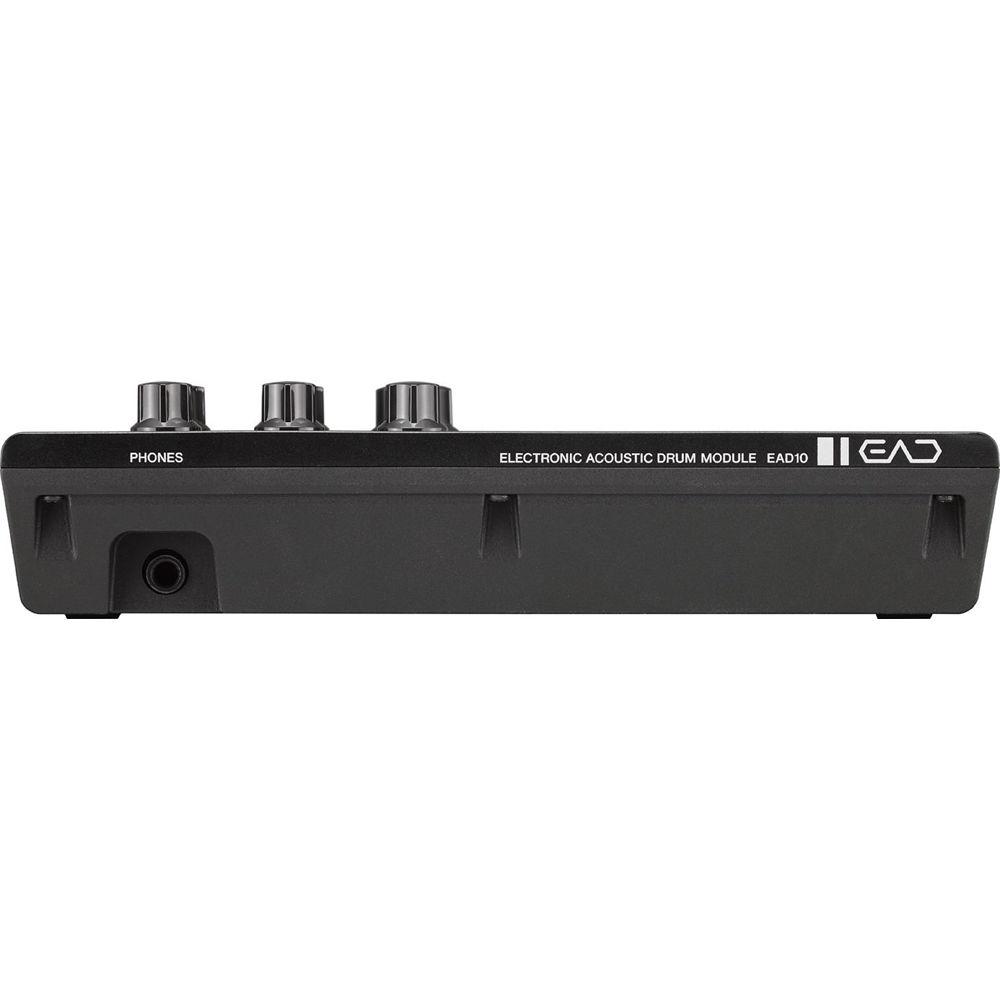

User Manual for Yamaha EAD10 Electronic Acoustic Drum Module with Mic and Trigger Pickup Click to enlarge the picture
Contents of the user manual for the Yamaha EAD10 Electronic Acoustic Drum Module
- Product category: Electronic Drums Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Electronic Drums
 |
User manual for the Yamaha EAD10 Electronic Acoustic Drum Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

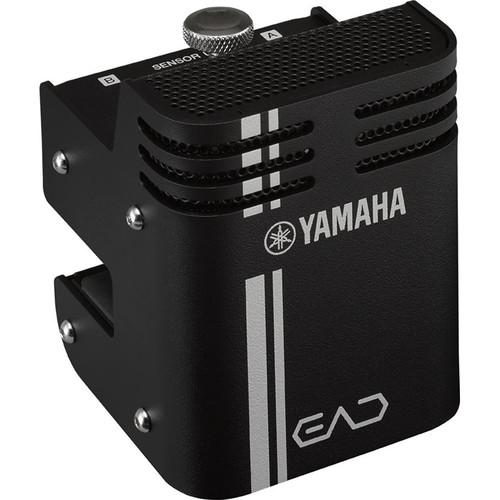

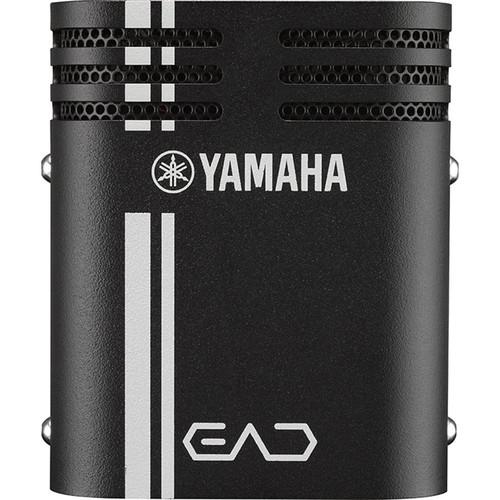

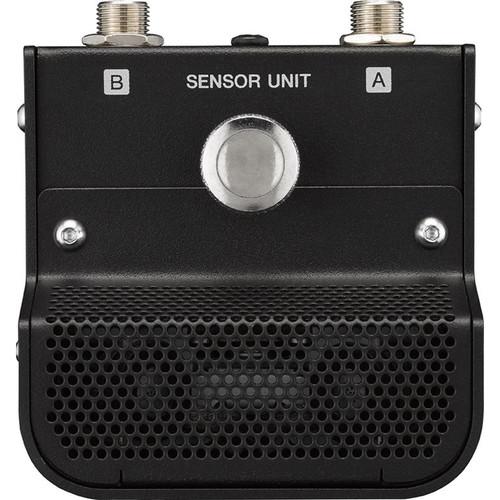

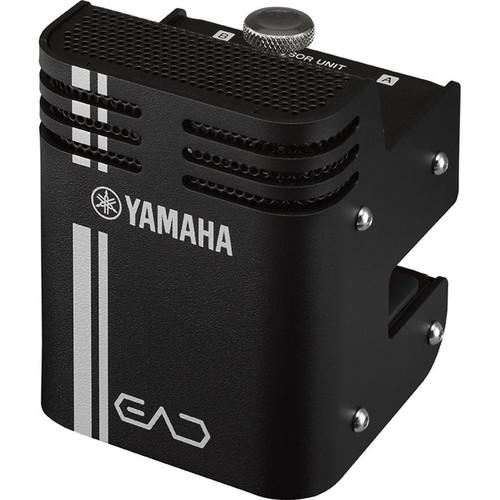

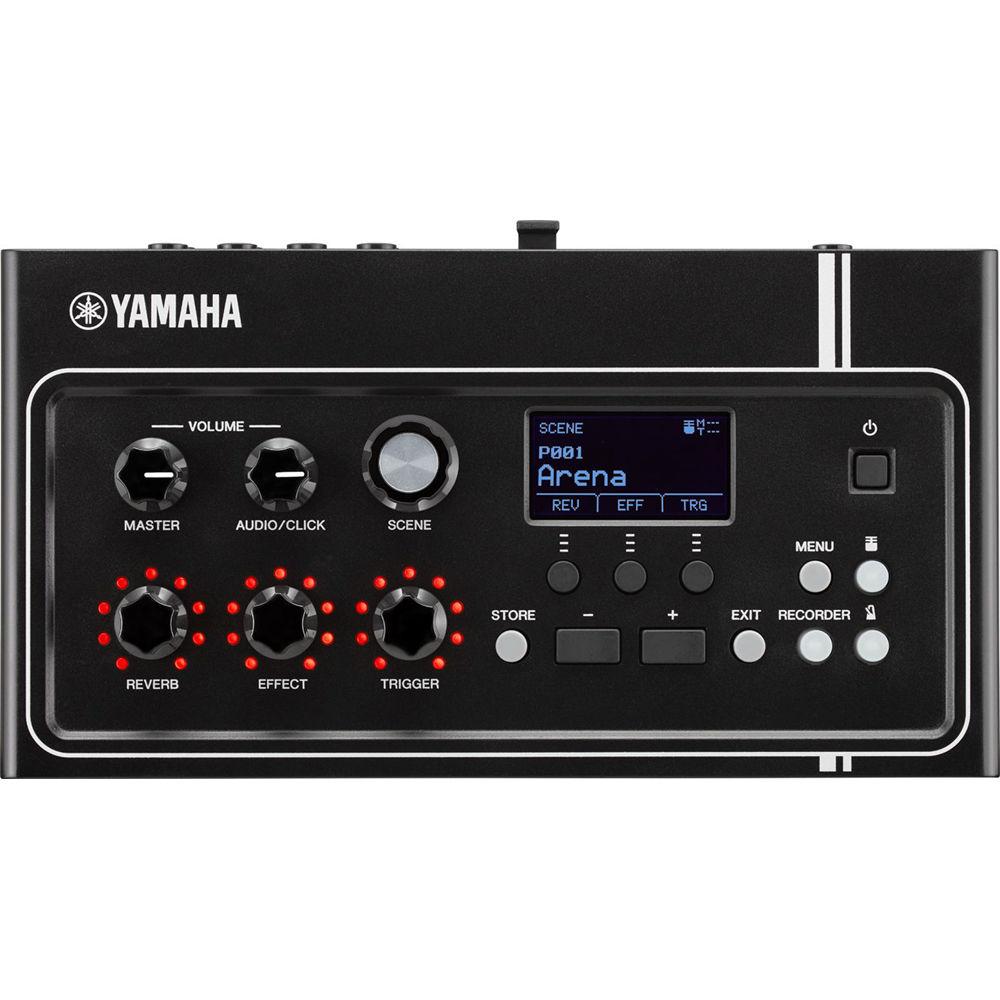

Product description The EAD10 Electronic Acoustic Drum Module from Yamaha features a trigger sensor and stereo microphone to instantly transform your acoustic drum kit into a powerful digital/electric hybrid with sampled sounds and studio quality digital effects. The unit can be used to play and record acoustic drums with 200 user scenes and 50 preset sounds. The EAD10 lets you mix, customize, and connect drum triggers to augment your acoustic setup.The Sensor Unit attaches to your bass drum and sends two types of signals to the Main Unit; an audio signal captured with the mic sensor, and a trigger signal captured with the trigger sensor. The audio signal can be processed with effects, while the trigger sensor can be used to play trigger sounds, depending on how you play the drums. This drum module allows you to play along with any music library and add effects, or use tracks your friends share digitally. In addition, with the free iOS app, you can practice, shoot, edit, and upload videos of your drum performances. - Easy Setup

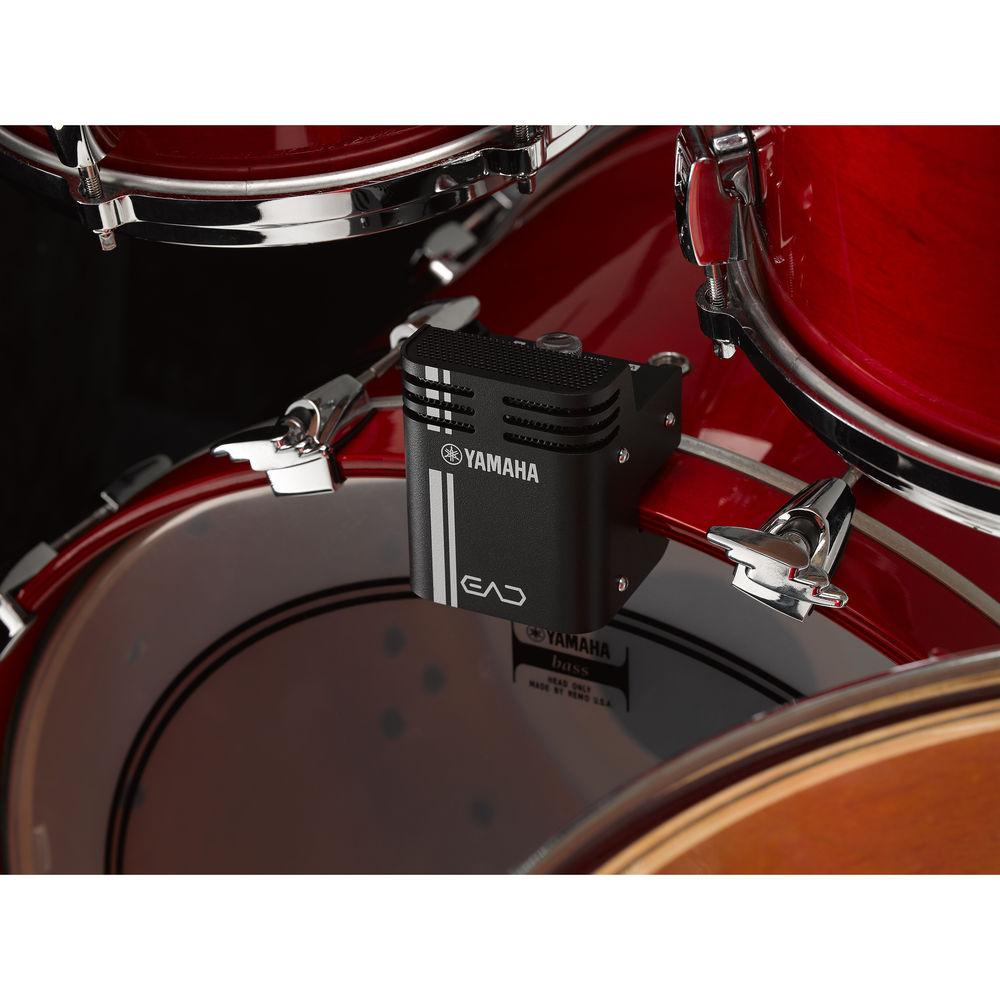

- Just attach the EAD10 sensor to your bass drum and you've created a complete hybrid system with a kick trigger, and a stereo microphone.
- Practice
- Pick a song from your music library and the app's tempo detection lets you add a click, change the tempo, and select sections to repeat. It's an excellent tool for practice sessions.
- Sound and Expandability
- The EAD10 has 50 preset and 200 user scenes that customize your drum sound and allow you to connect triggers and drum pads to augment your setup.
UPC: 889025113328 In the Box Yamaha EAD10 Electronic Acoustic Drum Module with Mic and Trigger Pickup PA-150 Power Supply Module Holder 2 x Module Holder Wing Bolts Pair of Connector Cables 3 x Cable Bands 2 x Adhesive Cushions Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha EAD10 Electronic Acoustic Drum Module with Mic and Trigger Pickup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha EAD10 Specs | | | Scenes | Preset 50, user 200 | | Reverb | 11 | | Effects | Mic: 21

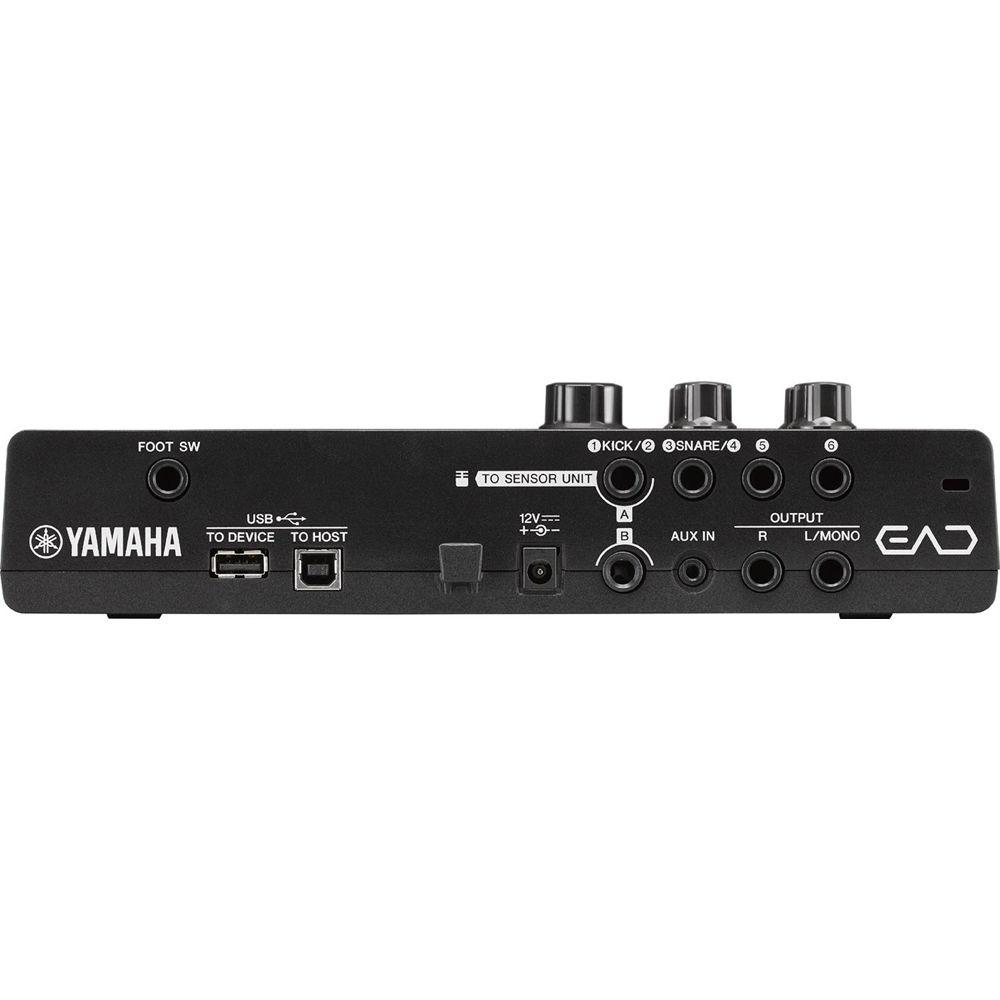

Trigger: 10 | | Tone Generator | AWM2 | | Maximum Polyphony | 64 | | Voices | 757 | | | | Internal Memory | Approximately 1 min, 30 seconds | | USB Flash Drive | Approximately 30 min/file | | Format | WAV (44.1 kHz/16-bit stereo) | | | | Import Limit | Up to 100 waves | | Sample Format | Playback: 44.1 kHz | | Memory | WAVE: 32 MB | | Maximum Load | Sample Size: 1 mono sample: 1.75 MB, 1 stereo sample: 3.5 MB | | Sample Format | WAV (16-bit) | | | | Tempo | 30 to 300 BPM, tap tempo function | | Time Signatures | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | | Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets | | | | Audio | Headphones: 1 x 1/4" /6.3 mm
Output: 2 x 1/4" / 6.3 mm
Aux Input: 1/8" / 3.5 mm | | Sensor Input | Trigger Sensor: A 1/4" 6.3 mm
Mic Sensor: B 1/4" 6.3 mm | | Trigger Inputs | Sensor Unit connection: 2 x 1/4" / 6.3 mm
Stereo: 2 x 1/4" / 6.3 mm
Three Zone (L:trigger, R: rim switch) 2 x 1/4" / 6.3 mm | | Foot Switch | 1/4" / 6.3 mm | | Sensor Type | Microphone: 2 x high SPL microphone
Trigger: 1 x exclusive for bass drum

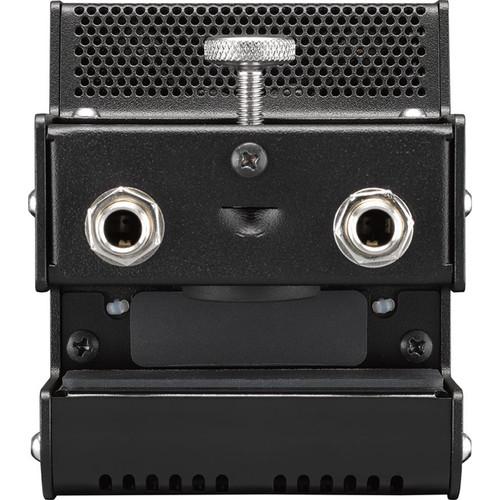

Trigger Sensor Output Connection: 1 x 1/4" / 6.3 mm (mono)
Mic Sensor Output Connection: 1 x 1/4" / 6.3 mm (stereo) | | Power | DC in (12 V) | | Dimensions (W x H x D) | Main: 10.2 x 2.5 x 5.4" / 26.0 x 6.3 x 13.8 cm
Sensor Unit: 3.0 x 3.5 x 3.1" / 7.6 x 8.8 x 7.8 cm | | Weight | Main: 23 oz / 654 g
Sensor Unit: 16 oz / 464 g | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 18.1 x 9.4 x 7.0" |
