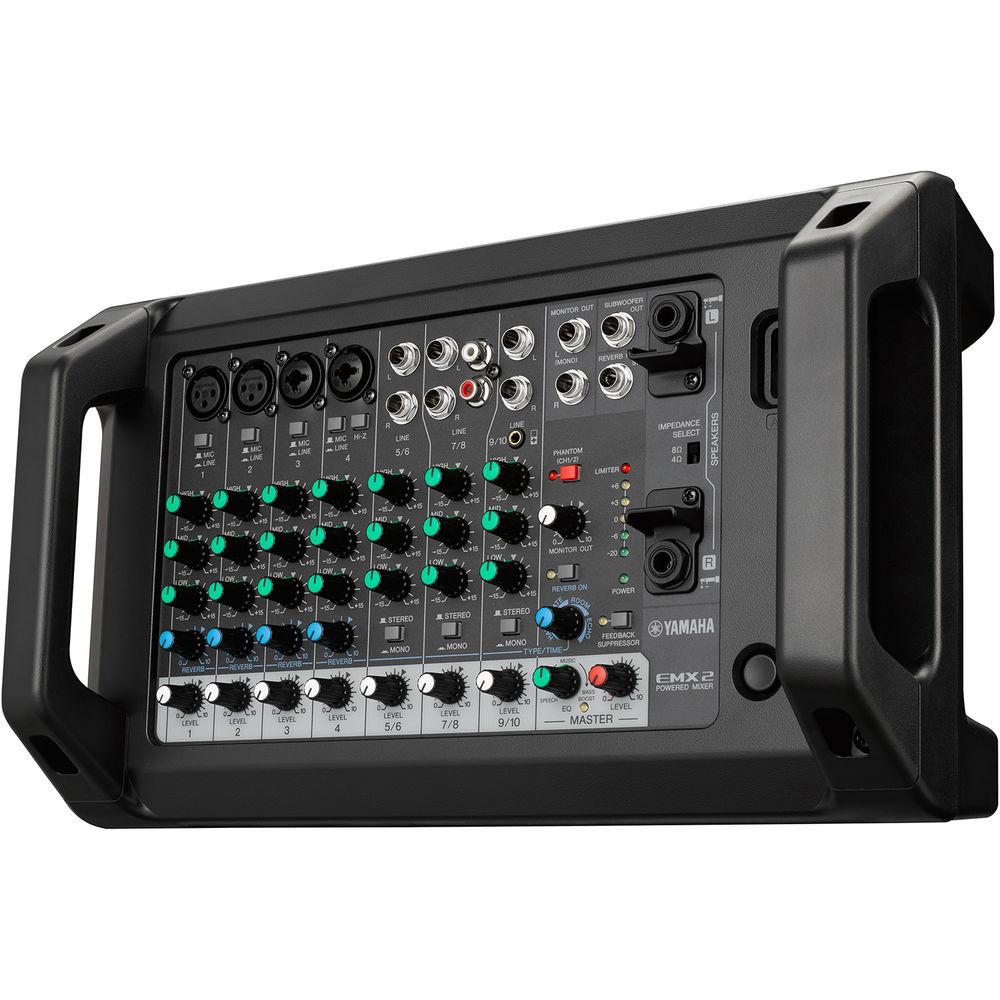

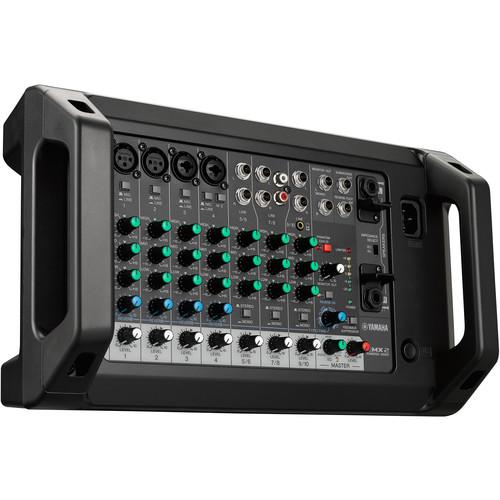

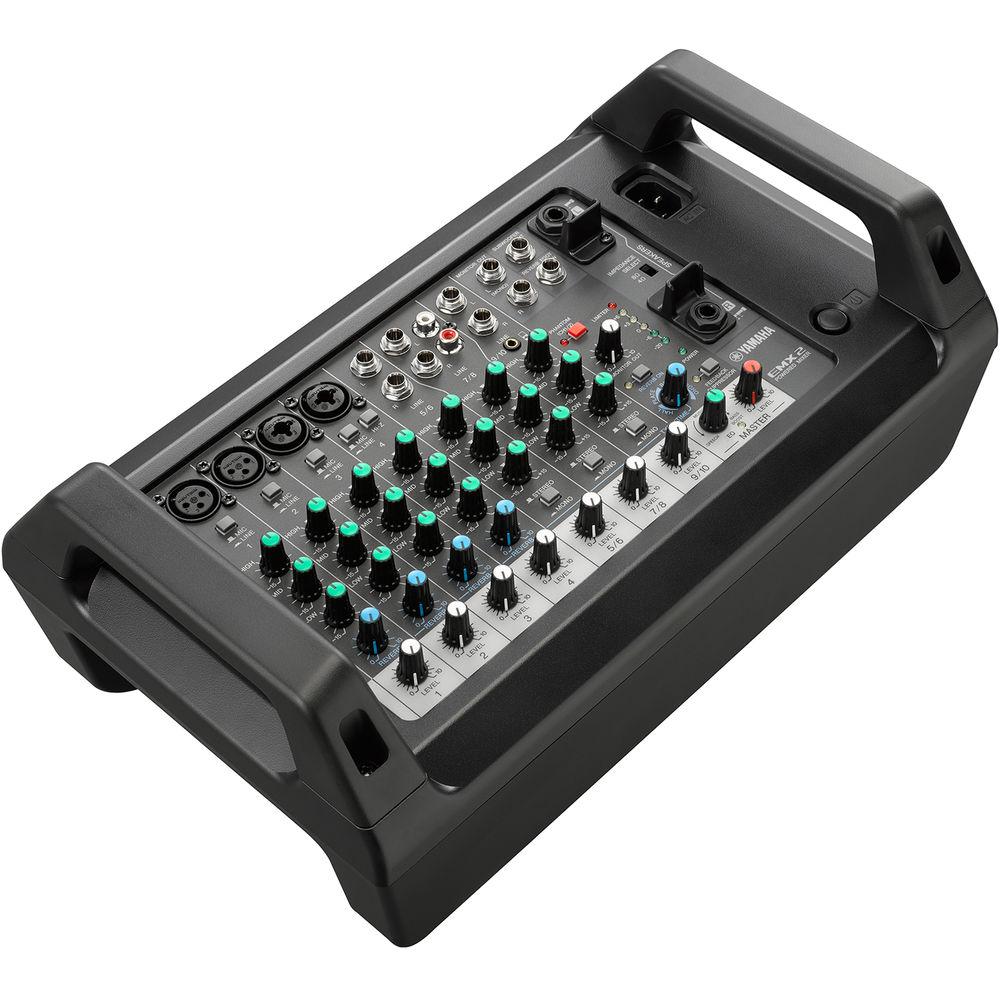

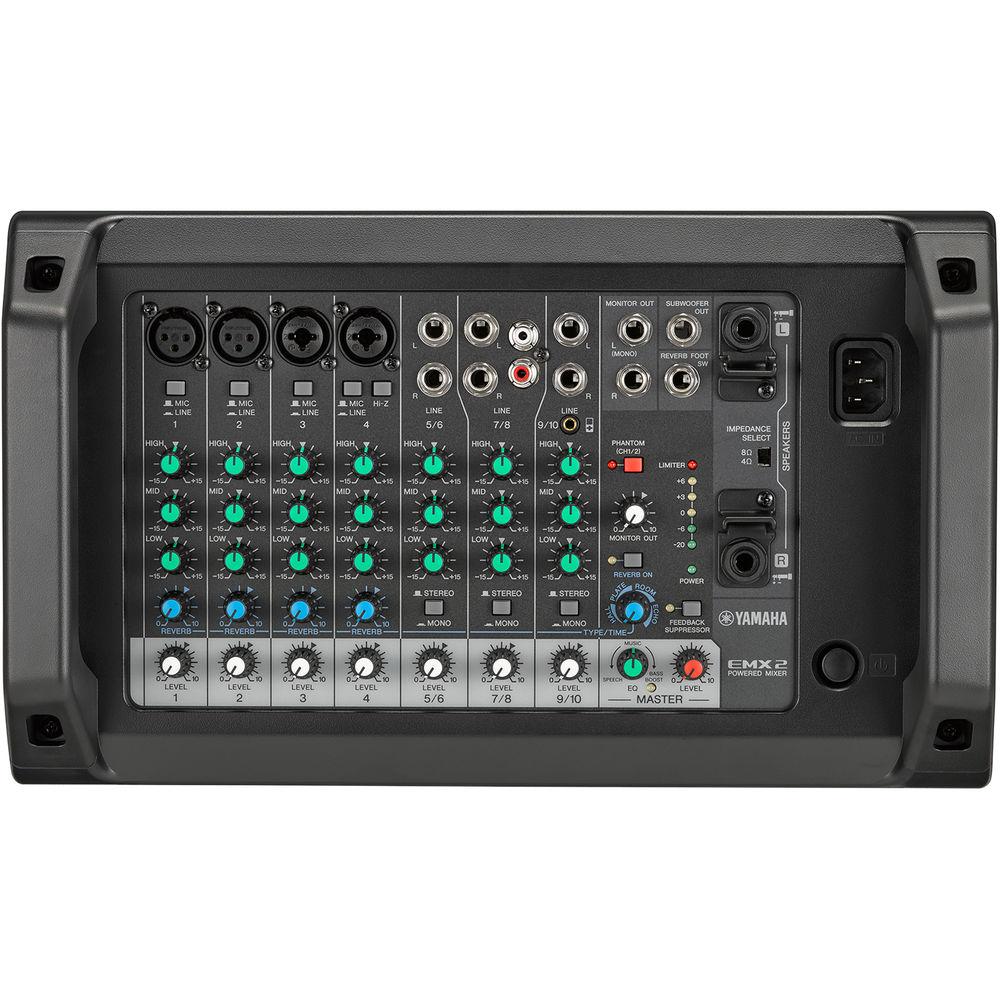

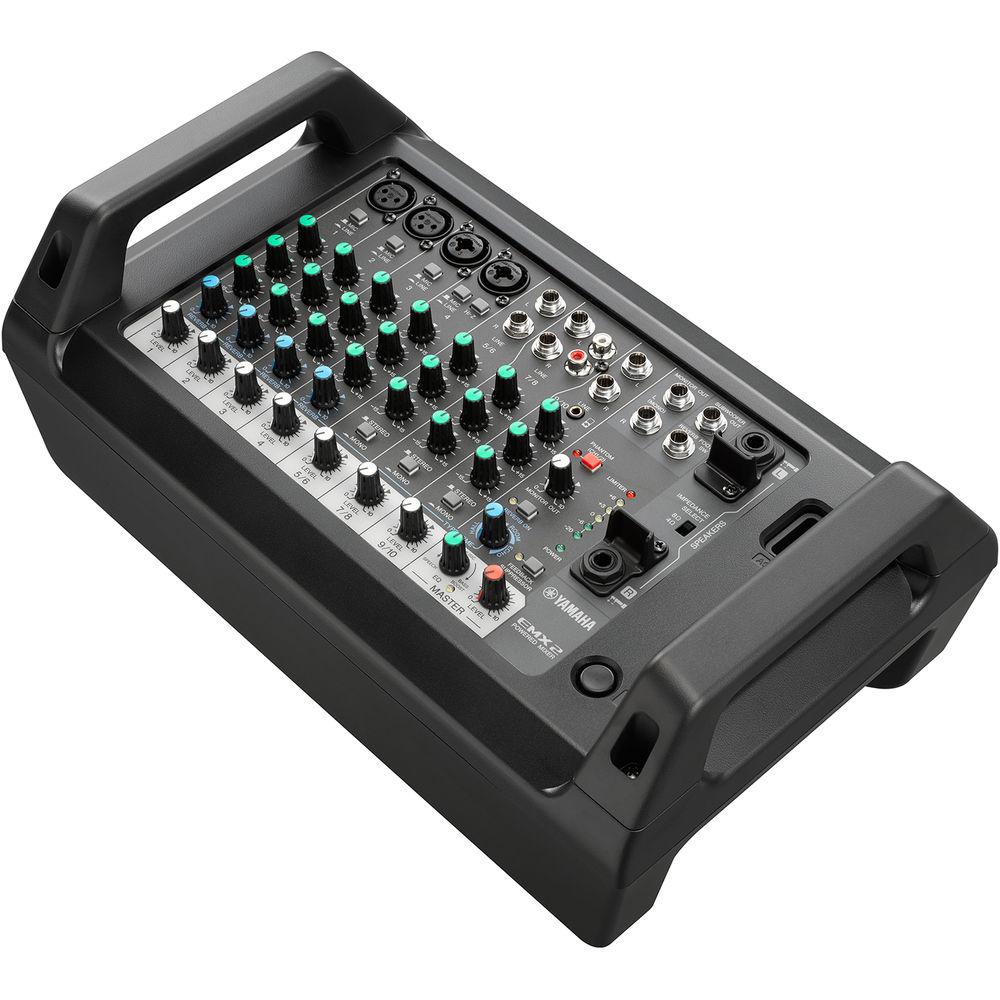

Product description The Yamaha EMX2 is a 10-input powered mixer with an integrated 500W amplifier, four mic/line inputs, three stereo line inputs, and an independent monitor bus. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1/2 offer XLR inputs, while channels 3/4 include an XLR-1/4" combo jack. Channels 5 through 10 provide 1/4" inputs, with channel 7/8 offering an additional set of stereo RCA inputs. Channel 9/10 also include an 1/8" stereo mini-jack for connecting portable music players.
The EMX2 includes an integrated feedback suppressor and built-in reverb with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. There are a number of optional accessories available including a foot switch for reverb bypass, a rack-mount kit, and a microphone stand adapter. The EMX2 ships with a standard IEC power cord. -
- 500-watt power amplifier for versatility in a wide variety of performance applications
- Compatible with 4 Ohm and 8 Ohm speakers
- 10-channel mixer with four mono mic/line and three stereo line input channels, supporting a wide range of inputs
- Channel 4 offers a Hi-Z input for guitar
- Independent monitor output
- Yamaha’s high-quality SPX reverb, providing optimum processing for instruments or vocals
- Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
- Independent three-band equalizer on each channel for tonal adjustment and sound control
- Master EQ with setting for speech and music playback
UPC: 889025101332 In the Box Yamaha EMX2 10-Input Powered Mixer AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha EMX2 10-Input Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha EMX2 Specs | | | Input Connectors | Channels 1/2: 2x XLR
Channels 3/4: 2x Combo XLR-1/4" / 6.35 mm
Channels 5/6: 2x 1/4" / 6.35 mm
Channel 7/8: 2x 1/4" / 6.35 mm or 2x RCA
Channel 9/10: 2x 1/4" / 6.35 mm or 1x 1/8" / 3.5 mm stereo mini-jack | | Load Impedance | Channel 1-4 (XLR): 3 kOhms actual, 150 Ohms nominal with mics
Channel 3/4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
Channel 3/4 (1/4", Hi-Z Disengaged): 3 MOhms actual, 150 Ohms lines nominal
Channels 5/6 to 9/10: 10 kOhms actual, 150 Ohms lines | | Input Level | Sensitivity
Channel 1-4 (XLR, Mic): -56 dBu (1.228 mV)
Channel 1-4 (XLR, Line): -30 dBu (24.51 mV)
Channel 3/4 (1/4", Mic): -50 dBu (2.451 mV)
Channel 3/4 (1/4", Line): -24 dBu (48.90 mV)
Channels 5/6 to 9/10: -24 dBu (48.90 mV)
Nominal
Channel 1-4 (XLR, Mic): -35 dBu (13.78 mV)
Channel 1-4 (XLR, Line): -9 dBu (275.0 mV)
Channel 3/4 (1/4", Mic): -29 dBu (27.50 mV)
Channel 3/4 (1/4", Line): -3 dBu (548.7 mV)
Channels 5/6 to 9/10: -3 dBu (548.7 mV)
Maximum Before Clip
Channel 1-4 (XLR, Mic): -10 dBu (245.1 mV)
Channel 1-4 (XLR, Line): +16 dBu (4.890 V)
Channel 3/4 (1/4", Mic): -4 dBu (489.0 mV)
Channel 3/4 (1/4", Line): +22 dBu (9.757 V)
Channels 5/6 to 9/10: +22 dBu (9.757 V) | | | | Output Connectors | Monitor L/R: 1/4" / 6.35 mm phone jack (impedance balanced)
Subwoofer Out: 1/4" / 6.35 mm phone jack (impedance balanced) | | Impedance | Actual Source Impedance: 150 Ohms
For use with Nominal: 10 kOhms lines | | Output Level | Monitor Out L/R: +4 dBu (1.23 V) nominal, +20 dBu (7.75 V) max before clip
Subwoofer Out: -3 dBu (0.55 V) nominal, +17 dBu (5.49 V) max before clip | | | | Connectors | Speakers L/R: 1/4" / 6.35 mm phone jack | | Impedance | Actual Source Impedance: < 0.1 Ohms
For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers | | Output Level | 4 Ohm Speakers: 110 W (1 Hz THD+N < 1%), 250 W (1 kHz THD+N < 10% [CEA2006])
8 Ohm Speakers: 110 W (1 Hz THD+N < 1%), 170 W (1 kHz THD+N < 10% [CEA2006]) | | | | Output Power | 1 kHz THD+N < 10% (CEA2006): 250 W + 250 W (4 Ohms), 170 W + 170 W (8 Ohms)
1 kHz THD+N < 1%: 110 W + 110 W (4 Ohms), 110 W + 110 W (8 Ohms) | | Frequency Response | Frequency Response Refer to the nominal output level @ 1 kHz
Input to Speakers: +1/-4 dB (40 Hz to 20 kHz)
Input to Monitor Out: +0.5/-1.5 dB (20 Hz to 20 kHz) | | THD + N | Input to Speakers: 0.2% @ 13.8 W (40 Hz to 20 kHz), 0.4% @ 23.2 W (1 kHz)
Input to Monitor Out: 0.05% @ +10 dBu (20 Hz to 20 kHz), 0.009% @ +20 dBu (1 kHz) | | EIN | Equivalent Input Noise: -115 dBu | | Residual Output Noise | Input to Speakers: -68 dBu (40 Hz to 20 kHz, Master: min) Input to Monitor Out: -99 dBu (20 Hz to 20 kHz, Monitor: min) | | Crosstalk | (1 kHz): -80 dB | | Input Channels | Mono (Mic/Line): 4
Stereo: (Line): 3
Total: 10 | | Output Channels | Speakers: L/R
Monitor Out: L/R
Subwoofer Out | | Bus | Stereo: 1
Bus: 1 | | Pad | Channels 1-4: 26 dB | | Hi-Z Input | Channel 4: Supported | | EQ Section | High: 8 kHz +15/-15 dB
Mid: 2.5 kHz +15/-15 dB
Low: 100 Hz +15/-15 dB | | Audio Level Meter | 6 points (-20, -6, 0, +3, +6, LIMITER) | | Built-in Effects | SPX Algorithm: Reverb 4 programs | | Output Channel Function | Master EQ (Speech to Music)
Feedback Suppressor | | Phantom Power | Channels 1, 2: +30 V | | Footswitch Input | Reverb: Effect mute on/off | | Protection | Load Protection: DC-fault
Amplifier Protection: Over heat protection, over current protection | | Power | Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 35 W (Idle) / 90 W (1/8 power) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W × H × D) | 14.8 x 5.8 x 8.7" / 37.6 x 14.7 x 22.1 cm | | Weight | 9.3 lb / 4.2 kg | | | | Package Weight | 12.55 lb | | Box Dimensions (LxWxH) | 17.6 x 11.9 x 10.4" |
Rating100% users recommend this product to others. And what about you?
