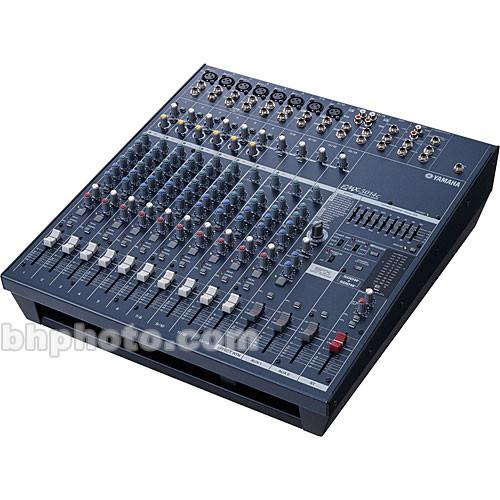

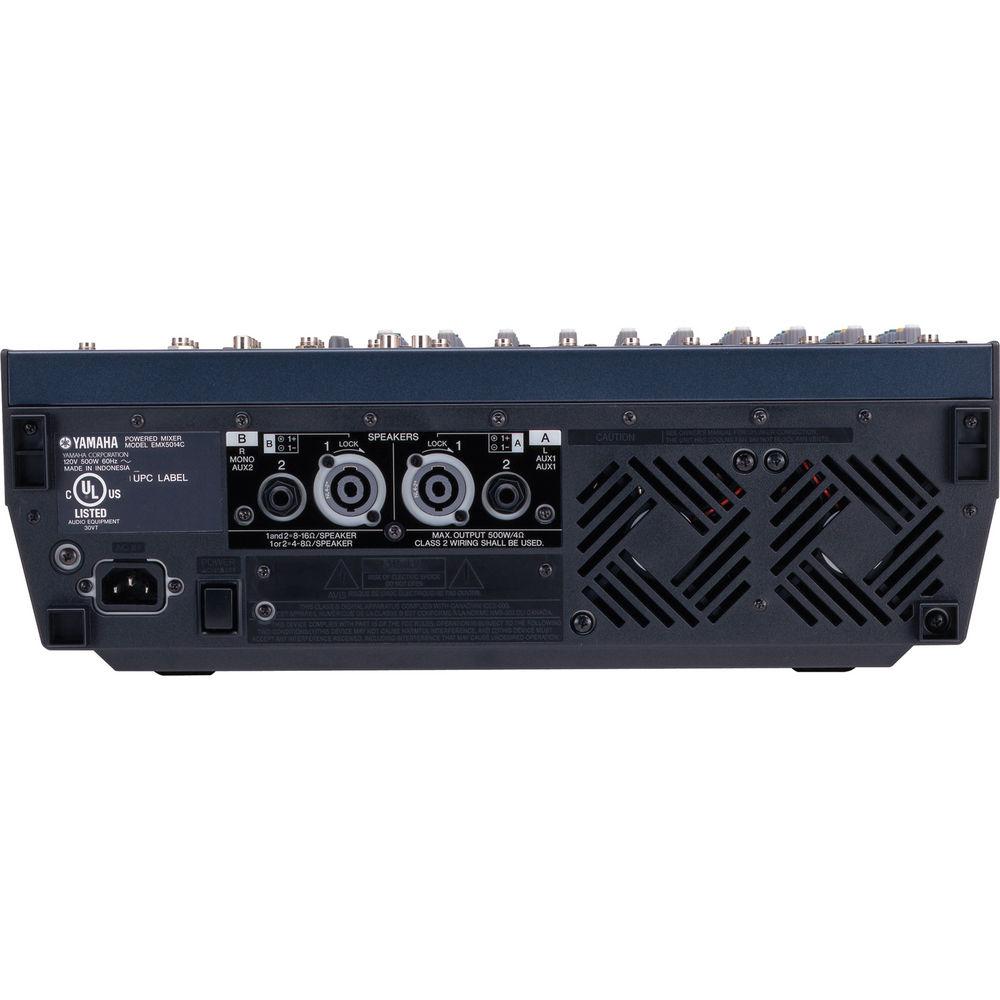

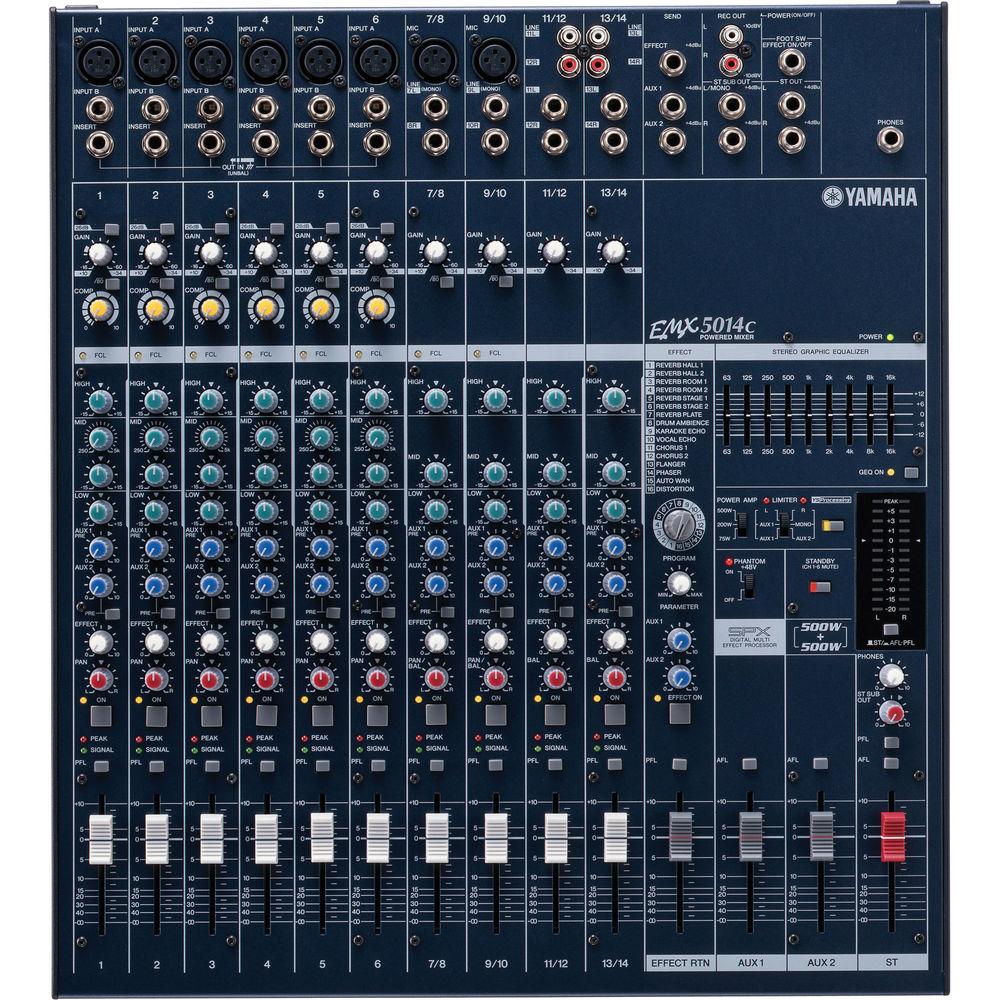

User Manual for Yamaha EMX5014C - 14 Powered Sound Reinforcement Audio Mixer with 500W 500W Stereo Amplifier Click to enlarge the picture
Contents of the user manual for the Yamaha EMX5014C - 14 Powered Sound
- Product category: Sound Reinforcement Mixers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Sound Reinforcement Mixers
 |
User manual for the Yamaha EMX5014C - 14 Powered Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha EMX5014C is a powered audio mixer with a powerful built in amplifier that is capable of supplying up to 1000 watts in stereo. The EMX5014C features a total of 14 input channels, with 8 microphone inputs and 6 1/4" phone line inputs. Stereo inputs are featured with 1/4" phone and RCA paired line inputs. A built-in effects engine provides over 16 user selectable effects. The powerful amplifier and full feature set give the EMX5014C the sound quality and flexibility to perform in small clubs, bars, restaurants, houses-of-worship, halls, etc. - 500W + 500W Amplifier
- The EMX5014C features a powerful internal amplifier capable of 1000 watts of stereo power at four ohms.
- Single Effects Processor Engine
- An internal effects processor engine features over 16 preset effects.
- Nine-Band Graphic EQ
- Nine-band graphic EQ provides frequency contouring and adjustment on output.
UPC: 086792838274 In the Box Yamaha EMX5014C - 14 Powered Sound Reinforcement Audio Mixer with 500W + 500W Stereo Amplifier 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha EMX5014C - 14 Powered Sound Reinforcement Audio Mixer with 500W 500W Stereo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha EMX5014C Specs | Power Rating | 500W + 500W (4ohms)
370W + 370W (8ohms/ AC100V model)350W + 350W (8ohms/ AC120V model)
320W + 320W (8ohms/ AC220-240V model) | | Mic/Line Inputs | Balanced 1/4" TRS Phone Line Mono x6
Balanced XLR Microphone x8Balanced 1/4" TRS Phone Stereo Paired x4
Unbalanced RCA Phono Stereo Paired x2 | | Mains Inputs | No | | In-Line Inputs/Returns | No | | Aux Sends | 1/4" TRS Stereo Phone x3 | | Aux Returns | No | | Inserts | 1/4" TRS Phone all mono input channels | | BUS (Group) Outputs | Stereo | | Main Output | Locking 1/4" & XLR Combo-Connectors x2
1/4" Phone Connectors x2 | | Tape I/O | RCA Phono | | Monitor Outputs | 1/4" TRS Phone Output x2 | | EQ Section | HIGH: 10kHz (Shelving)
MID(MONO): 250Hz-5kHz (Peaking) MID(ST) 2.5kHz (Peaking)
LOW: 100Hz (Shelving) | | Solo/Mute | Mute and PFL on all input channels | | Channel Level Control | Fader | | Trim/Gain Control | Rotary Controls | | Phantom Power | +48V group switched on CH1-6,7 / 8,9 / 10 | | Metering | 12-segment peak led | | Frequency Response | 0, +0, -3dB, 20Hz-20kHz, 0dB @1kHz | | Signal-to-Noise Ratio | -128dBu | | Total Harmonic Distortion (THD) | Less than 0.3%, +14dBu output into 600ohms | | Power Supply | Japan: AC100V 50/60Hz, 500W
North America: AC120V, 60Hz, 500W Other Areas: AC220-240V, 50/60Hz, 500W | | Dimensions (WxHxD) | 17.48 x 6.10 x 19.40" (444 x 155 x 493mm) | | Weight | 23.14 lbs (10.5kg) | | | | Package Weight | 28.3 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 11.0" |
