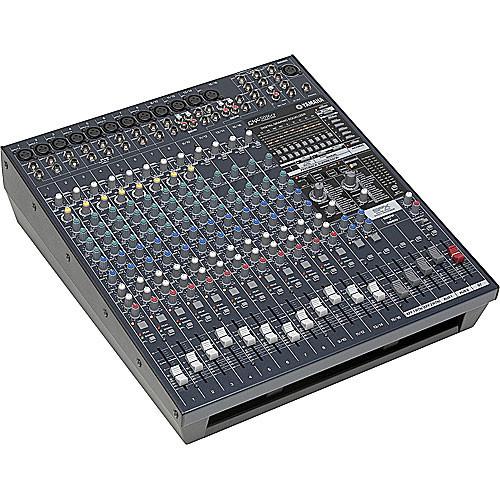

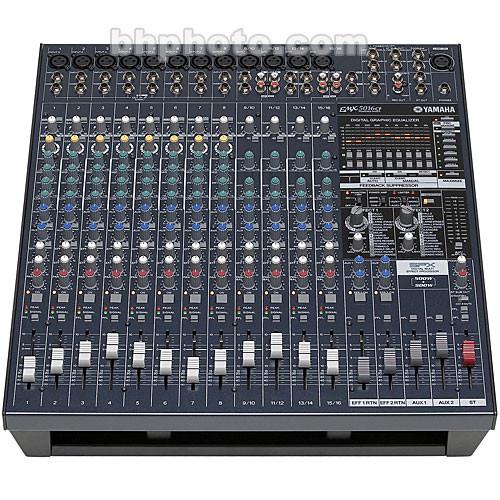

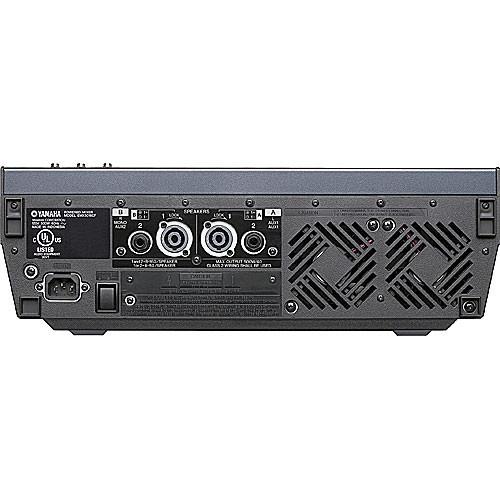

User Manual for Yamaha EMX5016CF - 16 Powered Sound Reinforcement Audio Mixer with 500W 500W Stereo Amplifier Click to enlarge the picture
Contents of the user manual for the Yamaha EMX5016CF - 16 Powered Sound
- Product category: Sound Reinforcement Mixers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Sound Reinforcement Mixers
 |
User manual for the Yamaha EMX5016CF - 16 Powered Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha EMX5016CF is a powered audio mixer with a powerful built in amplifier that is capable of supplying up to 1000 watts in stereo. The EMX5016CF features a total of 16 input channels, with 12 microphone inputs and 8 1/4" phone line inputs. Stereo inputs are featured with 1/4" phone and RCA paired line inputs. A built-in effects engine provides over 16 user selectable effects. The powerful amplifier and full feature set give the EMX5016CF the sound quality and flexibility to perform in small clubs, bars, restaurants, houses-of-worship, halls, etc. - 500W + 500W Amplifier
- The EMX5016CF features a powerful internal amplifier capable of 1000 watts of stereo power at four ohms.
- Dual Effects Processor Engine
- Dual internal effects processor engine features over 16 preset effects.
- Frequency Response Correction System
- Yamaha's FRC detection automatically matches the frequency and tonal response of any room.
- Automatic Feedback Suppression
- The Automatic Feedback Suppression system compensates for frequencies that are causing feedback.
UPC: 086792856216 In the Box Yamaha EMX5016CF - 16 Powered Sound Reinforcement Audio Mixer with 500W + 500W Stereo Amplifier 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha EMX5016CF - 16 Powered Sound Reinforcement Audio Mixer with 500W 500W Stereo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha EMX5016CF Specs | Power Rating | 500W + 500W (4ohms)
370W + 370W (8ohms/ AC100V model)350W + 350W (8ohms/ AC120V model)
320W + 320W (8ohms/ AC220-240V model) | | Mic/Line Inputs | Balanced 1/4" TRS Phone Line Mono x8
Balanced XLR Microphone x12Balanced 1/4" TRS Phone Stereo Paired x4
Unbalanced RCA Phono Stereo Paired x4 | | Mains Inputs | No | | In-Line Inputs/Returns | No | | Aux Sends | 1/4" TRS Stereo Phone x3 | | Aux Returns | No | | Inserts | 1/4" TRS Phone all mono input channels | | BUS (Group) Outputs | Stereo | | Main Output | Locking 1/4" & XLR Combo-Connectors x2
1/4" Phone Connectors x2 | | Tape I/O | RCA Phono | | Monitor Outputs | 1/4" TRS Phone Output x2 | | EQ Section | HIGH: 10kHz (Shelving)
MID(MONO): 250Hz-5kHz (Peaking) MID(ST) 2.5kHz (Peaking)
LOW: 100Hz (Shelving) | | Solo/Mute | Mute and PFL on all input channels | | Channel Level Control | Fader | | Trim/Gain Control | Rotary Controls | | Phantom Power | +48V group switched on CH1-6,7 / 8,9 / 10 | | Metering | 12-segment peak led | | Frequency Response | 0, +0, -3dB, 20Hz-20kHz, 0dB @1kHz | | Signal-to-Noise Ratio | -128dBu | | Total Harmonic Distortion (THD) | Less than 0.3%, +14dBu output into 600ohms | | Power Supply | Japan: AC100V 50/60Hz, 500W
North America: AC120V, 60Hz, 500W Other Areas: AC220-240V, 50/60Hz, 500W | | Dimensions (WxHxD) | 17.48 x 6.10 x 19.40" (444 x 155 x 493mm) | | Weight | 24.25 lbs (11kg) | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 23.6 x 21.0 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
