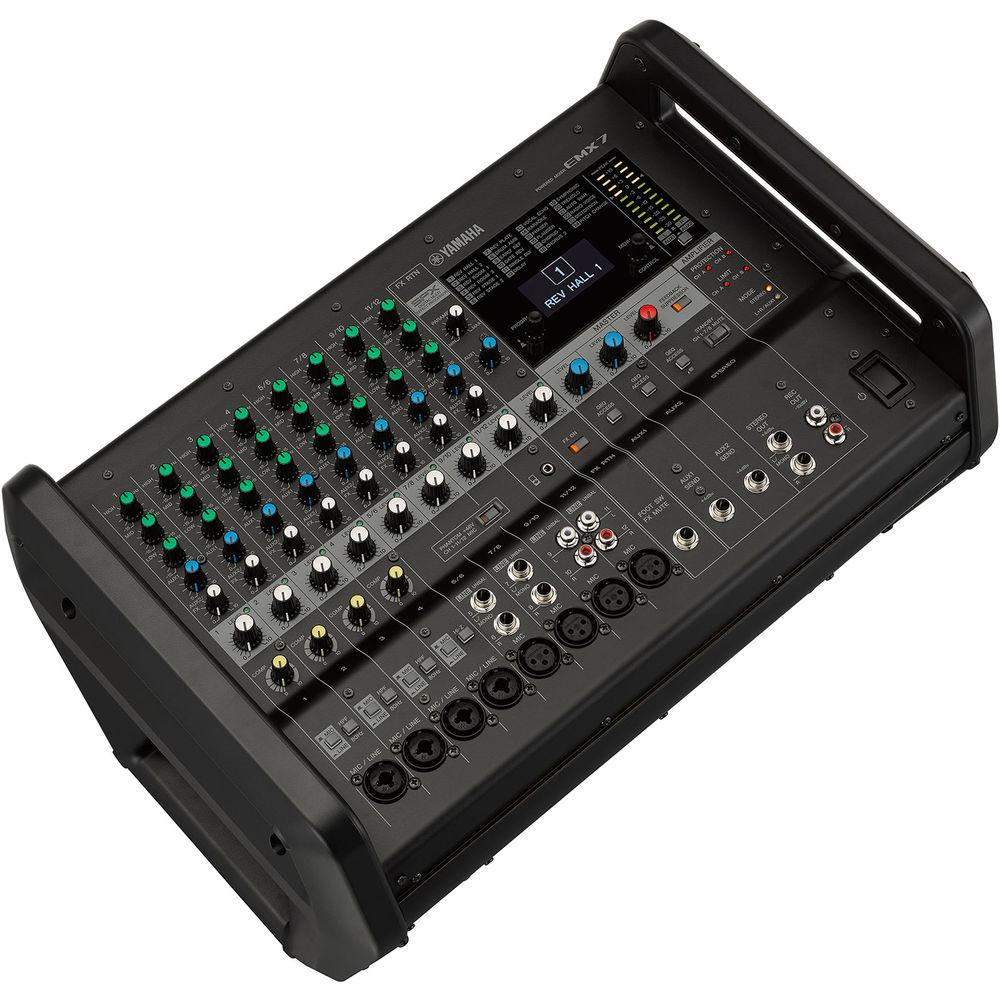

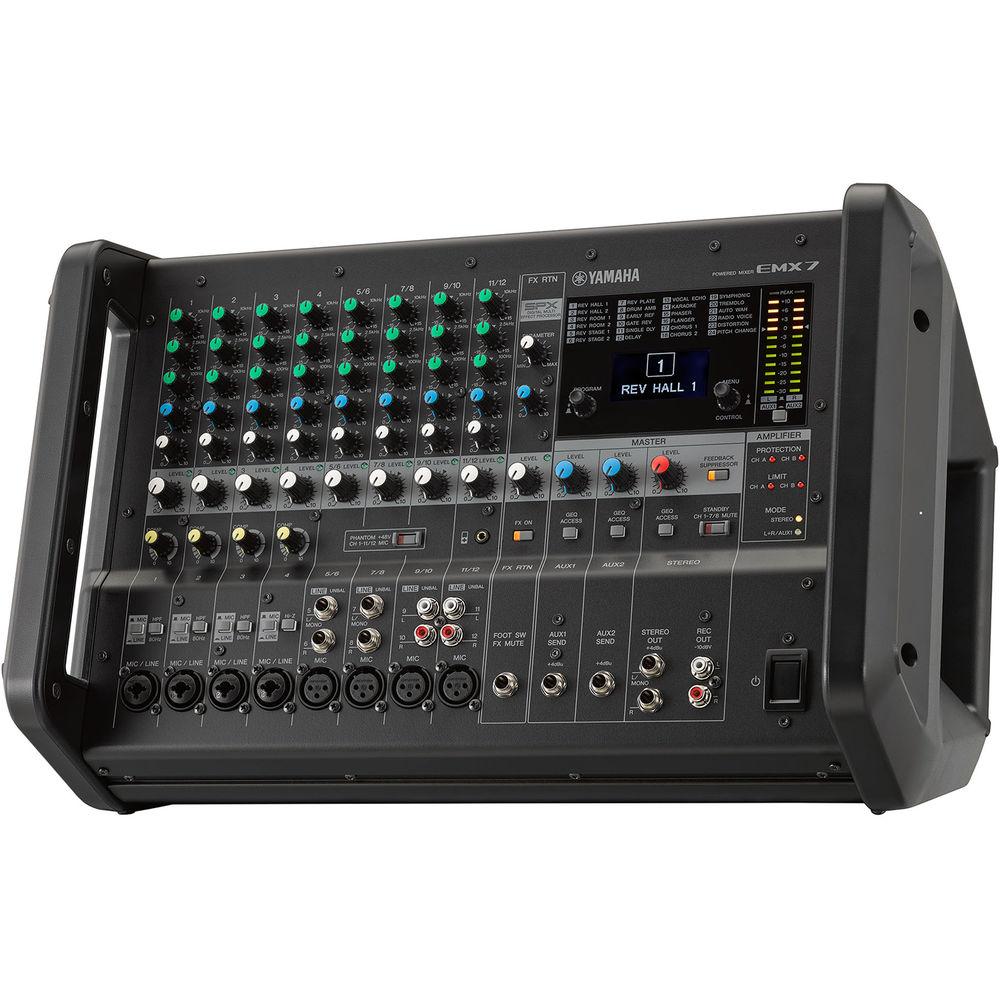

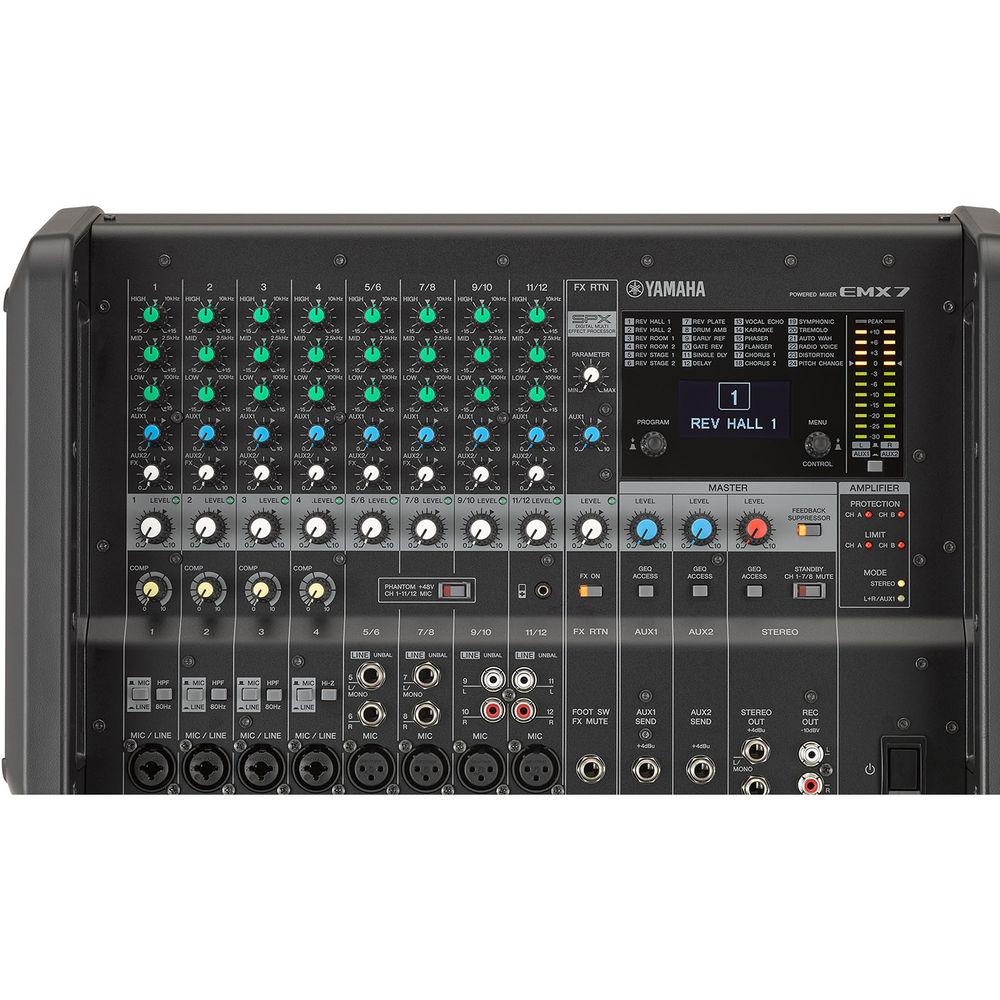

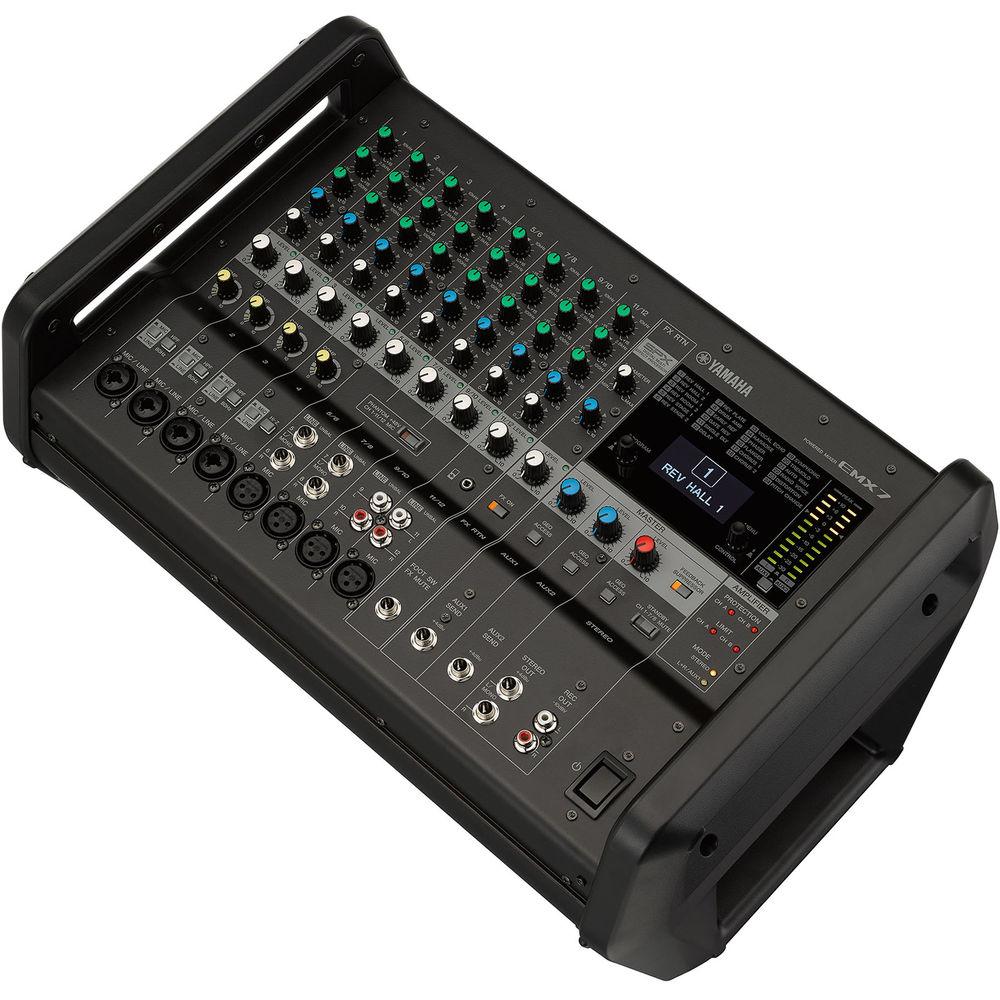

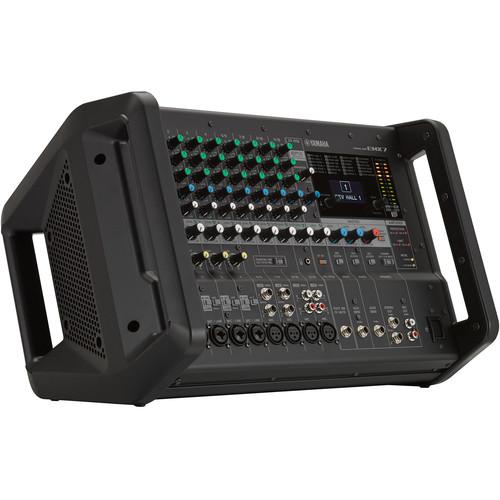

Product description The Yamaha EMX7 is a 12-input powered mixer with an integrated 1420W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.
The EMX7 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers an integrated speaker processor with bass boost, designed to bring out the best quality from Yamaha or 3rd party passive speakers. The EMX7 also includes a Flex9GEQ graphic equalizer for Aux 1, Aux 2, and Stereo Output. The Flex9GEQ allows you to select up to nine bands out of a total of 31 and adjust the gain. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX7 ships with a standard IEC power cord. -
- 1420-watt power amplifier for versatility in a wide variety of performance applications
- Compatible with 4 Ohm and 8 Ohm speakers
- 12-channel mixer with four mono mic/line and four stereo line input channels, supporting a wide range of inputs
- Channels 1-4 offer a single knob compressor
- Channels 1-3 offer an 80 Hz high-pass filter to reduce microphone rumble
- Channel 4 offers a Hi-Z input for guitar
- Two Aux sends via balanced 1/4" outputs. Aux 2 also sends to internal effects engine
- Yamaha’s high-quality SPX multi-effects, providing optimum processing for instruments or vocals
- Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
- Independent three-band equalizer on each channel for tonal adjustment and sound control
- Integrated speaker processor
- Flex9GEQ Graphic EQ: Allows you to select up to nine bands out of a total of 31 and adjust the gain
- Stereo Output: Two balanced 1/4" outputs for connecting to powered speakers or an additional amplifier
- Recording Output: Stereo RCA for connecting to a recorder
UPC: 889025106245 In the Box Yamaha EMX7 12-Input Powered Mixer AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha EMX7 12-Input Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha EMX7 Specs | | | Input Connectors | Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm
Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm
Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm
Channels 9/10: 1x XLR, 2x RCA
Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack | | Load Impedance | Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms nominal with lines
Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms mics nominal
Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms lines nominal | | Input Level | Sensitivity
Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV)
Channel 1-4 (1/4", Line): -20 dBu (77.5 mV)
Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
Channels 5-12 (XLR): -60 dBu (0.775 mV)
Channels 5-8 (1/4"): -20 dBu (77.5 mV)
Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV)
Nominal
Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
Channel 1-4 (XLR, Line): -13 dBu (173 mV)
Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV)
Channel 1-4 (1/4", Line): -3 dBu (548 mV)
Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
Channels 5-12 (XLR): -43 dBu (5.48 mV)
Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV)
Maximum Before Clip
Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
Channel 1-4 (1/4", Mic): -5 dBu (436 mV)
Channel 1-4 (1/4", Line): +25 dBu (13.8 V)
Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
Channels 5-12 (XLR): -15 dBu (138 mV)
Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V) | | | | Output Connectors | Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced
Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced
Rec Out (L/R): 2x RCA unbalanced | | Impedance | Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines | | Output Level | Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping | | | | Connectors | Speakers A/B: 2x Neutrik speakON NL4, 1/4" / 6.35 mm | | Impedance | Actual Source Impedance: < 0.1 Ohms
For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers | | Output Level | 4 Ohm Speakers: 600 W (1 Hz THD+N < 1%), 710 W (1 kHz THD+N < 10% [CEA2006])
8 Ohm Speakers: 400 W (1 Hz THD+N < 1%), 500 W (1 kHz THD+N < 10% [CEA2006]) | | | | Output Power | 1 kHz THD+N < 10% (CEA2006): 710 W + 710 W (4 Ohms), 500 W + 500 W (8 Ohms)
1 kHz THD+N < 1%: 600 W + 600 W (4 Ohms), 400 W + 400 W (8 Ohms) | | Frequency Response | Frequency Response Refer to the nominal output level @ 1 kHz
Input to Speakers: +1/-3 dB (40 Hz to 20 kHz)
Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz) | | THD + N | Input to Speakers (Mic/Line): 0.1% @ 10 W (40 Hz to 20 kHz)
Input to Speakers (Line - Channels 1-4) 0.04% @ 65 W (1 kHz)
Input to Stereo Out, Aux 1/2 Send (Mic/Line): 0.02% @ +14 dBu (20 Hz to 20 kHz)
Input to Stereo Out, Aux 1/2 Send (Line - Channels 1-4): 0.007% @ +20 dBu (1 kHz) | | Hum & Noise | EIN: -117 dBu
Residual Output Noise
Input to Speakers: -70 dBu (40 Hz to 20 kHz, Stereo Master Level: min)
Input to Stereo Out, Aux 1/2 Sends: -82 dBu (20 Hz to 20 kHz, Stereo Master Level: min) | | Crosstalk | (1 kHz): -85 dB | | Input Channels | Mono (Mic/Line): 8
Stereo: (Line): 4
Total: 12 | | Output Channels | Speakers: A/B
Aux 1 Send
Aux 2 Send
Stereo Out: L/R
Rec Out: L/R | | Bus | Stereo: 1
Aux: 2 (including FX) | | Pad | Channels 1-4: 30 dB | | Hi-Z Input | Channel 4: Supported | | HPF | High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave | | EQ Section | High: 10 kHz +15/-15 dB
Mid: 2.5 kHz +15/-15 dB
Low: 100 Hz +15/-15 dB | | Compressor | Single knob compressor | | Audio Level Meter | 2x 12 Points LED Meter: (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, Peak) | | Built-in Effects | SPX Algorithm: 24 programs | | Output Channel Function | Graphic EQ
Speaker Processor
Feedback Suppressor | | Phantom Power | +48 V | | Footswitch Input | Effect mute on/off | | Protection | Load Protection: DC-fault
Amplifier Protection: Overheat protection, overcurrent protection, integral power protection
Power Supply Protection: Overheat protection, overcurrent protection | | Power | Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 45 W (Idle) / 250 W (1/8 power) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W × H × D) | 18.3 x 12.1 x 12.8" / 464.8 x 307.3 x 325.1 mm | | Weight | 20.9 lb / 9.5 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 15.0" |
