User Manual for Yamaha FS830 FS Series Concert-Style Acoustic Guitar Click to enlarge the picture
Contents of the user manual for the Yamaha FS830 FS Series Concert-Style Acoustic
- Product category: Acoustic Guitars Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Acoustic Guitars
 |
User manual for the Yamaha FS830 FS Series Concert-Style Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

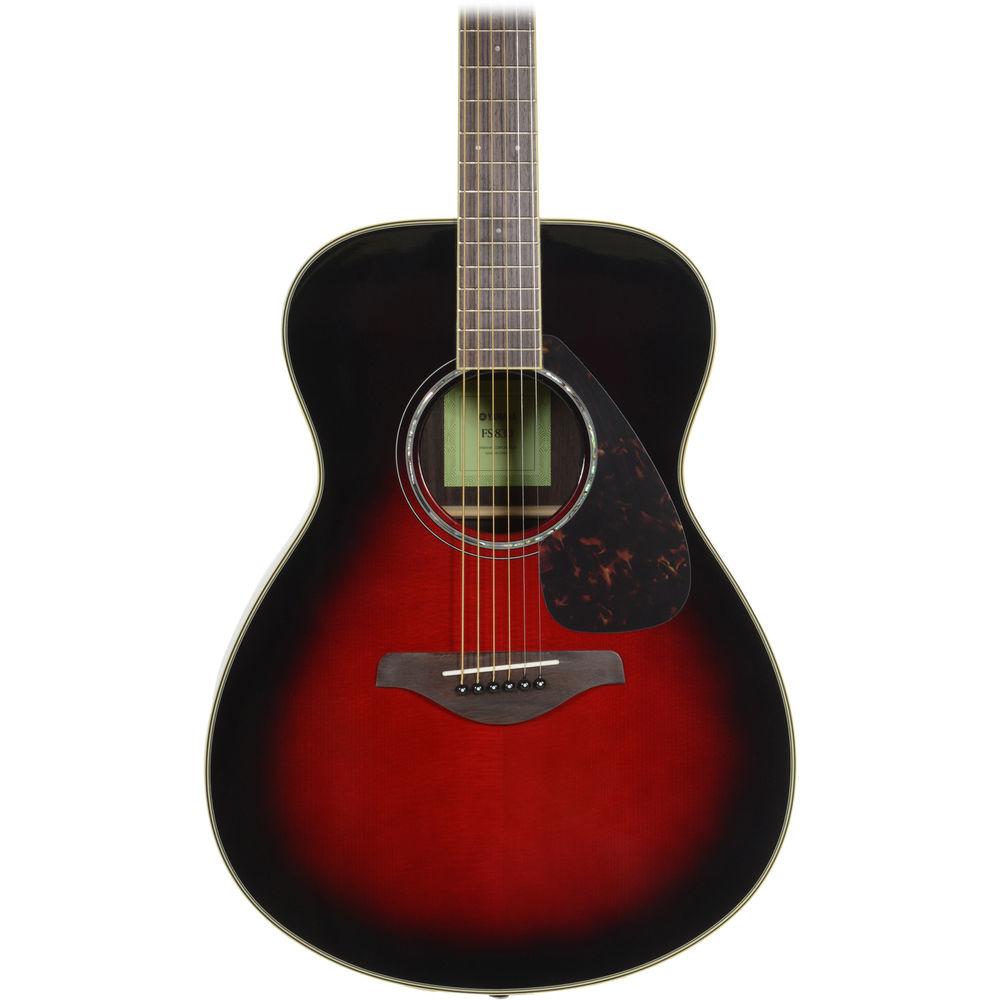

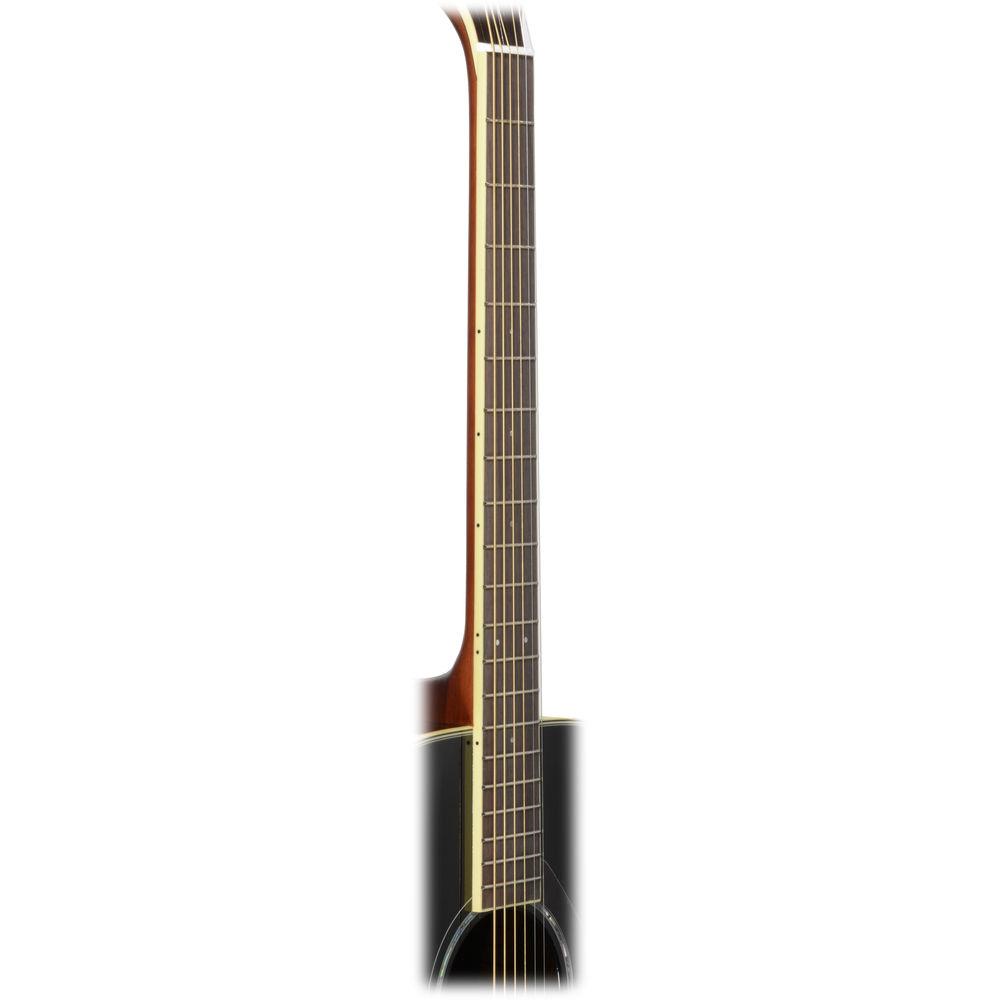

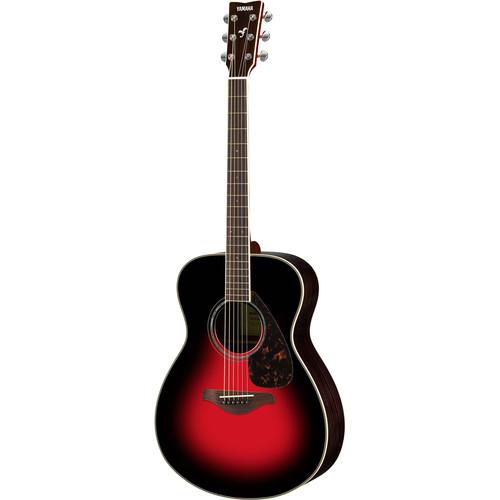

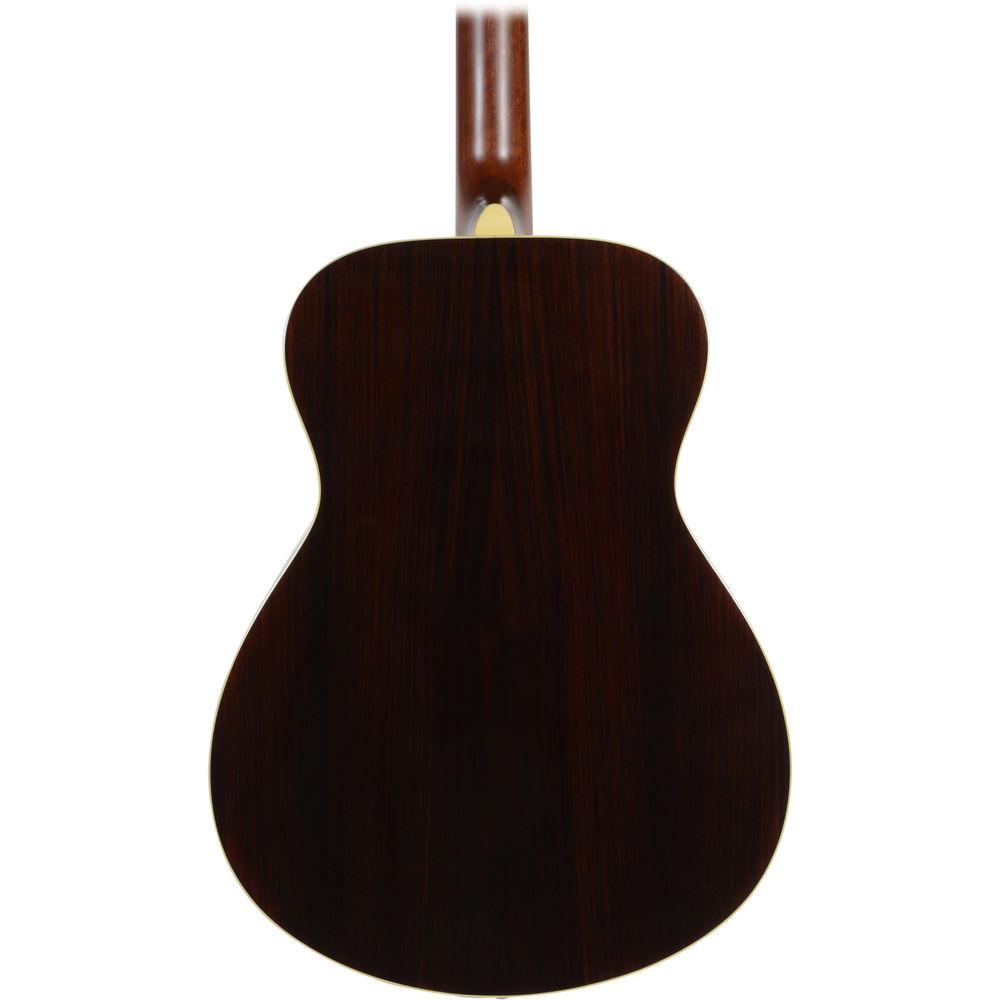

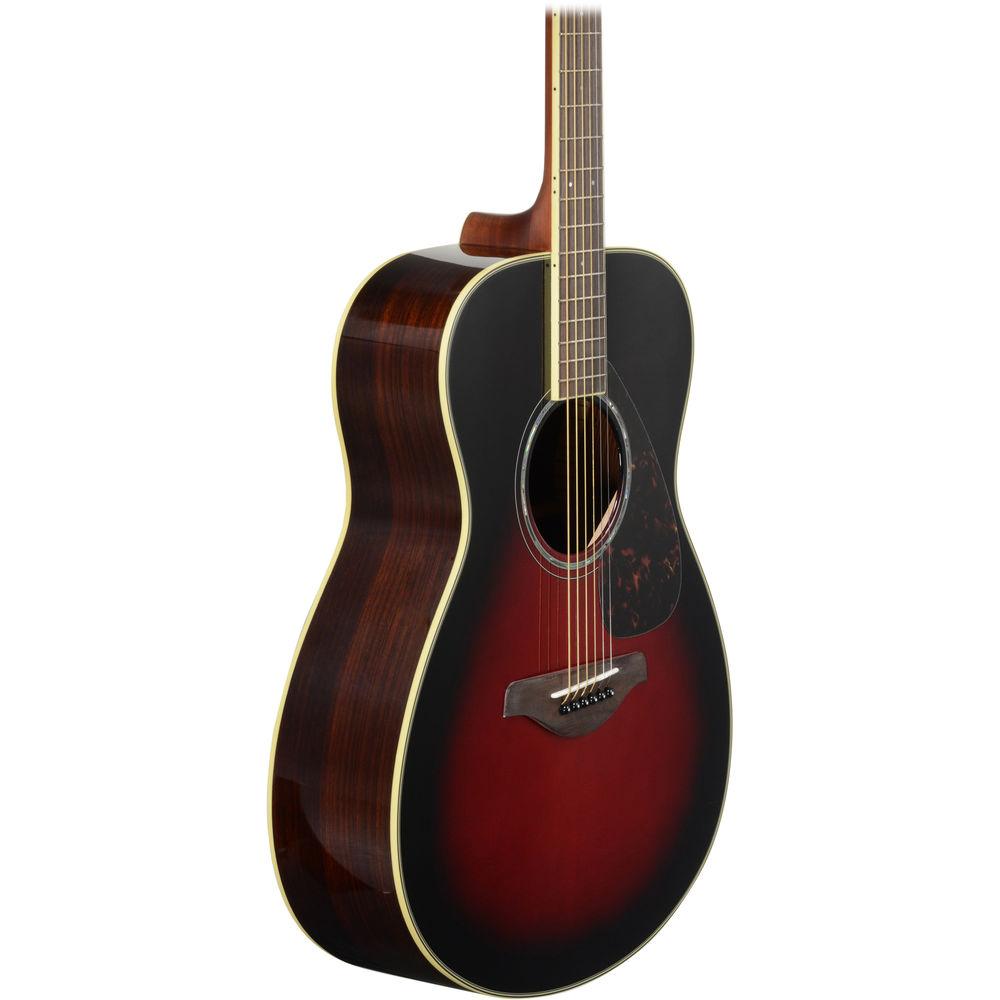

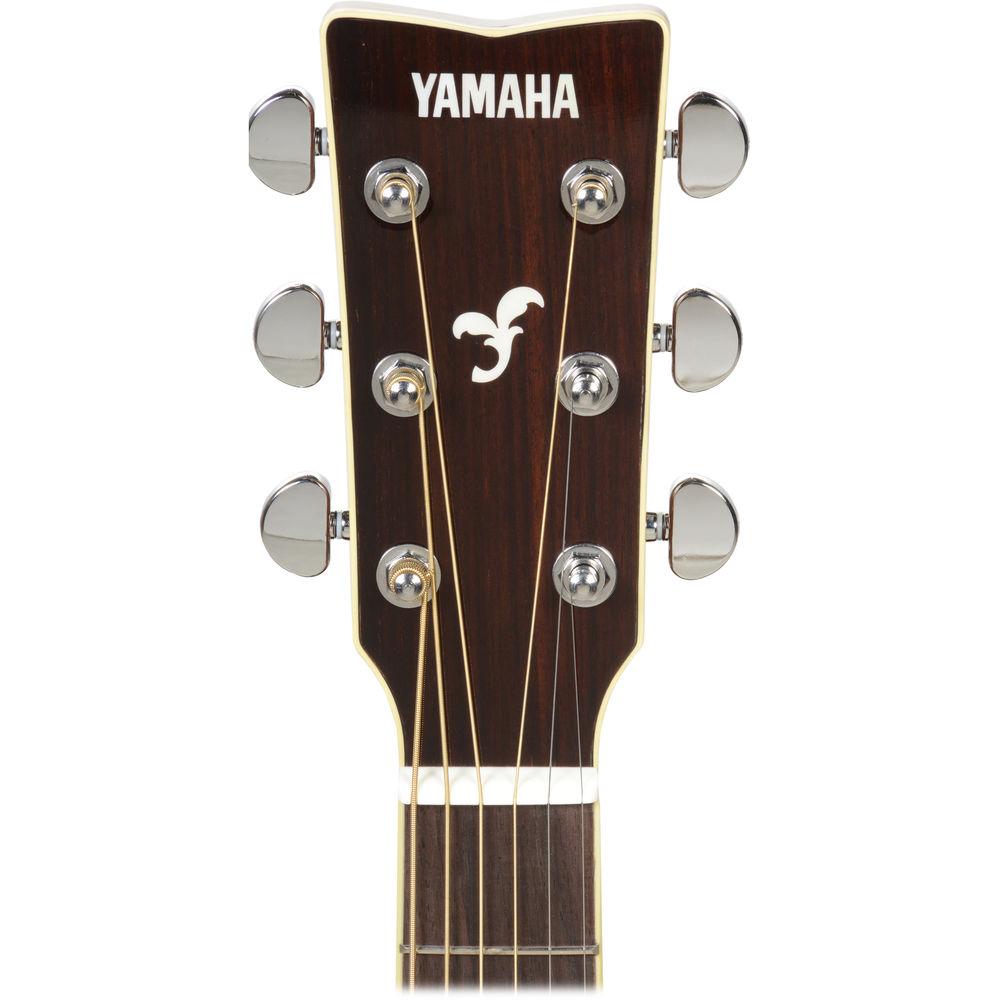

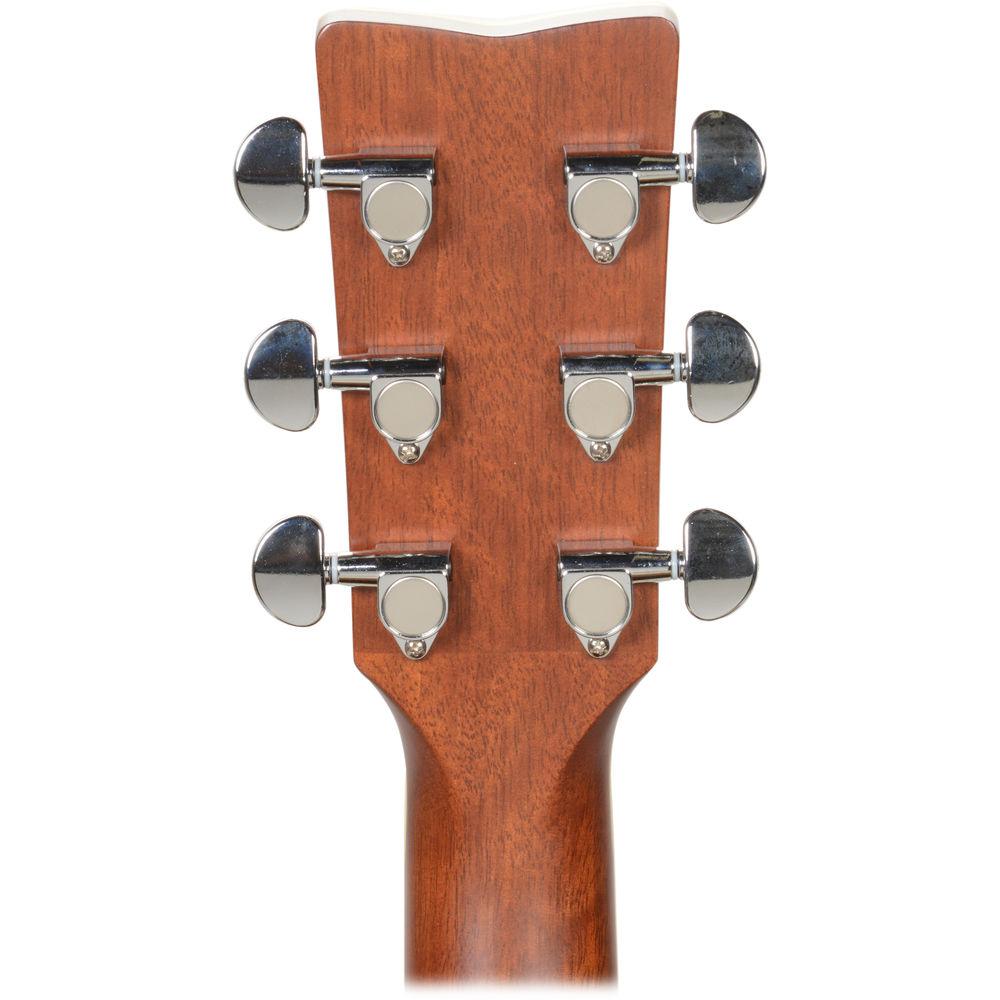

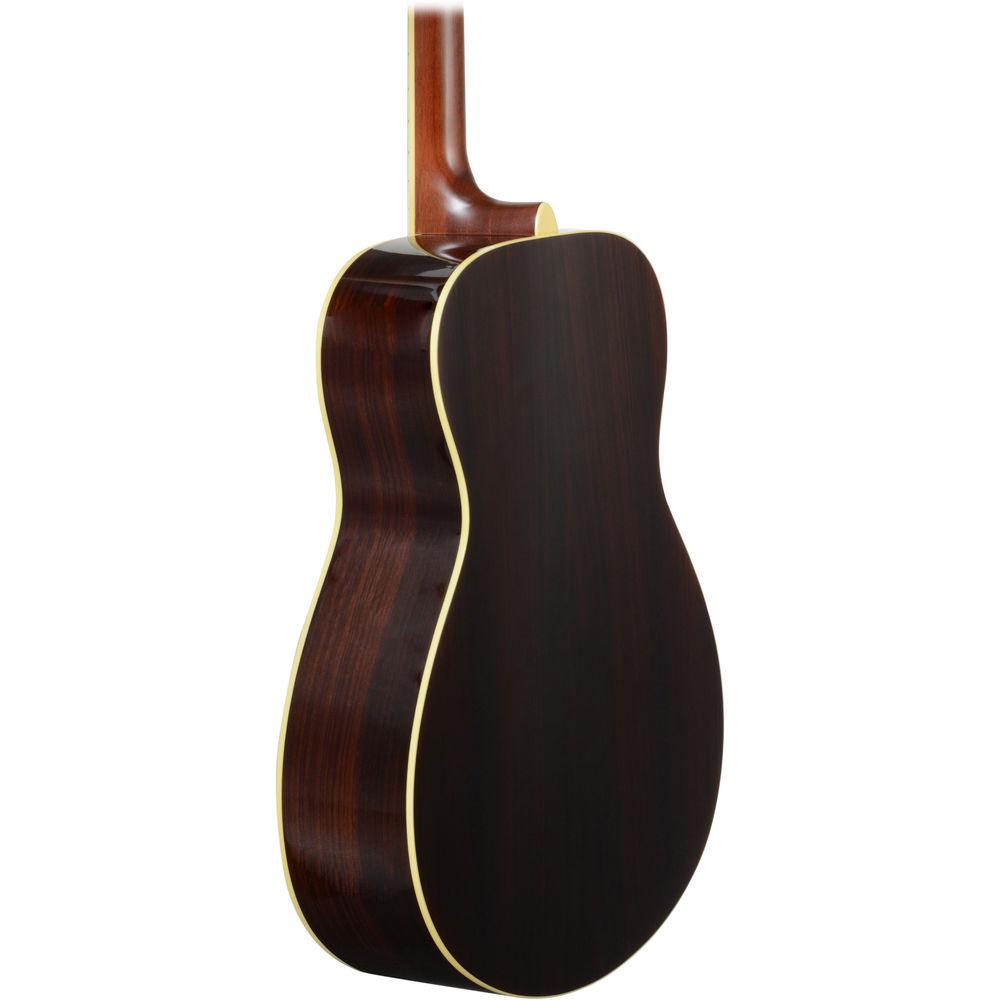

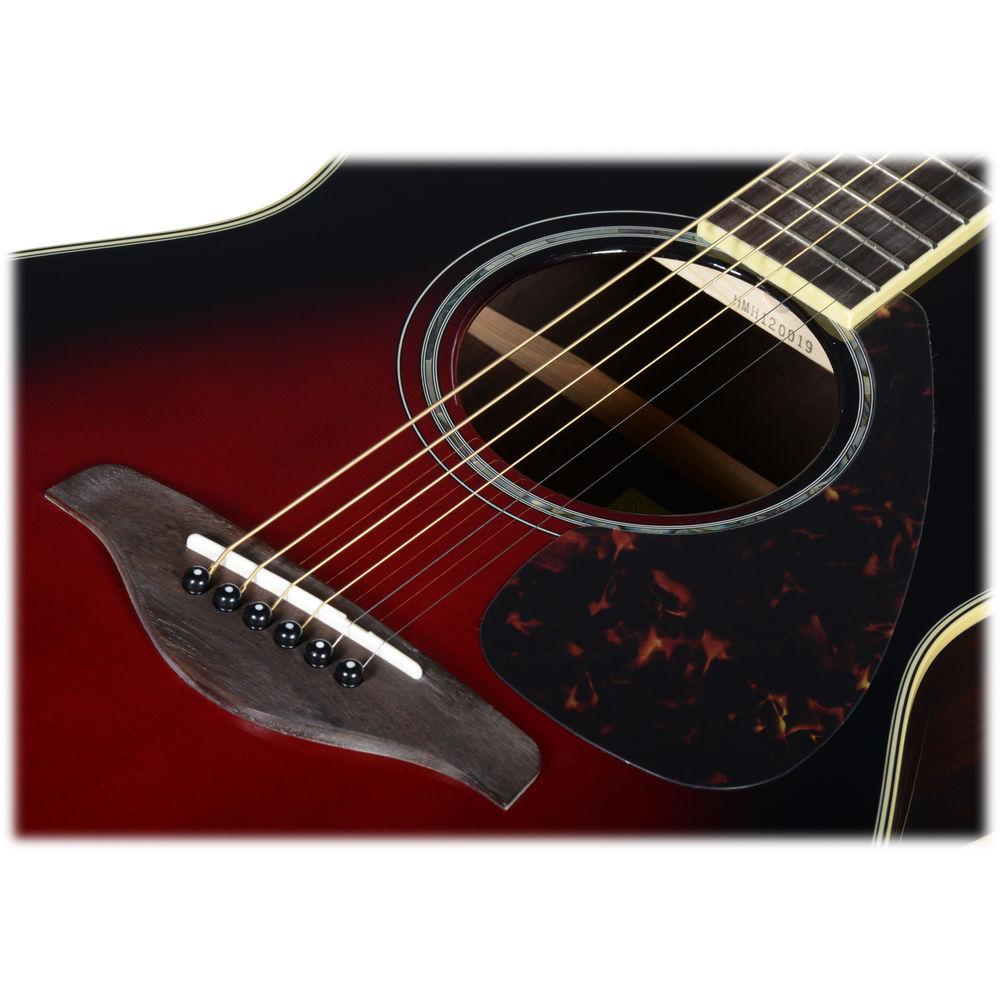

Product description The FS Series FS830 from Yamaha is a full-size concert-style acoustic guitar made with a solid spruce top, and rosewood back and sides with a dusk sun red finish. The compact FS body is 10mm slimmer than the larger dreadnought-style FG body, providing increased comfort with no loss of volume or bass. Well suited for solo performance or playing with a full band, the FS830 utilizes a newly developed scalloped bracing design, which results in a powerful and balanced acoustic sound with stronger lows and mids than its predecessors. The FS830 features a nato neck with a smooth matte finish for ease in playing, and is equipped with a set of chrome die-cast tuners on the headstock. The fingerboard and bridge are both made of rosewood, while the nut and saddle are made from urea. Additional features include black ABS bridge pins to secure the strings, cream body binding, abalone plus white and black soundhole inlay, and a tortoise-patterned pickguard. The FS830 ships with a Hex wrench. - General Features
-
- Body Shape: Concert (small)
- Top: Solid Spruce
- Back and Sides: Rosewood
- Neck: Nato
- Fingerboard: Rosewood
- Bridge: Rosewood
- Body Binding: Cream
- Soundhole Inlay: Abalone with black and white
- Tuning Machines: Chrome die-cast tuners
- Number of Frets: 20
- String Spacing: 0.4" / 10.0mm
- Bridge Pins: Black ABS with white dot
- Body Finish: Gloss
- Neck Finish: Matte
- Accessories: Hex wrench
- Neck Dimensions
-
- Scale: 25.0" / 634.0mm
- Width at Nut: 1.7" / 43.0mm
- Radius: 15.7" / 400.0mm
- Body Dimensions
-
- Scale Length: 25.0" / 634.0mm
- Body Length: 19.6" / 497.0mm
- Total Length: 40.2" / 1,021.0mm
- Body Width: 15.0" / 380.0mm
- Body Depth: 3.5 - 4.3" / 90.0 - 110.0mm
UPC: 889025104043 In the Box Yamaha FS830 FS Series Concert-Style Acoustic Guitar (Dusk Sun Red) Hex Wrench Limited Lifetime Warranty on Top, Neck, Back and Sides Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha FS830 FS Series Concert-Style Acoustic Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha FS830 DSR Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Dreadnought | | Cutaway | Non-Cutaway | | Body Wood | Top: Spruce
Back: Rosewood
Sides: Rosewood | | Neck Type | Set Neck | | Neck Wood | Nato | | Fingerboard | Rosewood | | Number of Frets | 20 | | Scale Length | 25.6" / | | Radius | 15.7" OR | | Nut Width | 43 mm | | Bridge Type | Fixed | | Pickguard | Yes | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 41.75 x 19.0 x 6.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
