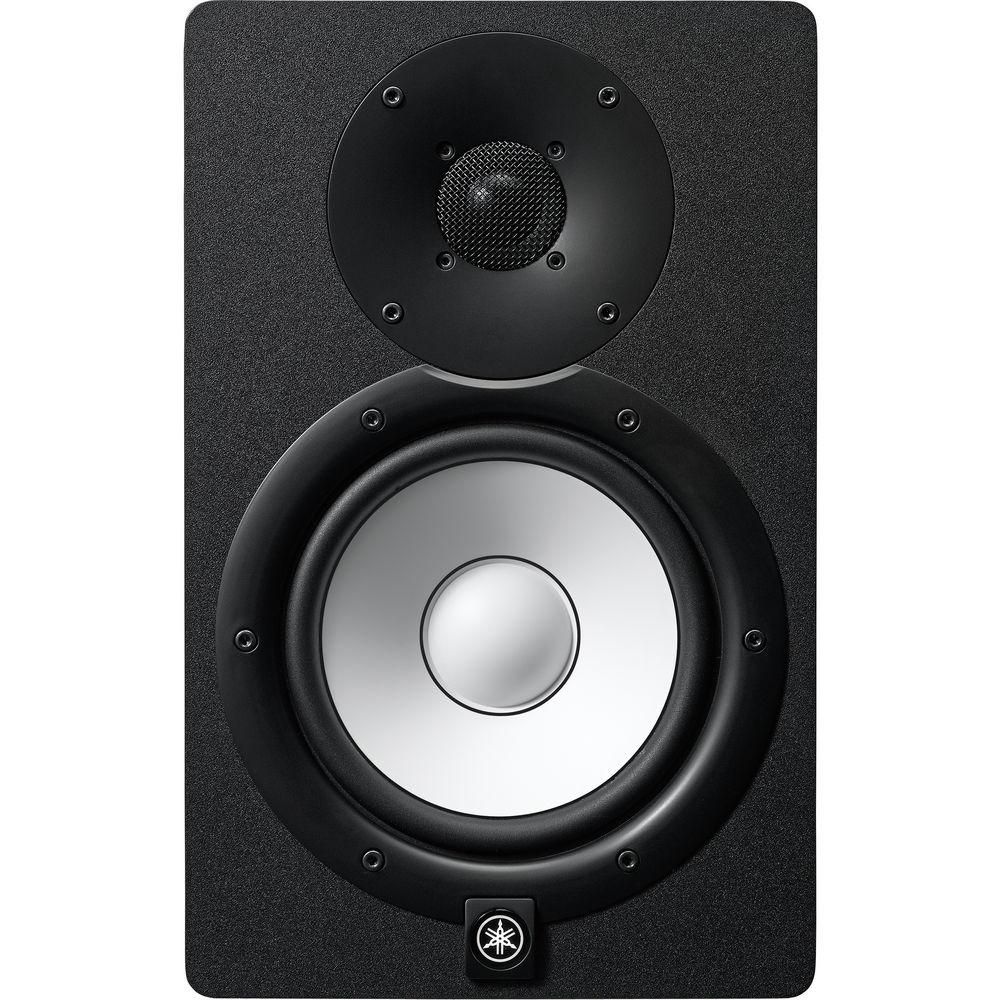

User Manual for Yamaha HS7 Powered Studio Monitor Click to enlarge the picture
Contents of the user manual for the Yamaha HS7 Powered Studio Monitor
- Product category: Studio Monitors Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Studio Monitors
 |
User manual for the Yamaha HS7 Powered Studio Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

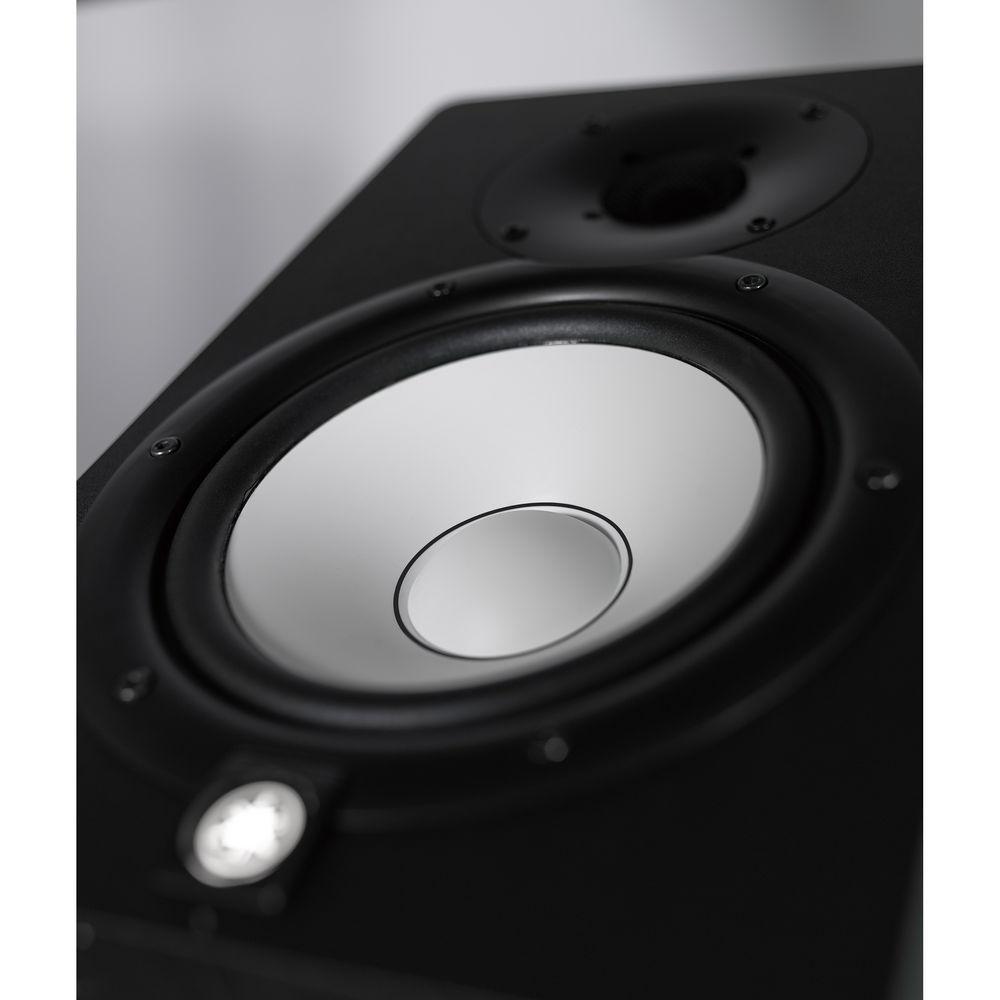

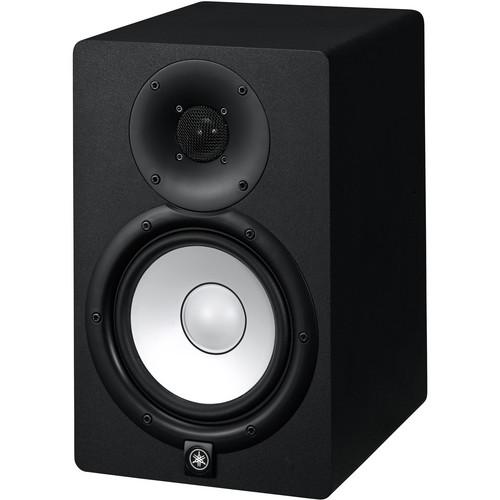

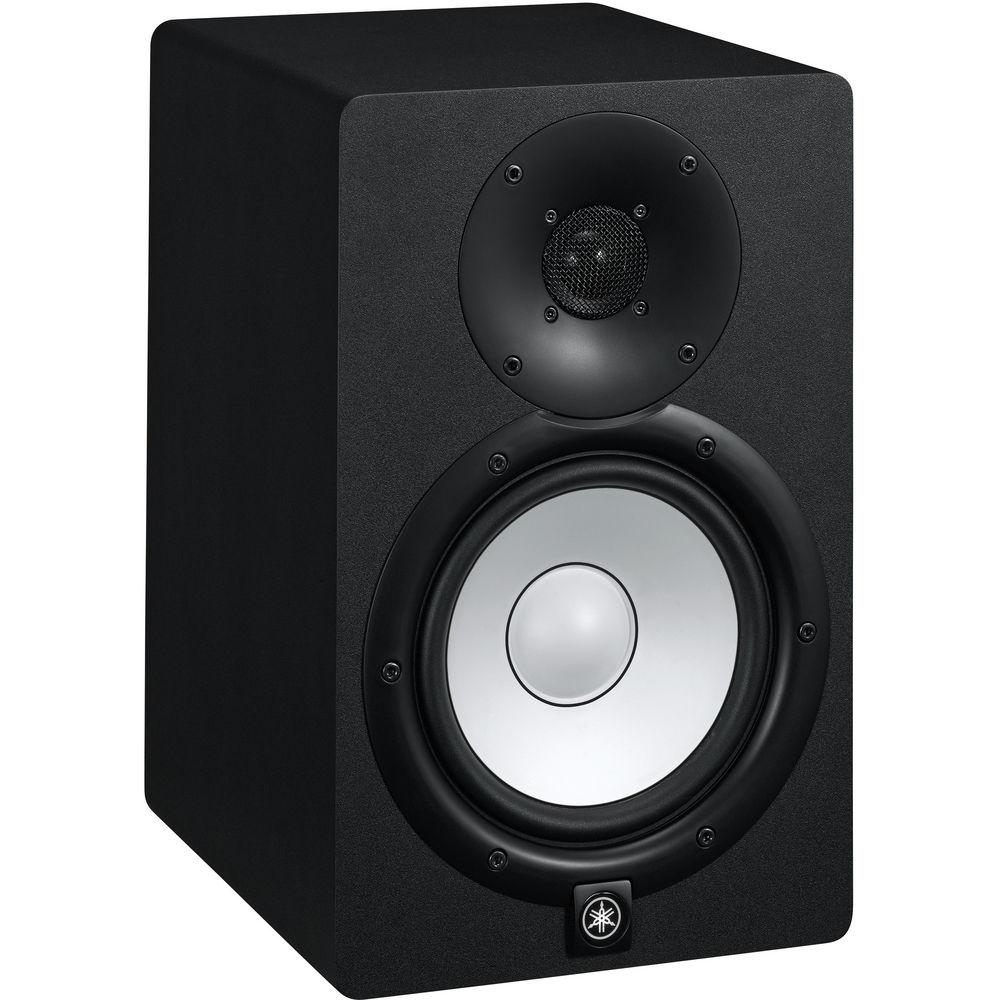

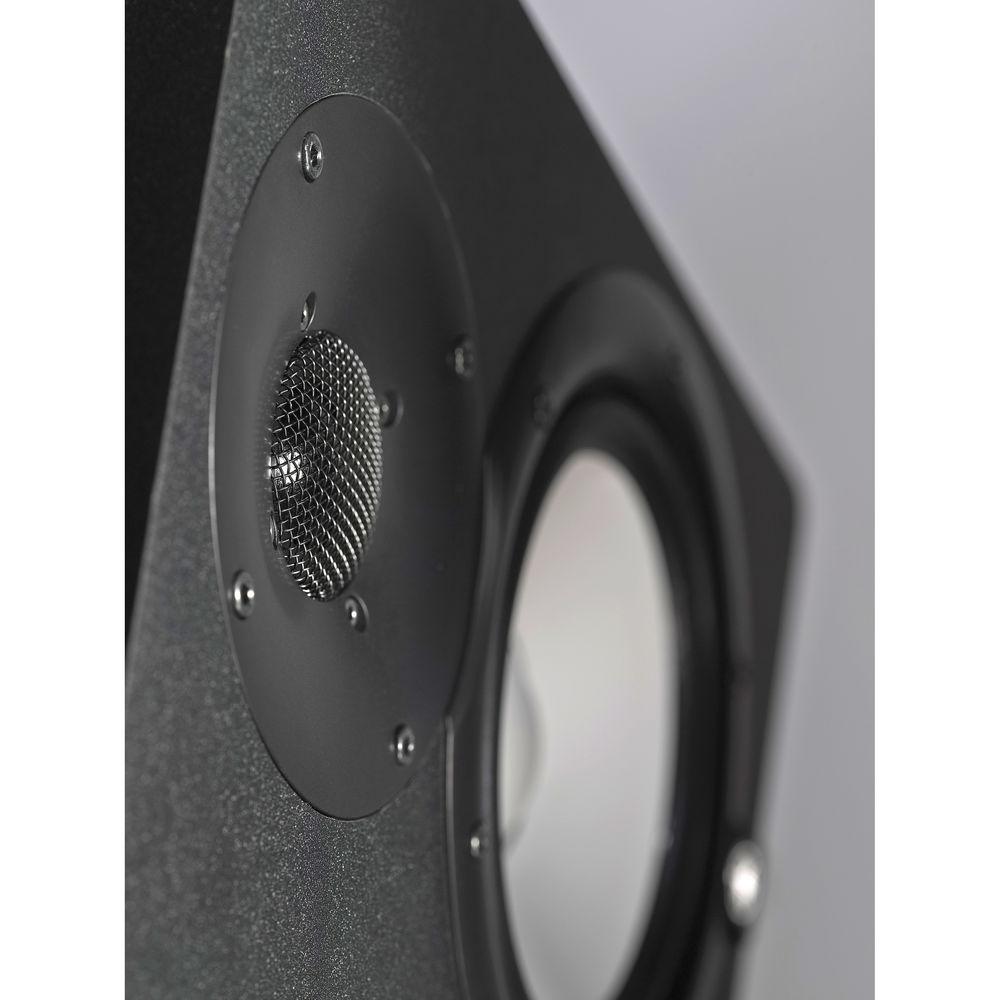

Product description The HS7 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 95W of total output and features a 6.5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS7 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups. - Low Resonance Enclosure Design
- HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound
- Noise Reduction Technology
- Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB
- Controls and Connectivity

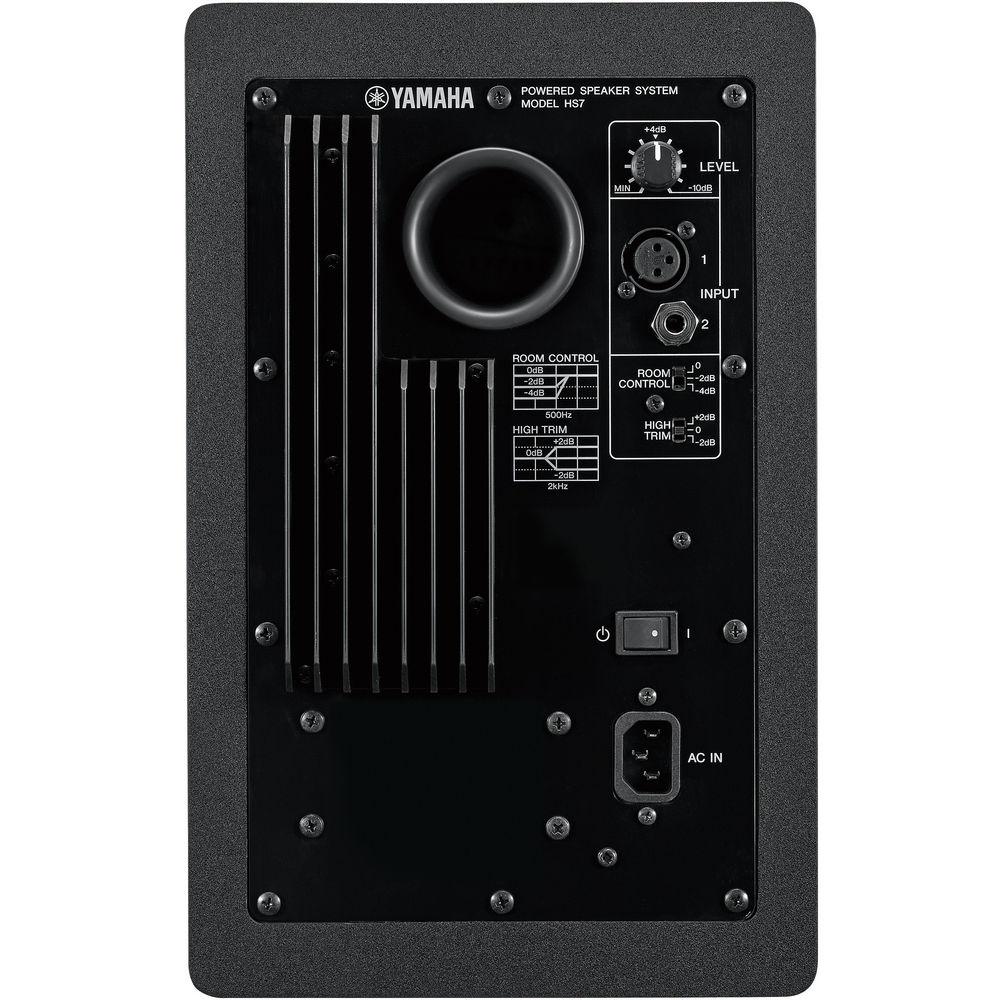

- HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks
UPC: 086792974705 In the Box Yamaha HS7 Powered Studio Monitor Limited 1-Year Warranty User Manual PDF 2.4mbzzvfrdtetbubxxdrtvabs Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha HS7 Powered Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha HS7 Specs | System Type | 2-Way Bi-Amped Powered Studio Monitor | | Frequency Response | 43 Hz to 30 kHz | | Crossover Frequency | 2 kHz | | Transducer | LF: 6.5" (127 mm) Cone
HF: 1" (25 mm) Dome | | Output Power | Total: 95W
LF: 60W
HF: 35W | | Input Sensitivity | -10 dBu / 10 kΩ | | Inputs | 1x Balanced XLR3-31 Type
1x 1/4" (6.35 mm) Balanced TRS | | Controls | Level Control (+4 dB/Center Click)
EQ: High Trim Switch (+/- 2 dB @ HF)
Room Control Switch(0, -2, -4 dB under 500 Hz) | | Indicators | 1x Power On White LED | | Power Consumption | 55 W | | Enclosure | Type: Bass-Reflex
Material: MDF | | Dimensions (WxHxD) | 8.3 x 13.1 x 11.2" (210 x 332 x 284 mm) | | Weight | 18.1 lb (8.2 kg) | | | | Package Weight | 23.2 lb | | Box Dimensions (LxWxH) | 18.6 x 14.3 x 12.7" |
