Product description

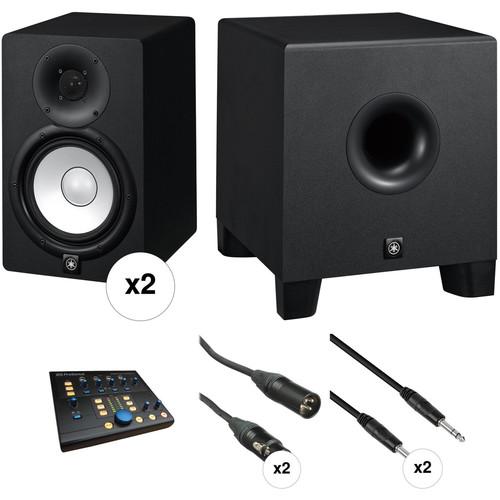

• 2 x Yamaha HS7 Powered Studio Monitor The HS7 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 95W of total output and features a 6.5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS7 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.
  Low Resonance Enclosure Design
  • HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound
  Noise Reduction Technology
  • Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB
  Controls and Connectivity
  • HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks
  UPC: 086792974705
• Yamaha HS8S 8" Powered Subwoofer The HS8S 8" Powered Subwoofer from Yamaha features an eight-inch cone woofer that is capable of up to 150W of output. It can reproduce frequencies down to 22Hz and features variable low and high cut filters between 80 and 120Hz. You can connect to the HS8S through its stereo XLR or 1/4" TRS inputs. It also has stereo XLR extension sub outputs.
  Low Resonance Enclosure Design
  • HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound
  Noise Reduction Technology
  • Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB
  Controls and Connectivity
  • The HIGH CUT control sets the cutoff frequency of subwoofer output high-frequency attenuation from 80Hz to 120Hz, while PHASE switch adjusts the phase of the subwoofer output. The LOW CUT switch and LOW CUT controls enables attenuation of low frequencies for output between 80Hz and 120Hz. The HS8S subwoofer is equipped with XLR and TRS phone jack inputs and for outputs XLR for L and R and EXT SUB out
  UPC: 086792974743
• PreSonus Monitor Station V2 Desktop Studio Control Center The Monitor Station V2 from PreSonus is a desktop studio control center that allows you to switch between three sets of studio monitors and three input sources. It also features a built-in headphone amplifier with four 1/4" headphone outputs, each with dedicated level control. These features make the Monitor Station V2 suitable for a variety of recording, monitoring and mixing applications.

  For communicating with the talent, the Monitor Station V2 is equipped with a built-in electret-condenser talkback microphone with input-gain control and talkback button. It has a large main level control knob, dedicated buttons for input and speaker selection, and 8-segment color LED input meters for visual monitoring.
  Inputs and Outputs
  • • 2x stereo pairs of 1/4" TRS inputs
    • 1x stereo pair of RCA Aux inputs
    • 1x stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
    • 3x stereo pairs of 1/4" TRS speaker outputs with level controls
    • 1x stereo pair of 1/4" TRS main outputs
    • 1x stereo pair of 1/4" TRS cue outputs
    • 4x 1/4" TRS stereo headphone outputs
  Controls
  • • Large main level control
    • 3x individual main source (ST1, ST2, Aux) select switches
    • 3x individual speaker select switches
    • Cue section with source select (ST1, ST2, Aux) and output-level control
    • Aux-S/PDIF select switch
    • Aux input level control
    • Main mute, Mono, and Dim switches with variable Dim attenuation
  Additional Features
  • • 8-segment color LED input meters with selectable reference level
    • Built-in electret-condenser talkback microphone with input-gain control and talkback button
    • Convenient desktop design
  UPC: 673454002823
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274
• 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (10') The 10 foot PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable from Pearstone features Rean connectors with nickel-plated contacts on both ends, 24-gauge oxygen-free copper conductors, and spiral shielding to protect against EMI and RFI noise. Additionally, twin conductive PVC shields reduce electrostatic noise and provide a clean signal path while retaining good flexibility for those occasions that demand it.

  The connector's molded strain relief over metal shells provides excellent durability and allows for increased protection between the OFC conductors and the connectors. The cable is ideal for both live and studio applications, including connecting powered speakers to studio monitor controllers, or connecting synthesizers and outboard gear to mixers, or wherever balanced connections are indicated.
  • Rean male 1/4" TRS connectors with nickel-plated contacts on both ends of the interconnect cable offer excellent durability
  • 24-gauge OFC conductors maximize conductivity, making the cable ideal for both live and studio applications
  • Spiral shielding rejects both EMI and RFI noise and offers a clean signal path
  • Twin conductive PVC shields minimize electrostatic noise, while being flexible and durable for running the cable in tight spots
  • Metal shells provide rigid strain relief and protect the solder points between the OFC conductors and the connectors for greater cable longevity
  UPC: 847628580435

• 2 x HS7 Powered Studio Monitor wqbyasstztcsrtrttddrzru
• Limited 1-Year Warranty

• HS8S 8" Powered Subwoofer

• PreSonus - Monitor Station V2 Desktop Studio Control Center

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

• 2 x Pearstone - PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Yamaha HS7 Powered Studio Monitor

  System Type	2-Way Bi-Amped Powered Studio Monitor
  Frequency Response	43 Hz to 30 kHz
  Crossover Frequency	2 kHz
  Transducer	LF: 6.5" (127 mm) Cone HF: 1" (25 mm) Dome
  Output Power	Total: 95W LF: 60W HF: 35W
  Input Sensitivity	-10 dBu / 10 kΩ
  Inputs	1x Balanced XLR3-31 Type 1x 1/4" (6.35 mm) Balanced TRS
  Controls	Level Control (+4 dB/Center Click) EQ: High Trim Switch (+/- 2 dB @ HF) Room Control Switch(0, -2, -4 dB under 500 Hz)
  Indicators	1x Power On White LED
  Power Consumption	55 W
  Enclosure	Type: Bass-Reflex Material: MDF
  Dimensions (WxHxD)	8.3 x 13.1 x 11.2" (210 x 332 x 284 mm)
  Weight	18.1 lb (8.2 kg)

  Box Dimensions (LxWxH)	18.6 x 14.3 x 12.7"

• Yamaha HS8S 8" Powered Subwoofer

  System Type	Powered Subwoofer
  Frequency Response	22 to 150 Hz
  Transducer	1x 8" (203 mm) Cone
  Output Power	150W
  Input Sensitivity	-10 dBu
  Impedance	Input: 10 kΩ Output: 600 Ω
  Inputs	2x Balanced XLR3-31 Type 2x Balanced 1/4" (6.35 mm) TRS
  Controls	Level control Phase Switch: Normal/Reverse. High Cut Control: 80 to 120 Hz, center click Low Cut Control: 80 to 120 Hz, center click Low Cut Switch: ON/OFF
  Indicators	1x Power ON, White LED
  Dimensions (W x H x D)	11.8 x 13.8 x 15.3"

  Box Dimensions (LxWxH)	18.9 x 18.1 x 16.2"

• PreSonus Monitor Station V2 Desktop Studio Control Center

  Microphone	Gain Range: +15 to +55 dBType: Electret condenserSensitivity: -42 dB
  Stereo Input	Type: 1/4” TRS Active BalancedInput Impedance: 10 kΩ (balanced) S/N Ratio: (1 kHz @ +10 dBu, unity gain) >105 dBTHD+N: (unwtd, 1 kHz @ 0 dBu output, unity gain) <0.0075%Frequency Response: (±0.5 dB) 10 Hz to 65 kHzNoise Floor: (20 Hz to 20 kHz, 150Ω input termination) -96 dBuMaximum Input Level: (minimum gain, 1 kHz @ 0.5% THD+N) +22 dBu
  AUX Inputs	Type: RCA active unbalancedInput Impedance: 47.5 kΩS/N Ratio: (1 kHz @ 0 dBu, Unity Gain) >115 dBTHD+N: (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%Frequency Response: (±0.5 dB) 10 Hz to 50 kHzGain Range: 80 dB to +10 dB
  S/PDIF	Type: RCA 75Ω coaxDynamic Range: 113 dBTHD+N: 0.0025% (1 kHz @ -1 dBFS)Maximum Output: at 0 dBFS +18 dBuSample Rates: 44.1, 48, 88.2, 96 kHz
  Input Meters	Type: Dual 8-segment LED w/peak holdSensitivity Range: -24 dB to 0 dB

  Analog Outputs	Type: 1/4" TRS active balancedOutput Impedance: 51Ω (balanced) THD+N: (unwtd, 1 kHz @ 0 dBu, unity gain) <0.01%Frequency Response: (±0.5 dB) 10 Hz to 50 kHz
  Speaker Out	Trim Range: -80 dB to 0 dBMain Level Range: -80 dB to 0 dBDim Attenuation Range: -30 dB to -6dB
  Cue	Cue Level Range: -80 dB to 0 dBDim Attenuation: (talkback activated) -20 dB
  Headphone Outputs	Type: 1/4” TRS active stereoMaximum Output: (60Ω load) 150 mW / channelFrequency Response: (±1.0 dB) 10 Hz to 50 kHz
  Power	Power Supply Type: External DC transformer/internal lineInput Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameterMonitor Station Input Voltage Range: 18 VDCPower Requirements: (continuous) 10W
  Physical	2.5 x 8.5 x 9.0" (63.5 x 216.0 x 228.6 mm)
  Weight	6 lb (4.54 kg)

  Box Dimensions (LxWxH)	16.85 x 12.047 x 5.039"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"

• 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (10')

  Connector 1	1 x 1/4" TRS Male Straight
  Connector 2	1 x 1/4" TRS Male Straight
  Connector Brand	Rean
  Cable Length	10' / 3 m
  Shielding	92% Copper Spiral
  Wire Gauge	24 AWG
  Contact Plating	Nickel
  Jacket Type	Polyvinyl Chloride (PVC)
  Conductor Material	Oxygen-Free Copper (OFC)

  Box Dimensions (LxWxH)	12.0 x 6.3 x 0.2"
