Product description

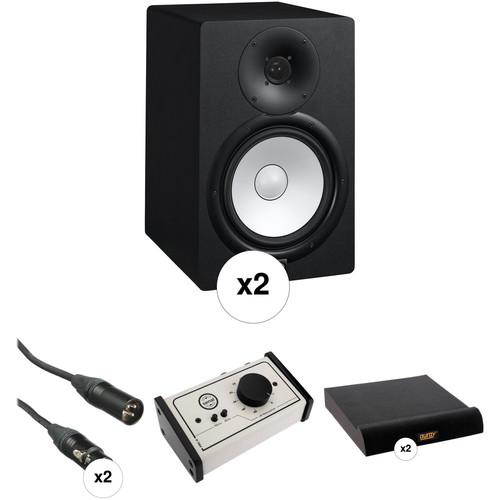

• 2 x Yamaha HS8 Powered Studio Monitor The HS8 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 120W of total output and features an 8-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS8 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.
  Low Resonance Enclosure Design
  • HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound
  Noise Reduction Technology
  • Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB
  Controls and Connectivity
  • HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks
  UPC: 086792974729
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• Senal PMC-II Passive Monitor Controller The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio.
  Precision Volume Control
  • The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
  Passive Design
  • There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device
  Multiple Inputs
  • XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet
  Multiple Outputs
  • XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications
  Oversize Control Knob
  • The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
  Mute Button
  • A mute button allows you to quickly silence the output
  Mono Button
  • The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
  Steel Housing
  • The PMC-II is a durable and stylish addition to any workstation or studio
  UPC: 847628594135
• 2 x Auray IP-L Isolation Pad for Studio Monitor (Large, Single) The large IP-L Isolation Pad from Auray is a monitor speaker isolation pad made from high-density acoustic foam. It is designed to decouple your monitor speakers from its resting surface by absorbing the monitor's vibrations. This stops reverberation through the desk or speaker stands, therefore preventing unwanted resonance. Removing these unwelcome vibrations results in greater depth of field, tighter low end and transient response, and a higher level of detail across the frequency spectrum.

  Set at Three Different Angles

  • Up position: Angle your speakers up for desktop use
  • Down position: Angle your speakers down for use on a monitor bridge or shelf
  • Flat position: Flip the pads upside down to set your speakers flat on adjustable speaker stands
  UPC: 847628564176

• 2 x HS8 Powered Studio Monitor wqbyasstztcsrtrttddrzru
• Limited 1-Year Warranty

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• Senal - PMC-II Passive Monitor Controller

• 2 x Auray - IP-L Isolation Pad for Studio Monitor (Large, Single)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Yamaha HS8 Powered Studio Monitor

  System Type	2-Way Bi-Amped Powered Studio Monitor
  Frequency Response	38 Hz to 30 kHz
  Crossover Frequency	2 kHz
  Transducer	LF: 8" (127 mm) Cone HF: 1" (25 mm) Dome
  Output Power	Total: 120W LF: 75W HF: 45W
  Input Sensitivity	-10 dBu / 10 kΩ
  Inputs	1x Balanced XLR3-31 Type 1x 1/4" (6.35 mm) Balanced TRS
  Controls	Level Control (+4 dB/Center Click) EQ: High Trim Switch (+/- 2 dB @ HF) Room Control Switch(0, -2, -4 dB under 500 Hz)
  Indicators	1x Power On White LED
  Power Consumption	60 W
  Enclosure	Type: Bass-Reflex Material: MDF
  Dimensions (WxHxD)	9.8 x 15.4 x 13.1" (250 x 390 x 334 mm)
  Weight	22.5 lb (10.2 kg)

  Box Dimensions (LxWxH)	21.0 x 16.2 x 14.3"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• Senal PMC-II Passive Monitor Controller

  Product Type	Monitor controller
  Design	Passive
  Channels	2
  Input Connections	2 x XLR/1/4" (6.3 mm) TRS combo 1/8" (3.5 mm) stereo TRS mini-jack
  Output Connections	2 x XLR 1/8" (3.5 mm) stereo TRS mini-jack
  Line Output Level	Max: 20 dBu
  Output Level	-20 dB
  Output Impedance	600 Ohms
  Input Impedance	10,000 Ohms balanced, 5000 Ohms unbalanced
  Frequency Response	10 Hz to 40 kHz
  Total Harmonic Distortion	0.001%
  Attenuation	85 dB (attenuator) 112 dB (attenuator and mute)
  Controls	Volume knob, mute button, mono button
  Dimensions (H x W x D)	2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm)
  Weight	1.6 lb (726 g)

  Box Dimensions (LxWxH)	8.0 x 3.8 x 3.2"

• 2 x Auray IP-L Isolation Pad for Studio Monitor (Large, Single)

  Surface Area	12.75 x 11" (32.4 x 27.94 cm)
  Dimensions	12.75 x 12.75" (32.4 x 32.4 cm)

  Box Dimensions (LxWxH)	13.6 x 13.3 x 2.2"
