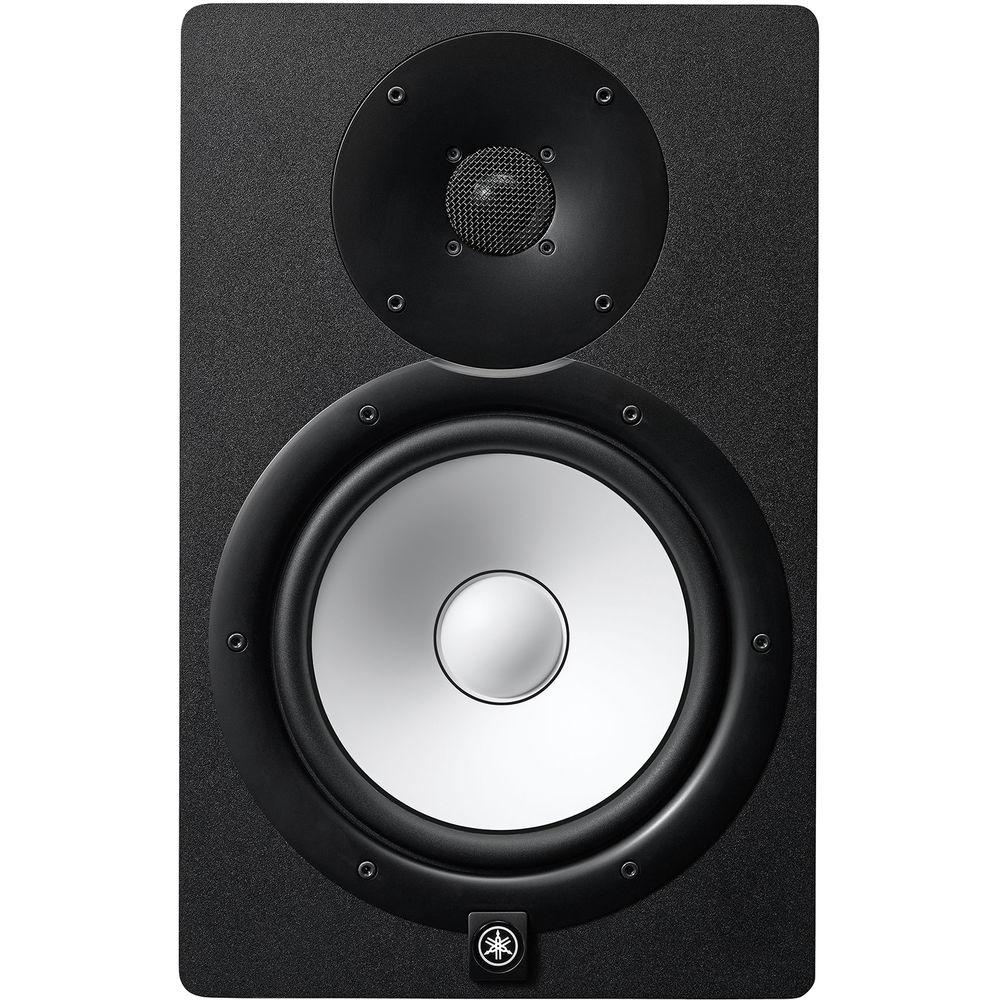

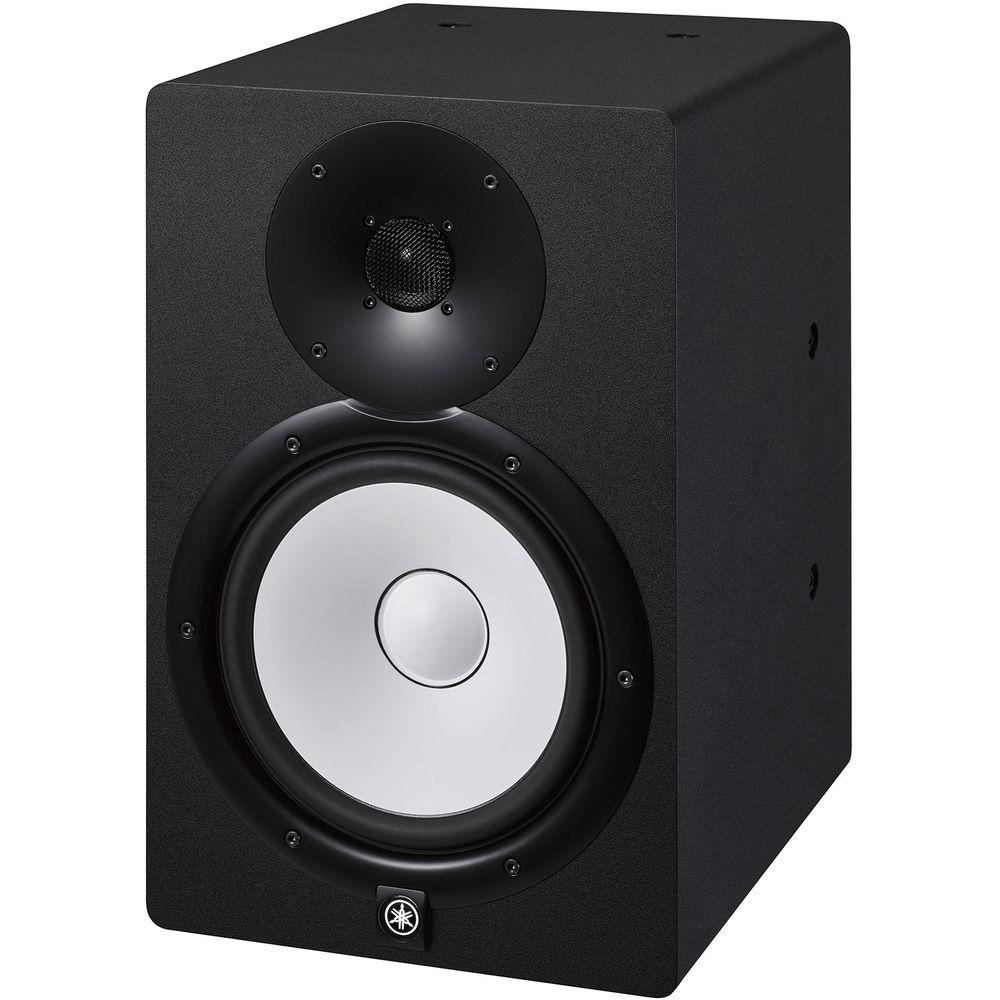

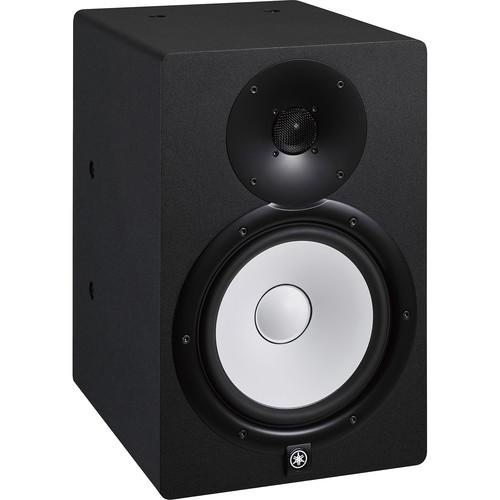

Product description The black HS8I 2-Way Bi-Amp Powered Studio Monitor from Yamaha features 120W of output power, a 8.0" cone woofer, a 1" dome tweeter, response-tailoring controls to match the speaker output to a wide range of acoustic spaces, and a standard XLR connector along with a phone jack for direct connection of electronic musical instruments and other sources. The powered studio monitor can be used to reproduce audio in various environments such as recording studios, home studios, cafes, restaurants, and more. Built with a low-resonance enclosure design, the HS series MDF cabinet delivers a damped acoustic response that is well suited for reference monitors. The bi-amp design offers a 75W amp for the woofer, and a 45W amp for the tweeter. Other features include noise-reduction technology to reduce audible noise up to 6 dB at the speaker port. In addition, the HS8I studio monitor can be wall or ceiling mounted. - Highly Efficient Transducers
- The HS Series features updated transducers that achieve a smooth response over a wide range of bandwidth. These transducers utilize a magnetic field design that regulates magnetic response to provide seamless, natural sonic transitions.
Tweeter: 1" dome tweeter
Woofer: 8.0" cone - High-Performance Amp Unit
- HS Series speakers employ an amplifier unit matched to the transducers utilized in each model of the series. Featuring a bi-amp design with a separate dedicated amp for both the woofer and the tweeter, this amplifier unit ensures that each HS Series speaker delivers high-resolution sound with a flat response across the sound spectrum.
- Low-Resonance Enclosure Design
- The monitor cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction. The enclosures are constructed from a very dense and resilient MDF with a damped acoustic response well suited for reference monitors.
- Noise Reduction Technology
- Speaker port design can influence the clarity of overall sound. Often a vortex at either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting an advanced noise reduction technology, the reduction of audible noise is reduced up to 6dB. This allows HS Series studio monitors to meet the demands of stricter professional production environments.
- Controls and Connectivity
- HS Series full-range models feature two response controls with detailed settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. Room control allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while high trim allows for more control of high-frequency response. For inputs, HS full-range speakers can accommodate a wide range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks.
- Flexible Set Up
- By adding mounting points to the original HS monitor, the HS-I model is now compatible with three optional bracket types—wall, ceiling, and baton—adding the flexibility to accommodate a broad range of sonic environments.
UPC: 889025107419 In the Box Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha HS8I Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 120 W Peak | | Drivers | HF Driver: 1 x 1" / 2.5 cm Dome Tweeter
LF Driver: 1 x 8" / 20.3 cm Cone | | Amplification | HF Amplifier: Rated at 45 W
LF Amplifier: Rated at 75 W | | | | Frequency Range | 47 Hz to 24 kHz (at -3 dB)
38 Hz to 30 kHz (at -10 dB) | | Analog Input Sensitivity/Gain | -10 dBu (Continuously Variable) | | | | EQ | 1 x HF Shelf: -2 to +2 dB
1 x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments) | | | | Crossover Frequency | 2 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x 1/4" (6.3 mm) TRS Balanced Analog Input (10 kOhms) | | | | Enclosure Material | MDF | | Mounting Points | 2 x M8 (Side Panels, Top Panel, Bottom Panel) | | Dimensions (W x H x D) | 9.8 x 15.4 x 13.1" / 25.0 x 39.0 x 33.4 cm | | Weight | 23.6 lb / 10.7 kg | | | | Package Weight | 30.35 lb | | Box Dimensions (LxWxH) | 20.9 x 16.2 x 14.2" |
