User Manual for Yamaha MCR-B020 Micro Component System Click to enlarge the picture
Contents of the user manual for the Yamaha MCR-B020 Micro Component System
- Product category: Tabletop Radios Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Tabletop Radios
 |
User manual for the Yamaha MCR-B020 Micro Component System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

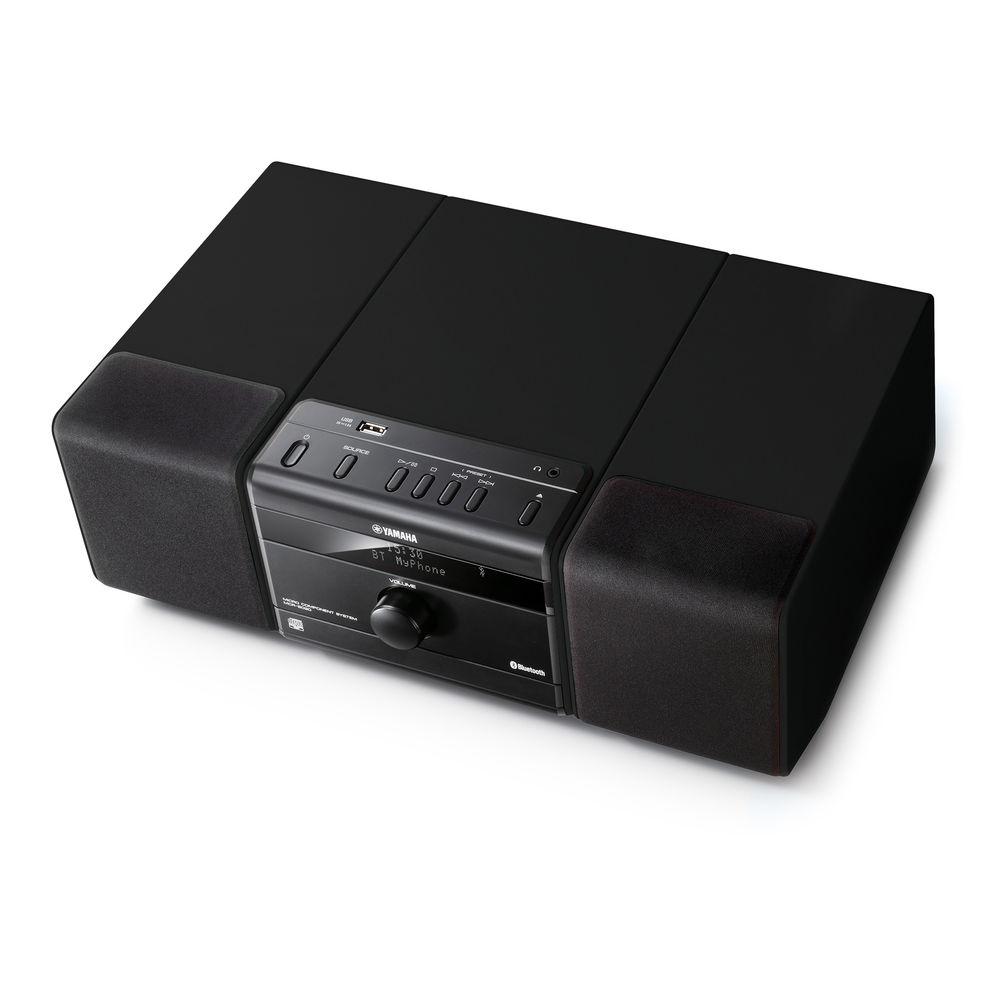

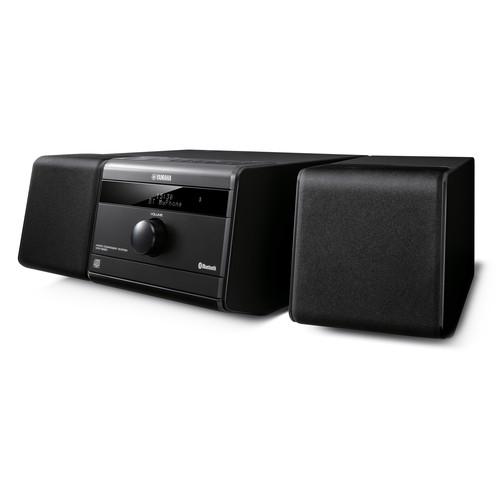

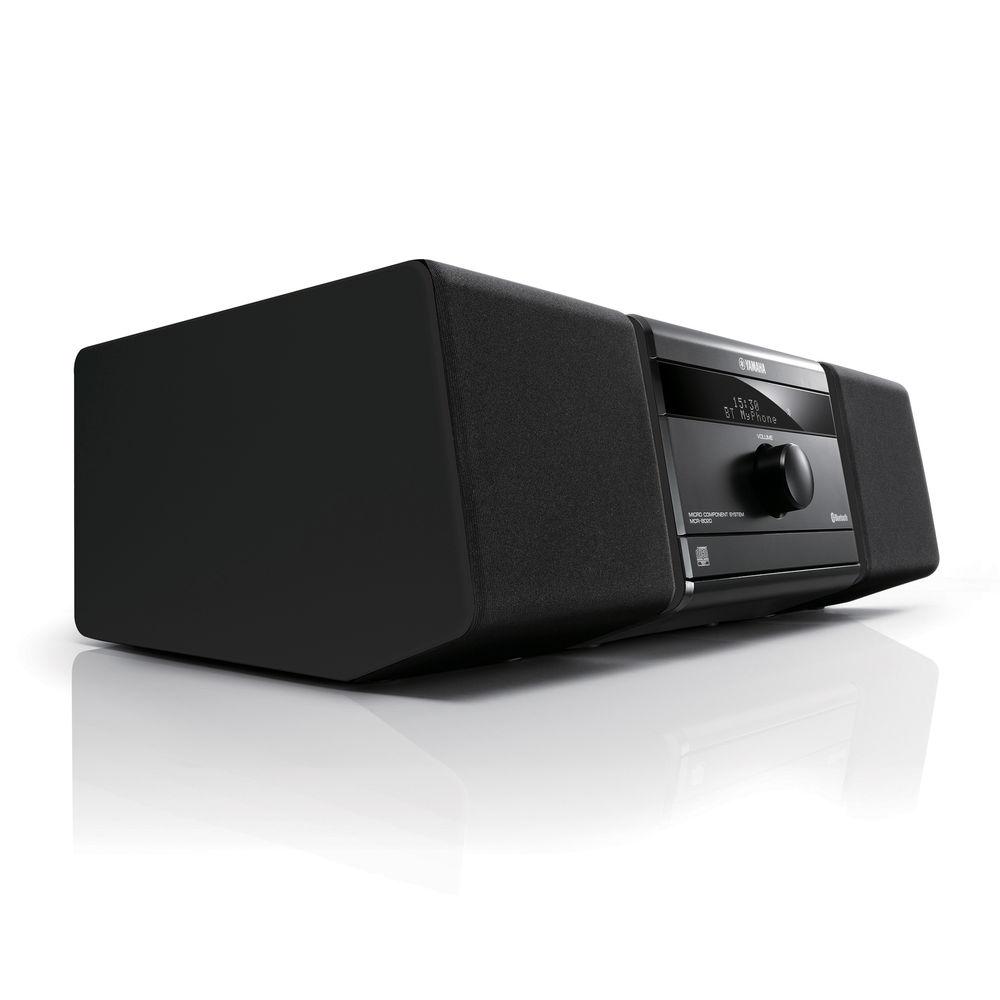

Product description Enjoy 2-channel stereo sound from a variety of sources with the black Yamaha MCR-B020 Micro Component System. This system delivers up to 30W of total power and incorporates two full-range speakers for enhanced bass. Built-in Bluetooth allows you to easily pair and wirelessly stream music from compatible devices like smartphones, tablets, and computers. Additionally, the MCR-B020 has a CD player and digital AM/FM tuner built-in for access to additional audio content.
This system's 1/8" input allows you to interface devices like MP3 players for music playback. There's even a USB port onboard for the playback of digitally stored audio files and charging of USB-powered devices. As an added convenience, a remote control is included. - Play Any Music Source
- Enjoy wireless playback from your smartphone, tablet, or computer with Bluetooth wireless technology. In addition to the CD player, USB, and AM/FM radio, it has an aux-in terminal for connecting a computer or digital audio player, giving you music enjoyment from a variety of sources. The onboard USB port also allows you to charge your smartphone or tablet.
- Compact Design with Detachable Speakers

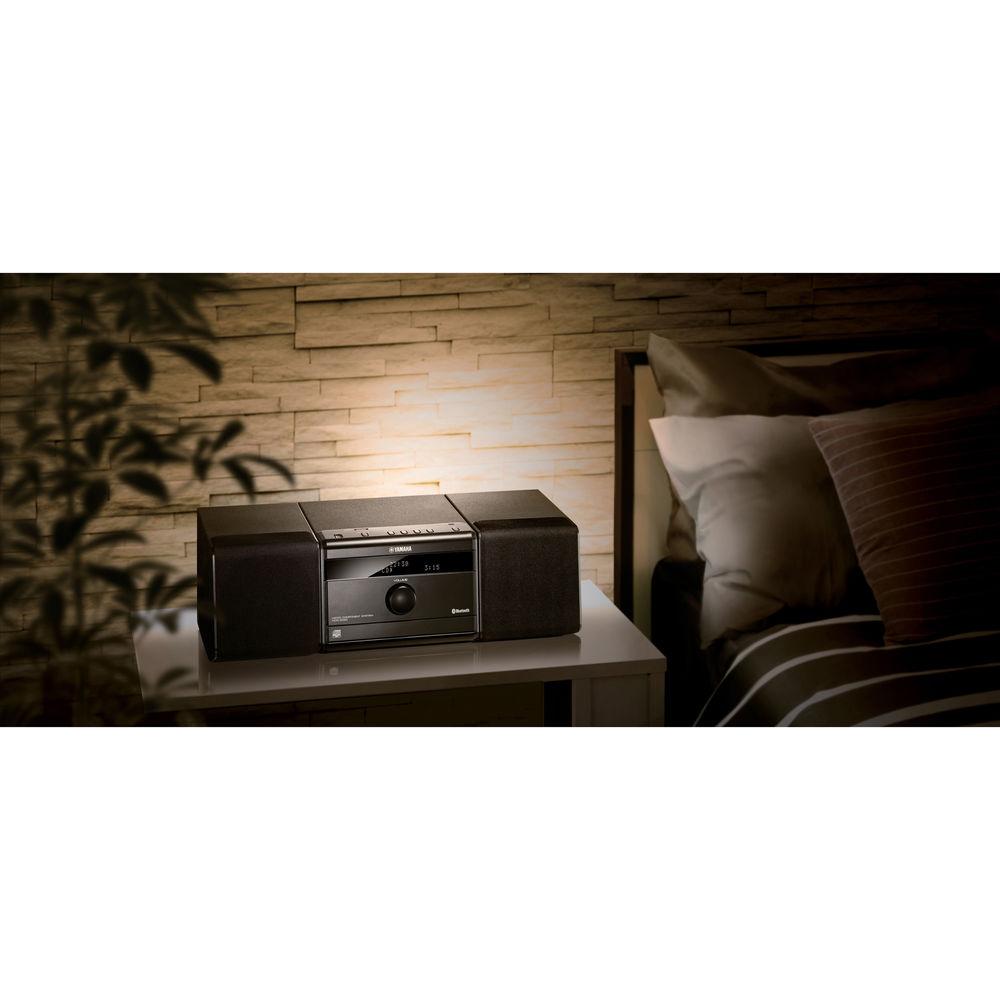

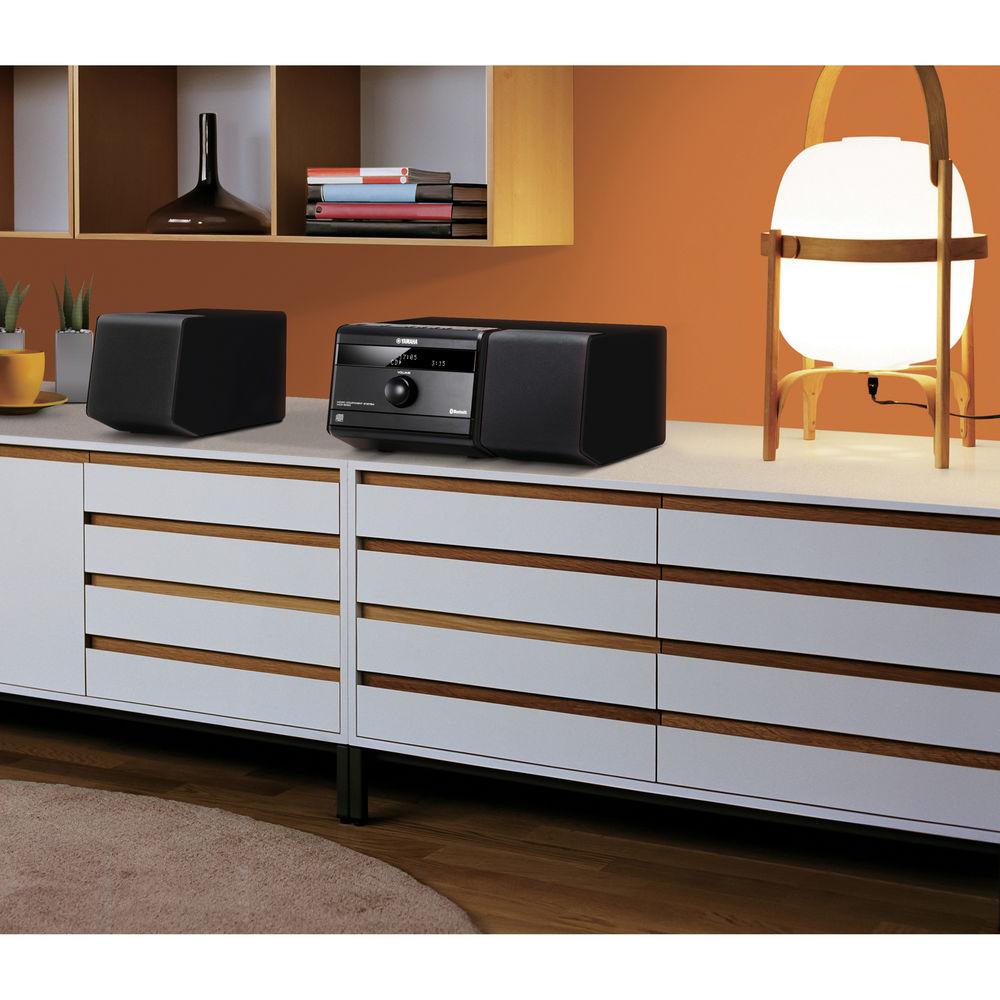

- The MCR-B020 is designed to fit easily into any living space. When positioned at a distance, the detachable speakers enhance sound by providing a wider sound stage for an enhanced listening experience.
- Large-Diameter Speakers for Full Bass

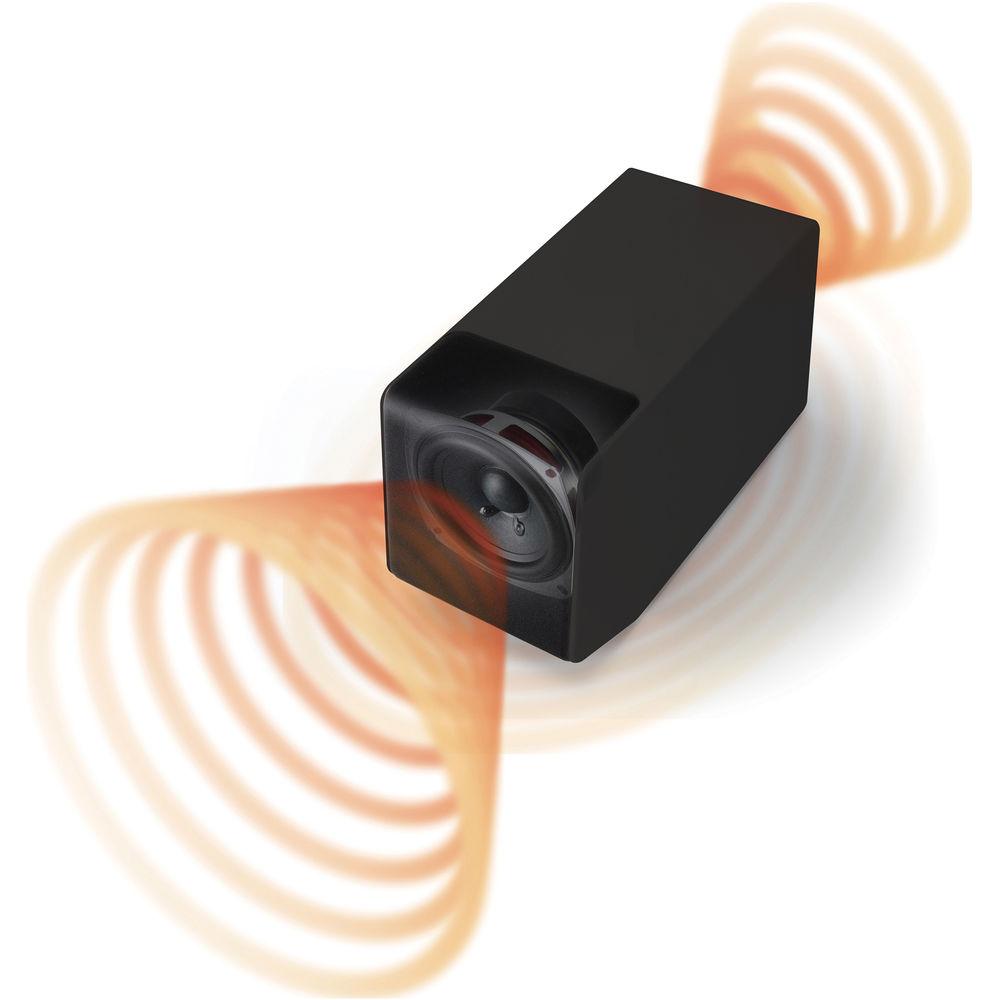

- The speakers feature a 3.875" driver unit that employs a large-diameter magnet for enjoying music playback with rich bass, clear mids, and enhanced highs. In addition, the large-volume cabinet adds extra resonance for enhanced bass.
UPC: 027108953311 In the Box Yamaha MCR-B020 Micro Component System (Black) Remote Control 2 x Speaker Cables FM Antenna USB Cap Power Cable Limited 1-Year Warranty Manual PDF 21.3mbcuxqbvuwtefaezucxdztfw Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MCR-B020 Micro Component System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MCR-B020 Specs | | | Output Power | 15 W per channel @ 6 Ohms, 1 kHz, 10% THD | | Tuner | AM/FM | | Presets | 30 | | AM Frequency Range | 530 to 1710 kHz | | FM Frequency Range | 87.5 MHz to 108 MHz | | CD Support | Disc Types: CD, CD-R/RW
Formats: Audio CD, MP3, WMA | | Equalizer Options | EQ Low, EQ Mid, EQ High: ±10 dB | | Alarm Function | Alarm, snooze, sleep | | Dimensions (W x H x D) | 7.125 x 5.625 x 11" (180 x 143 x 279 mm) | | Weight | 4 lb (1.8 kg) | | | | Type | Full-range bass reflex, non-magnetically shielded | | Driver | 4" (10 cm) cone | | Frequency Response (-10 dB) | 50 Hz to 20 kHz | | Dimensions (W x H x D) | 4.75 x 5.625 x 10.125" (120 x 142 x 258 mm) each | | Weight | 2.9 lb (1.3 kg) each | | | | Bluetooth | Version: 4.0
Profiles: A2DP, AVRCP
Supported Codecs: SBC
Wireless Output: Bluetooth Class 2
Frequency: 2.4 GHz
Operating Range: 33' (10 m) with minimal interference | | Inputs | 1 x 1/8" (3.5 mm) AUX-In
1 x AM antenna in
1 x FM antenna in
1 x USB Type-A (front) | | Outputs | 1 x 1/8" (3.5 mm) headphone out (front)
2 x Spring clip speaker pairs | | Headphone Impedance | 16 to 32 Ohms | | USB Formats | MP3, WMA | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Active: 21 W
Standby, Normal Mode: ≤3.5 W
Standby, ECO Mode: ≤0.5 W | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 19.7 x 12.4 x 8.9" |
