User Manual for Yamaha MCR-B043 30W Bluetooth Wireless Music System Click to enlarge the picture
Contents of the user manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music
- Product category: Mini Hi-Fi Systems Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Mini Hi-Fi Systems
 |
User manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

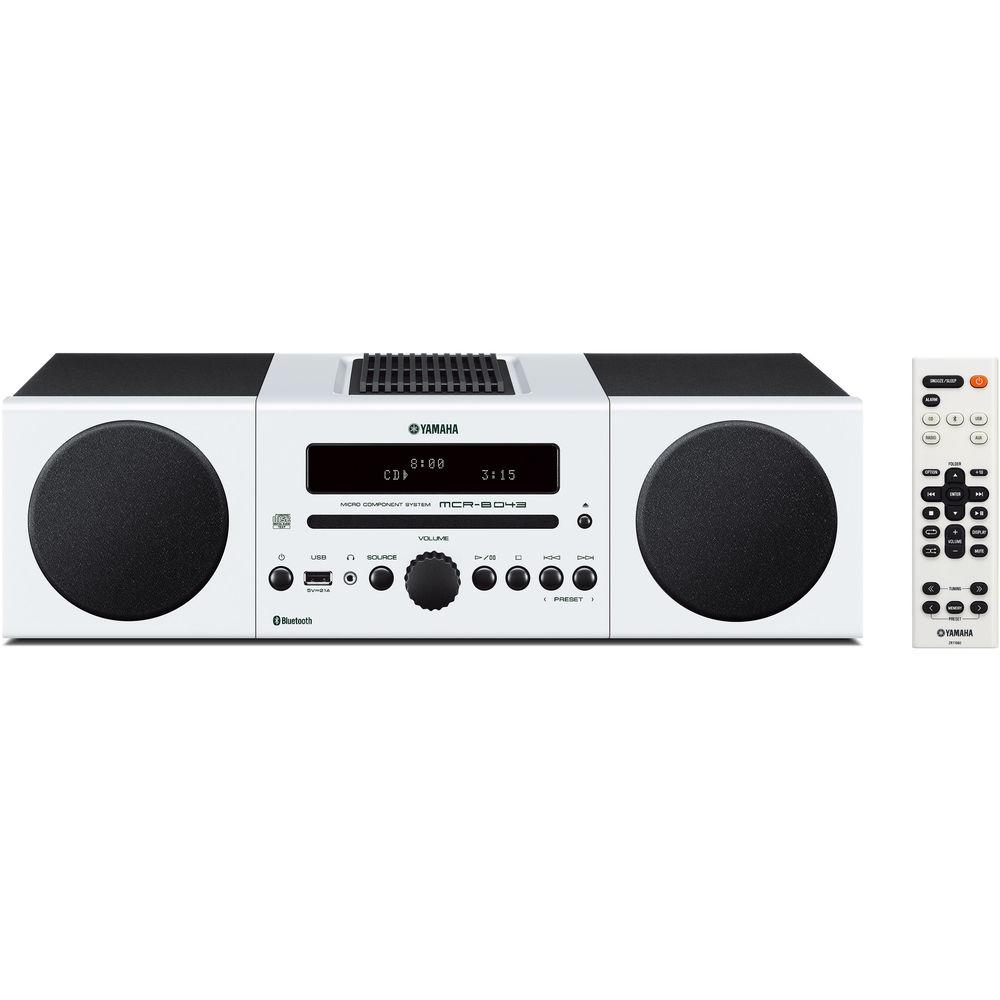

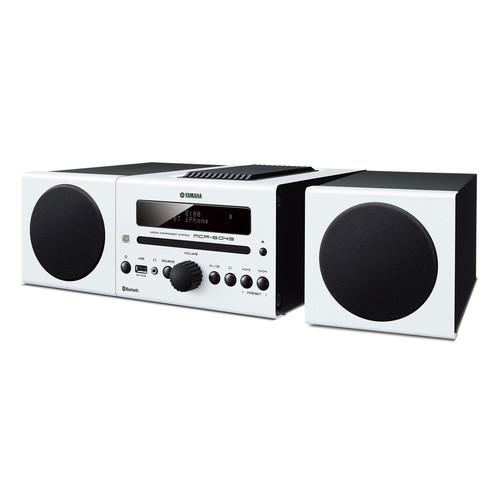

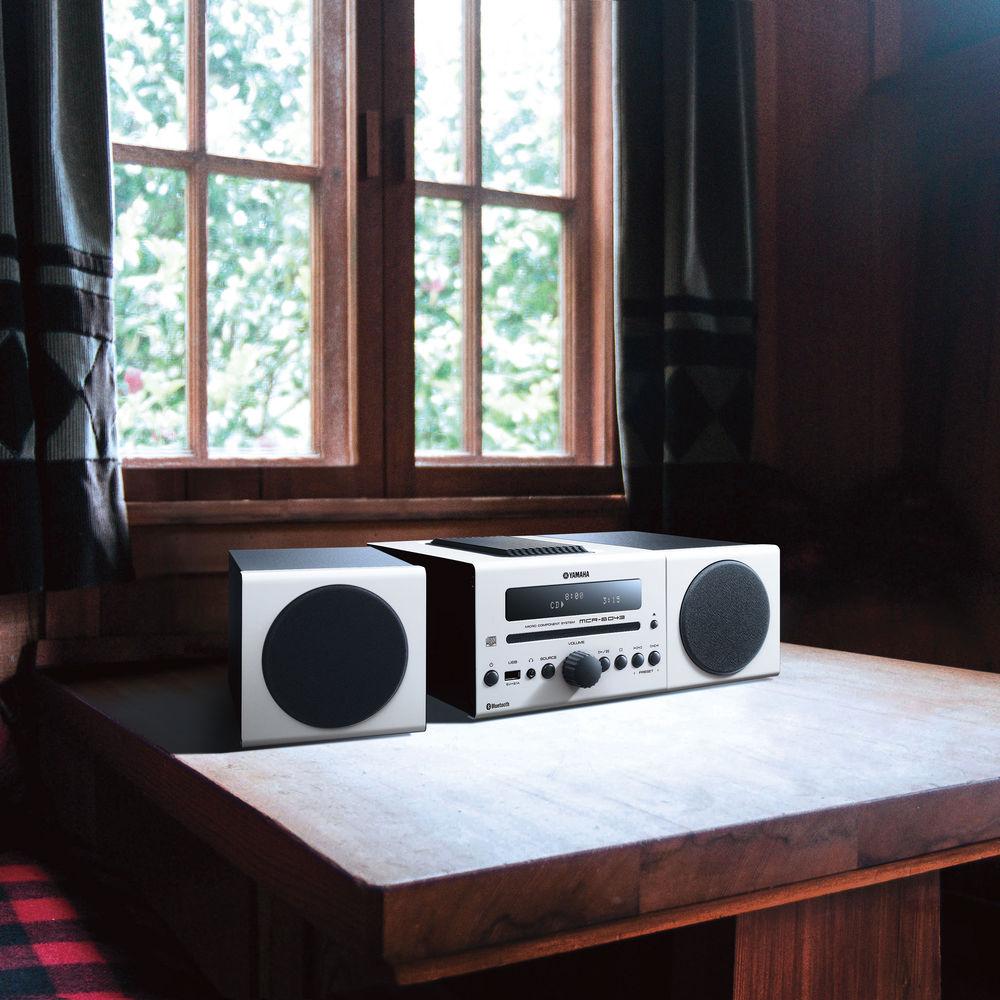

Product description Designed for playback from nearly any audio source, the white Yamaha MCR-B043 30W Bluetooth Wireless Music System features a built-in CD player, digital AM/FM tuner, USB port, and 3.5mm input. If you prefer wireless connectivity, its Bluetooth option will connect to any compatible smartphone, tablet, or computer. The USB port will not only play MP3 and WMA files from a flash drive, it will also charge your portable devices. The system outputs up to 30W of total power from its two speakers, which have a full-range, bass reflex design. - Yamaha Music Enhancer
- The MCR-B043 includes the Yamaha Music Enhancer, which restores lost audio data from compressed music files. The result is dynamic sound with enhanced range and presence. Each speaker features a 4.5" driver that uses a large-diameter magnet to deliver clear sound.
- Design Inspired by Yamaha Motorcycles
- From the top panel ornamentation recalling a radiator to the volume knob echoing the design of a reservoir cap, the inspiration behind Yamaha motorcycles shines through. The racing blue, red, black, and white color options reflect the look of Yamaha motorcycles.
- All You Need for Playback of Nearly Any Music Source
- Enjoy wireless playback from your smartphone, tablet, or computer with Bluetooth wireless technology. In addition to the CD player, USB, and FM/AM radio, it has an AUX-in terminal for connecting a computer or digital audio player, giving you music enjoyment from a variety of sources in one unit. An on-board USB port allows you to charge your smartphone or tablet.
- Other notable features
-
- FM and AM tuner with 30-station presets each
- Headphone jack for private listening
- Sleep timer lets you fall asleep to music
- Dimmer for adjusting display brightness
- Tone control for enhanced sound quality
UPC: 027108952048 In the Box Yamaha MCR-B043 30W Bluetooth Wireless Music System (White) Remote Control 2 x AAA Batteries FM Antenna AM Antenna 2 x 4.9' Speaker Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MCR-B043 Specs | | | Power Rating | 15 W per channel @ 6 Ohms, 1 kHz, 10% THD | | No. of Channels | 2 | | AM/FM Tuner | Yes | | AM/FM Presets | 30/30 | | Tuning Range | FM: 87.50 to 107.90 MHz
AM: 530 to 1710 kHz | | CD Playback Format | MP3, WMA | | Tray Type | Single tray | | Input | 1 x USB
1 x 1/8" (3.5 mm) stereo mini (16 to 32 Ohms) | | Wireless Connectivity | Bluetooth audio streaming | | Maximum Input Power | Analog Input: 2.0 V | | Bluetooth Version | 3.0 | | Bluetooth Profile Support | A2DP, AVRCP | | Bluetooth Codecs | SBC | | Bluetooth Range | 32.8' (10.0 m) without obstructions | | USB Playback Formats | MP3, WMA | | Equalization | EQ Low (Bass), EQ Mid (Middle), EQ High (Treble): ±10 dB | | Alarm Function | Alarm, snooze, sleep | | Audio Alarm Modes | Beep, source (CD, USB, radio), source + beep | | Power Supply | 120 VAC, 60 Hz | | Power Consumption | On: 30 W
Standby: ≤3.5 W
ECO Standby: ≤0.5 W | | Dimensions (W x H x D) | 7.1 x 5.1 x 10.9" (18.1 x 13.0 x 27.6 cm) | | Weight | 5.7 lb (2.6 kg) | | | | Configuration | Full-range, bass reflex | | Speaker Type | Bookshelf | | Frequency Response | 50 Hz to 20 kHz (-10 dB) | | Driver | 4.5" (11.4 cm) cone | | Shielding | Non-magnetic shielding | | Dimensions (W x H x D) | Each Speaker: 5.1 x 4.0 x 9.9" / 13.0 x 10.2 x 25.1 cm | | Weight | Each Speaker: 3.3 lb / 1.5 kg | | | | Package Weight | 15.75 lb | | Box Dimensions (LxWxH) | 20.8 x 14.2 x 7.6" |
