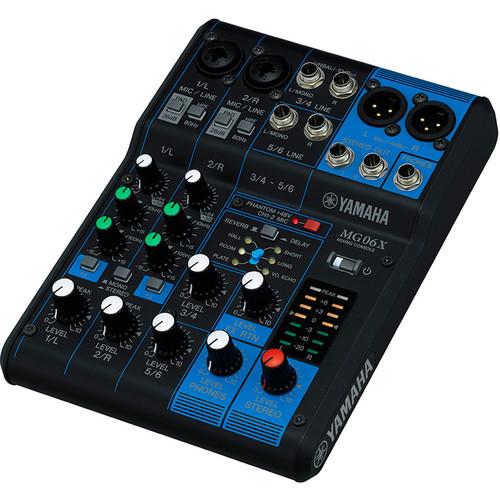

User Manual for Yamaha MG06X - 6-Input Mixer with Built-In Effects Click to enlarge the picture
Contents of the user manual for the Yamaha MG06X - 6-Input Mixer with
- Product category: Analog Recording Mixers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Analog Recording Mixers
 |
User manual for the Yamaha MG06X - 6-Input Mixer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

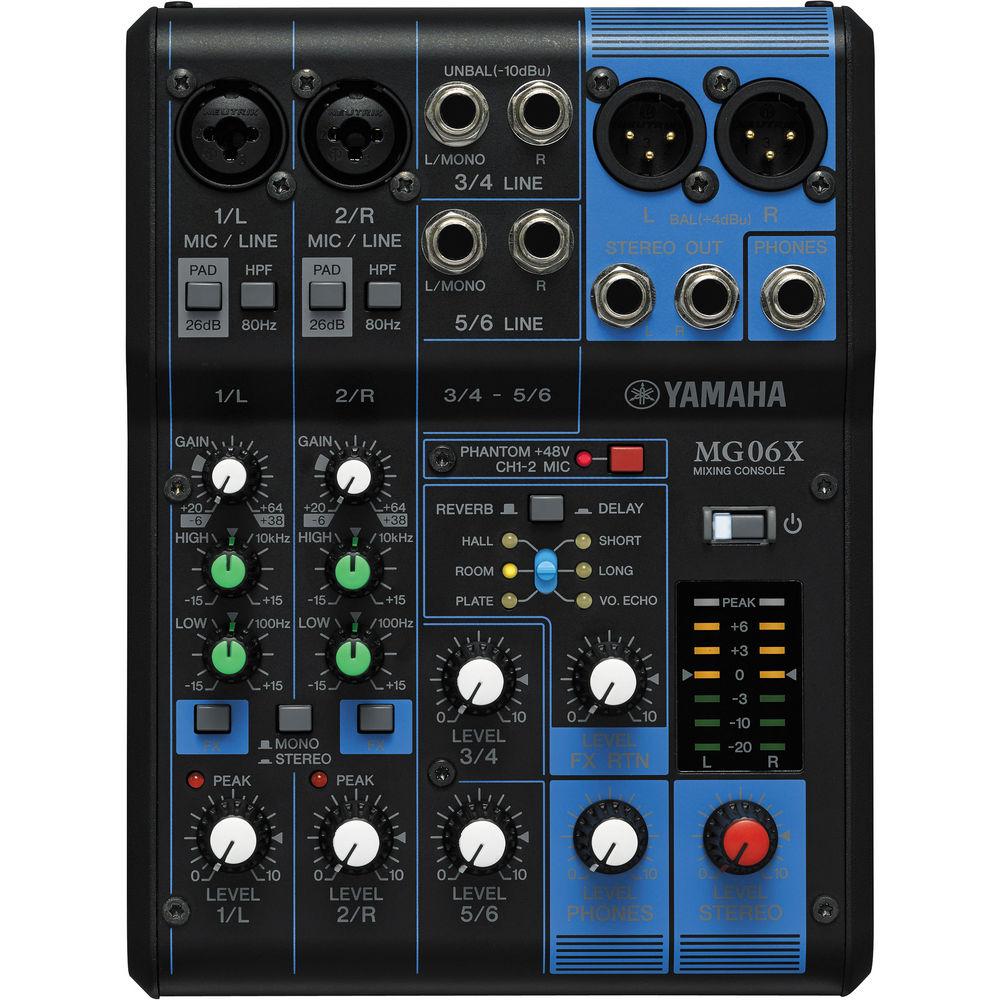

Product description The MG06X from Yamaha is a compact six-input mixer with built-in effects for small performances, lectures, recordings and similar applications. The mixer features two mic/line combo inputs with D-PRE mic preamps as well as four 1/4" line inputs with stereo level controls.
Each of the two mic/line inputs is equipped with a 2-band EQ and a high pass filter at 80Hz. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The MG06X mixer has stereo XLR outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as TRS 1/4" stereo outs for sending to powered speakers, amplifiers or devices such as digital recorders.
The mixer's built-in effects can be engaged on the two mic/line combo inputs and they feature reverb and delay. Providing three reverb and three delay settings plus a dedicated FX return level control, these effects can be used to help vocals and instruments sit better in your mix. - Mono/stereo switch allows channels 1/2 to be used with two mono sources or one stereo source
- Metal chassis designed to withstand wear and tear
- Optional BMS10A microphone stand adapter (sold separately) allows mounting
UPC: 086792981437 In the Box Yamaha MG06X - 6-Input Mixer with Built-In Effects AC Adaptor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MG06X - 6-Input Mixer with Built-In Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MG06X Specs | Built-in Effects | SPX algorithm: 6 programs (3 reverb, 3 delay) | | Phantom Power | +48 V switchable, channels 1, 2 | | Input Channels | 2x mono [mic/line]
2x stereo [line] | | Output Channels | 2x stereo out
1x headphone | | Bus | 1x stereo | | Pad | 26 dB (mono channels) | | HPF | 80 Hz, 12 dB/oct (mono channels) | | Equalizer | EQ high (mono channels) gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ low (mono channels) gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | | LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping | | Level Metering | 2 x 7-segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] | | Total Harmonic Distortion | 0.01% @ +8 dBu (20 Hz to 20 kHz), GAIN knob: min, 0.003% @ +18 dBu (1 kHz), GAIN knob: min | | Frequency Response | +0.5 dB/-0.5 dB (20 Hz to 20 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: min | | Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) | | Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) | | Crosstalk | -88 dB | | Power Requirement | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, cable length = 1.5 m), 100-240 V, 50/60 Hz or equivalent recommended by Yamaha | | Power Consumption | 12 W | | Dimensions | 5.9 x 2.4 x 7.9" (149 x 62 x 202 mm) | | Net Weight | 1.98 lb (0.9 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 10.7 x 9.7 x 4.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
