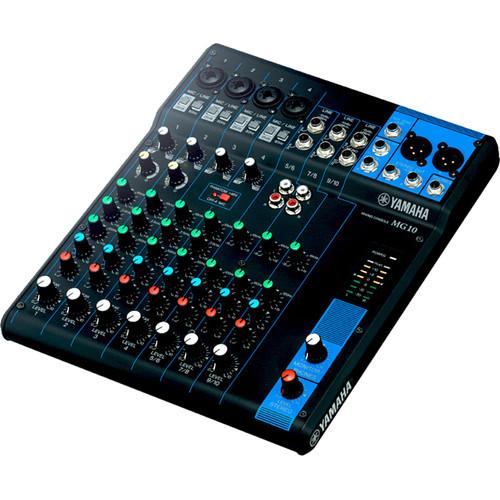

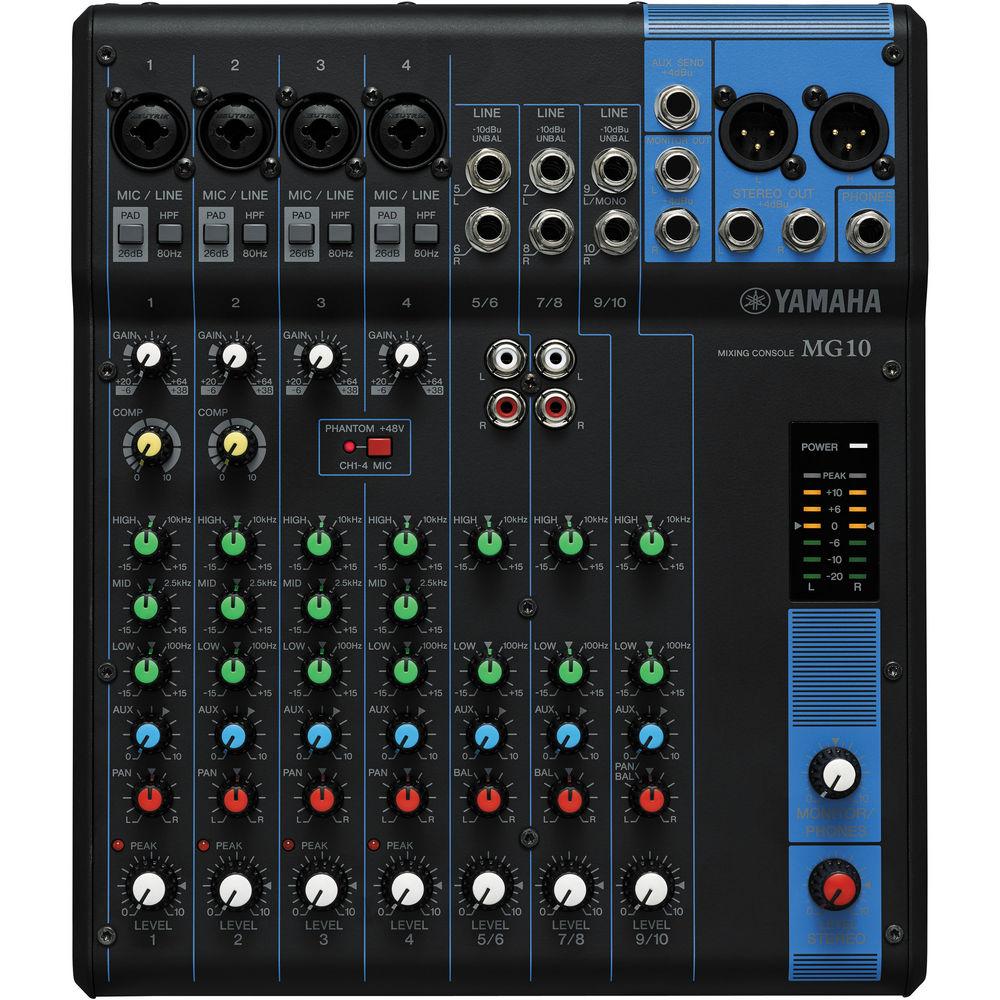

Product description The MG10 from Yamaha is a compact ten-input mixer for performances, lectures, recordings and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4" line inputs with stereo level controls.
Each of the four mic/line inputs is equipped with a 3-band EQ, pan control and a high pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The MG10 mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders. - Three stereo channels made up of six 1/4" line inputs (two stereo channels also have RCA inputs)
- 3-band EQ on channels 1-4 and 2-band EQ on channels 5-10
- Pan control on each channel
- Aux level on each channel feed to TRS aux send for routing to devices such as reverb units
- One knob compressor on channels 1 & 2 to smooth out the dynamics of vocals and instruments to help them sit better in your mix
- Optional BMS10A microphone stand adapter (sold separately) allows mounting
UPC: 086792985091 In the Box Yamaha MG10 - 10-Input Mixer AC Adaptor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MG10 - 10-Input Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MG10 Specs | Phantom Power | +48 V switchable, channels 1 - 4 | | Input Channels | 4x mono [mic/line]
3x stereo [line] | | Output Channels | 2x stereo out
1x monitor out
1x headphone out
1x aux out | | Bus | Stereo: 1
AUX[FX]: 1 | | Pad | 26 dB (mono channels) | | HPF | 80 Hz, 12 dB/oct (mono channels) | | Compressor | Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec | | Equalizer | EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | | LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping | | Level Metering | 2 x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | | Total Harmonic Distortion | 0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min | | Frequency Response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: min | | Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) | | Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) | | Crosstalk | -83 dB | | Power Requirement | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | | Power Consumption | 22.9 W | | Dimensions | 9.6 x 2.8 x 11.6" (244 x 71 x 294 mm) | | Net Weight | 4.19 lb (1.9 kg) | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 15.8 x 14.2 x 5.3" |
