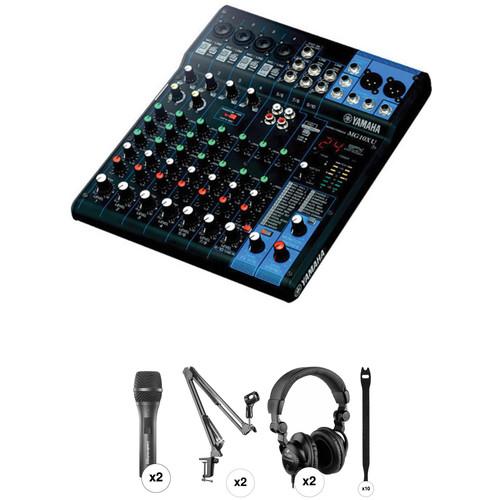

Product description 5 Tips for RX Elements Read More Bundled together by B&H for your convenience, the Yamaha MG10XU Podcasting Kit offers five items that make podcasting easier. The MG10XU is a 10-input mixer/audio interface with built-in effects, included software, and more. With the mixer, you get two Audio-Technica AT2005USB microphones, both of which offer USB and XLR connections. You also get crane arm stands, XLR cables, USB cables, headphones, and hook-and-loop fasteners to keep all the cable clutter to a minimum. With this kit, you'll have almost everything you need for you and a friend to start podcasting. - Yamaha MG10XU - 10-Input Mixer with Built-In FX and 2-In/2-Out USB Interface The MG10XU from Yamaha is a compact ten-input mixer with built-in effects for performances, lectures, recordings and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4" line inputs with stereo level controls. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.
Each of the four mic/line inputs is equipped with a 3-band EQ, pan control and a high pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The MG10XU mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
Each of the MG10XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, these effects can be used to help vocals and instruments sit better in your mix. - USB works with PC, Mac and the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software (download)
- Three stereo channels made up of six 1/4" line inputs (two stereo channels also have RCA inputs)
- 3-band EQ on channels 1-4 and 2-band EQ on channels 5-10
- Pan control on each channel
- FX level on each channel also feeds to TRS FX send for routing to devices such as external FX units or monitor mixers
- One-knob compressor on channels 1 & 2 to smooth out the dynamics of vocals and instruments to help them sit better in your mix
- Optional BMS10A microphone stand adapter (sold separately) allows mounting
UPC: 086792985077 - 2 x Audio-Technica AT2005USB Cardioid Dynamic USB/XLR Microphone The AT2005USB Cardioid Dynamic USB/XLR Microphone from Audio-Technica is a versatile handheld microphone with USB and XLR outputs. The microphone may be connected to an XLR input while simultaneously recording to your favorite Mac or Windows OS software. The AT2005USB features a rugged, handheld build and an extended frequency response for maximum detail. High quality 16-bit, 44.1 and 48 kHz converters ensure high resolution and quality digital recordings. The AT2005USB also features a headphone output and adjustable level control for accurate, latency-free monitoring. The AT2005USB ships with an XLR cable, USB cable and tripod desk stand ideal for singers, podcasters, and more.
- Handheld dynamic microphone with USB digital output and XLR analog output
- USB output connects to your computer for digital recording, while the XLR output connects with your sound system's conventional microphone input for use in live performance
- Smooth, extended frequency response ideally suited for podcasting, home studio recording, field recording, voiceover, and on-stage use
- Built-in headphone jack allows you to directly monitor from your microphone
- Adjust headphone volume with easy-to-use controls on the bottom of the microphone
- High-quality AD convertor with 16 Bit, 44.1/48 kHz sampling rate
- Compatible with Windows and Mac
- Low-mass diaphragm provides excellent frequency response
- Cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear, improving isolation of desired sound source
- Tripod desk stand with folding legs for secure and easily portable tabletop use
- Threaded stand clamp attaches securely to the supplied tripod or to a conventional microphone stand
- USB and XLR cables included
- Durable metal construction for long-lasting performance
- On/off switch functions for both USB and analog operation
UPC: 042005175154 - 2 x Musicians Value MCrane1 Microphone Suspension Crane Arm The MCrane1 Microphone Suspension Crane Arm from Musicians Value is a spring-loaded suspension arm that can support a microphone with a shockmount/holder, and a microphone pop filter. The MCrane1 arm can be used in several environments for voice-over, podcast, and radio or DJ applications. A desk-mount clamp is included that allows the arm to swivel for smooth and precise positioning. In addition, it is forward and backward adjustable and height adjustable. UPC: 817802015411
- 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.
The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488 - Pearstone 0.5 x 12" Touch Fastener Straps (Black, 10-Pack) The black 10-pack of Pearstone 0.5 x 12" Touch Fastener Straps provides a cost-effective way to bundle and organize cables. The straps are easy to use, featuring a loop-through slot and touch fastener attachment. Each tie can be refastened at least 200 times.
- Reusable hundreds of times
- One-piece, double-sided touch fastener
- Easy to Use
-
- Wrap the strap around the first cable, fuzzy side out; feed the tail through the slot
- Pull the tail completely through the slot and push tab down to fasten
- Gather other cables to your first cable to make a tight bundle
- Wrap the strap around the bundle and fasten by pressing the strap onto itself
UPC: 847628021426 In the Box - MG10XU - 10-Input Mixer with Built-In FX and 2-In/2-Out USB Interface zufdrrzrzwsvrszdtawqcsecsrzc
- Cubase AI Download Information
- AC Adaptor
- Limited 1-Year Warranty
- 2 x Audio-Technica - AT2005USB Cardioid Dynamic USB/XLR Microphone zufdrrzrzwsvrszdtawqcsecsrzc
- 2 x Musicians Value - MCrane1 Microphone Suspension Crane Arm
- 2 x Polsen - HPC-A30 Closed-Back Studio Monitor Headphones
- Pearstone - 0.5 x 12" Touch Fastener Straps (Black, 10-Pack)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MG10XU Podcasting Kit with 10-Input Mixer, Microphones, Crane Arm Stands & Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yamaha MG10XU - 10-Input Mixer with Built-In FX and 2-In/2-Out USB Interface
| Built-in Effects | SPX algorithm: 24 program | | Phantom Power | +48 V switchable, channels 1 - 4 | | Digital I/O | USB: USB Audio Class 2.0 compliant
Sampling frequency: max 192 kHz
Bit depth: 24-bit | | Input Channels | 4x mono [mic/line]
3x stereo [line] | | Output Channels | 2x stereo out
1x monitor out
1x headphone out
1x FX out | | Bus | Stereo: 1
AUX[FX]: 1 | | Pad | 26 dB (mono channels) | | HPF | 80 Hz, 12 dB/oct (mono channels) | | Compressor | Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec | | Equalizer | EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | | LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping | | Level Metering | 2 x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | | Total Harmonic Distortion | 0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min | | Frequency Response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: min | | Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) | | Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) | | Crosstalk | -83 dB | | Power Requirement | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | | Power Consumption | 22.9 W | | Operating temperature | 0 to +40˚C (32 to 104˚F) | | Dimensions | 9.6 x 2.8 x 11.6" (244 x 71 x 294 mm) | | Net Weight | 4.63 lb (2.1 kg) | | | | Box Dimensions (LxWxH) | 15.7 x 14.2 x 5.3" | - 2 x Audio-Technica AT2005USB Cardioid Dynamic USB/XLR Microphone
| | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 15 kHz | | | | Bit Depth | 16-Bit | | Sample Rate | 44.1 kHz
48 kHz | | Operating System Support | Windows, macOS/OS X | | RAM | 64 MB Minimum | | Available Port | USB (Interface Unspecified) | | | | Output Connectors | 1 x 3-Pin XLR
1 x USB (Type Unspecified) | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Length | 7.23" / 183.64 mm | | Diameter | 2.01" / 51.05 mm | | Weight | 9.4 oz / 266 g | | | | Box Dimensions (LxWxH) | 10.1 x 9.8 x 2.3" | - 2 x Musicians Value MCrane1 Microphone Suspension Crane Arm
| Arm Length | 27.6" / 70.0 cm | | Standard Mounting Bracket | 3.0" / 7.5 cm | | Dimensions (L x W x H) | Not specified by manufacturer | | Weight | 1.3 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 15.75 x 4.75 x 1.8" | - 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones
| | | Driver Size | 2" / 50 mm | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 18 Hz to 22 kHz | | Sensitivity | 93 dB at 1 kHz / 1 mW | | Impedance | 32 Ohms | | Maximum Power Handling | 600 mW | | Total Harmonic Distortion (THD) | 5% | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | 1/4" (6.3 mm) | | | | Design | Single-Sided | | Color | Black | | Detachable | No | | In-Line Remote/Microphone | No | | Cable Length | 9.84' / 3 m | | | | Certifications | CE, RoHS, as per Manufacturer | | Weight | 6.5 oz / 184 g | | | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 3.8" | - Pearstone 0.5 x 12" Touch Fastener Straps (Black, 10-Pack)
| Quantity | 10 | | Size | 0.5 x 12" (1.3 x 20.5 cm) | | | | Box Dimensions (LxWxH) | 6.2 x 2.4 x 0.9" |
