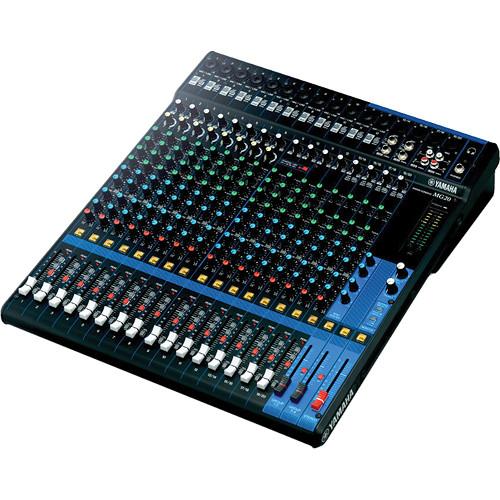

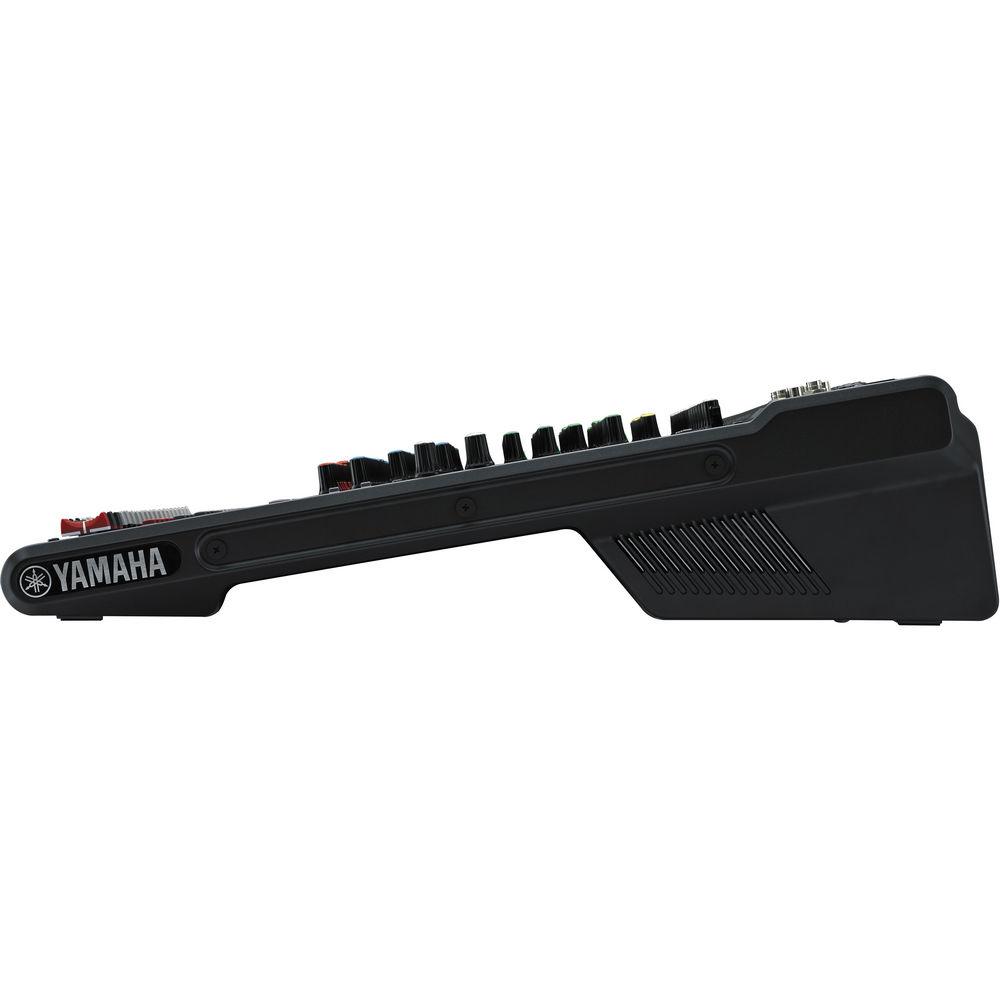

Product description The MG20 from Yamaha is a compact mixer capable of twenty simultaneous inputs and is ideal for live performances, recordings, lectures and more. The mixer features twelve mono mic/line combo input channels, and four stereo line input channels that can also be used as mono mic or line inputs.

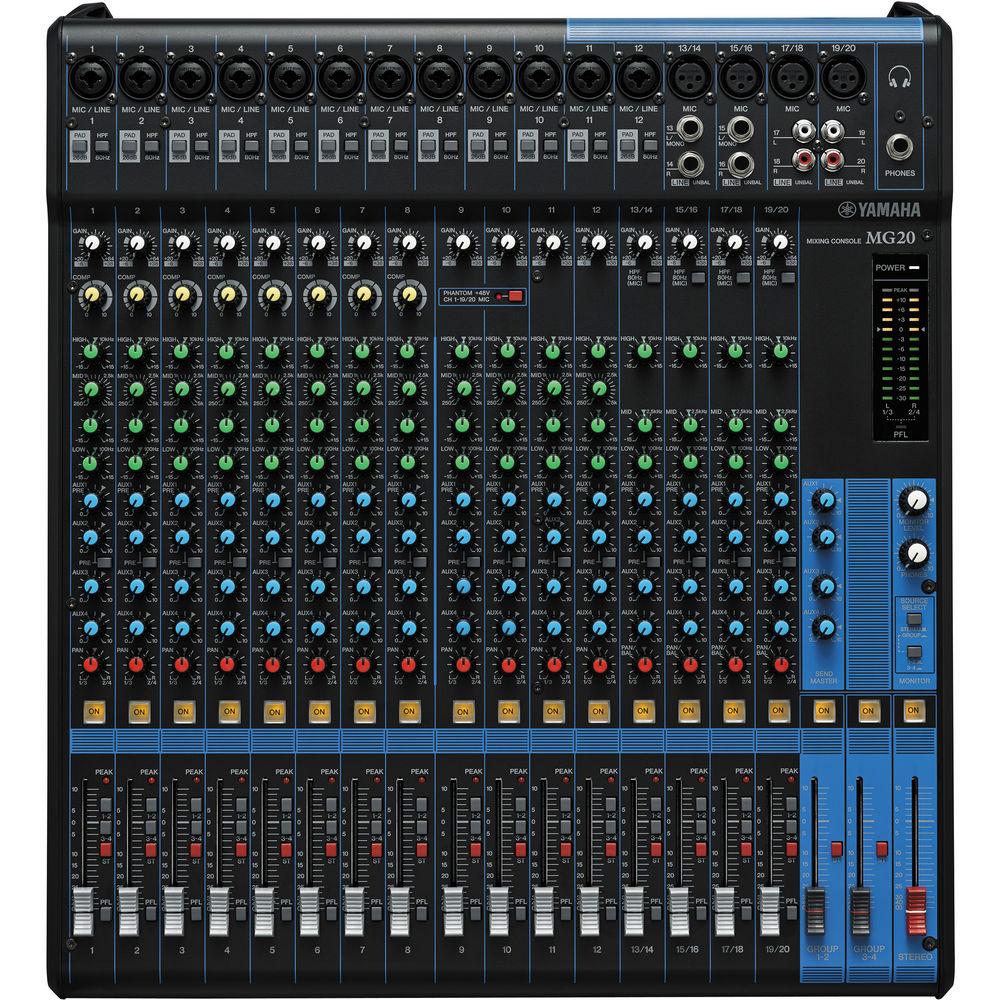

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

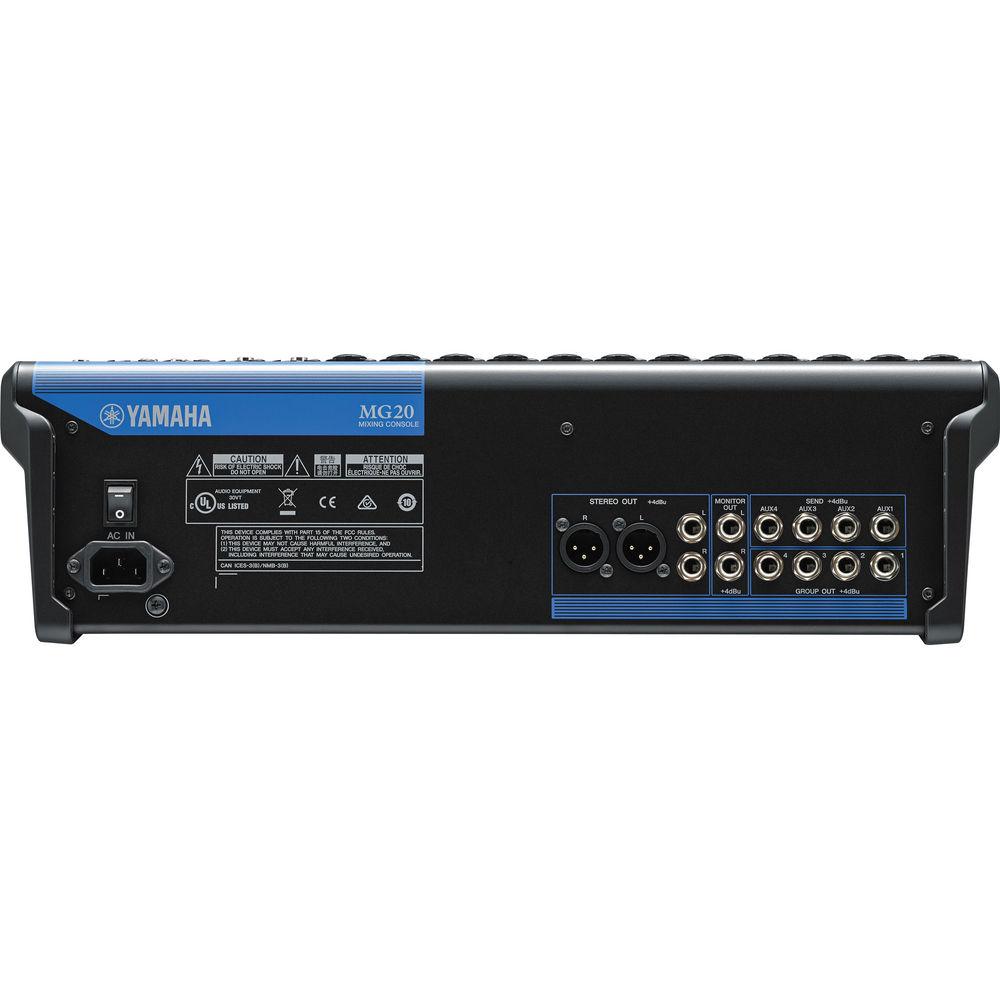

The MG20 mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders. - Features:
-
- 20-channel mixing console
- Max. 16 mic / 20 line inputs (12 mono + 4 stereo)
- 4 group buses + 1 stereo bus
- 4 aux (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- Pad switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rackmount kit included
- Metal chassis
UPC: 086792991566 In the Box Yamaha MG20 - 20-Input Mixer AC Adapter Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MG20 - 20-Input Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MG20 Specs | Phantom Power | +48 V | | Input Channels | 12x mono [mic/line]
4x mono/stereo [mic/line] | | Output Channels | 2x stereo out
1x monitor out
1x headphone out
4x aux out
4x group out | | Bus | Stereo: 1
Group: 4
Aux: 4 | | Pad | 26 dB (mono) | | HPF | 80 Hz, 12 dB/oct (Mono/Stereo: Mic only) | | Compressor | Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output Level: 0 dB to 7 dB
Attack Time: Approx. 25 msec
Release Time: Approx. 300 msec | | Equalizer | EQ High Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ Mid Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking, stereo 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | | LED | Peak LED: Turns on when post EQ signal reaches 3 dB below clipping (mono)
Level Meter: 2x 12 -segment LED meter [Peak, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | | Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz to 20 kHz), Gain Knob: Min, 0.005% @ +24 dBu (1 kHz), Gain Knob: Min | | Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, Gain Knob: Min | | Equivalent Input Noise | -128 dBu (Mono Input Channel, Rs: 150 Ω, Gain Knob: Max) | | Residual Output Noise | -102 dBu (Stereo Out, Stereo Master Fader: Min) | | Crosstalk | -78 dB | | Power Requirement | AC 100 - 240 V, 50 / 60 Hz | | Power Consumption | 36 W | | Dimensions | 17.5 x 5.1 x 19.7" (444 x 130 x 500 mm) | | Net Weight | 15.2 lb (6.9 kg) | | | | Package Weight | 20.55 lb | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 8.5" |
