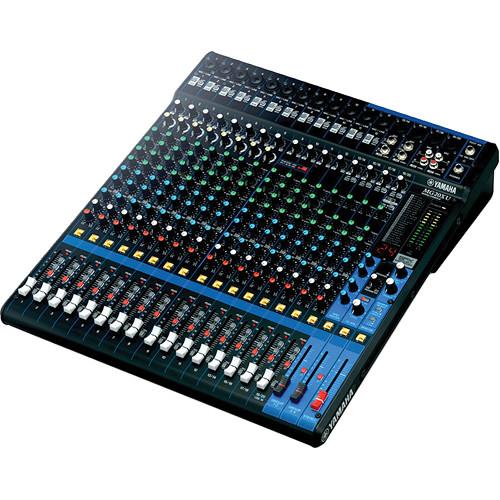

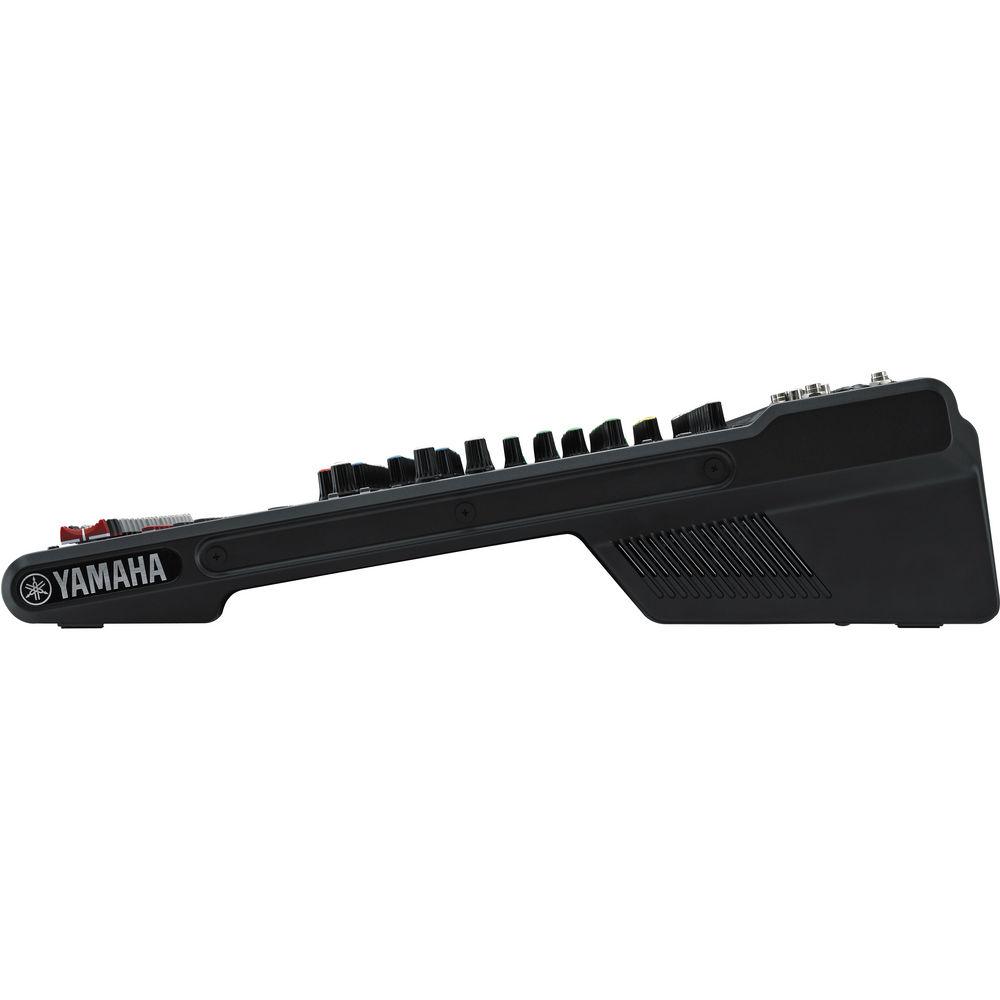

Product description The MG20XU with Rackmount Kit from Yamaha is a compact mixer capable of twenty simultaneous inputs and is ideal for live performances, recordings, lectures and more. The mixer features twelve mono mic/line combo input channels, and four stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.

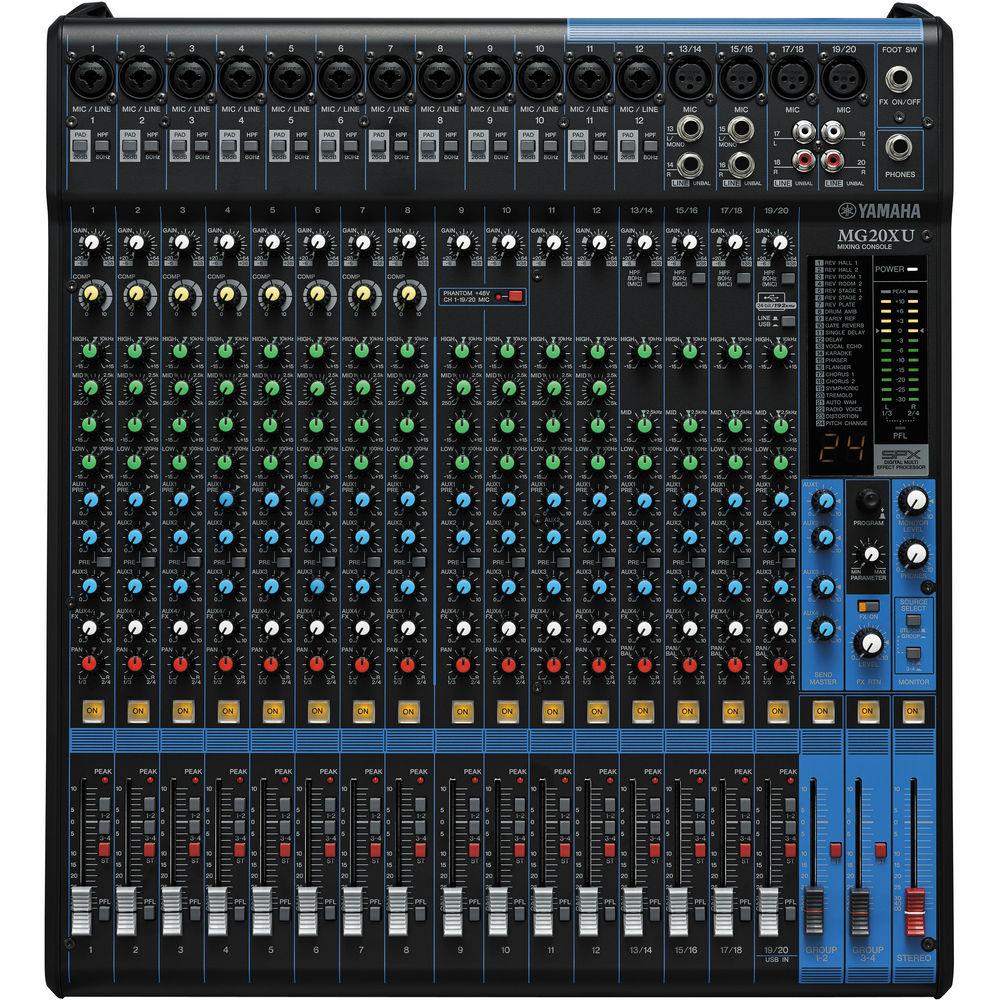

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

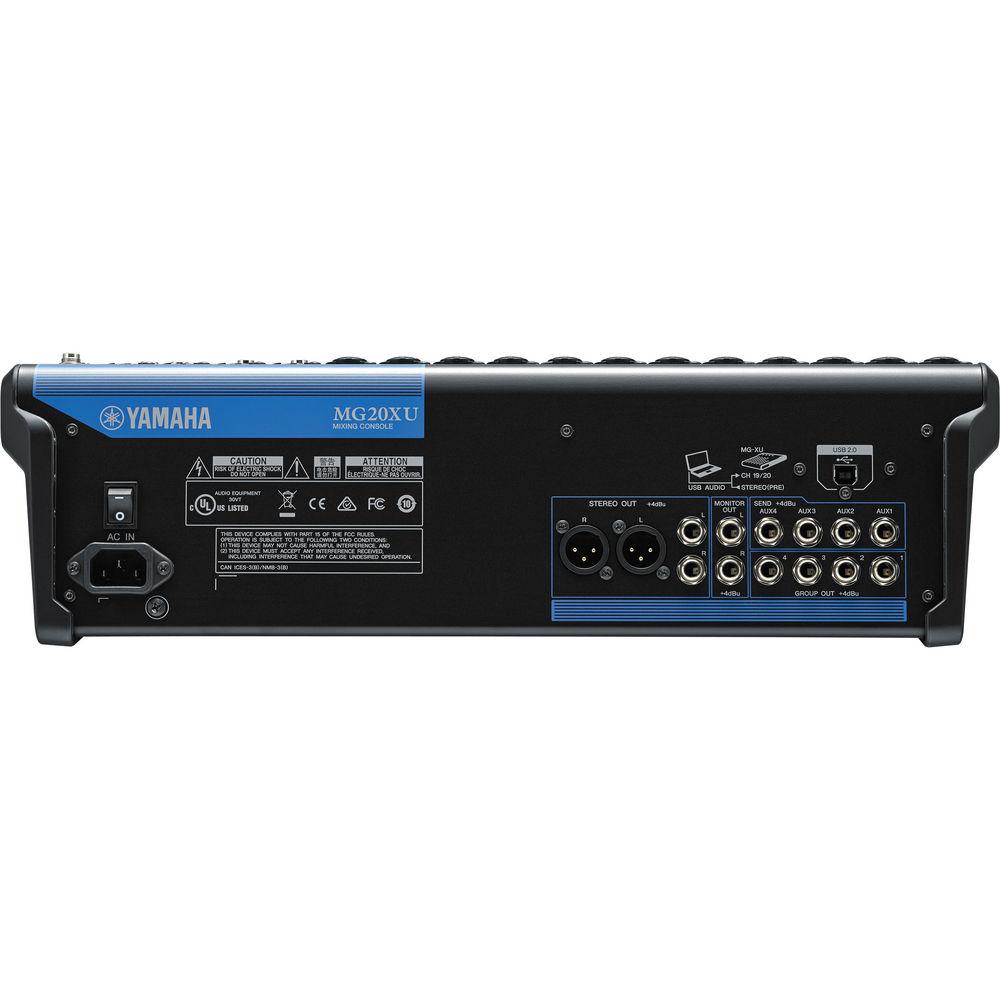

The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, these effects can be used to help vocals and instruments sit better in your mix. - Features:
-
- 20-channel mixing console
- Max. 16 mic / 20 line inputs (12 mono + 4 stereo)
- 4 GROUP buses + 1 stereo bus
- 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rackmount kit included
- Metal chassis
UPC: 086792991542 In the Box Yamaha MG20XU - 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface Power Cable Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MG20XU - 20-Input Mixer with Built-In FX & 2-In 2-Out USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MG20XU Specs | Built-in Effects | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | | Phantom Power | +48 V | | Digital I/O | USB: USB Audio Class 2.0 compliant
Sampling Frequency: Max 192 kHz
Bit Depth: 24-bit | | Input Channels | 12x mono [mic/line]
4x mono/stereo [mic/line] | | Output Channels | 2x stereo out
1x monitor out
1x headphone out
4x aux out
4x group out | | Bus | Stereo: 1
GROUP: 4
AUX: 4 | | Pad | 26 dB (mono) | | HPF | 80 Hz, 12 dB/oct (mono/stereo: MIC only) | | Compressor | Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output Level: 0 dB to 7 dB
Attack Time: Approx. 25 msec
Release Time: Approx. 300 msec | | Equalizer | EQ High Gain: +15 dB/-15 dB, frequency: 10 kHz shelving
EQ Mid Gain: +15 dB/-15 dB, frequency: mono 250 Hz - 5 kHz peaking, stereo 2.5 kHz peaking
EQ Low Gain: +15 dB/-15 dB, frequency: 100 Hz shelving | | LED | Peak LED: turns on when post EQ signal reaches 3 dB below clipping (mono)
Level Meter: 2x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | | Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min | | Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min | | Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) | | Residual Output Noise | -102 dBu (STEREO OUT, STEREO master fader: min) | | Crosstalk | -78 dB | | Power Requirement | AC 100 - 240 V, 50 / 60 Hz | | Power Consumption | 36 W | | Dimensions | 17.5 x 5.1 x 19.7" (444 x 130 x 500 mm) | | Net Weight | 15.7 lb (7.1 kg) | | | | Package Weight | 20.6 lb | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 8.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Yamaha MG20XU - 20-Input Mixer with Built-In FX & 2-In 2-Out USB Interface
| Subject: Query | | Date: 23.08.2022 00:58:04 | Name: buddy evans | i have a MG20XU 20-ch MG Mixer and need to know how i can individually control the level of each mic separately through the 'monitor' speakers.....(the main 'monitor' control adjusts the level for all inputs but i can't figure out how to control each mic separately just to the monitor speakers and not mess with the mains.
