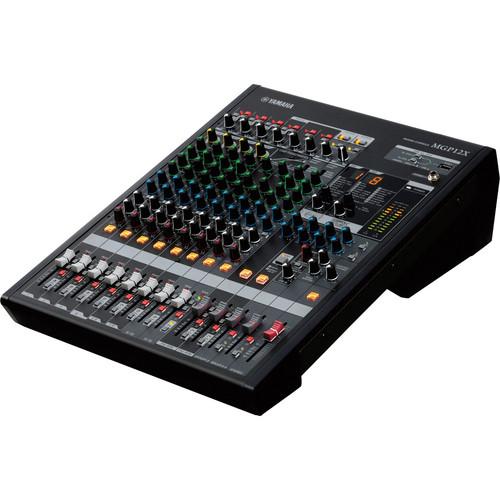

User Manual for Yamaha MGP12X 12-Channel Premium Mixing Console Click to enlarge the picture
Contents of the user manual for the Yamaha MGP12X 12-Channel Premium Mixing Console
- Product category: Sound Reinforcement Mixers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Sound Reinforcement Mixers
 |
User manual for the Yamaha MGP12X 12-Channel Premium Mixing Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

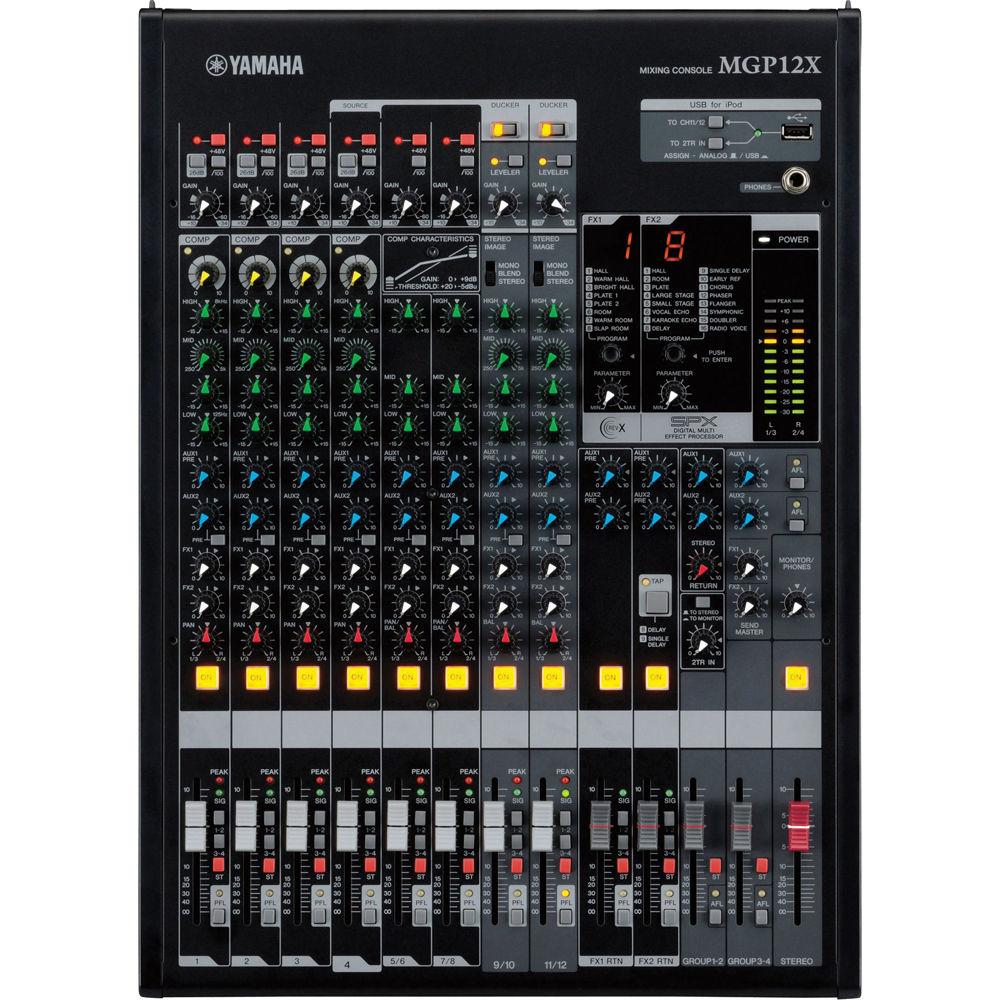

Product description The Yamaha MGP12X 12-Channel Premium Mixing Console is the result of the call for a small format sound reinforcement console with a feature set that meets the demands of today's touring bands, performance groups, live venues, houses-of-worship, town halls and more. The console features a total of 12 input channels with 4 mono inputs, and 4 stereo inputs, dual effects processor, 1-knob compression, stereo hybrid channels and optional control / audio playback from Apple iPads and iPhones.The front-end features 6 of Yamaha's breakthrough D-Pre microphone preamps, featuring an inverted Darlington circuit design. The result is a transparent, warm and musical audio character unique to the MGP12X. The mixer's X-pressive EQ section delivers precise settings, steep shelving and musical frequency contouring. A powerful Dual Digital Effects processor employs Yamaha REV-X reverbs and SPX series digital multi-effects. An additional feature unique to the MGP12X is its dedicated stereo Digital Hybrid channels.Two stereo channels feature extensive DSP underneath the familiar analog controls. The Digital Hybrid channels feature Priority Ducker for prioritizing announcements and other signals, a Leveler for global level control and a Stereo Image feature that adjusts the width of stereo tracks, and allows for a much more comfortable listening experience (ideal for backing tracks and intermission music breaks). The Yamaha MGP12X features a USB iPod and iPad connection. Not only can the console playback audio from these devices, Yamaha's free MGP editor app allows for extensive control and editing of many of the console's features and parameters, directly from your Apple iPhone or iPad. Thanks to its integrated rack ears, the MGP12X can be rack mounted. - Studio-grade discrete class-A "D-Pre" mic preamps with an Inverted Darlington Circuit
- Musical X-pressive EQ based on Yamaha's famed VCM technology
- Professional 1-knob compressors with LED indicators
- High-grade dual digital effects processors: Advanced REV-X and classic SPX
- Stereo hybrid channels utilizing a powerful, proprietary DSP
- Digital connectivity for iPod/iPhone
- MGP editor for detailed control of the console's DSP settings via iPod/iPhone
- Rugged, impact-resistant, powder-coated metal chassis
- Internal universal power supply for world-wide use
- 6 mic inputs with 48V phantom power and HPF per channel
- 12 line inputs (4 mono and 4 stereo)
- Additional 2TR inputs provided to accept the output from analog devices or iPod/iPhone
UPC: 086792963020 In the Box Yamaha MGP12X 12-Channel Premium Mixing Console AC Power Cord Owner's Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MGP12X 12-Channel Premium Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

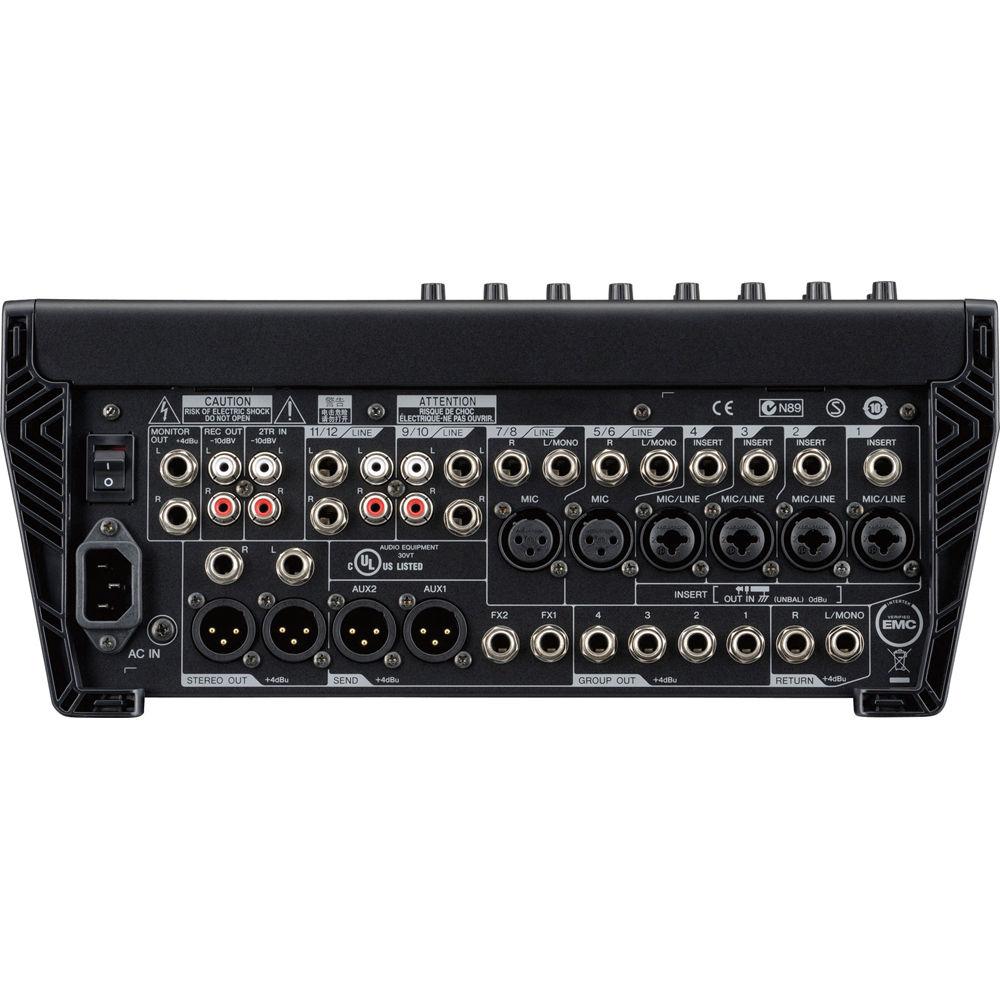

Technical parametersYamaha MGP12X Specs | Channels | 12 Line inputs (4 mono and 4 stereo) | | Groups | 4 Group buses + ST bus | | AUX Input | 2 Aux Sends + 2 FX Sends | | Compressor | Compressor CH1-4, HPF (100Hz 12dB/oct) | | EQ Section | Mono: ±15dB(Max.), High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving
Stereo:±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving | | Effects | FX1:REV-X(8 Program, Parameter control),
FX2:SPX (16 Program, Parameter control) | | Microphone Inputs | 6,(100Hz 12dB/oct) | | Phantom Power | 48V phantom power per channel | | Line Inputs | Line: 4mono + 4stereo
Channel insert in: 4 Return: 1 stereo
2TR IN: 1 stereo | | Digital I/O | USB audio USB in: iPod, iPhone exclusive | | THD | 0.02% (20Hz-20kHz@ +14dBu) | | Frequency Response | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | | EIN | -128 dBu (20Hz-20 kHz, Rs=150Ω, input gain = maximum) | | Residual Output Noise | -102 dBu (20Hz-20 kHz, Rs=150Ω, input gain = maximum) | | Crosstalk | -74dB @ 1kHz | | Power Requirements | 100-240V 50Hz/60Hz
Consumption: 45W | | Dimensions (WxHxD) | 13.7 x 5.62 x 19.48" (348 x 143 x 495mm) | | Weight | 16.53lb (7.5kg) | | | | Package Weight | 23.25 lb | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 9.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
