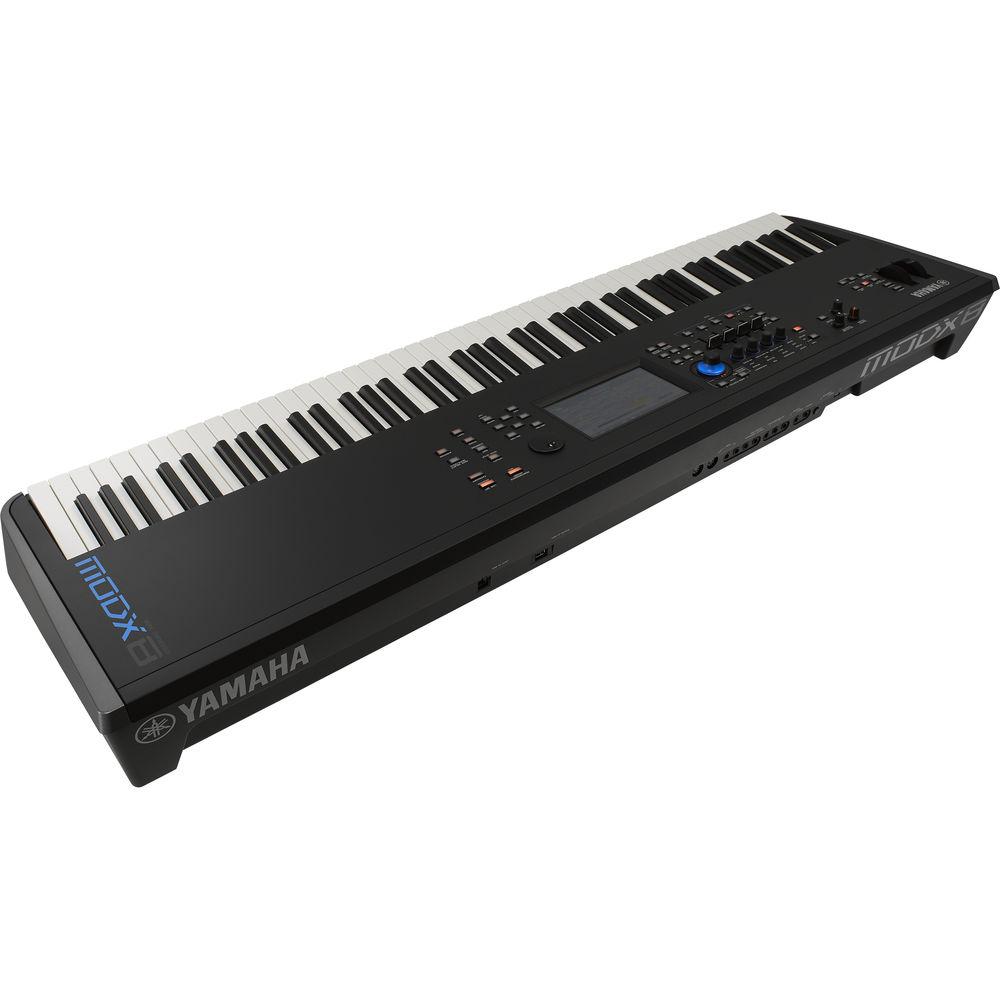

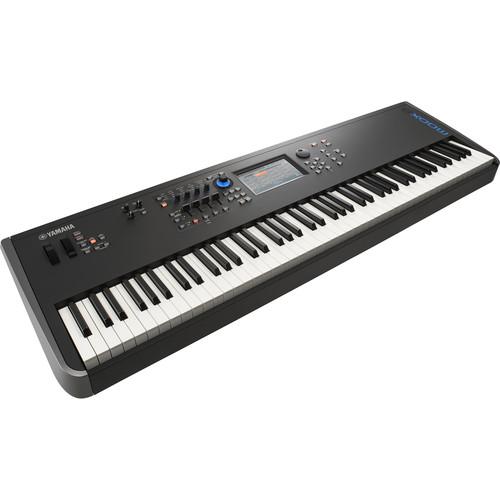

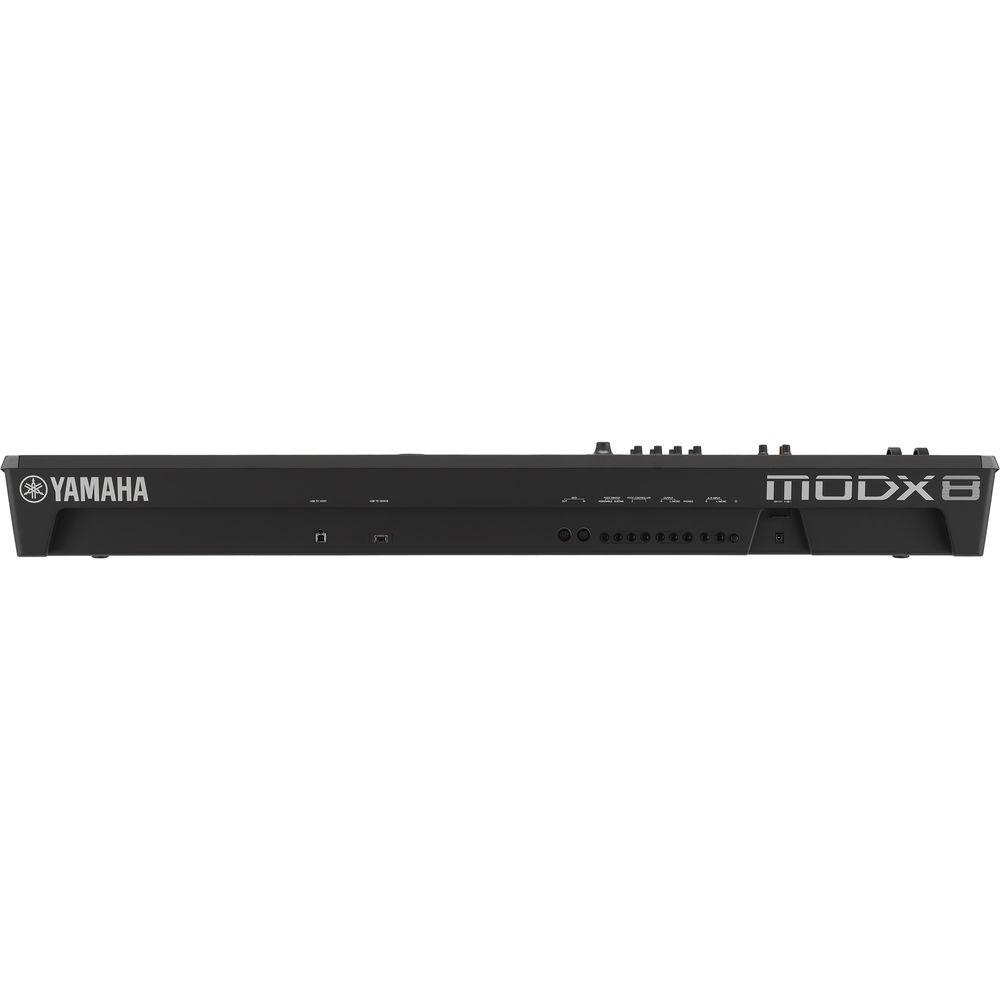

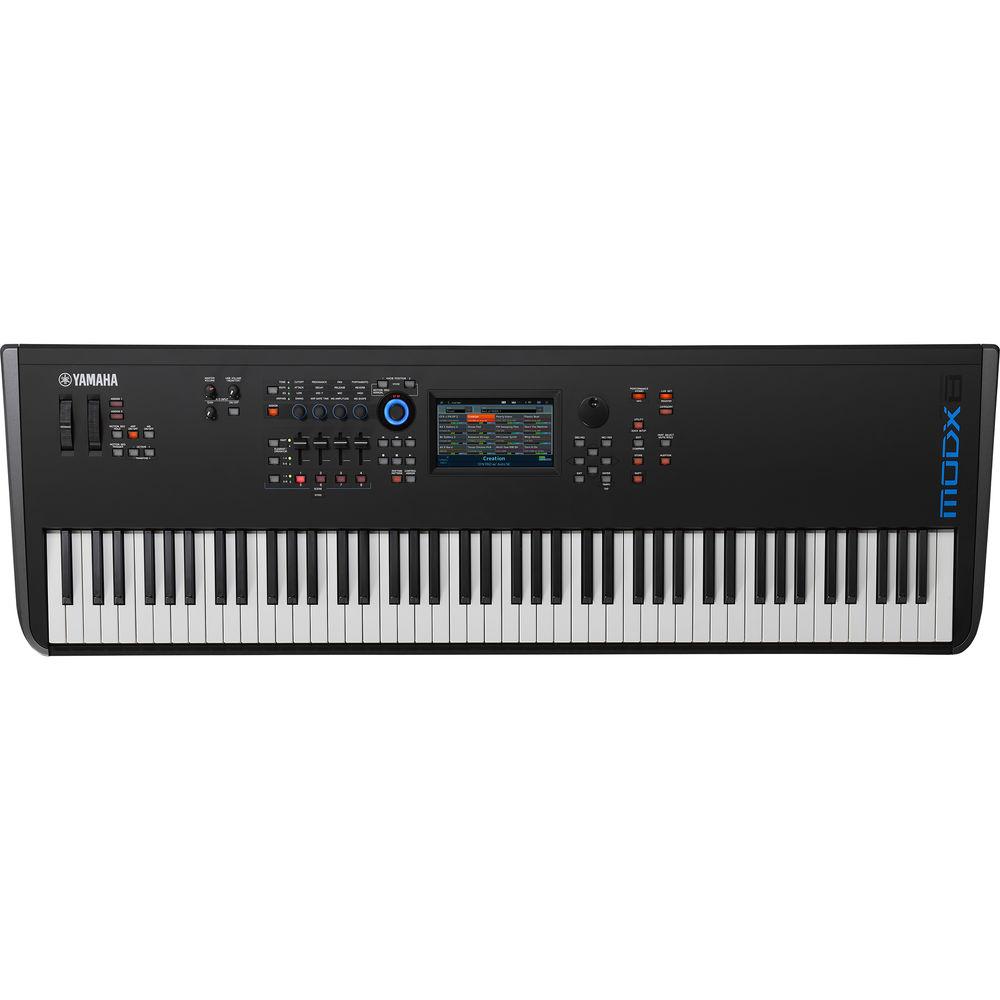

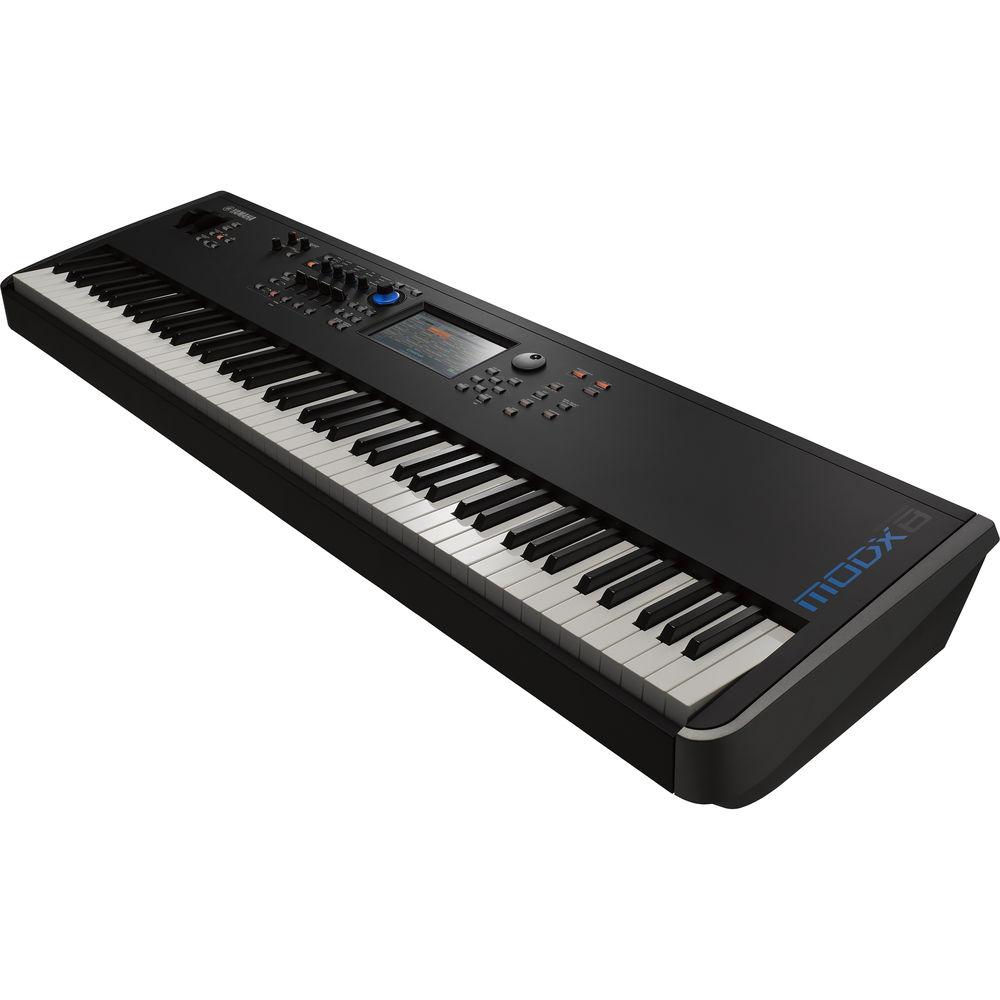

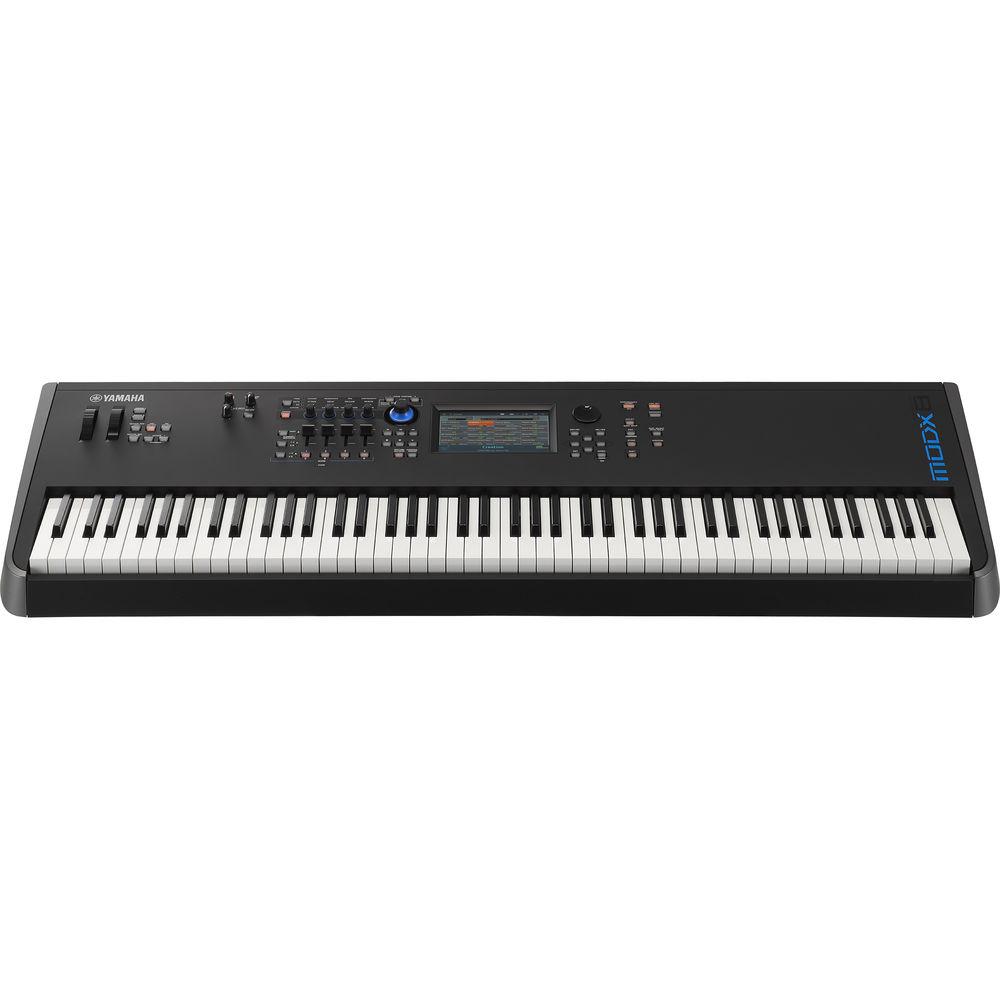

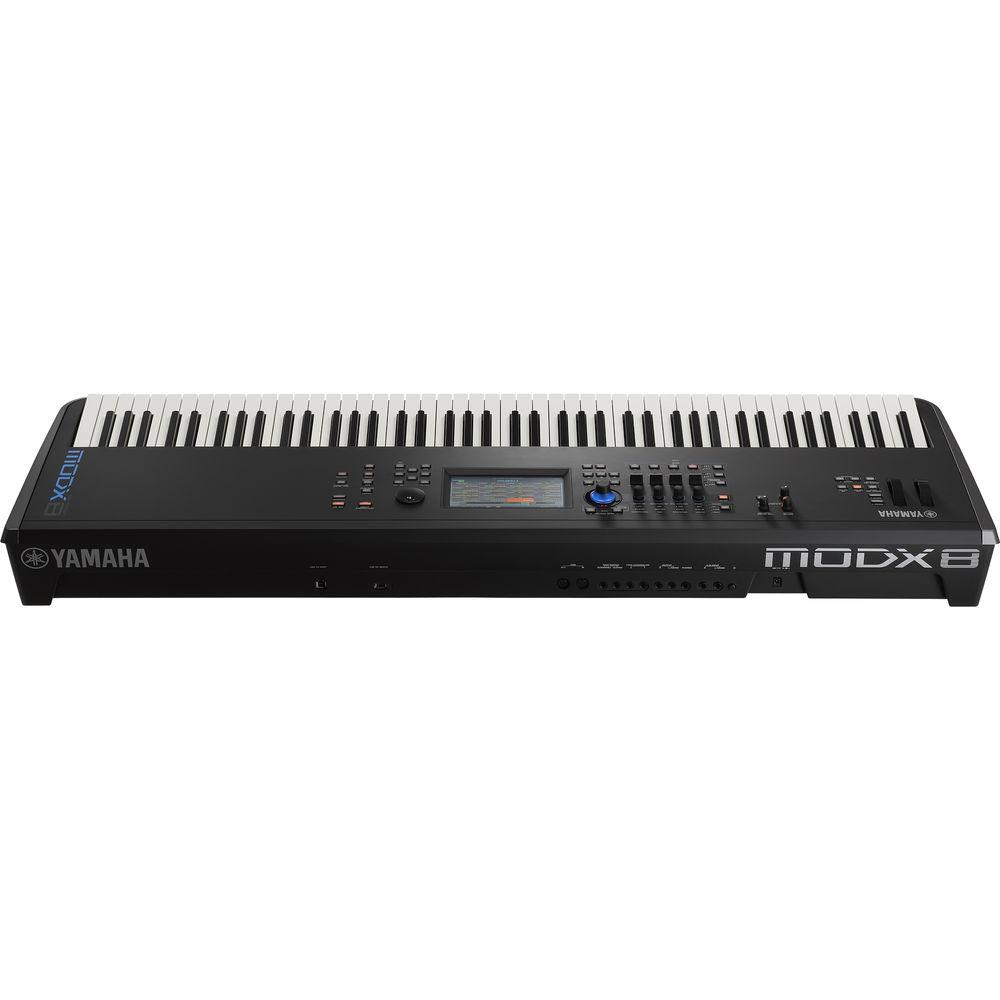

User Manual for Yamaha MODX8 88-Key Synthesizer Click to enlarge the picture
Contents of the user manual for the Yamaha MODX8 88-Key Synthesizer
- Product category: Synthesizer Keyboards Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Synthesizer Keyboards
 |
User manual for the Yamaha MODX8 88-Key Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

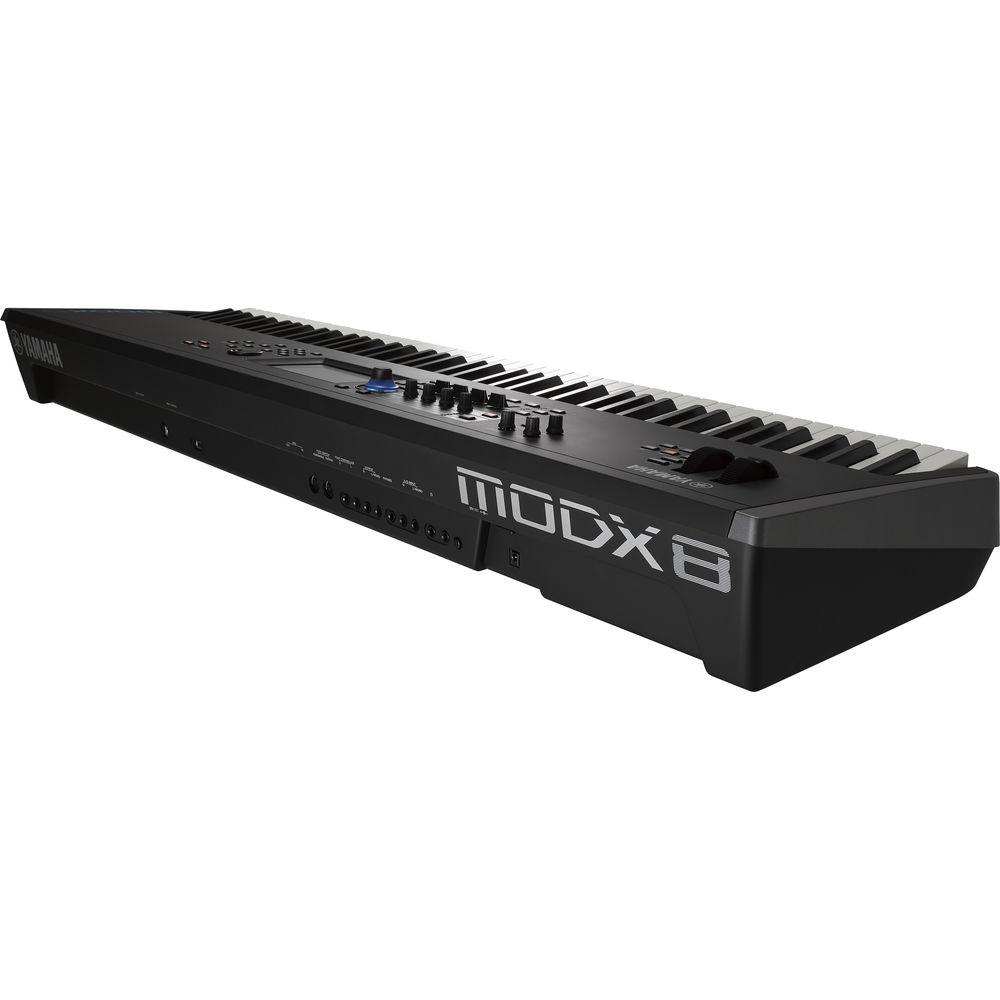

Product description The Yamaha MODX8 is a 88-key synthesizer offering multiple synthesis methods and powerful controls for musicians and producers in homes, studios, and concert venues. Its 88 weighted GHS (graded hammer standard) keys trigger sounds from AWM2 and FM-X sound engines, which bring the same sample-based and frequency modulation synthesis technology from Yamaha's premium MONTAGE line. 4-Part Seamless Sound Switching allows held notes to continue naturally when changing performance patches.Interactive controls include easily assignable sliders and knobs, pitch and modulation wheels, and the Super Knob—a large illuminated control that facilitates manipulation of multiple parameters simultaneously. Utilize the MODX8's Motion Sequences to rhythmically modify settings and tweak the rhythmic control data in real time. Thanks to Live Sets, you can structure your Performances without having to copy, reorder, or rename them.Connect to your computer via USB to send and receive multichannel audio and MIDI over a single cable. Additionally, the MODX8 provides traditional 5-pin MIDI I/O, two 1/4" line outputs, and a 1/4" headphone jack. Two 1/4" analog inputs enable versatile processing of external audio sources, which can also feed the source-selectable envelope follower. 1/4" inputs are also present for foot controllers and footswitches (available separately). The MODX8 is supplied with an AC adapter. - Motion Control Synthesis unifies and controls AWM2 and FM-X sound engines
- Super Knob controls multiple parameters simultaneously for highly expressive sound interaction
- USB connectivity supports multichannel audio I/O (ten channels out and four channels in) plus 16-channel MIDI in and out
- Live Sets allow Performance organization without copying, changing order, or renaming
- 4-Part Seamless Sound Switching enables changing Performances while holding notes without cutting off the sound or effect
- Direct Control Assignment assigns controls at the touch of a button
- The A/D input processes external audio sources with your the MODX8's DSP
- Motion Sequences drive synthesizer parameters through rhythmic control data you can interact with in real time
- The Envelope Follower allows internal or external audio to be used as a synth parameter control source
- AWM2 provides data compression without sacrificing sound quality
- Large LCD touchscreen and easy navigation controls
- Onboard DSP processing including reverb, 3-band EQ, and more
- Lightweight for easy transport
UPC: 889025115469 In the Box Yamaha MODX8 88-Key Synthesizer PA150 AC Adapter for Keyboards and Drums rvuberyyvatryebwy Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MODX8 88-Key Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MODX8 Specs | Keyboard | 88 weighted GHS (graded hammer standard) keys with initial touch | | Polyphony | AWM2: 128 notes (stereo/mono waveforms)
FM-X: 64 notes | | Multitimbral | Internal: 16 parts
A/D: Stereo
USB: Stereo | | Synthesis Method | Motion Control Synthesis Engine AWM2 (Advanced Wave Memory 2): 8 elements
FM-X (Frequency Modulation): 8 operators, 88 algorithms | | Presets | Preset Performances: 2000
User Performances: 640
Library Performances: 5120
Preset Live Set Slots: >256
Library Live Set Slots: 2048
User Live Set Slots: 2048
Preset Arpeggios: 10,239
User Arpeggios: 256 | | Sequencer | Tracks: 16 sequence tracks, Tempo track, Scene track
Recording Type: Real-time replace, real-time overdub, real-time punch in/out
Note Capacity: 130,000 notes (approximately)
Note Resolution: 480 ppq (parts per quarter note)
Tempo: 5 to 300 BPM
Songs: 128
Arpeggio Parts: 8 simultaneous (maximum)
Formats: MODX original format, SMF formats 0 and 1 | | Filters | 18 types | | Effects | Reverb: 12 types
Variation: 76 types
Insertion (A, B): 76 types (71 types of A/D part insertion effects)
Master Effect: 15 types
Master EQ: 5 bands
1st Part EQ: 3 bands
2nd Part EQ: 2 bands | | Controls | Master volume
AD input gain knob
USB volume
Pitch bend wheel
Modulation wheel
4 x Control sliders
4 x Knobs
Super Knob
Data dial | | Control Inputs | 2 x 1/4" foot controller inputs
1 x 1/4" sustain pedal input
1 x 1/4" assignable footswitch input | | Outputs | 2 x 1/4" line outputs
1 x 1/4" TRS stereo headphone output | | Inputs | 2 x 1/4" | | MIDI I/O | 1 x 5-pin DIN input
1 x 5-pin DIN output | | USB | 1 x USB Type-A (USB to device)
1 x USB Type-B (USB to host) | | Internal Storage | Waveform-ROM: 5.67 GB
Flash-ROM: 1 GB | | Display | 7" VGA-TFT LCD color touchscreen | | Power Requirement | 12 VDC via included power adapter | | Power Consumption | 16 W (when using PA-150B AC adapter) | | Dimensions (W x D x H) | 52.5 x 15.9 x 6.3" / 133.3 x 40.4 x 16.0 cm | | Weight | 30.4 lb / 13.8 kg | | | | Package Weight | 42.65 lb | | Box Dimensions (LxWxH) | 58.8 x 21.0 x 10.3" |
