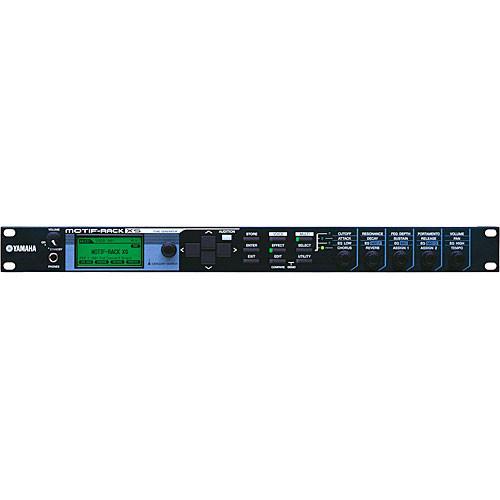

User Manual for Yamaha MOTIF-RACK XS Tone Generator Click to enlarge the picture
Contents of the user manual for the Yamaha MOTIF-RACK XS Tone Generator
- Product category: Synthesizer Modules Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Synthesizer Modules
|
User manual for the Yamaha MOTIF-RACK XS Tone Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The MOTIF-RACK XS Tone Generator from Yamaha is a single space rackmountable tone generator ideal for use in both live and studio settings. It uses a powerful sound engine and high-quality waveforms and samples to bring your performance an incredibly realistic sound. Each voice can have up to eight separate elements of sound for increased complexity and nuance. The Expanded Articulation system provides more natural legato, staccato, and key release sounds, while special Mega Voices add richness to sequencer tracks and arpeggios.
The built-in arpeggiator provides approximately 6,633 preprogrammed phrases, and you can have up to four of them playing simultaneously in perfect sync—great for live performances. As you play, you can store your ideas as songs or patterns to the internal memory.
The MOTIF-RACK XS offers an intuitive interface complete with a large, color backlit LCD, and knobs so you can make adjustments to parameters and effects in real-time while you play. Effects include reverb, delay, EQ, and more. The MOTIF-RACK XS features a USB port and 5-pin DIN ports for MIDI communication. The expansion port can accommodate the optional mLAN16E2 interface for 16 channels of digital audio I/O over firewire. - High-Quality Audio
- High-quality on-board samples and waveforms provide a realistic sound with terrific detail and nuance. The Expanded Articulation system recreates performances techniques such as legato, staccato, and key release for a more authentic sound. A wide variety of voices and drum kits are provided for playing in many genres and styles.
- Arpeggiator
- Approximately 6,653 arpeggio phrases are provided, up to four of which can be played simultaneously. Perfect for live performance, the arpeggiator lets you create full jam sessions that can be recorded as songs or patterns.
- Effects
- Built-in effects include reverb, delay, EQ, and more for customizing your sound.
- Connectivity
- The MOTIF-RACK XS features a 1/4" stereo input, 1/4" stereo outputs, a S/PDIF digital output, footswitch and pedal inputs, and a full complement of MIDI connectors. For connecting to your computer or network it has a USB to host port, Ethernet jack, and an expansion slot to add FireWire ports for mLAN capability.
- Software
- The keyboard is designed to operate seamlessly with popular DAW software such as Cubase, Logic, SONAR, and Digital Performer. Cubase AI software is included to give you pro-level recording tools, and it is easily upgraded to Cubase 4. MOTIF XS editing software is freely-downloadable for editing and mixing your work.
UPC: 086792882994 In the Box Yamaha MOTIF-RACK XS Tone Generator AC Power Cord Data List DAW Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MOTIF-RACK XS Tone Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MOTIF-RACK XS Specs | Keyboard | None | | Polyphony | 128 notes | | Multitimbral | 16 parts (internal)
Audio Input Parts: (A/D, mLAN) | | Synthesis Method | AWM2 with expanded articulation | | Presets | Voices: 1024
Drum Kits: 64
GM Voices: 128
GM Drum Kits: 1
Filters: 18
Patterns: 64
Mixing Templates 32
Songs: 64
Arpeggios: 6000 Types | | Sequencer | None | | Record and Playback | None | | User Memory | User Voices: 128 x 3
User Drum Kits: 32
User Performances: 128 x 3 (Up to 4 Parts)
User Phrases: 256 Per Pattern
User Arpeggios: 256 Types | | Effects | Reverb: 9
Chorus: 22
Insertion (A/B/L): 53 Types x 8 Blocks
Master Effect: 9 Types
Master EQ: 5 Bands
Part EQ: 3 Bands, Stereo | | Expansion Slots | 1 x Slot for optional mLAN16E2 FireWire mLAN Expansion Card | | Inputs/Outputs | USB to Host: MIDI data
MIDI Ports: 2 x 5-Pin DIN (In/Out)
Digital Output: Coaxial (RCA) S/PDIF
Main Output L/Mono and R: 2 x 1/4" / 6.3 mm
Assignable Output L and R: 2 x 1/4" / 6.3 mm
DC power adapter input | | Storage | Not specified by the manufacturer | | Display | 160 x 64-dot graphic backlit LCD | | System Requirements | Mac or PC with MIDI, USB, and/or Ethernet Connectors
A FireWire Connector Will be Needed if the Optional mLAN16E2 Has Been Installed | | Dimensions (WxDxH) | 18.9 x 15 x 1.75" / 480 x 379.4 x 44 mm | | Weight | 9.26 lb / 4.2 kg | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 22.0 x 19.5 x 6.0" |
