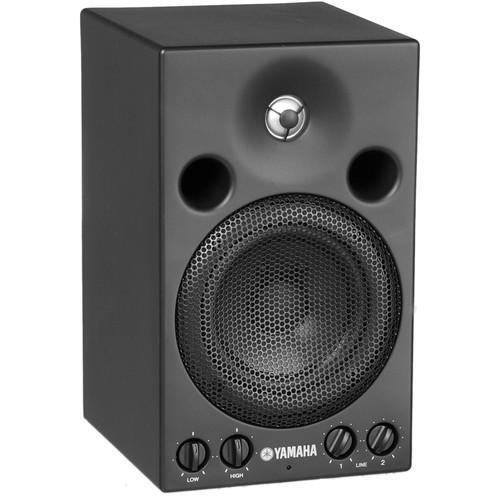

User Manual for Yamaha MSP3 Amplified Two Way Compact Monitor with 4" Woofer - Shielded Click to enlarge the picture
Contents of the user manual for the Yamaha MSP3 Amplified Two Way Compact
- Product category: Studio Monitors Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Studio Monitors
|
User manual for the Yamaha MSP3 Amplified Two Way Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The MSP3 is a two-way powered monitor designed for use in personal music production systems. Each unit features a built-in 20 watt amplifier that drives both the 4" woofer and the 7/8" tweeter. The enclosure of the MSP3 is a bass-reflex type. The tweeter is seated in a proprietary waveguide that aids in the uniform dispersion of the high frequencies. Magnetic shielding and compact size allows the speakers to be placed close to computer monitors. The monitor can also be mounted on a microphone stand with the optional BMS10A stand adapter. The MSP3 features separate volume controls for the two line inputs plus high and low tone controls for tailoring the response of the monitors. To facilitate connection with a wide variety of audio sources, the monitor is equipped with a balanced XLR input, a balanced 1/4" TRS phone jack and an unbalanced RCA coaxial input. - Two way powered project studio monitor
- Front mounted rotary volume controls for both line inputs
- High and low tone controls
- Magnetically Shielded
- Allows for placement in close proximity to computer or video monitors
- XLR, 1/4" TRS phone and RCA coaxial input connectors
UPC: 086792637419 In the Box Yamaha MSP3 Amplified Two Way Compact Monitor with 4" Woofer - Shielded (Single) Limited 1-Year Warranty User Manual PDF 1.5mbxsyrvzvrbzsysxwsdereewt Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MSP3 Amplified Two Way Compact Monitor with 4" Woofer - Shielded in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MSP3 Specs | Low Frequency Driver | 4" | | Mid Frequency Driver | No | | High Frequency Driver | 7/8" | | Crossover | 4kHz | | LF Amplifier | 20 watts for both drivers | | HF Amplifier | See above | | Frequency Range | 65Hz to 22kHz | | Impedance | Not applicable | | Maximum Sound Pressure Level (SPL) | 98dB @ 1 meter | | Maximum Power Handling | Not applicable (already powered) | | Controls and Indicators | 2 x Front panel volume controls
Front panel high and low tone controls
Power On LED
Rear mounted Power ON/OFF switch | | Connectors | 1 x XLR, 1 x 1/4" TRS balanced, 1 x RCA coaxial unbalanced | | Shielded | Yes | | Size (HxWxD) | 9 5/16" x 5 11/16" x 6 9/16" | | Weight | 8.16lbs each | | Specialties | Seperate volume controls for both Line 1 and Line 2 inputs | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 8.1" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
