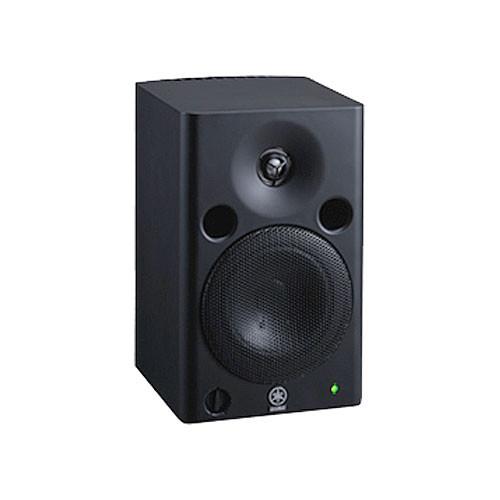

User Manual for Yamaha MSP5 - 67W 5" Active Two-Way Nearfield Monitor Click to enlarge the picture
Contents of the user manual for the Yamaha MSP5 - 67W 5" Active
- Product category: Studio Monitors Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Studio Monitors
|
User manual for the Yamaha MSP5 - 67W 5" Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The MSP5 from Yamaha is a high-quality nearfield studio monitor designed for use in smaller studio spaces. The bass-reflex cabinet houses a 5" woofer and a 1" dome tweeter to provide accurate sound with a frequency response of 50Hz to 40kHz. The cabinet is magnetically shielded for safe use near video monitors.
Balanced XLR and unbalanced 1/4" input connectors allow you to connect a wide variety of professional audio equipment to the monitor. High and low trim switches on the rear panel allow you to adjust the monitor for the best performance in your particular workspace. - Small size is perfect for project studios and DAW-based setups
- 5" cone woofer and 1" dome tweeter for a wide frequency response
- Waveguide horn works with tweeter to provide uniform high-frequency dispersion over 120 degrees
- Combined output power of 67W
- Magnetically shielded for use near video monitors
- Bass-reflex cabinet with a low-diffraction rounded baffle for uniform reproduction of all frequencies
- Balanced XLR and unbalanced 1/4" inputs
- High and low trim switches let you adjust the monitor to match your acoustic space
UPC: 086792856711 In the Box Yamaha MSP5 - 67W 5" Active Two-Way Nearfield Monitor (Single) Power Cord Limited 2-Year Warranty User Manual PDF 1.1mbrtuwwwfuuxczyvzcsessqfzystc Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MSP5 - 67W 5" Active Two-Way Nearfield Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MSP5 Specs | Low Frequency Driver | 5" (127mm) Cone Woofer | | High Frequency Driver | 1" (25mm) Titanium Dome Tweeter | | LF Amplifier | 40W | | HF Amplifier | 27W | | Crossover | 2.5kHz
LF: 24dB/Oct
HF: 24dB/Oct | | Frequency Range | 50Hz - 40kHz (-10dB) | | Maximum Sound Pressure Level (SPL) | 101dB | | Connectors | 1 x XLR Input, Balanced
1 x 1/4" Phone Input, Unbalanced
1 x Power Input | | Input Impedance | 10 kOhms | | Controls and Indicators | 1 x Level Control
1 x High Trim Control
1 x Low Trim Control
1 x Power Switch
1 x Green/Red Power/Clip LED | | Shielded | Yes | | Dimensions (HxWxD) | 10.9 x 7 x 8.2" (279 x 179 x 209mm) | | Weight | 17.4 lbs (7.9kg) | | | | Package Weight | 19.7 lb | | Box Dimensions (LxWxH) | 15.4 x 10.75 x 9.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
