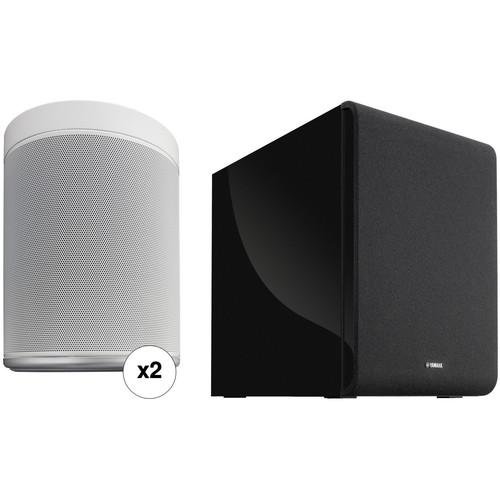

User Manual for Yamaha MusicCast 20 Wireless Speaker Pair and MusicCast SUB 100 Kit Click to enlarge the picture
Contents of the user manual for the Yamaha MusicCast 20 Wireless Speaker Pair
- Product category: Wireless Multi-Room Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Wireless Multi-Room Speakers
|
User manual for the Yamaha MusicCast 20 Wireless Speaker Pair contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Create a wireless 2.1-channel streaming audio system with this Kit that includes two white Yamaha MusicCast 20 Wireless Speakers and the Yamaha MusicCast SUB 100. They connect to each other wirelessly via MusicCast and to your compatible device via Bluetooth or AirPlay. Additionally, MusicCast equipment can be controlled either by your Amazon Alexa-enabled device or via the MusicCast app for iOS and Android. - 2 x Yamaha MusicCast 20 WX-021 Wireless Speaker (White) Enjoy your music wirelessly with the white Yamaha MusicCast 20 Wireless Speaker. It features Bluetooth, Apple AirPlay, and Wi-Fi technologies to connect to nearly any wireless component in your home. The speaker also has an Ethernet port for wired network connectivity. It has a 1" tweeter and a 3.5" woofer on the front and a passive radiator on the left and right sides to help create an immersive soundstage.
The MusicCast 20 can be controlled wirelessly with the MusicCast app, which is available for compatible Android and iOS devices. You can also pair two MusicCast 20 speakers together for stereo sound, or with other MusicCast-compatible components for music streaming throughout the house or for wireless surround sound. The speaker is wall mountable with a rear 1/4"-20 thread. Note: Content acquired via certain apps may require subscription to a service. Not all services are available in all areas. - MusicCast Wireless Multi-Room Streaming
- Expand or begin your MusicCast wireless multi-room setup. Stream and control multiple rooms with the MusicCast app for iOS and Android.
- Hands-Free Operation with Your Amazon Alexa-Enabled Devices
- Amazon Alexa can be used to control your MusicCast products, allowing you to play music on the MusicCast 20 without lifting a finger.
- Compact Design
- The MusicCast 20 is engineered to be small enough to work in nearly any space without compromising sound quality, thanks to its aluminum cone woofer and dual passive radiators.
- Wall Mountable
- The speaker can mount to your wall with a 1/4"-20 screw.
- Various Configuration Options with Multiple Units
- Use two MusicCast 20 speakers for wireless stereo sound or add a pair to a MusicCast surround-capable receiver to provide wireless surround speakers in your home theater system. After a future firmware update, you'll be able to add a MusicCast SUB 100 to a pair of MusicCast 20 speakers to create a 2.1-channel system.
- Additional Features
-
- Designed to fit your space and d
|
Upload User Manual
Have you got an user manual for the Yamaha MusicCast 20 Wireless Speaker Pair and MusicCast SUB 100 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Yamaha MusicCast 20 WX-021 Wireless Speaker (White)
| | | Power Output | 40 W | | Drivers | 1 x 1" / 2.5 cm Tweeter
1 x 3.5" / 8.9 cm Woofer | | Passive Radiators | 2 | | | | Wi-Fi Standards | Wi-Fi 5 (802.11ac) | | Wi-Fi Bands | 2.4 GHz, 5 GHz | | Ethernet | 1 x 10/100 Mbps | | USB | 1 x USB Type-A (Service) | | | | Supported Audio Formats | AIFF, FLAC, WAV | | Supported Sample Rates | Up to 192 kHz / 24-Bit | | | | Dimensions | 6.0 x 7.4 x 5.1" / 15.2 x 18.7 x 13.0 cm | | Weight | 4.9 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 11.0 x 7.5 x 7.5" | - Yamaha MusicCast SUB 100 8" 130W Wireless Subwoofer
| | | Driver | 1x 8" / 203.2 mm cone woofer | | Output Power | 130 W @ 5 Ohms, 100 kHz | | Frequency Response | 28 to 300 Hz | | | | Wireless | Dual-band 2.4/5 GHz 802.11a/b/g/n/ac Wi-Fi | | Wi-Fi Security | WEP, WPA2-PSK (AES), Mixed Mode | | Wired | 1 x 1/8" / 3.5 mm aux input | | Other Connections | 1 x Ethernet | | Input Sensitivity | 60 mV | | Input Impedance | 25 kOhms | | | | Magnetic Shielding | None | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption (Active) | 60 W | | Power Consumption (Standby) | Wireless Network On: <1.5 W
Wired Network On: <1.3 W
Eco Mode: <0.1 W | | Dimensions (W x H x D) | Approximately 9.88 x 14.63 x 6.5" / 25.08 x 37.15 x 16.51 cm | | Weight (Approximate) | 27.6 lb / 12.5 kg | | | | Box Dimensions (LxWxH) | 20.0 x 19.0 x 14.0" |
