User Manual for Yamaha MusicCast BAR 400 200W 3.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the Yamaha MusicCast BAR 400 200W 3.1-Channel
- Product category: Soundbar Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Soundbar Speakers
 |
User manual for the Yamaha MusicCast BAR 400 200W 3.1-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

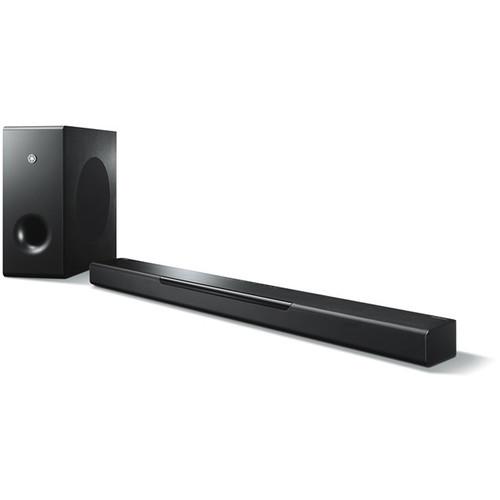

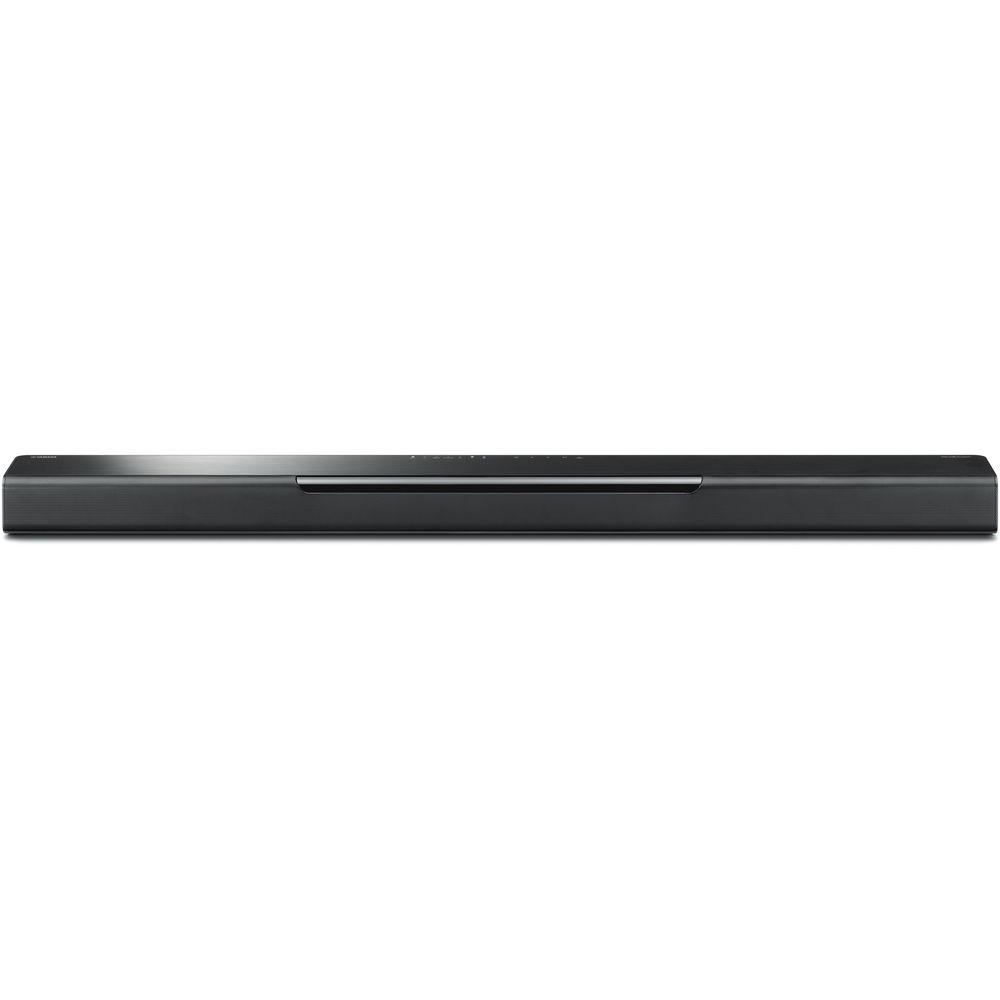

Product description How to Choose a Soundbar System Read More Enjoy enhanced dialogue clarity with the Yamaha MusicCast BAR 400 200W 3.1-Channel Soundbar System. The soundbar is equipped with two 1" tweeters and four 1.75" woofers, and features a subwoofer with two 6.5" cones. It outputs up to 200W of total audio power for an augmented listening experience compared to your display's built-in speakers. Built-in Bluetooth and AirPlay connectivity allow you to wirelessly stream music from other compatible devices such as smartphones or tablets.

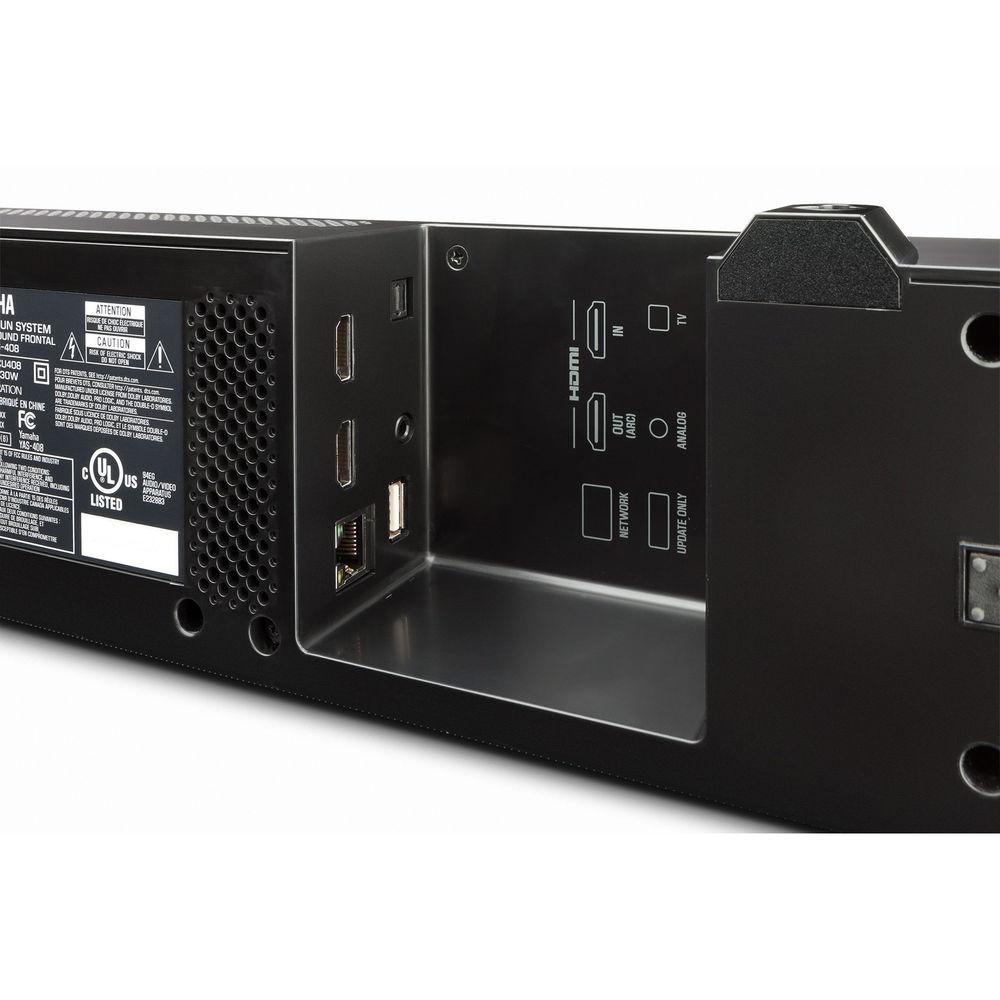

The MusicCast BAR 400 features HDMI and optical inputs for interfacing digital audio sources, and an 1/8" input for connecting legacy devices. You can pass-through HDR UHD content over HDMI through the soundbar, ensuring no loss in video quality. A remote control is also included for added convenience. - Designed for Immersive Sound
- DTS Virtual:X virtual 3D surround sound is designed to create more spacious, lifelike sound for all your favorite entertainment, particularly multichannel content, including DTS- and Dolby-encoded soundtracks.
- Engineered for Clear Dialogue and Details
- Clear voice helps make narration and dialogue more distinct, while keeping the overall sound quality intact.

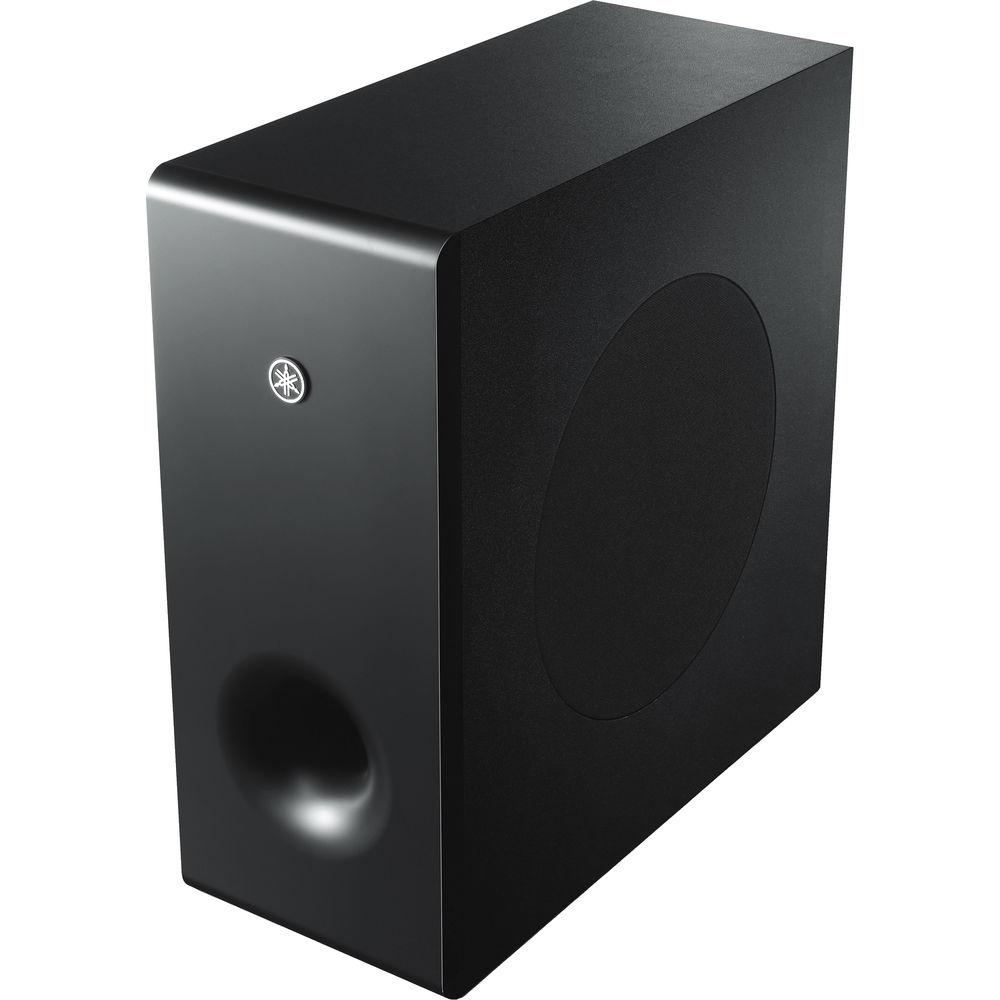

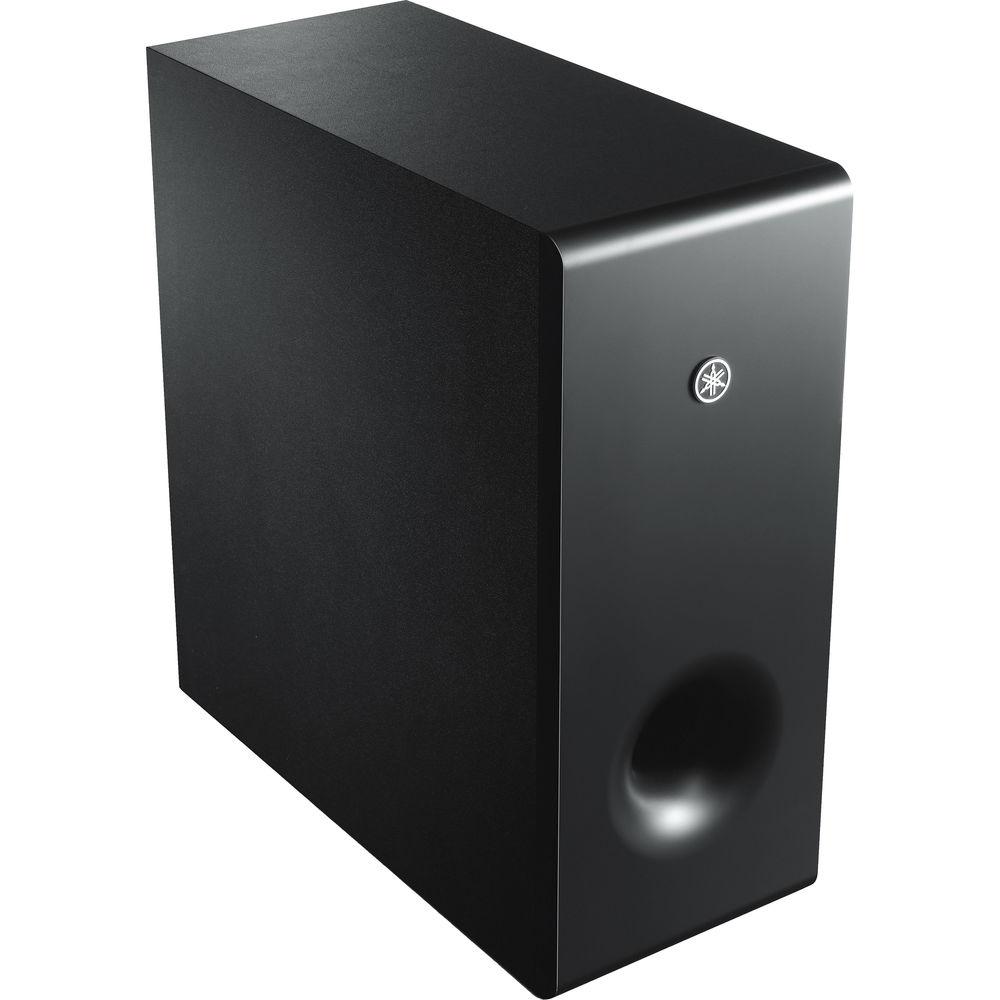

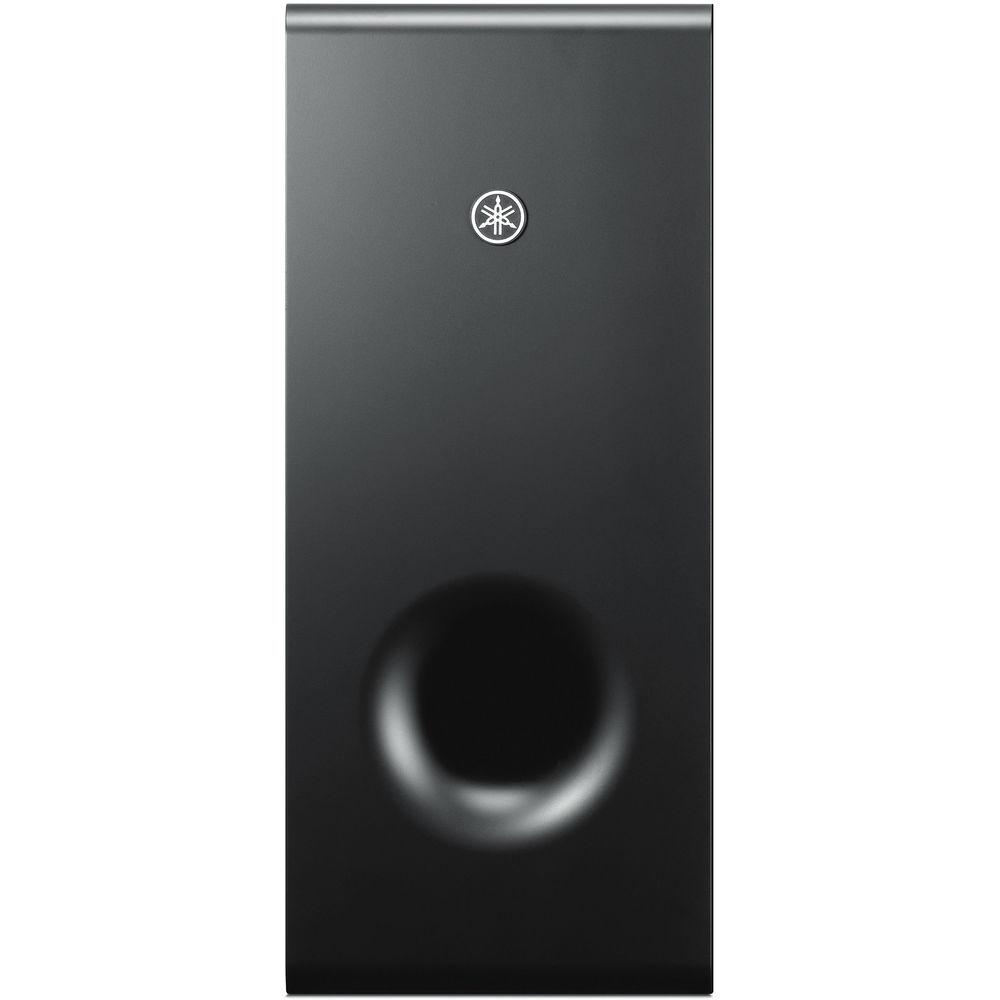

- Wireless Subwoofer
- With wireless connectivity to the soundbar, the subwoofer can be placed virtually anywhere in the room.

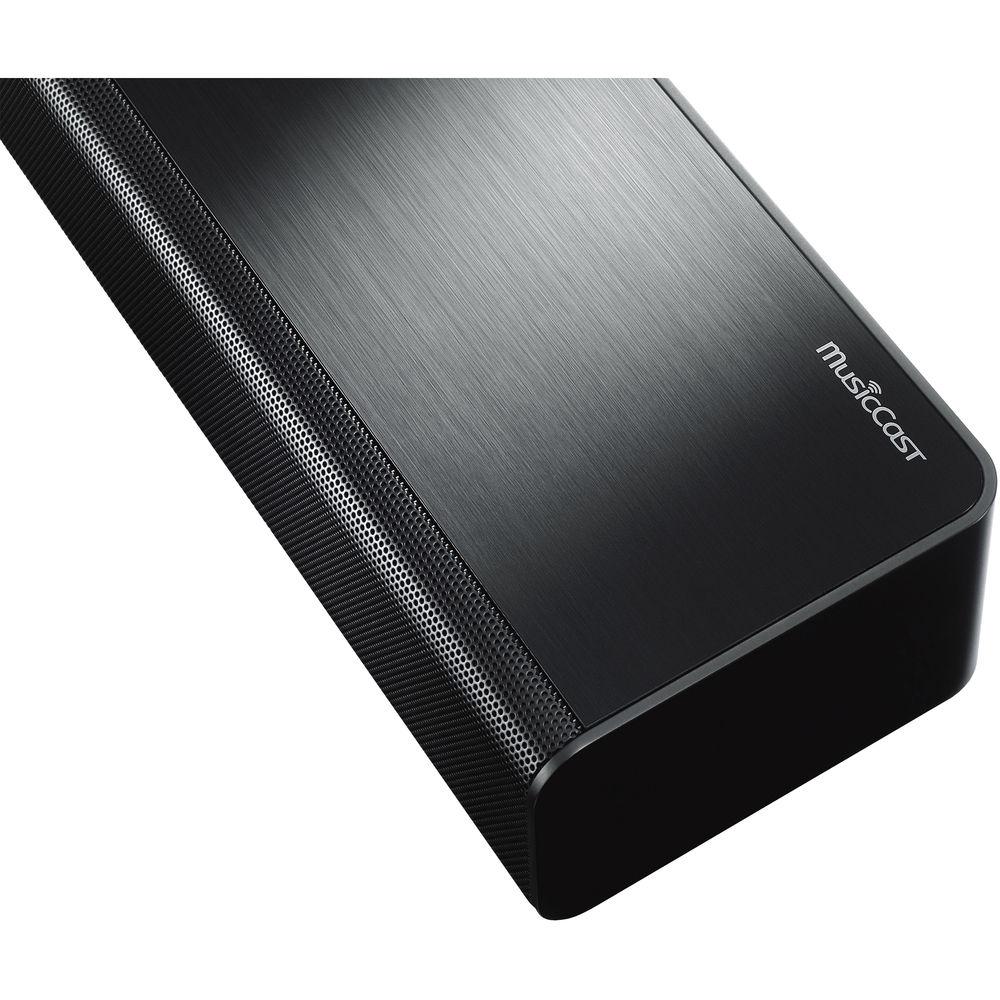

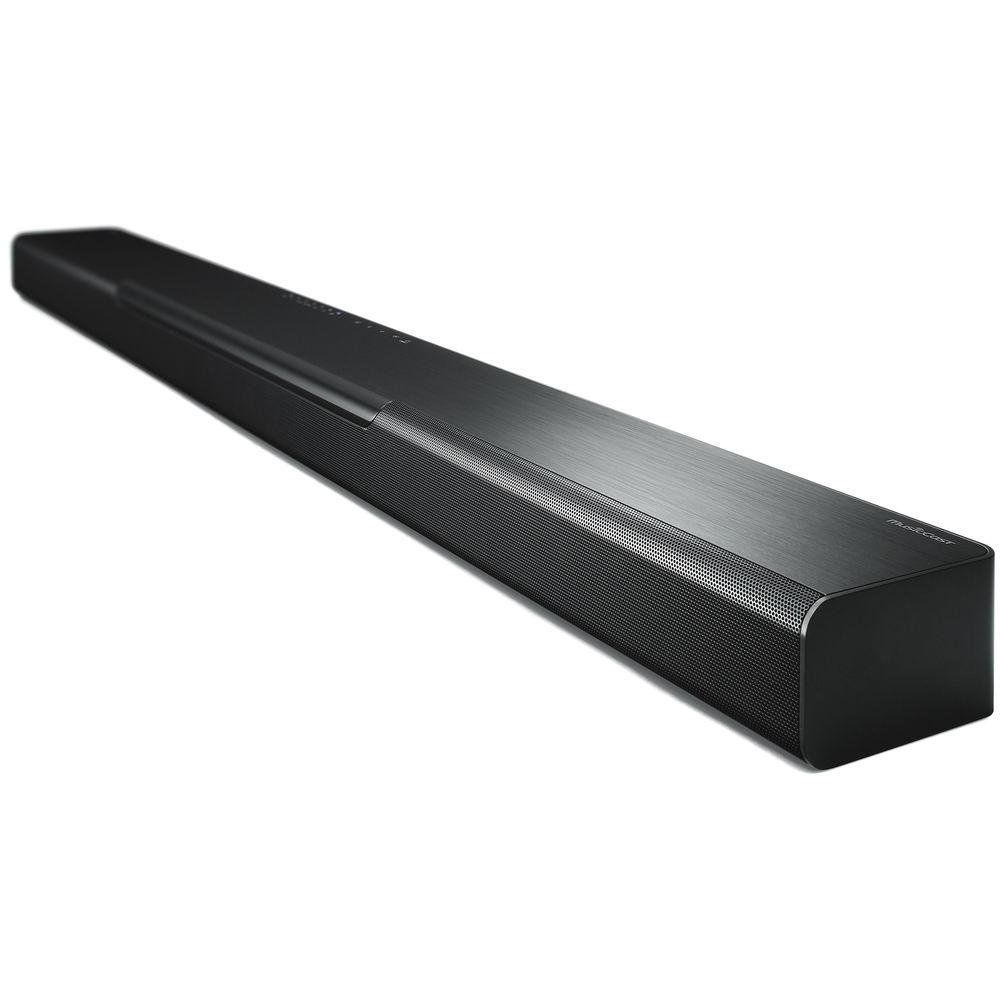

- Slim Design
- The soundbar features a slim design at under 2.5" to fit discreetly in front of your display on a cabinet, or underneath it wall-mounted.
- Convenient Connections
- For audio from your display, connect with optical or HDMI for UHD, HDR, and Dolby Vision pass-through. For music, connect with Bluetooth, AirPlay, or Spotify Connect with the MusicCast app.
- MusicCast Streaming
- The MusicCast Controller app allows you to stream your favorite music services, downloads, or music from your computer and other devices straight to the MusicCast BAR 400.
- MusicCast Surround
- Add a pair of MusicCast 20 speakers or one or a pair of MusicCast 50 speakers for wireless rear surround sound.
- MusicCast Wireless Multi-Room Audio
- Connect all your MusicCast devices to the same network and you can share audio throughout the home.
- Amazon Alexa Voice Control
- Use any Amazon Alexa device with the Smart Home skill and the MusicCast skill to play music, link rooms, and more.
- Additional Features
-
- Compressed Music Enhancer
- Bass Extension
UPC: 027108957487 In the Box Yamaha MusicCast BAR 400 200W 3.1-Channel Soundbar System Limited 2-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MusicCast BAR 400 200W 3.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha BAR 400 Specs | | | Configuration | 3.1-channel | | Woofers | 4x 1.75" / 44.5 mm woofers | | Tweeter | 2x 1" / 25.4 mm tweeters | | Subwoofer | 2x 6.5" / 165.1 mm cone woofers | | Power Output | Total: 200 W
Soundbar, Subwoofer: 100 W each | | Amplifier Type | Not specified by manufacturer | | Frequency Response | Not specified by manufacturer | | | | Bluetooth Version | 4.2 + EDR | | Bluetooth Profile Support | A2DP, AVRCP | | Wi-Fi | Yes, with MusicCast Surround | | AirPlay | Yes | | | | Input | 1 x HDMI
1 x optical TOSLINK
1 x 1/8" / 3.5 mm | | Output | 1 x HDMI | | ARC (Audio Return Channel) | Yes | | CEC | Yes | | HDCP Version | 2.2 | | Maximum Resolution Supported | UHD 4K 50/60 Hz | | HDR Support | HDR10, Dolby Vision, HLG | | File Formats | MP3, WMA, MPEG-4 AAC up to 48 kHz / 16-bit, ALAC up to 96 kHz / 24-bit, FLAC/WAV/AIFF up to 192 kHz / 24-bit | | Audio Formats | DTS Virtual:X, DTS Digital Surround, Dolby Digital, Dolby Pro Logic II | | | | Power Requirements | Not specified by manufacturer | | Power Consumption (Active) | Soundbar: 30 W
Subwoofer: 19 W | | Power Consumption (Standby) | Soundbar, CEC & Network Standby Off: 0.4 W
Soundbar, CEC On, Network Standby Off: 0.5 W
Soundbar, CEC Off, Network Standby On: 1.9 W
Soundbar, CEC & Network Standby On: 2.1 W
Subwoofer: 1.3 W | | Dimensions (W x H x D) | Soundbar: 38.63 x 2.38 x 4.38" / 98.11 x 6.03 x 11.11 cm
Subwoofer: 7.13 x 16.38 x 16" / 18.1 x 41.59 x 40.64 cm | | Weight | Soundbar: 6 lb / 2.72 kg
Subwoofer: 21 lb / 9.53 kg | | | | Package Weight | 33.7 lb | | Box Dimensions (LxWxH) | 40.75 x 22.75 x 10.0" |
