User Manual for Yamaha MY16-MD64 MADI Multi-Channel Audio Networking Expansion Card Click to enlarge the picture
Contents of the user manual for the Yamaha MY16-MD64 MADI Multi-Channel Audio Networking
- Product category: Digital Mixer Accessories Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Digital Mixer Accessories
|
User manual for the Yamaha MY16-MD64 MADI Multi-Channel Audio Networking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

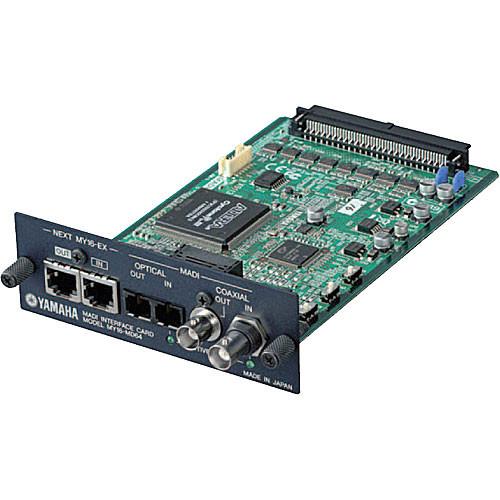

Product description The Yamaha MY16-MD64 MADI Multi-channel Audio Networking Expansion Card is ideal for expanding your current installation up to 64 channels in conjunction with MY16-EX expansion cards. Each additional MY16-EX card can add 16 channels (1 card for 32 channels, 2 cards for 48 channels and 3 cards for 64 channels).
This card provides bi-directional transfer of up to 64 channels with coaxial connections for runs up to 100 meters and optical connections for runs up to 2,000 meters.
With its versatility, stability, and reduced installation and maintenance costs, it's obvious to see why many production, broadcasting and recording facilities are using MADI interfaces to transmit accurate audio data over long distances. - Coaxial connections allow for runs up to 100 meters
- Optical connections allow for runs up to 2,000 meters
- Failsafe redundancy automatically switches from optical to coaxial inputs and outputs in case of accidental disconnection
- Optical interface provides total isolation from electromagnetic noise and interference
- Compatible with Yamaha devices that accept mini-YGDAI expansion cards and MADI devices from other manufacturers
UPC: 086792881980 In the Box Yamaha MY16-MD64 MADI Multi-Channel Audio Networking Expansion Card 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha MY16-MD64 MADI Multi-Channel Audio Networking Expansion Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha MY16MD64 Specs | Connections | Coaxial BNC x 2
MADI Optical x 2
RJ45 x 2 (for MY16-EX) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.9 x 6.9 x 3.6" |
