User Manual for Yamaha NS-AW592 All-Weather Speakers Click to enlarge the picture
Contents of the user manual for the Yamaha NS-AW592 All-Weather Speakers
- Product category: Outdoor Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Outdoor Speakers
|
User manual for the Yamaha NS-AW592 All-Weather Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

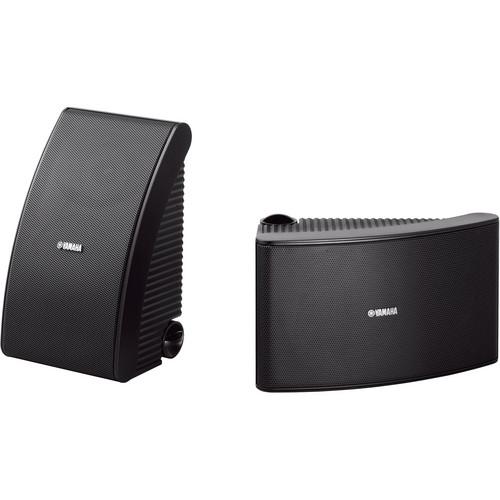

Product description The NS-AW592 from Yamaha is a robust all-weather speaker designed to provide high-quality performance in both indoor and outdoor applications. The unique angled cabinet blends into a variety of decors, and has an adjustable bracket that allows customized installation on walls, ceilings, floors, and more. The cabinet features a 6.5" woofer and a 1" dome tweeter to provide a wide frequency response. The woofer and tweeter are time-aligned for precise imaging, while a waveguide and front baffle deliver a wide dispersion area.
The cabinet is weatherproof, and is specially treated to resist water and UV rays. The woofer and tweeter are also waterproof. The powder-coated aluminum speaker grilles protect the speaker elements while providing a clean look. The speaker has weather-resistant 5-way binding post terminals for connection to a variety of sound systems. - Unique angled cabinet blends into a variety of decors, and has an adjustable bracket that allows versatile installation on walls, ceilings and floors. A set of rubber feet are also provided for shelf or desktop placement
- High-grade weatherproof cabinet resists water and UV rays
- Waterproof 6.5" woofer and 1" dome tweeter provide a wide frequency response, and are time-aligned for precise imaging
- Waveguide and front baffle deliver a wide dispersion area
- Powder-coated aluminum speaker grilles protect the speaker elements while providing a clean look
- Weather-resistant 5-way binding post terminals for connection to a variety of sound systems
UPC: 027108934167 In the Box Yamaha NS-AW592 All-Weather Speakers (Black, Pair) Mounting Bracket Rubber Feet 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha NS-AW592 All-Weather Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha NS-AW592 Specs | Type | 2-Way Acoustic Suspension | | Woofer | 6.5" (160mm) Waterproof Cone | | Tweeter | 1" (25mm) Fluid-Cooled Coated Soft Dome Tweeter | | Frequency Response | 55Hz - 20kHz | | Input Power | 50W (Nominal)
150W (Max) | | Impedance | 6 Ohms | | Sensitivity | 88dB | | Crossover | 5kHz | | Connectors | Weather-Resistant 5-Way Binding Post Terminals | | Construction | High-Impact Polystyrene with Powder-Coated Aluminum Grille | | Dimensions (WxHxD) | 8.1 x 13.4 x 6.75" (206 x 340 x 170mm) | | Weight | 5.3 lbs (2.4kg) | | | | Package Weight | 14.95 lb | | Box Dimensions (LxWxH) | 16.221 x 15.197 x 11.339" |
